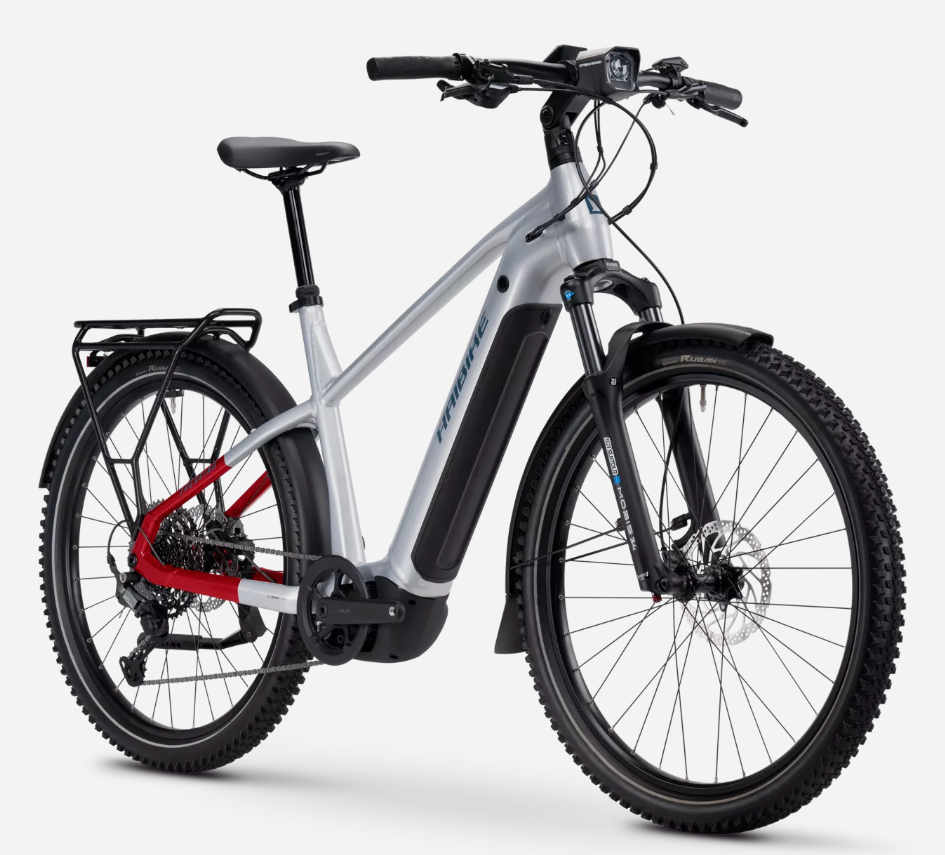

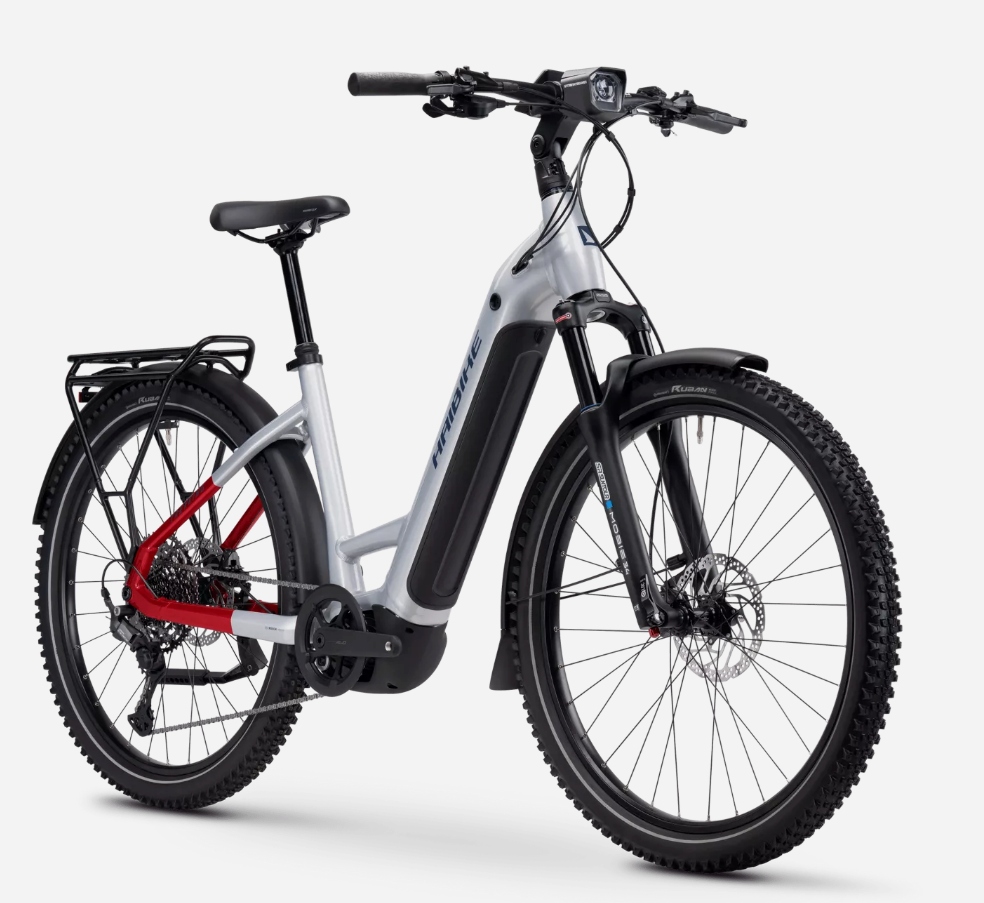

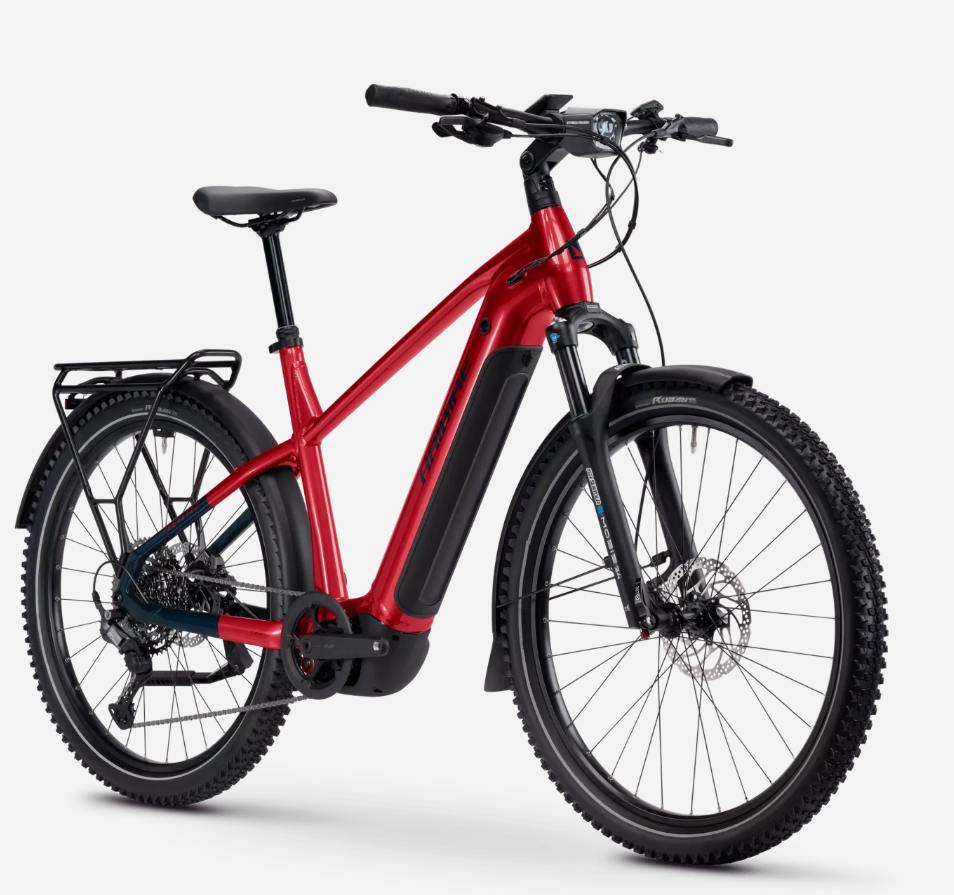

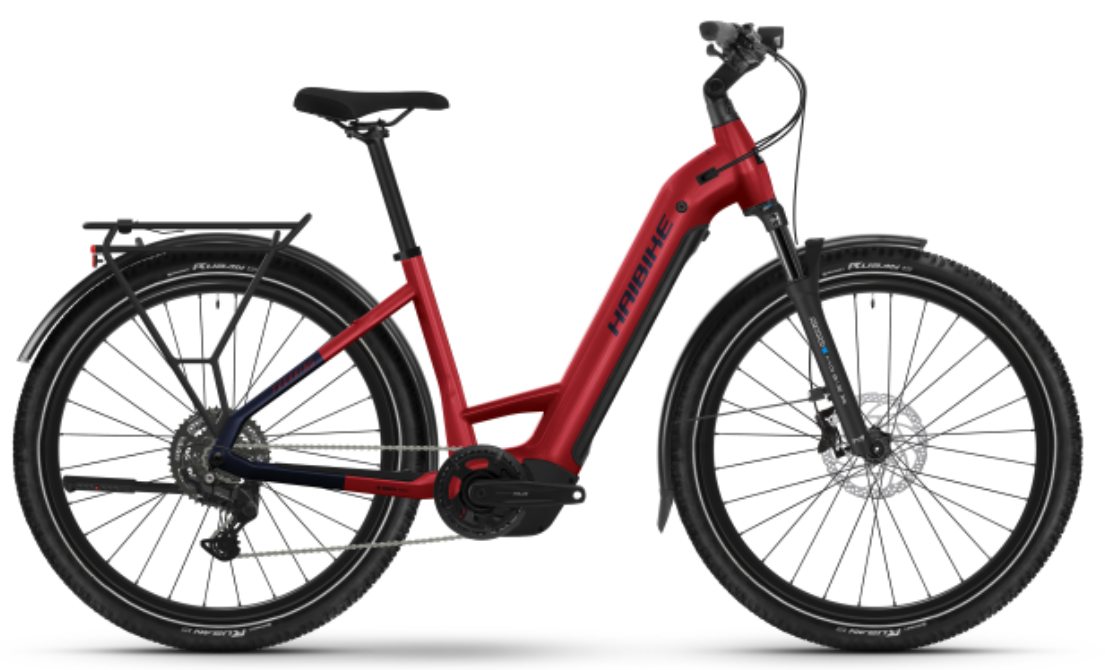

Haibike TREKKING 7 Ebike
Haibike TREKKING 7 Ebike
Regular price
£3,799.00 GBP
Regular price
Sale price
£3,799.00 GBP
Unit price
/
per
Taxes included.
Shipping calculated at checkout.
Couldn't load pickup availability
FREE GIFT
Haibike TREKKING 7 Ebike
Hardtail Trekking models for practical everyday use. A relaxed ride to work, off shopping in town, a ride through the woods after work, or a tour that spans several days, no matter the journey, our eTrekking bikes are ready for any adventure.
- New Aluminum frame platform
- Bosch GEN5 Performance Line CX motor
- 800Wh battery
- SR Suntour Mobie34 DS fork
- Shimano CUES 11 speed groupset
- Shimano MT410 brakes
- Yak25 wheelset
- 27.5" wheelset
Battery
Bosch
Battery brand
Bosch
Battery capacity
800 Wh
Charger
Bosch Charger 4A 220-240V
Display
Bosch Kiox 500 + LED Remote
E-bike system
Bosch
Maximum support speed
25 km/h
Motor
Bosch Performance Line CX
Motor torque (nm)
85 Nm
Cassette
Shimano CUES CS-LG400-11, HG
Chain
Shimano Chain CN-LG500 9-11s, LINKGLIDE
Crankset
Miranda Crius ISIS Crankset + Chainring Spiderless BDU38
Derailleur Rear
Shimano CUES RD-U6000 10/11s, Shadow+
Frame
Low Aluminium Uni
Frame material
Aluminium
Frame size
38 cm
Gear
Shimano Derailleur
Max permissible weight (Rider, Cargo and Bike)
150 kg
Number of gears
11
Shifter Right
Shimano Triggershift CUES SL-U6000-11R, Rapidfire+
Front Fork
Suntour MOBIE34-D-Boost, 2CR, Coil, 100 mm
Brake light
No
Brake Rear
Shimano Hydraulic Disc brake Deore BR-MT410, 2 pistons, resin pad, 180 mm
Front brake
Shimano Hydraulic Disc brake Deore BR-MT410, 2 pistons, resin pad, 180 mm
Front Light
Trelock Skybeamer 300, 6-24V
Handgrip brand
XLC
Handlebar
XLC Riser Bar JD-MTB579A, Dia. 31.8 mm, Rise: 15 mm
Maximum rear carrier weight
27 kg
Pedal
VP VPE-527 Alloy w/ Reflector
Rear Light
Spanninga Aerline 2.0 Brake
Saddle
Selle Royal Essenza+
Seatpost
Limotec Dropperpost A1H Dropper, Dia. 34.9 mm, Travel: 125 mm
Rear wheel size
27.5
Rim
Schurmann YAK Disc 25-584 32H w/ single eyelets
Tyre
Schwalbe Johnny Watts w/ reflective line 60-584
Tyre size ETRTO
60-584
| Frame size | S | M | L | XL | |
|---|---|---|---|---|---|
| Head Tube Length (Mm) | 140 | 140 | 155 | 170 | |
| Chainstay Length (Mm) | 465 | 465 | 465 | 465 | |
| Reach (Mm) | 422 | 432 | 443 | 462 | |
| Head Tube Angle | 68 | 68 | 68 | 68 | |
| Seat Tube Angle | 74 | 74 | 74 | 74 | |
| Top Tube Length In Millimeters | 610 | 620 | 635 | 658 | |
| Wheel Size | 27.5" | 27.5" | 27.5" | 27.5" | |
| Stack Height (Mm) | 656 | 656 | 670 | 684 | |
| Wheelbase (Mm) | 1171 | 1181 | 1198 | 1223 | |
| Seat Tube Length (Mm) | 400 | 450 | 500 | 550 | |
| Bottom Bracket Drop (Mm) | 60 | 60 | 60 | 60 |
