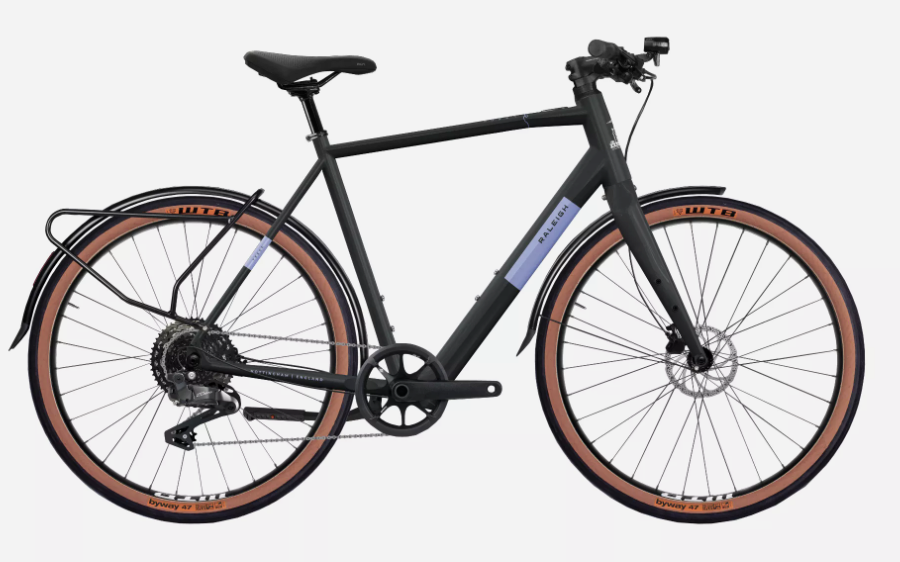

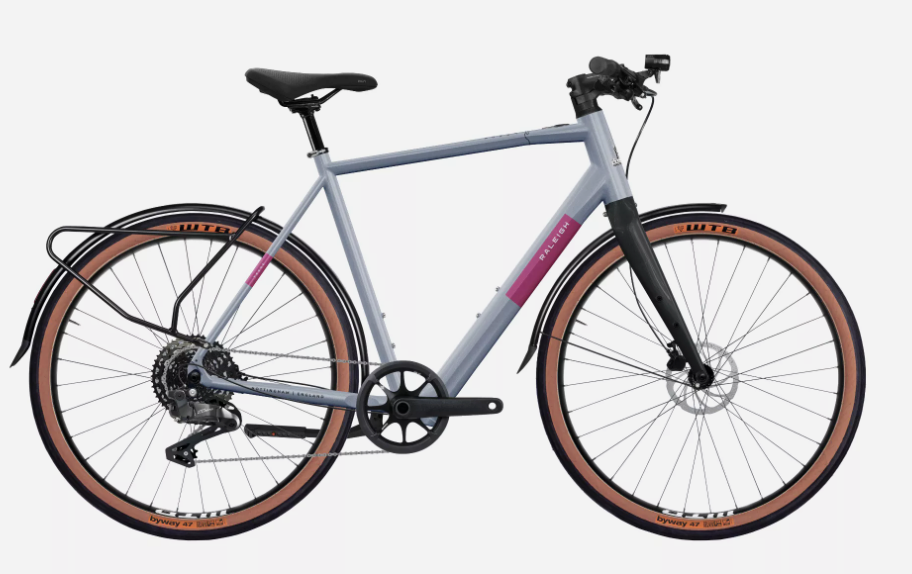

Raleigh TRACE 700C Ebike
Raleigh TRACE 700C Ebike
Regular price
£2,099.00 GBP
Regular price
Sale price
£2,099.00 GBP
Unit price
/
per
Taxes included.
Shipping calculated at checkout.
Couldn't load pickup availability
Raleigh TRACE 700C Ebike
The ever popular Trace is back. With its lightweight 6061 alloy frame, Mahle X35 hub motor, range extender compatibility, Shimano Alivio 9 speed gearing and Tektro R280 hydraulic disc brakes. Now in 2 new exciting colourways.
- 6061 Aluminum frame
- Carbon fork
- Mahle X35 Rear hub motor
- 250Wh Battery
- Range extender compatibility (Available through your Mahle UK distributor)
- Shimano Alivio 9 speed gears
- Front and rear light set
- Tektro R280 Hydraulic disc brakes
- 700c Wheels
- Rear carrier
Front Light
AXA Compact Line 35
Mudguards
Curana full mudguard set
Rear Carrier
Low profile Rear Carrier
Rear Light
Integrated into MudguardWheels
Front Tyre
700x40c WTB ByWAY tanwall
Front Wheel
700c double side wall rim with thru axle aluminium hub 28H
Inner Tubes
622x40 schrader valve
Rear Tyre
700x40c WTB ByWAY tanwall
Rear Wheel
700c double side wall rim with X35 motor hub 32H
Rim
700c double side wall rim with thru axle aluminium hub 28HDrivetrain
Bottom Bracket
Pressfit BB 86mm
Cassette
Shimano HG200 9 speed 11-34t
Chain
KMC x9 9 speed chain
Crankset
Aluminium crank with direct mount chainring and Chainguard 40t 170mm
Drivetrain Chain
Gear Shift Derailleur Gear
Pedals
Aluminium Platform Pedal
Rear Derailleur
Shimano Alivio 9 speed rear derailleurControls
Front Brake
Tektro R280 Flat Mount Hydraulic Disc Brake, 160mm
Number of Gears
9
Rear Brake
Tektro R280 Flat mount hydraulic disc brake, 160mm
Rear Shifter
Shimano Acera rapidfire 9 speed shifterComfort
Grips
XLC Comfort Grips
Handlebar
Aluminium Handlebar 640mm
Saddle
Selle Royal Vivo
Seatpost
Aluminium Seatpost 27.2x350mm
Seatpost Clamp
Aluminium Clamp 31.9
Stem
Aluminium Stem XS/S-80mm, M-90mm, L-100mmE-System
Batter MAHLE X35 internal battery 250Wh
Battery Charger Type
MAHLE X35 2A
Battery Charging Time
4 hours
Battery Internal
Battery Watts per Hour 250Wh
Display
MAHLE X35 internal battery 250Wh
Max Range
50 miles
Motor
MAHLE X35 rear hub
Motor Position
Rear Wheel
Sensor
MAHLE SensorFrameset
Electric
Yes
Fork Material
Carbon
Fork Type
Rigid tapered carbon fork
Frame Material
Aluminium 6061
Frame ShapCrossbar
Total Bike Weight
16.5kg
