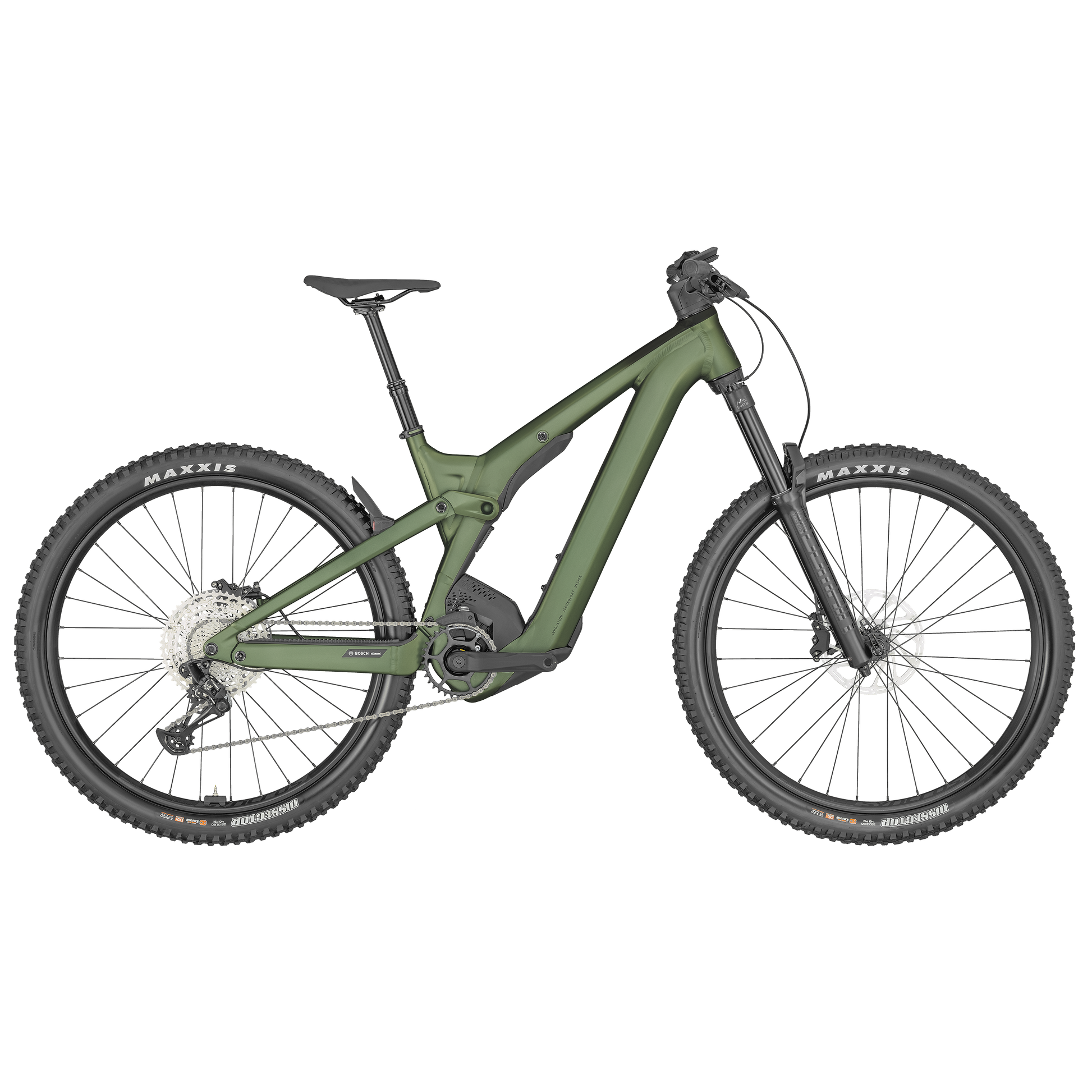

SCOTT PATRON ERIDE 930 BIKE
Model : 290562
The Patron eRIDE 930 was designed as a system optimized for all day trail riding. Supreme integration and meticulously selected geometry paired with a powerful new Bosch drive unit deliver much more than a great ride. What you get, rather, is a sublime experience up and down the mountain, time and time again. Patron eRIDE - boss the trails.
FrameAlloy Frame & LinkVirtual 4 link kinematic VLK29x2.6 / Boost 148x12mm UDH160mm travel / Bosch Gen4 / Integr. removable Battery1.8" Headtube, Central Kickstand MountIntegr. Cable
TravelFront: 160mm / Rear: 160mm
ForkRockShox Domain Air15x110mm QR axle / 1.8" Tapered SteererReb. Adj. / 2 Modes / Lockout / 160mm travel / E-Bike
Rear ShockX-Fusion NUDE eRIDE TrunnionSCOTT custom w. travel / geo adj.3 modes: Lockout-Traction Control-DescendReb. Adj.Travel 160-115-Lockout / 205x60mm
Remote SystemSCOTT TwinLoc 2 TechnologySuspension & Dropper Remote3 modes
Drive UnitBosch Performance CXEU: 25kmh / INT: 20mph
BatteryPowerTube 625Wh
DisplayBosch LED Remote
Charger4A Charger
Rear DerailleurSRAM NX Eagle / 12 Speed
ShiftersSRAM SX Eagle Single Click
CranksetFSA CK-745 165mm / 34T
ChainringSRAM Eagle 34T DM / Steel
ChainSRAM SX Eagle
CassetteSRAM PG1210 / 11-50 T
BrakesSRAM DB8 4 Piston Disc
RotorCenterline CL Rotors 200mm F&R
HandlebarSyncros Hixon 2.0 / Alloy 6061D.B.12mm rise / 9° / 780mmSyncros Endurance lock-on grips
H'stemSyncros AM2.0 / 6061 Alloy31.8mm / 4° / 1 1/8"
SeatpostSyncros Duncan Dropper Post 2.531.6mm / S size 125mm / M size 150mm / L size 170mm / XL size 200mm
SeatSyncros Tofino 2.5 Regular
HeadsetAcros / 1.8"ZS66 OD74 / integr. Cable
Hub (Front)Formula CL-811 / 15x110mm
Hub (Rear)Formula ECT-1481 / Boost 148x12mm
SpokesStainless Black
RimsSyncros MD30 / 32H / 30mm / Pin JointTubeless ready
Front TireMaxxis Dissector 29x2.6"120TPI Foldable BeadEXO+ / TR Tubeless ready3C Maxx Terra
Rear TireMaxxis Dissector 29x2.6"120TPI Foldable BeadEXO+ / TR Tubeless ready3C Maxx Terra
LightsSyncros integrated rear fender lightFront Light Cable pre-installed
Approx weights in KG26.1 (with tubes)
Approx weights in LBS57.54 (with tubes)
Max. System Weight128kgThe overall weight includes the bike, the rider, the equipment, and possible additional luggage.
