Frame Specifications

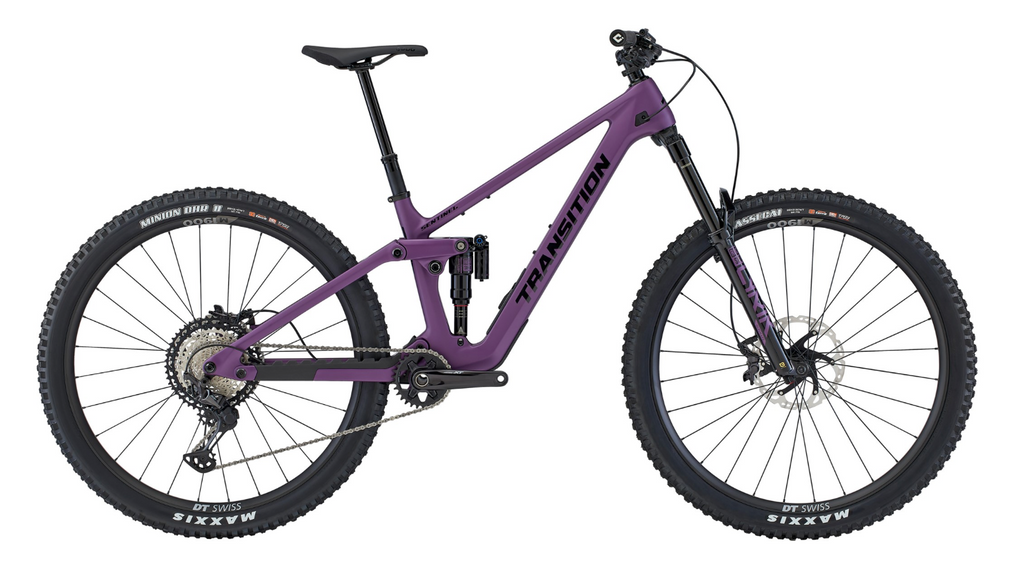

The new Sentinel may have a similar silhouette, but we've fully redesigned the frame with updated industrial design, features, and geometry to turn it up a notch. The leverage curve supports the bike higher in its travel, leaving plenty of room for big hits while keeping it light on its feet to remain nimble and quick everywhere else. This gives it the lively, sporty attitude felt in the Spur and Smuggler without sacrificing its capabilities in rougher terrain. New size specific chainstays and a 64 degree headtube angle keep riders balanced with great traction on climbs and descents. All of this creates a bike that encourages new riders to push their limits, while ensuring a seasoned pro feels none.
We took a step back and looked for ways to improve the Sentinel, not just for the sake of change but for real, tangible steps forward that riders will feel and experience.
We added internal frame storage in the downtube of our carbon frame. The B.O.O.M. Box (Burritos Or Other Munchies) is positioned below and isolated from the water-bottle cage mount. This allows you to leave your bottle installed in your cage while easily getting into the B.O.O.M. Box, reducing clutter and fuss on the trail. It also prevents noise by not placing any weight on the door itself. With an easy access lever and two supplied gear bags, riders can stow away snacks, tools, a tube, or anything else they want to have along for the ride.
| Rear Travel: | 150 mm (Compatible with 160mm) |
|---|---|
| Front Travel: | 160 mm |
| Wheel Size: | 29" or MX (XS 27.5 only) |
| Sizes: | XS, SM, MD, LG, XL, XXL |
| Frame Bearings: | 2x 6903, 2x 6902, 4x 6802, 2x 3802, 2x 6900 |
| Fork Axle To Crown: | 578 mm (Includes headset) (XS 560 mm) |
| Fork Offset: | 44 mm (XS 37 mm) |
| Rear Shock Size: | 205 × 60 mm (compatible with 205 × 65 mm) |
| Shock Hardware: | Trunnion Mount Top / 30 × 8mm Bottom |
| Headset (Top): | 44 mm Zero Stack |
| Headset (Bottom): | 56 mm Zero Stack |
| BB Shell: | 73 mm BSA Threaded |
| Chainline: | 52 - 55 mm |
| Rear Brake Mount: | 180 mm Post Mount, Max Rotor Size 223 mm |
| Rear Axle: | Transition Axle For UDH, 12 × 148 mm Spacing |
| ISCG Tabs: | ISCG05 |
| Seatpost Diameter: | 31.6 mm |
| Seat Clamp: | Carbon: 37.0 mm Alloy: 34.9 mm |
| Max Seatpost Insertion: | Carbon: X-Small 245 mm | Small 245 mm | Medium 275 mm | Large 315 mm | X-Large 345 mm | XX-Large 375 mm Alloy: X-Small 225 mm | Small 225 mm | Medium 260 mm | Large 310 mm | X-Large 325 mm | XX-Large 340 mm |
| Max Chainring Size: | 34T Standard Single Ring |
| Max Tyre Size: | 29" × 2.5" |
| Rear Shock Sag: | 150/60 mm: 16 - 20 mm (26 - 32%) |
