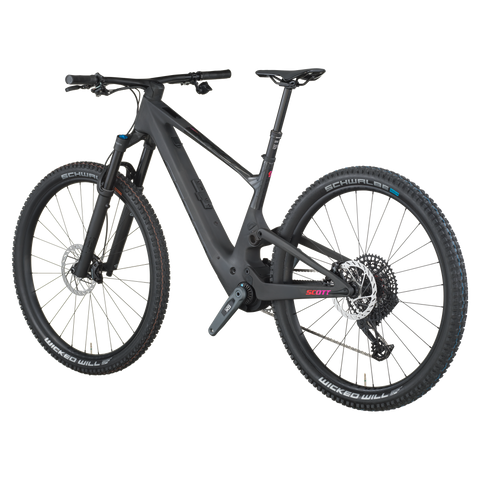

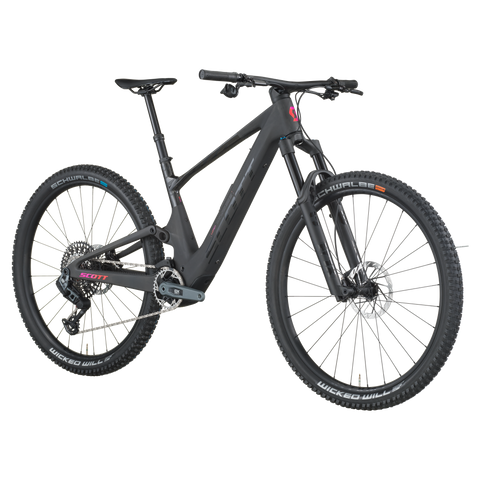

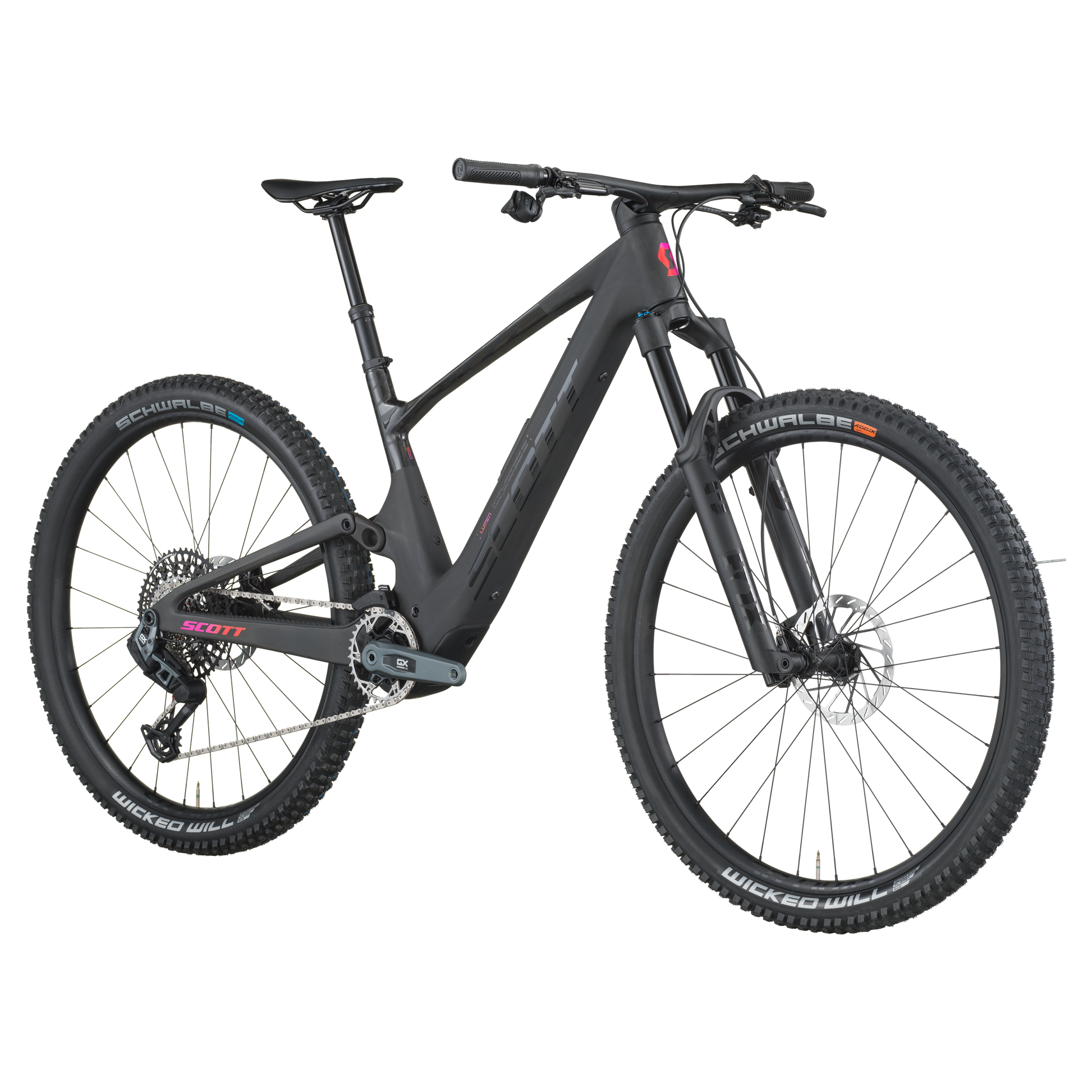

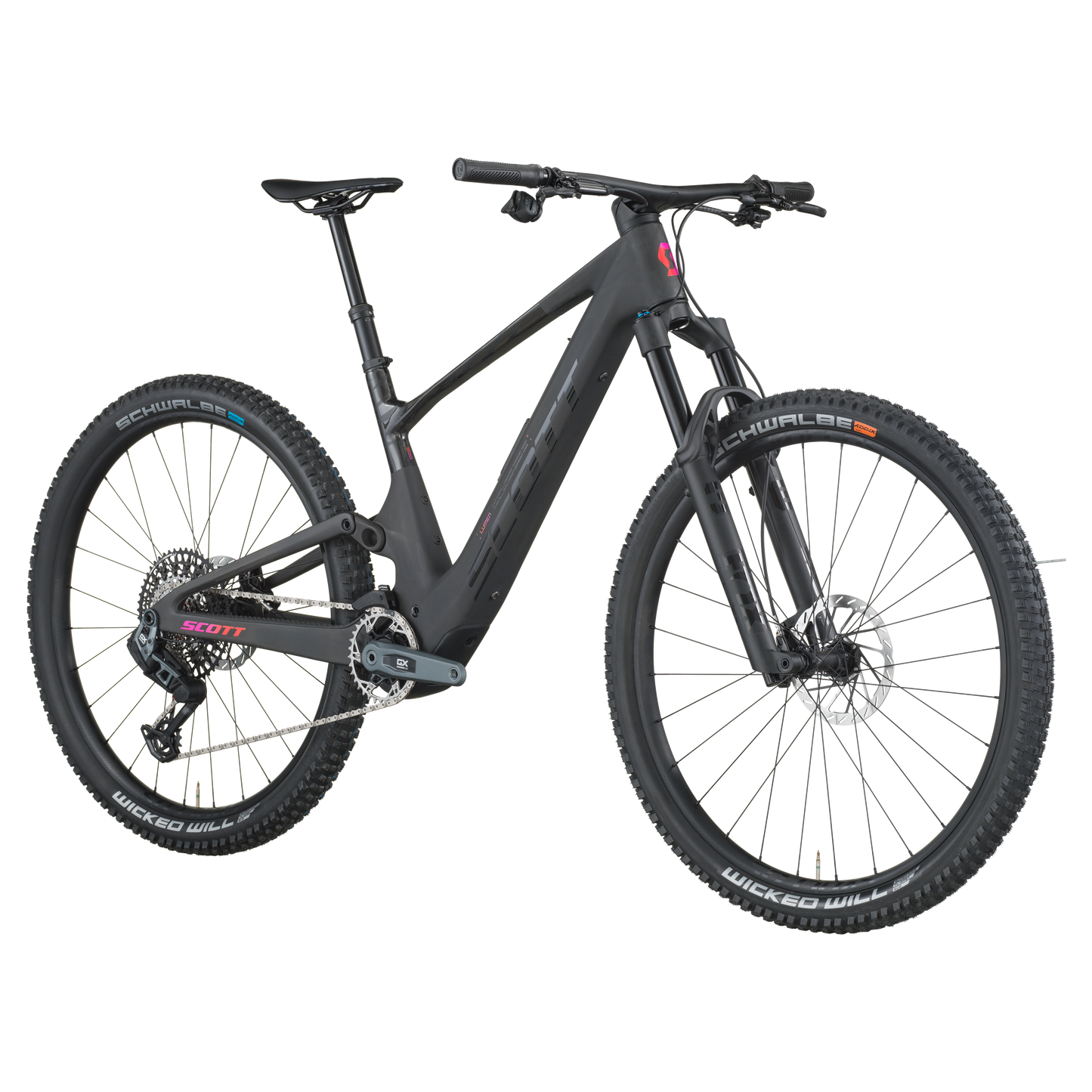

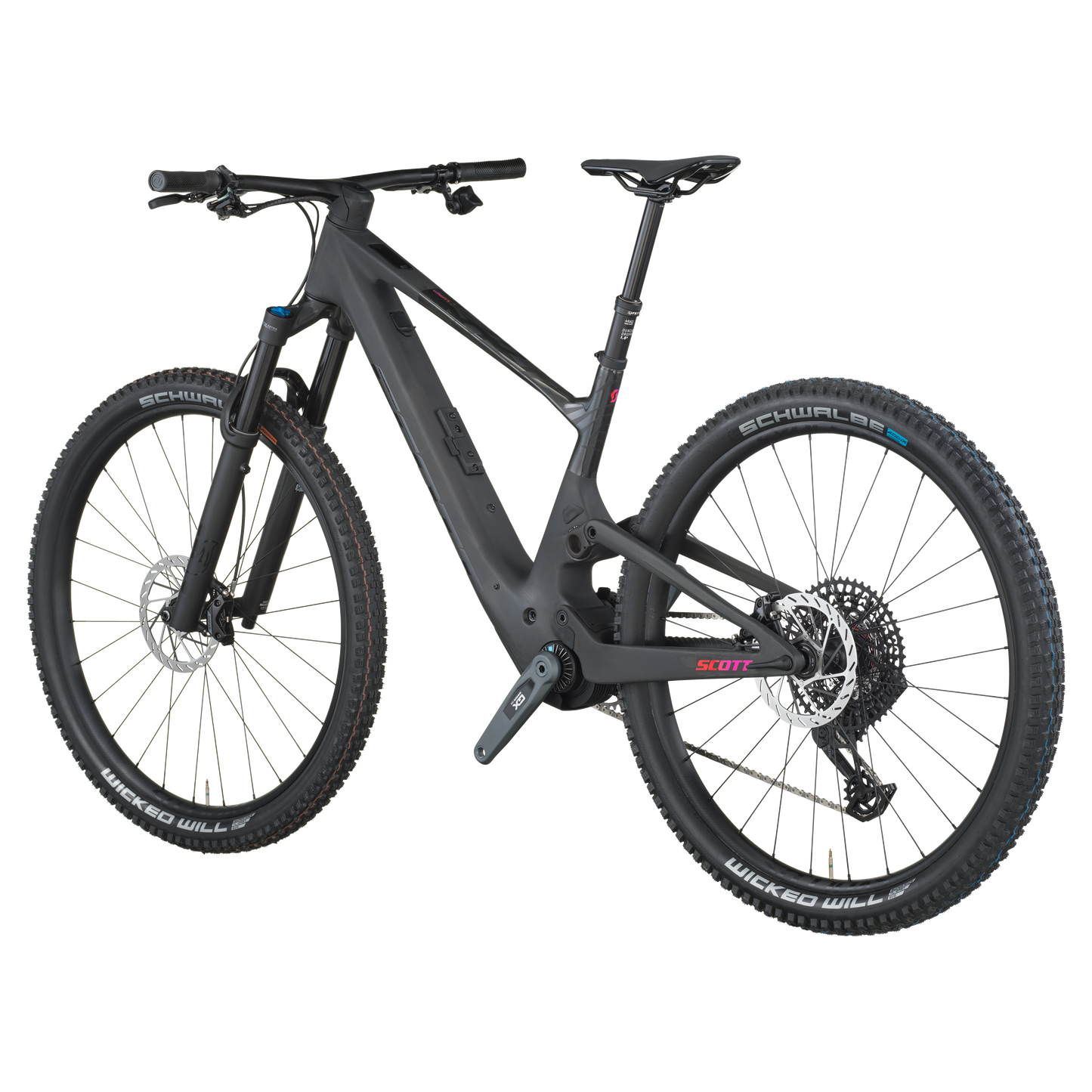

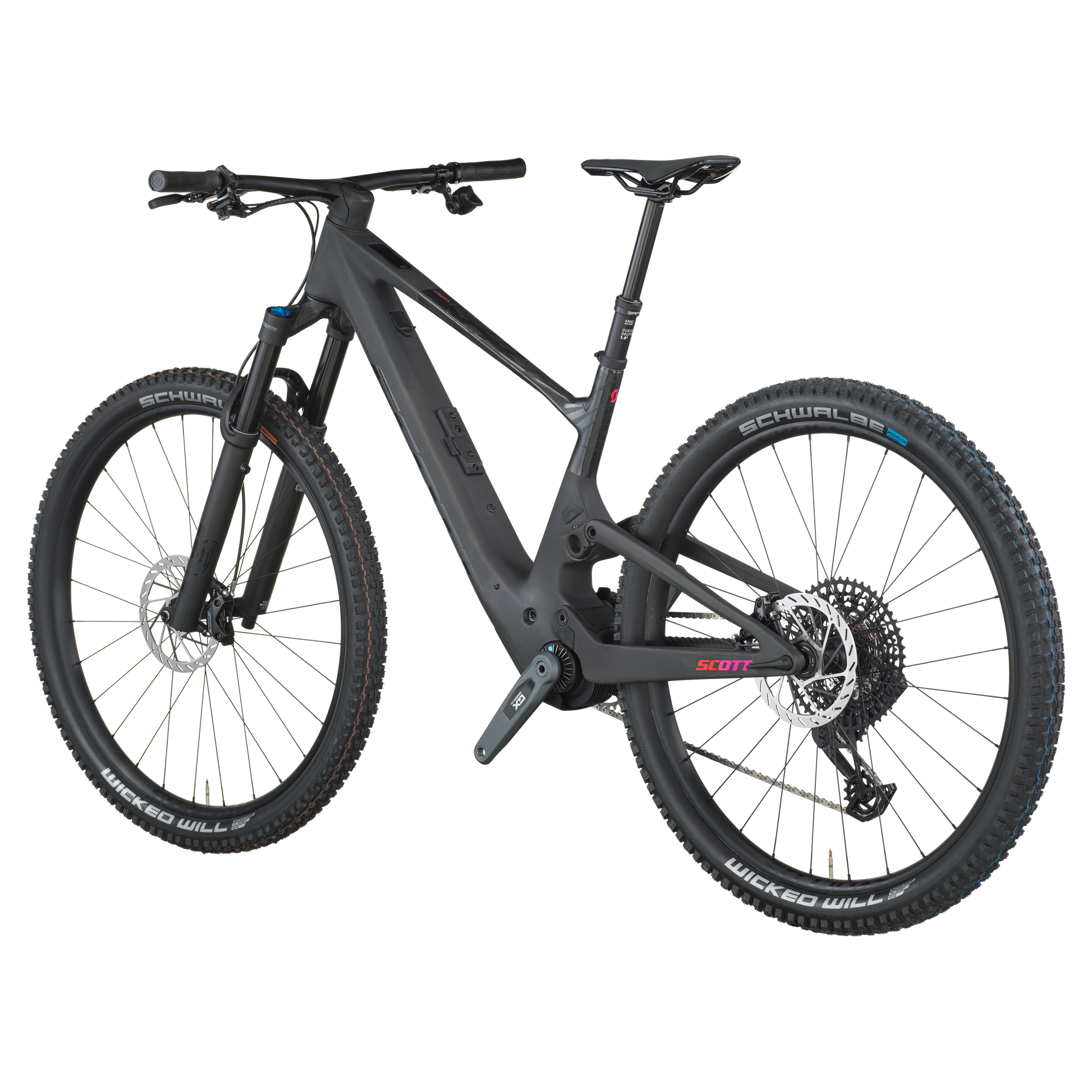

Lighting up your MTB ride has never felt more electrifying than on the updated Lumen 900 e-MTB. With more power and additional range in a lightweight, playful build, your ultimate downcountry trail bike happens to pack the pep to take your rides to the next level.
Updated from the previous Lumen 900 is TQ’s new HPR60 motor unit which boosts torque to 60Nn for 20% more thrust than before. It’s a dream upgrade that adds extra grunt and power to capitalize on the nimble, responsive, quick-handling traits riders love about the Lumen. Blast out of hairpins, crush monster climbs, and keep up with full-powered e-bikes on even the most challenging trails.
We built Lumen as the mountain biker’s e-bike. And fittingly, Lumen gets a bump up in range, so you can stay out on the trails longer and push yourself further. Lumen’s 360Wh main battery now gets extra support with an included 160 Wh Range Extender Battery. The pint-size extender easily attaches with a quick-release mount to supply that extra juice and maximum performance you’ll need to send a massive ride. Or you can stow it away in a small pack to carry along for those just-in-case moments. And not to worry, if you blow it all before you’re back to the trailhead, the Lumen 900 is lightweight enough to pedal it on empty with the no-drag motor switched off.
This Lumen 900 features a brightly illuminated black and white data management screen and is specced with performance-focused components like FOX’s 36SL Performance Elite 140mm fork, our custom 130mm integrated shock, SRAM GX Eagle AXS, and Motive Silver brakes.
Updated from the previous Lumen 900 is TQ’s new HPR60 motor unit which boosts torque to 60Nn for 20% more thrust than before. It’s a dream upgrade that adds extra grunt and power to capitalize on the nimble, responsive, quick-handling traits riders love about the Lumen. Blast out of hairpins, crush monster climbs, and keep up with full-powered e-bikes on even the most challenging trails.
We built Lumen as the mountain biker’s e-bike. And fittingly, Lumen gets a bump up in range, so you can stay out on the trails longer and push yourself further. Lumen’s 360Wh main battery now gets extra support with an included 160 Wh Range Extender Battery. The pint-size extender easily attaches with a quick-release mount to supply that extra juice and maximum performance you’ll need to send a massive ride. Or you can stow it away in a small pack to carry along for those just-in-case moments. And not to worry, if you blow it all before you’re back to the trailhead, the Lumen 900 is lightweight enough to pedal it on empty with the no-drag motor switched off.
This Lumen 900 features a brightly illuminated black and white data management screen and is specced with performance-focused components like FOX’s 36SL Performance Elite 140mm fork, our custom 130mm integrated shock, SRAM GX Eagle AXS, and Motive Silver brakes.
FrameCarbon HMXIntegrated Suspension TechnologyFlex Pivot, Adjustable head angleSyncros Cable Integration System, UDH Interface, 12x148mm with 55mm Chainline
TravelFront: 140mm, Rear: 130mm

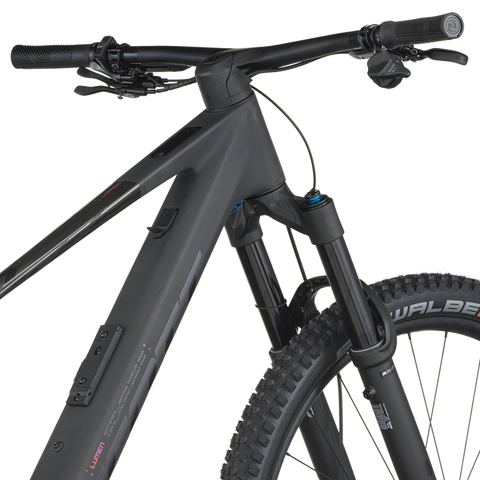

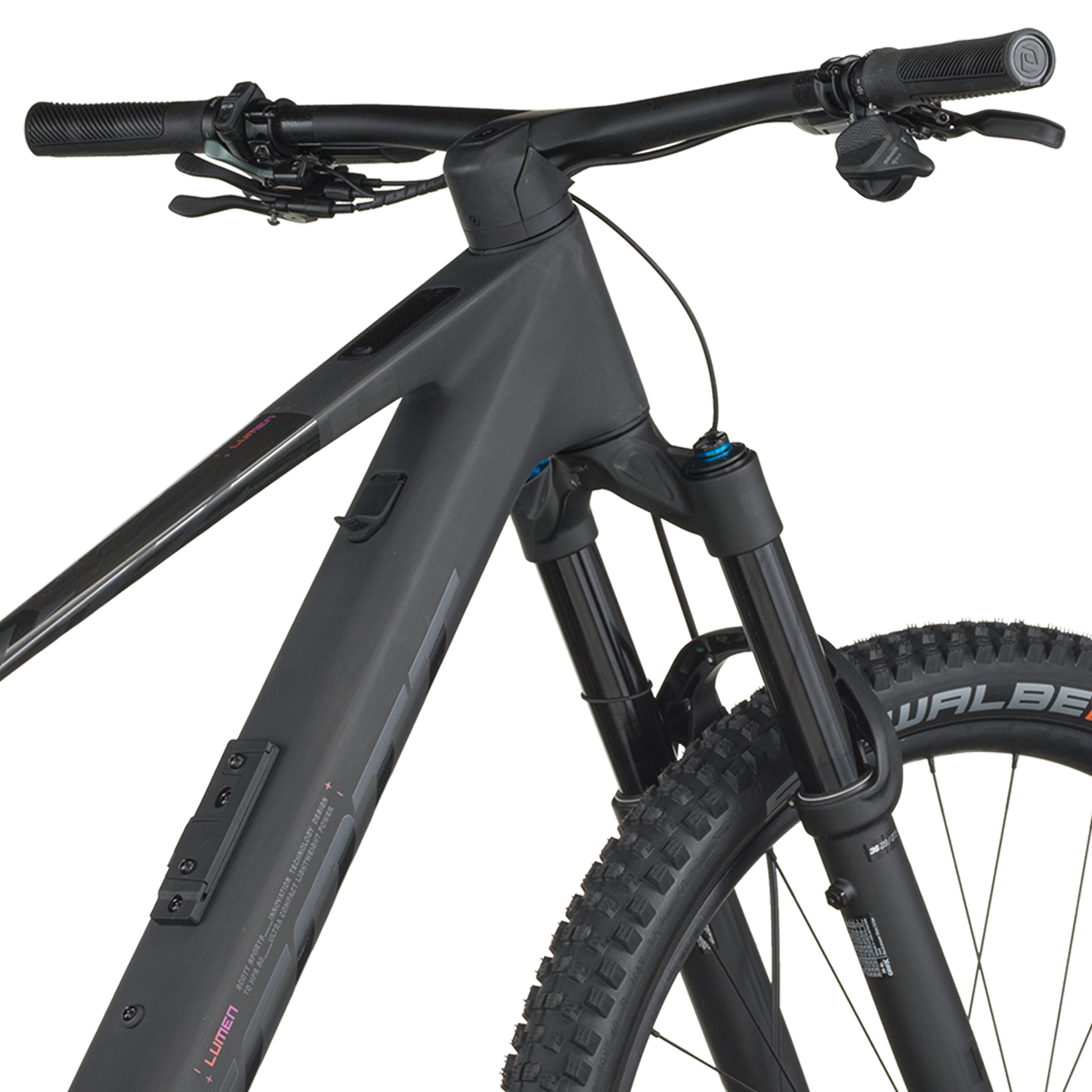

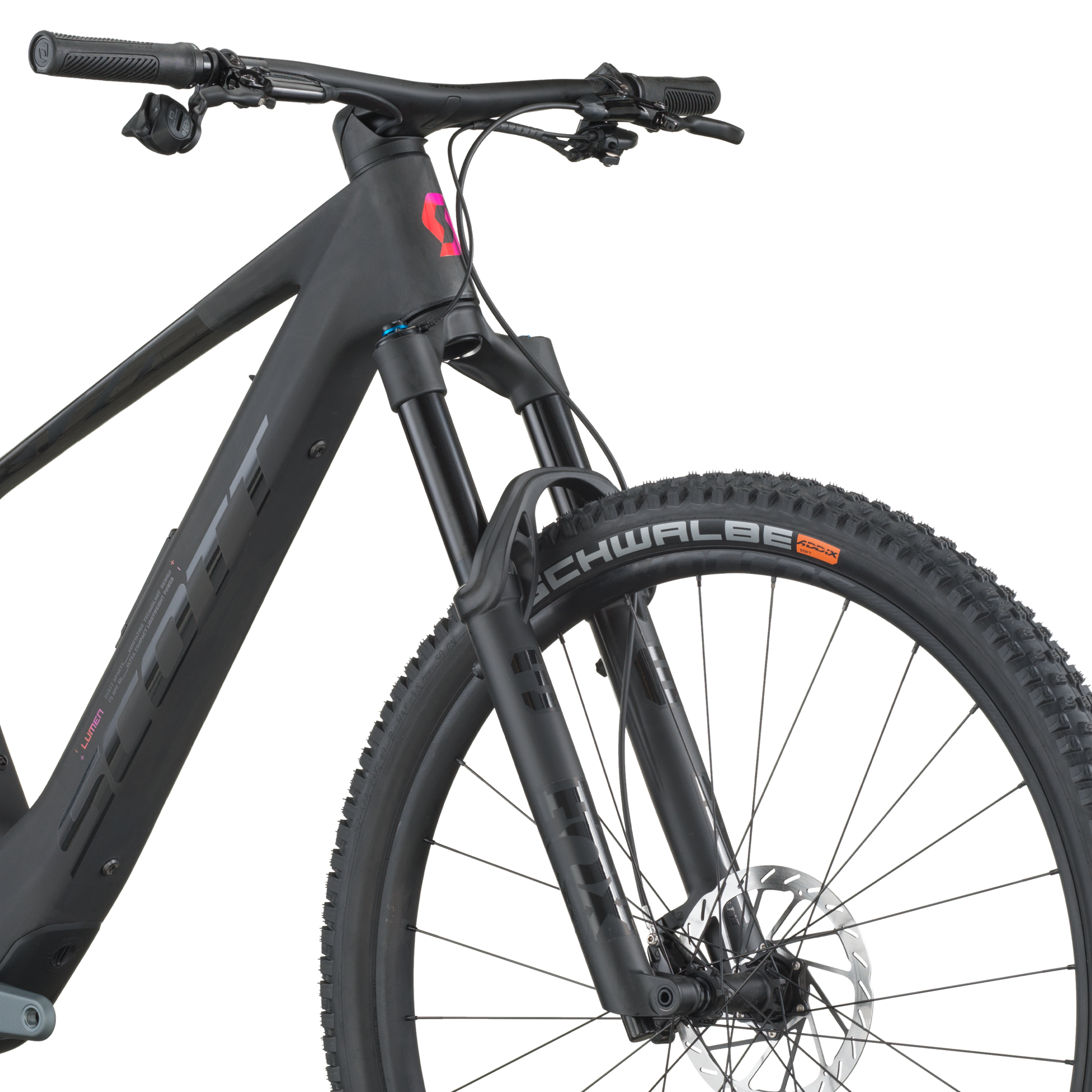

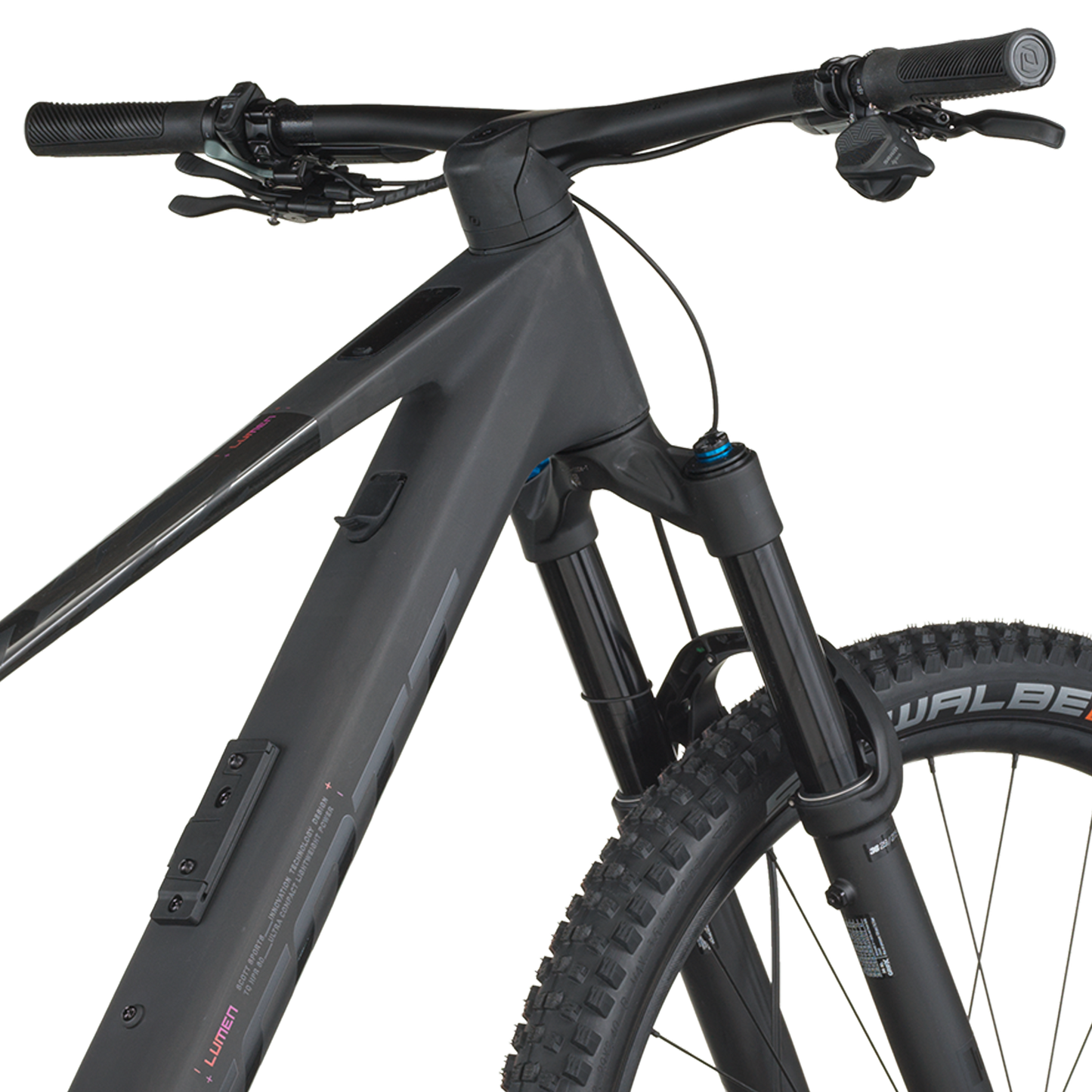

ForkFOX 36SL Performance Elite Air Grip SL3-Modes with low Speed adj., Kabolt 15x110mm axle44mm offset, tapered steerer, Reb. Adj., Lockout140mm travel

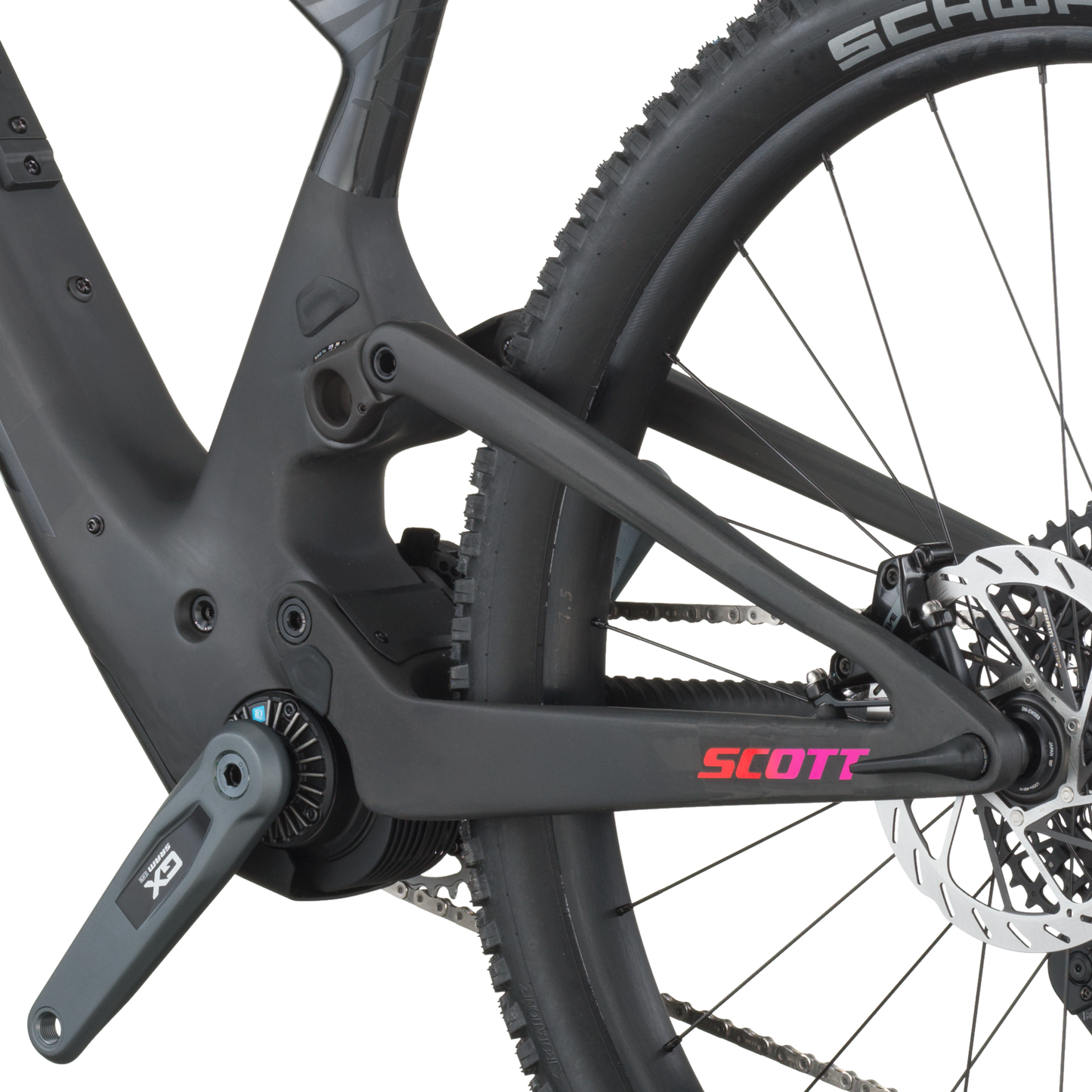

Rear ShockFOX NUDE 6T EVOL Trunnion3 modes: Lockout-Traction Control-DescendSCOTT custom w. travel, geo adj.Low Speed Adj., Custom large Air volume, Reb. Adj.Bearing Hardware, Travel 130-90-Lockout, T165X45mm
Remote SystemSCOTT TwinLoc 2 TechnologySuspension & Dropper Remote3 Suspension modes

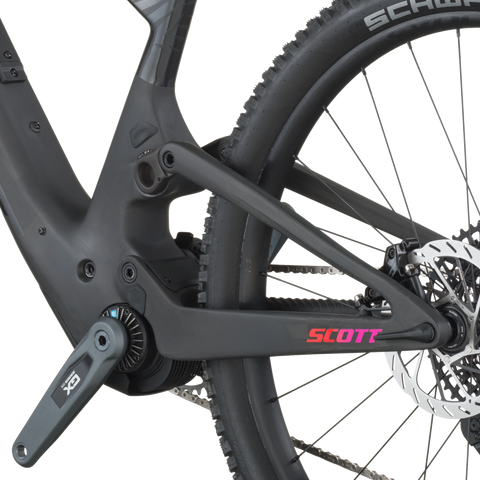

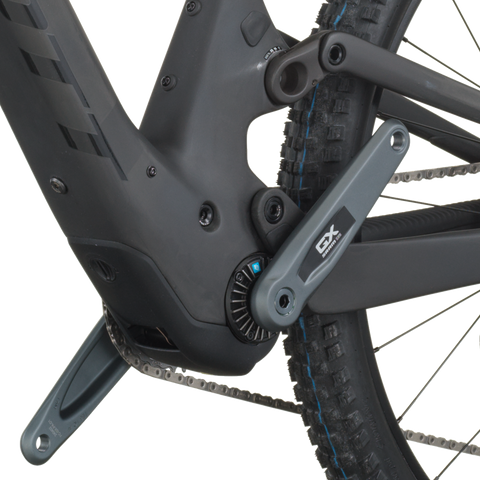

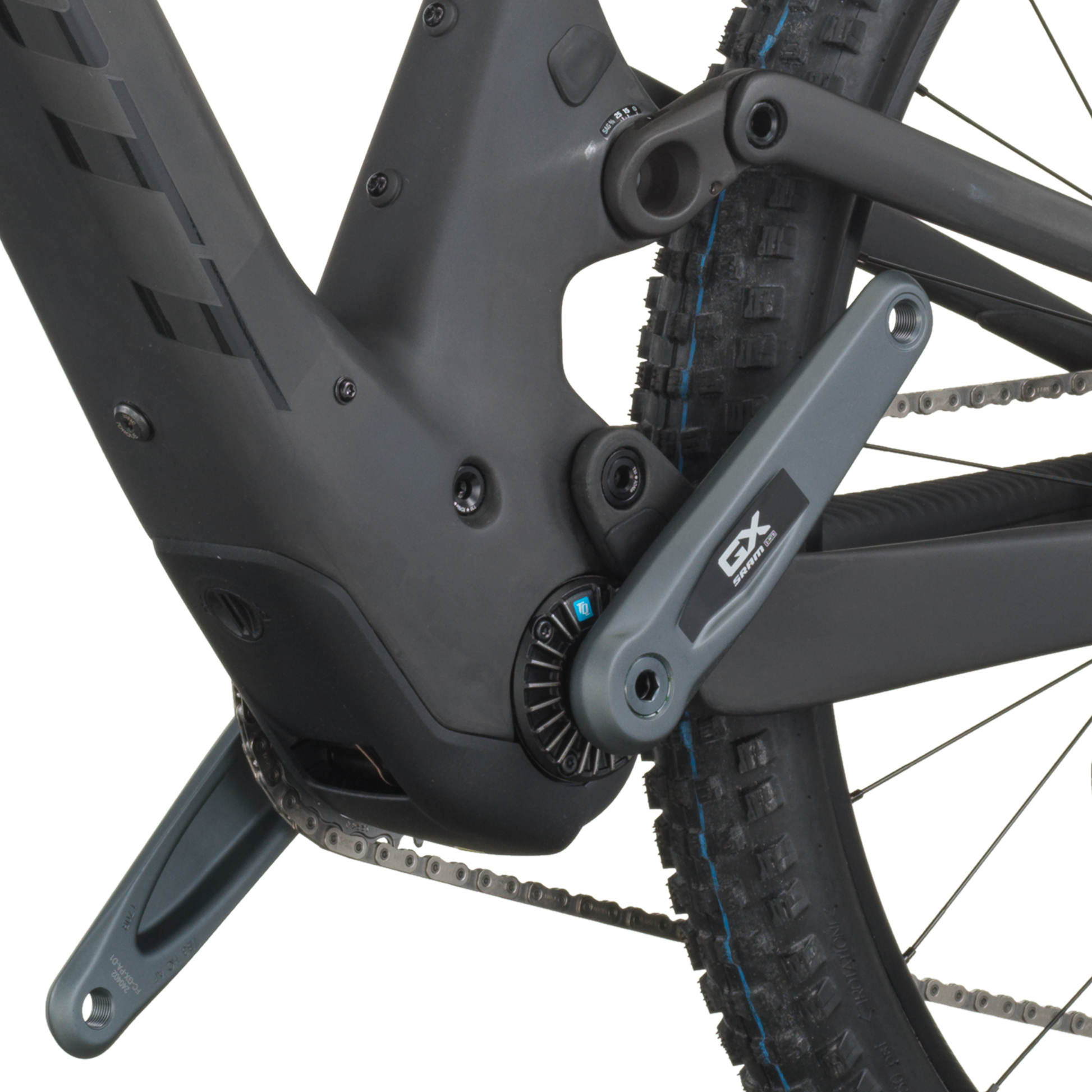

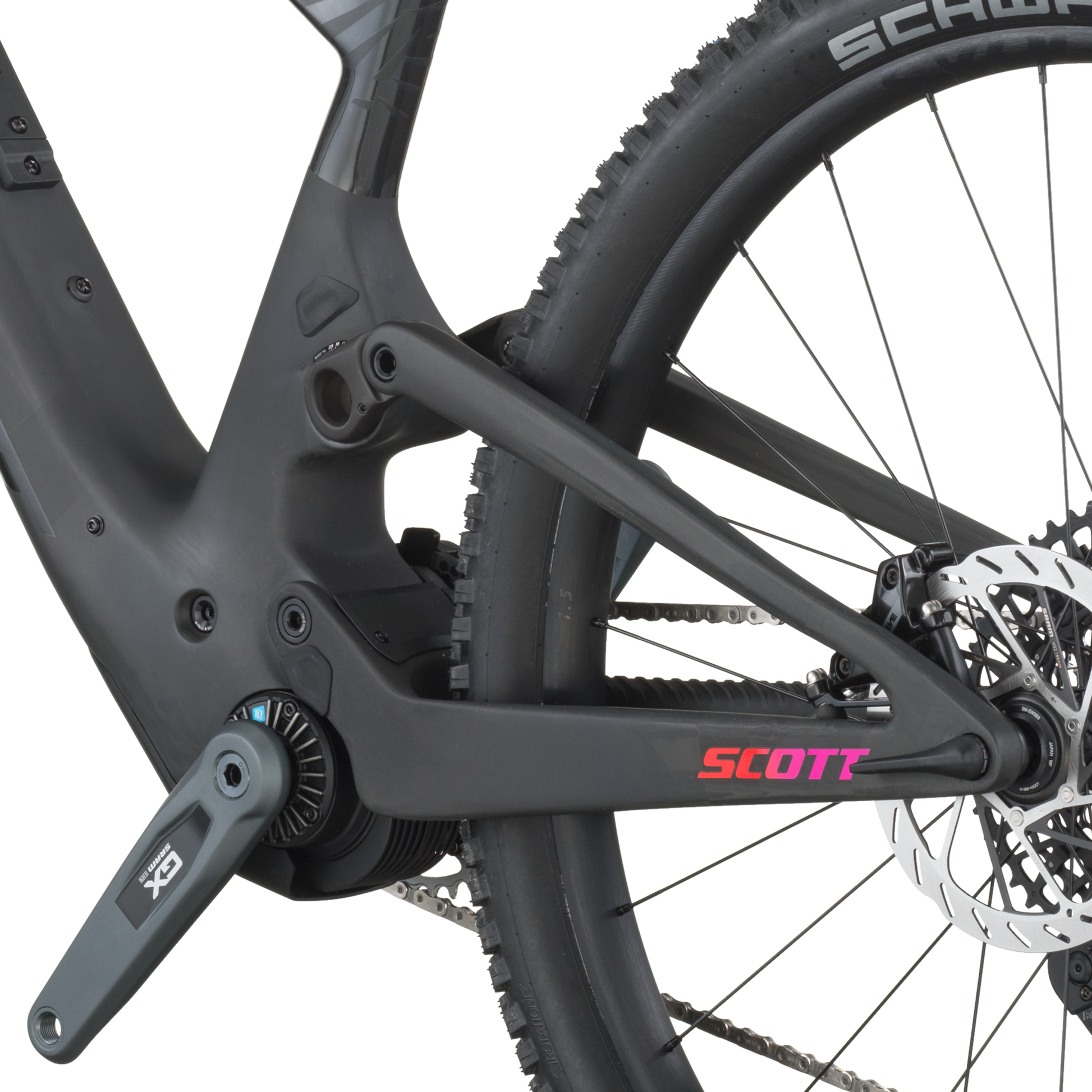

Drive UnitTQ HPR60 Mid Motor drive 60Nm max Torque, EU: 25kmh, US: 20mph
BatteryTQ Internal 360Wh + Range Extender 160Wh
DisplayTQ HPRBluetooth, ANT+, Dedicated Smartphone app
ChargerTQ 100-240V-4A

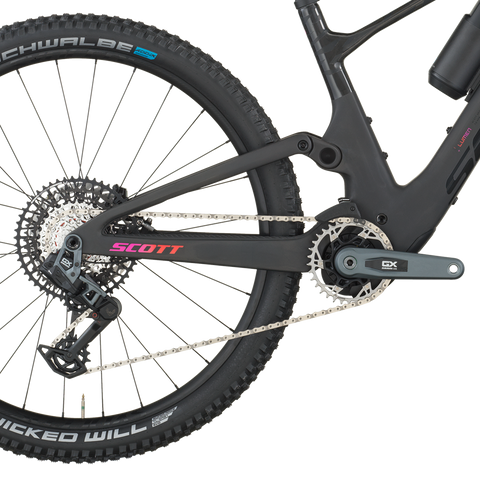

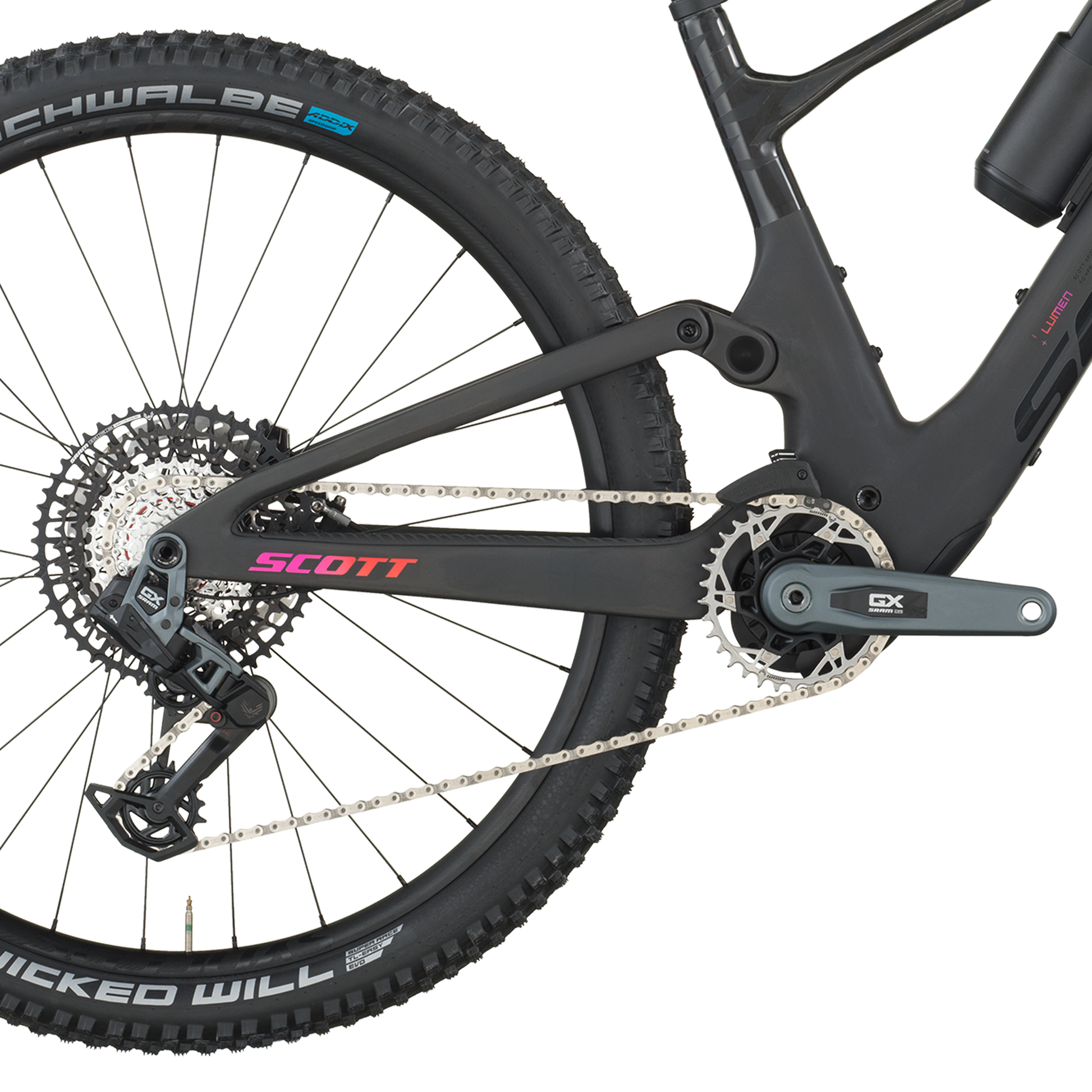

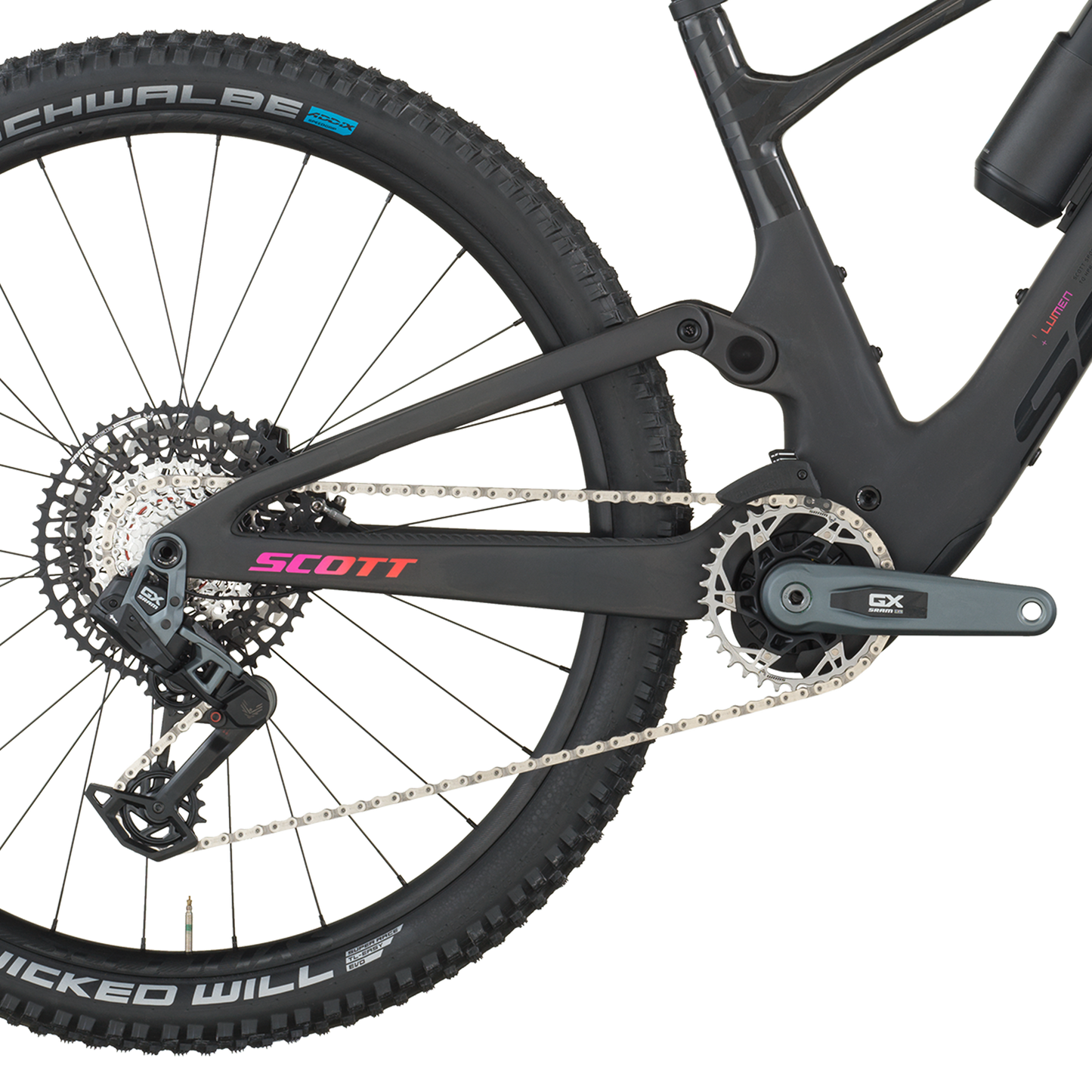

Rear DerailleurSRAM GX Eagle AXS Transmission 12 SpeedWireless Electronic Shift System
ShiftersSRAM AXS Pod Rocker Controller
CranksetSRAM GX Eagle, Alloy
Chainguidee*thirteen, e*spec Slider
ChainringSRAM XX Eagle Transmission 34T chainring
ChainSRAM CN GX Eagle Transmission
CassetteSRAM GX Eagle XS 1275 Transmission 10-52
BrakesSRAM Motive Silver Stealth 4-Piston Disc
RotorSRAM HS2 CL Rotors, F&R 180mm
HandlebarSyncros Fraser iC SL DC Carbon, 0° rise, back sweep 8°, mini Rise, 760mmSyncros Performance XC lock-on grips
SeatpostSyncros Duncan Dropper Post 1.5S, Travel Adjust, 31.6mmS size 140mm, M size 160mm, L size 180mm, XL size 210mm
SeatSyncros Tofino 1.5 RegularTitanium rails
HeadsetStainless, +-0.6° head angle adjustmentSyncros - Acros Angle adjust & Cable Routing HS SystemZS56/28.6 – ZS56/40 MTB
WheelsetSyncros Silverton 1.5-30 CLF: 15x110mm, R: 12x148mm30mm Tubeless ready rim 28H, XD DriverSyncros Axle w/Removable Leverwith 6mm Allen, T30 and T25 Tools
Front TireSchwalbe Wicked Will 29x2.4" EVOSuper Race, TLE, 67EPI, Addix Speed Soft
Rear TireSchwalbe Wicked Will 29x2.4" EVOSuper Race, TLE, 67EPI, Addix Speed Grip
AccessoriesTire SealantTransport Axle
Approx weight in KG17.00 Tubless setup without RE (1.1kg)
Approx weight in LBS37.48 Tubless setup without RE (1.1kg)
Max. System Weight130kgThe overall weight includes the bike, the rider, the equipment, and possible additional luggage.
