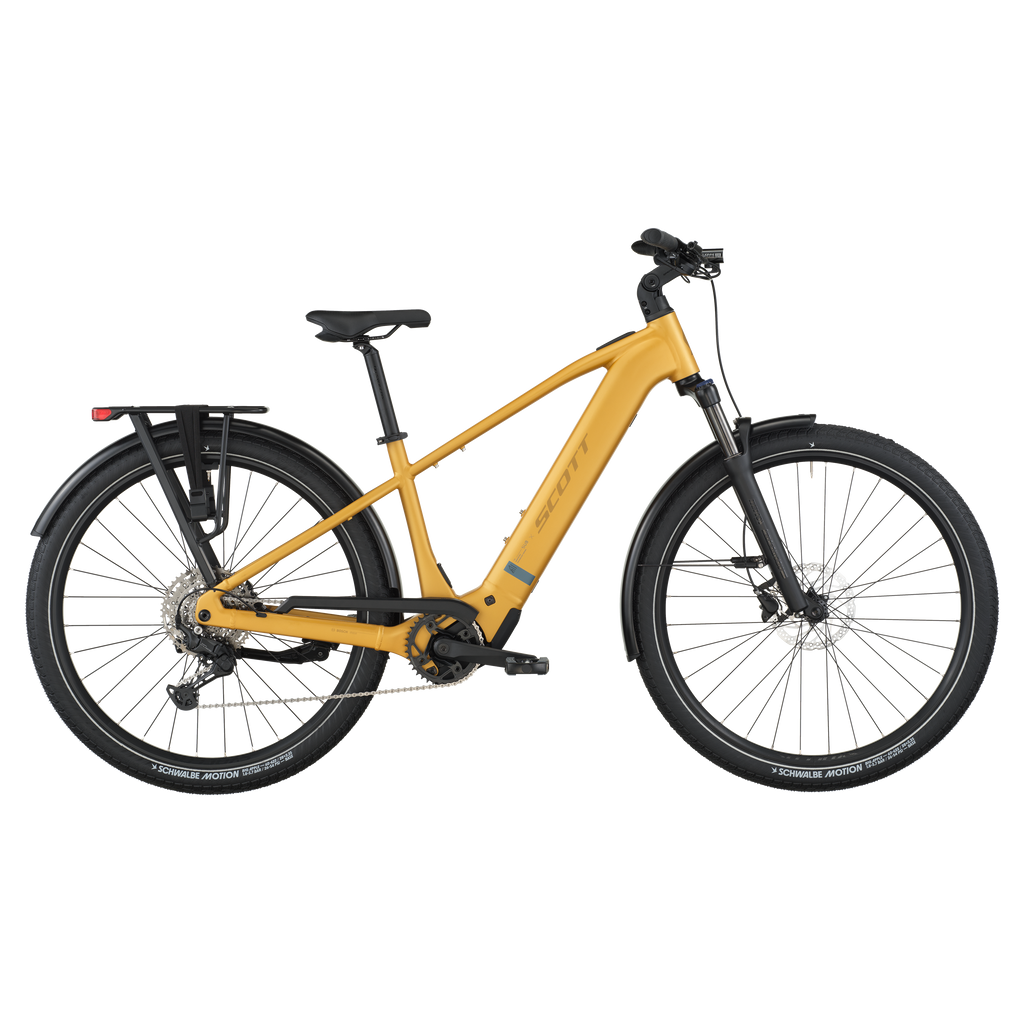

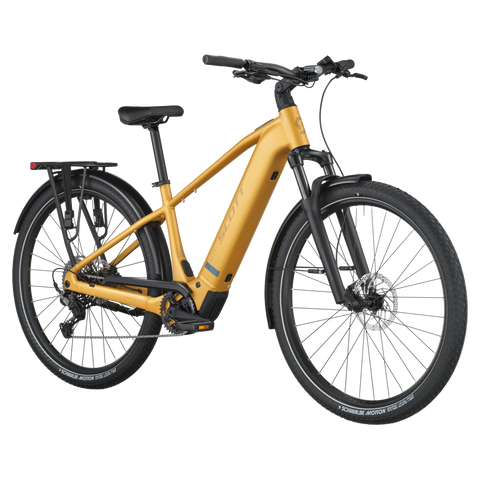

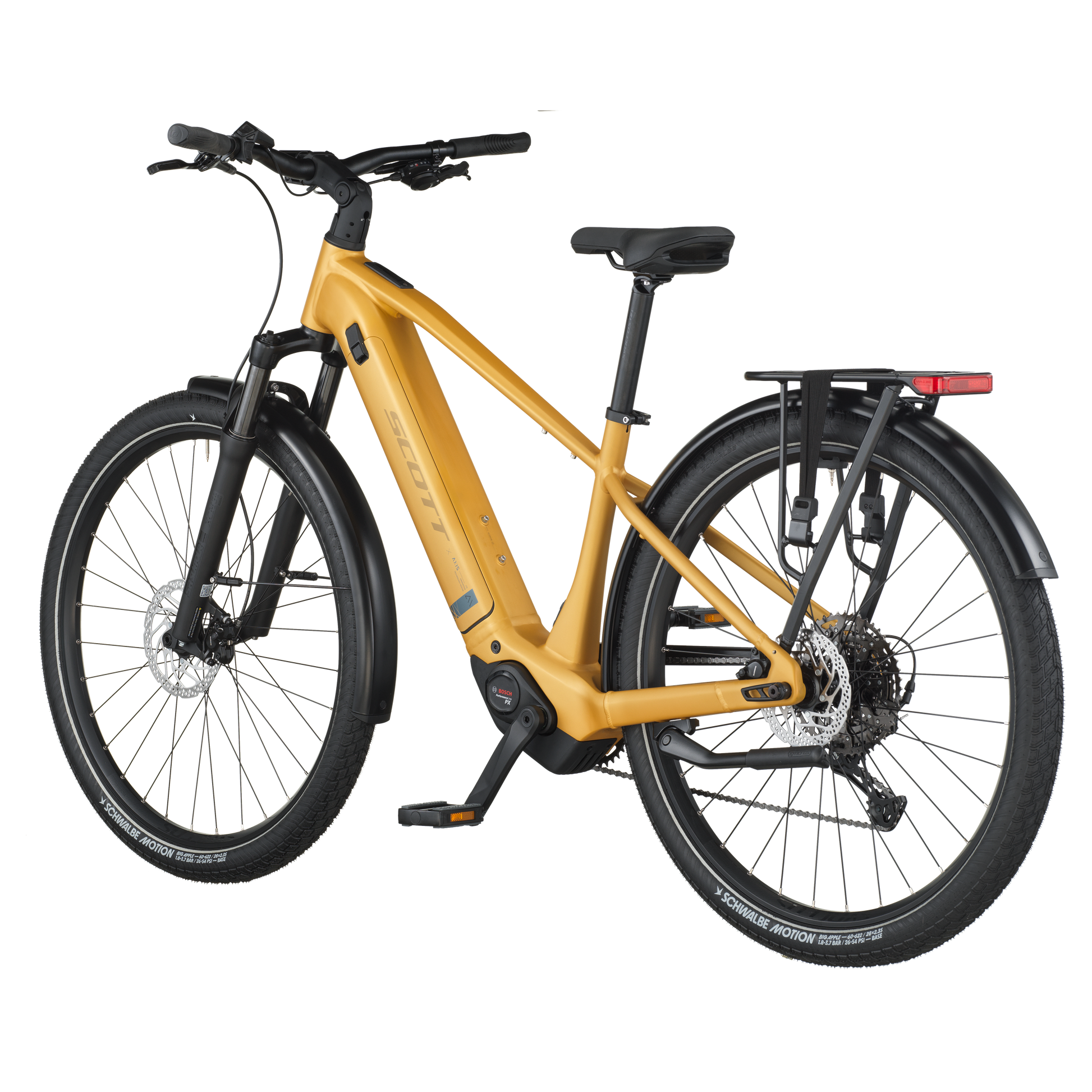

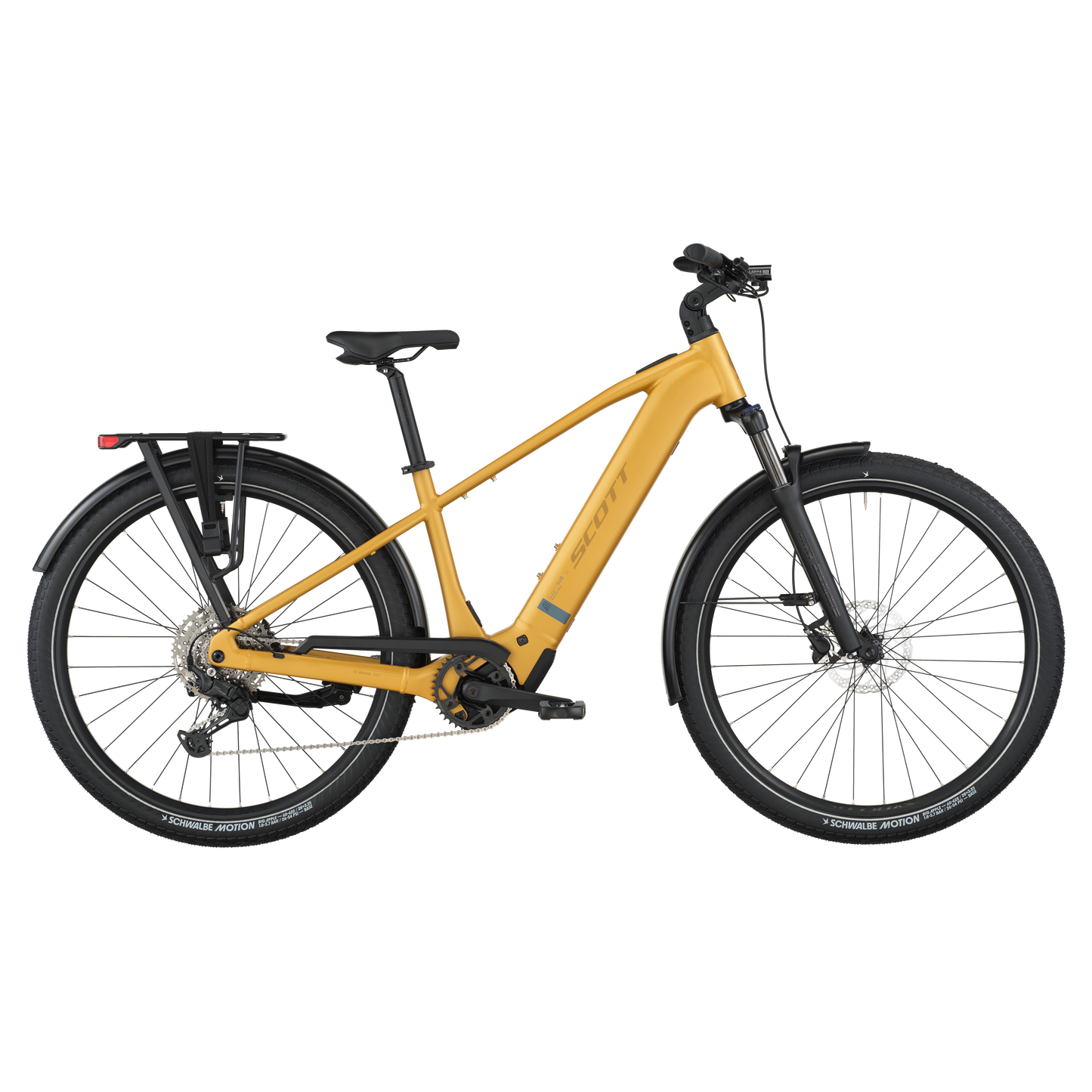

Get out of the car and embrace movement in the city on the Sub Sport 10 E-Bike. It’s our class-leading electrified urban ride that makes it easy to do it all by bike, whether commuting, running errands, or enjoying a roll away from traffic.

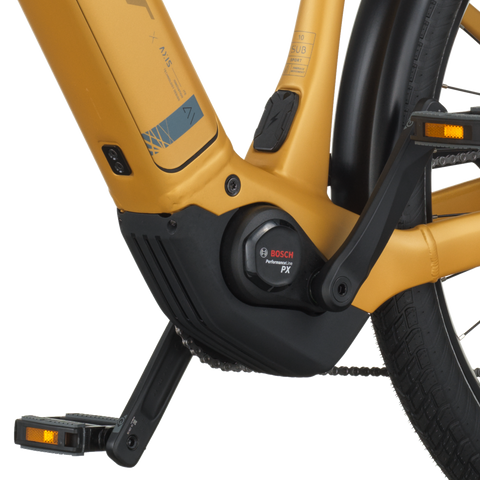

Empowering the Sub Sport 10 is Bosch’s Performance PX motor and 800Wh battery unit. The duo deliver ultra-quiet riding with natural-feeling accelerations and multiple mode settings to choose from for any situation on the route. Handling is a dream also with Sub Sport’s balanced geometry, stable platform, and front suspension that makes navigating congested areas a cinch.
Versatility is key to what makes Sub Sport a go-to E-Bike. It’s quick on the commute, carries up to 25kg on its rear rack—including an optional kids’ seat—and is tireless on longer routes. Combined with Shimano’s 10-speed drivetrain, it’s equipped with the gearing and power to make urban riding the best way to get around.
Empowering the Sub Sport 10 is Bosch’s Performance PX motor and 800Wh battery unit. The duo deliver ultra-quiet riding with natural-feeling accelerations and multiple mode settings to choose from for any situation on the route. Handling is a dream also with Sub Sport’s balanced geometry, stable platform, and front suspension that makes navigating congested areas a cinch.
Versatility is key to what makes Sub Sport a go-to E-Bike. It’s quick on the commute, carries up to 25kg on its rear rack—including an optional kids’ seat—and is tireless on longer routes. Combined with Shimano’s 10-speed drivetrain, it’s equipped with the gearing and power to make urban riding the best way to get around.
FrameAlloy S-XL=29", 6061 Alloy custom butted tubingSide extraction batteryUDH Interface, 12x148mm with 52mm Chainline
Travel100mm

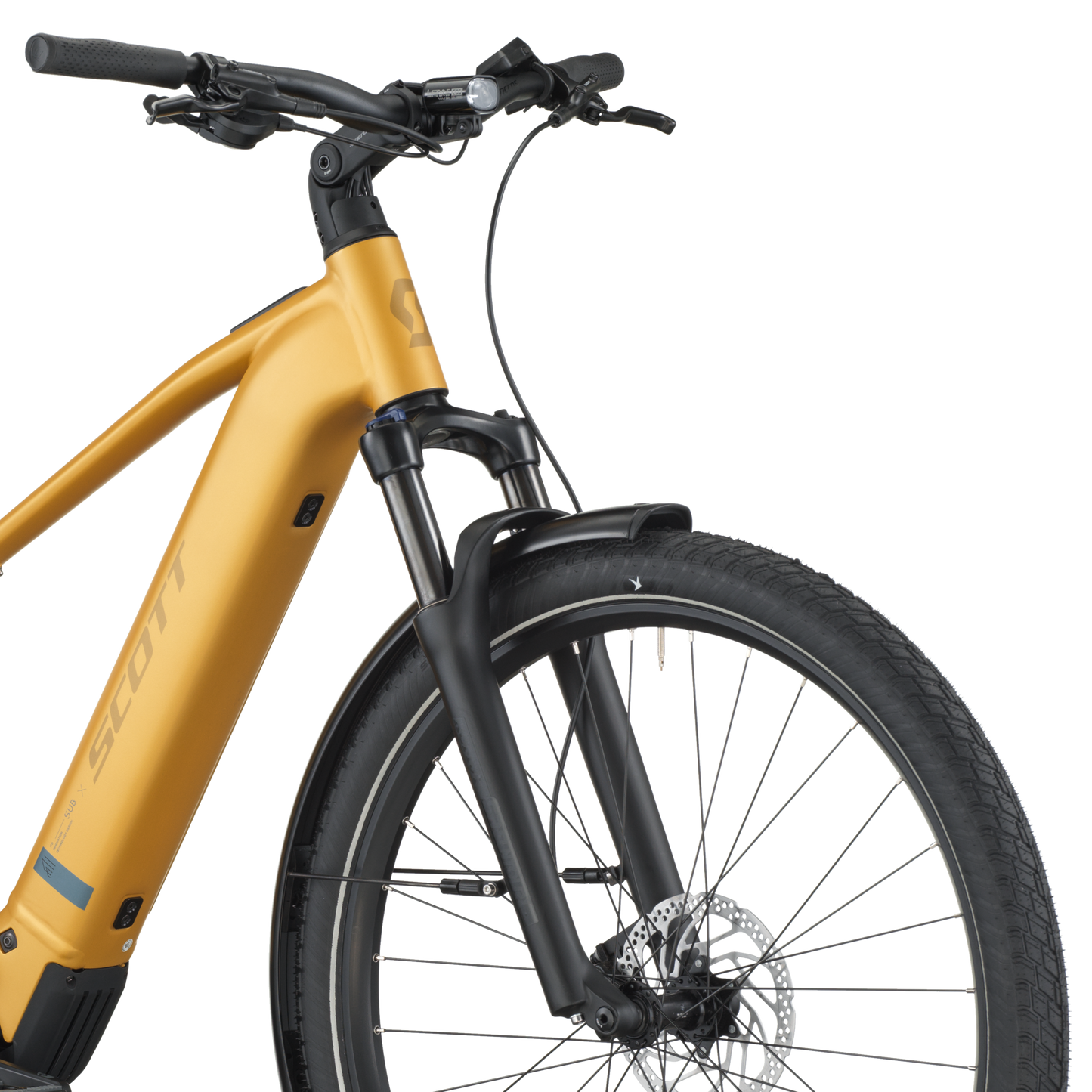

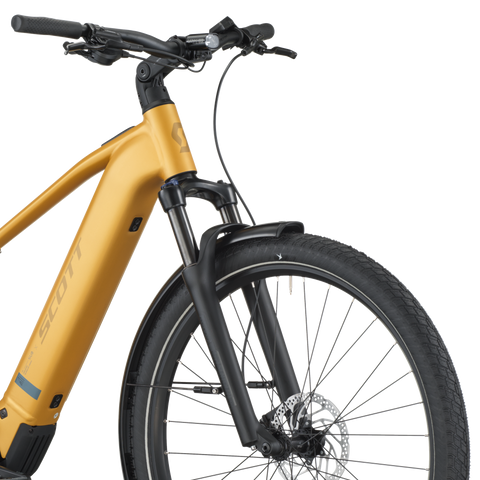

ForkSR Suntour XCM34 LO Coil, Tapered, 15x110 bolt Axle, Lock Out, 100mm Travel

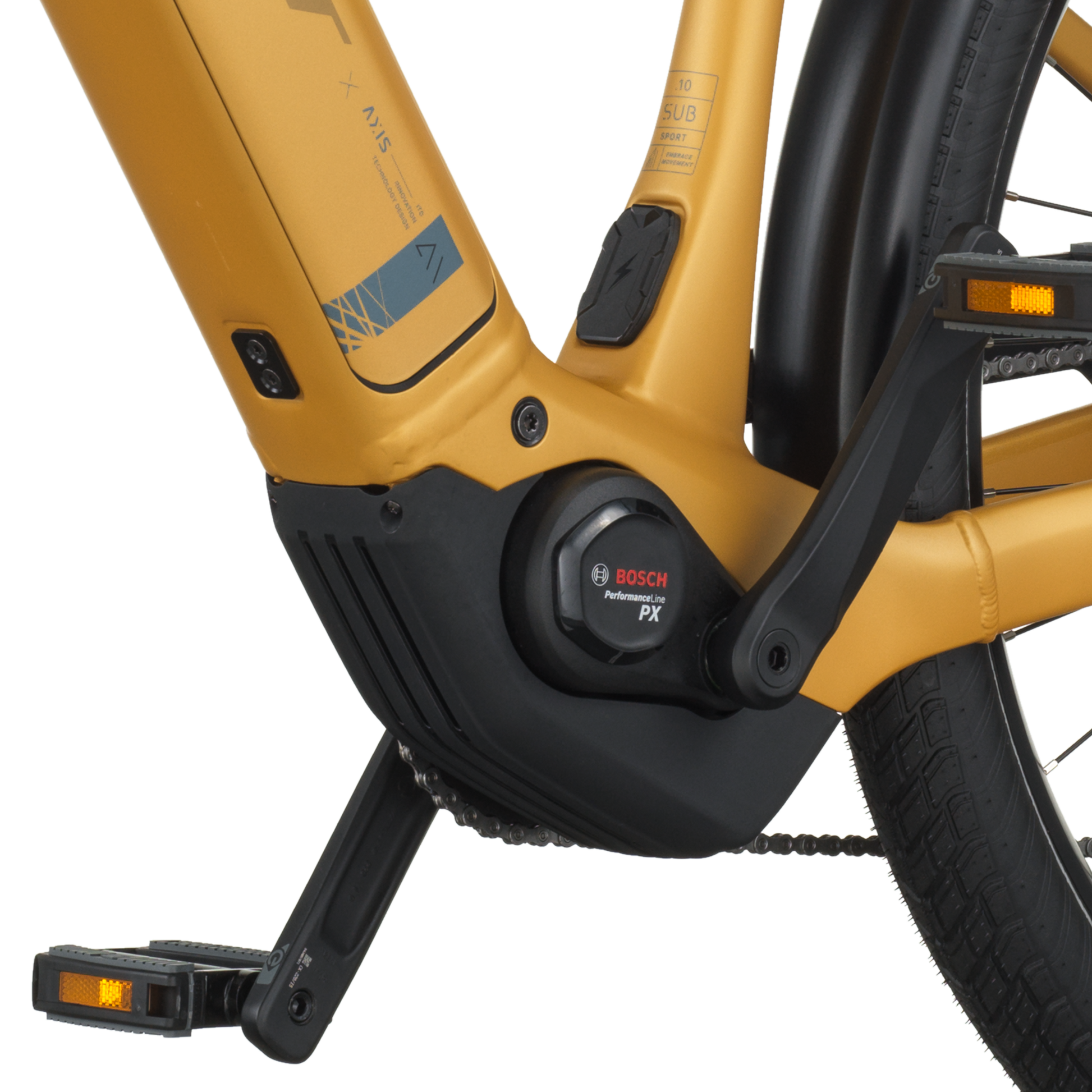

Drive UnitBosch Performance Line PX (BDU347Y)EU: 25kmh
BatteryPowerTube 800Wh
DisplayBosch Purion 200
Charger2A Charger

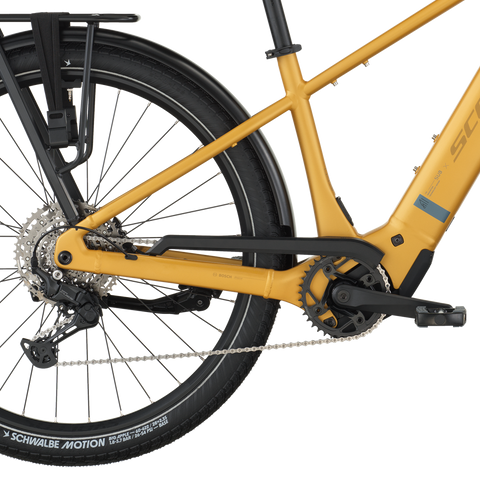

ShiftersShimano CUES RD-U6000GS 10 Speed
CranksetFSA CK-220 170mm
ChainguideSyncros
ChainringFSA 38T
ChainShimano LG500
CassetteShimano CS-LG40010 11-48 T
BrakesShimano BR-MT200 Disc
RotorFront: SM-RT30 CL 180mm, Rear: SM-RT30 CL 160mm

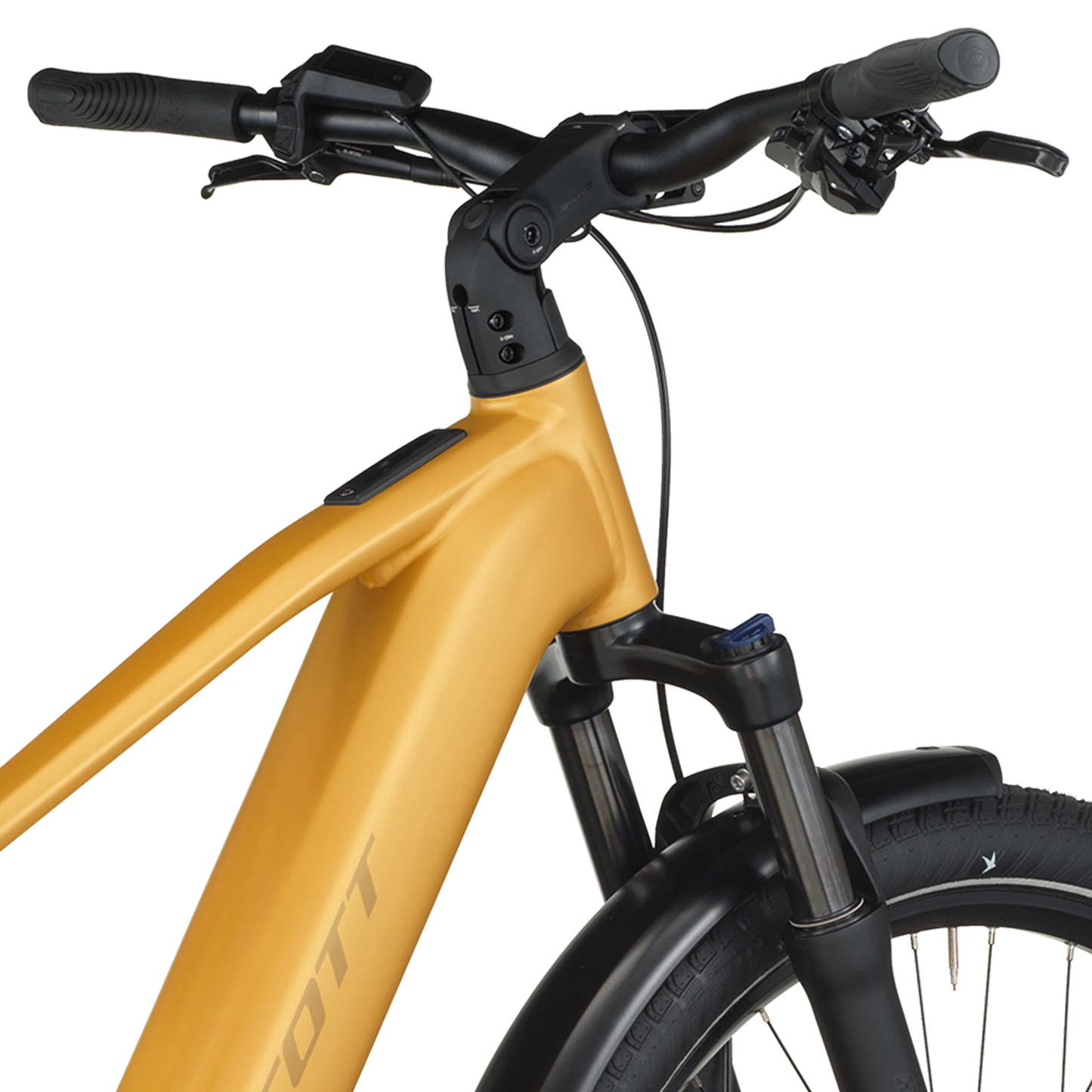

HandlebarSyncros UC3.0 680mm, Rise 12mm, Backsweep 15°

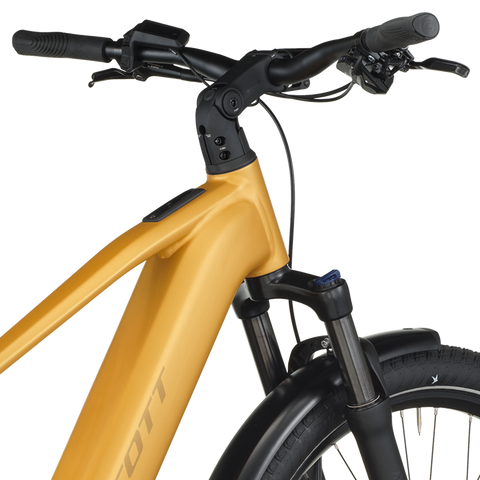

H'stemSyncros UC 3.0 adjustable with front Light mount
SeatpostSyncros 3.0, 31.6mm, 350mm
SeatSyncros Capilano
HeadsetAcros, 1.5"- 1.5"semi integ. OD 50/61mm, ID 44/55mm
Hub (Front)Shimano HBTC50015BB CL, 15x110mm
Hub (Rear)Shimano FHTC500HMBB, 148x12mm
SpokesBlack Spokes
RimsSyncros X18 Disc
Front TireSchwalbe Big Apple Performance, 60-622
Rear TireSchwalbe Big Apple Performance, 60-622
LightsFront Lezyne Hecto E65Rear Lezyne Light

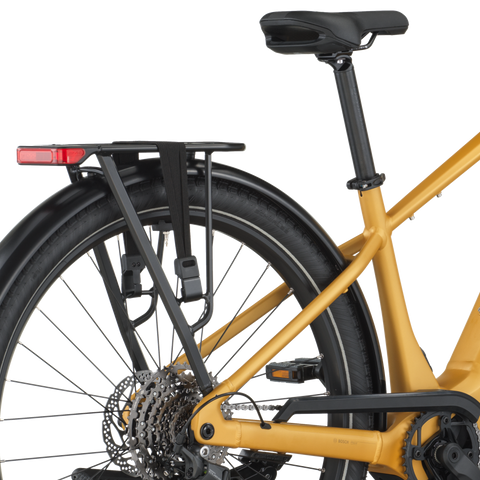

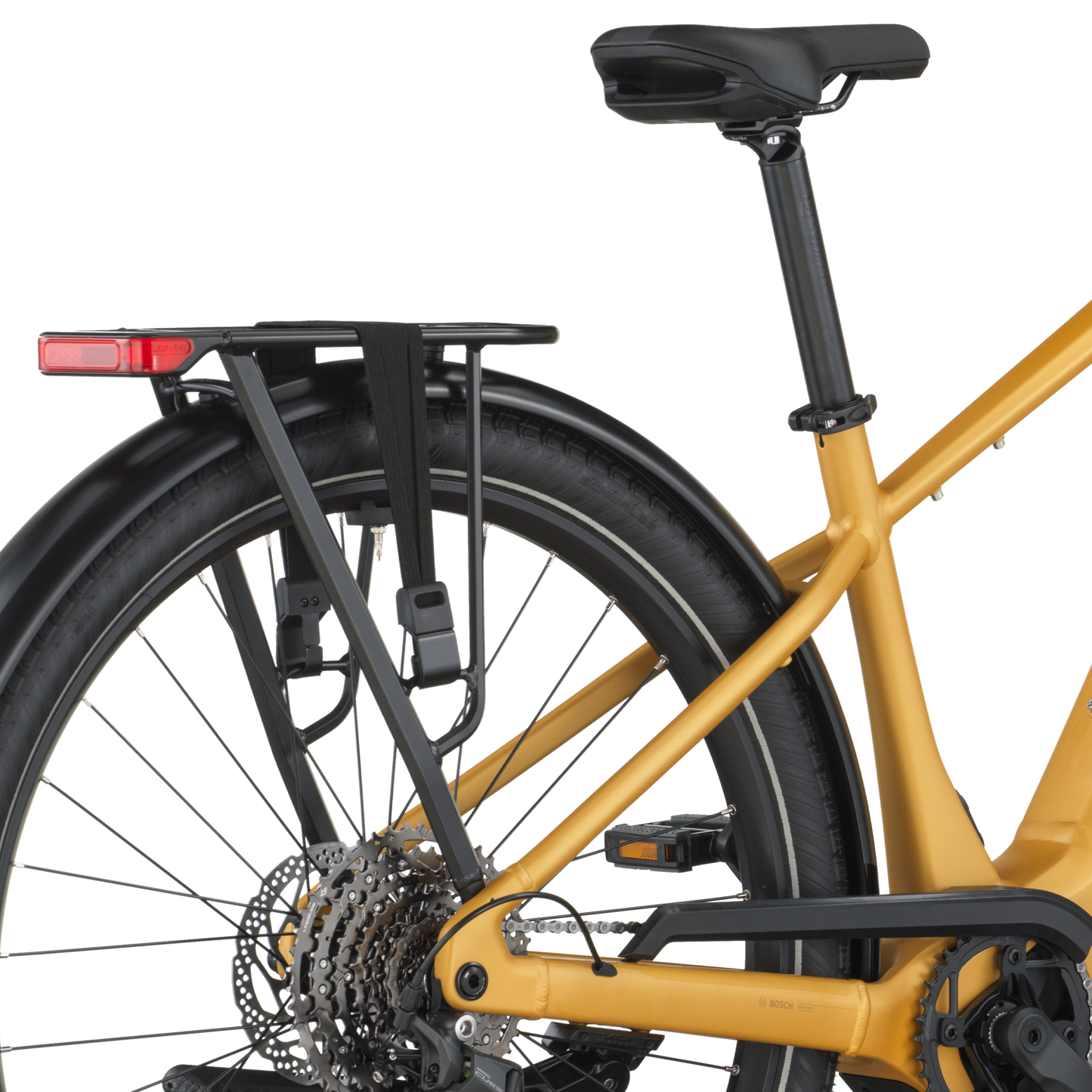

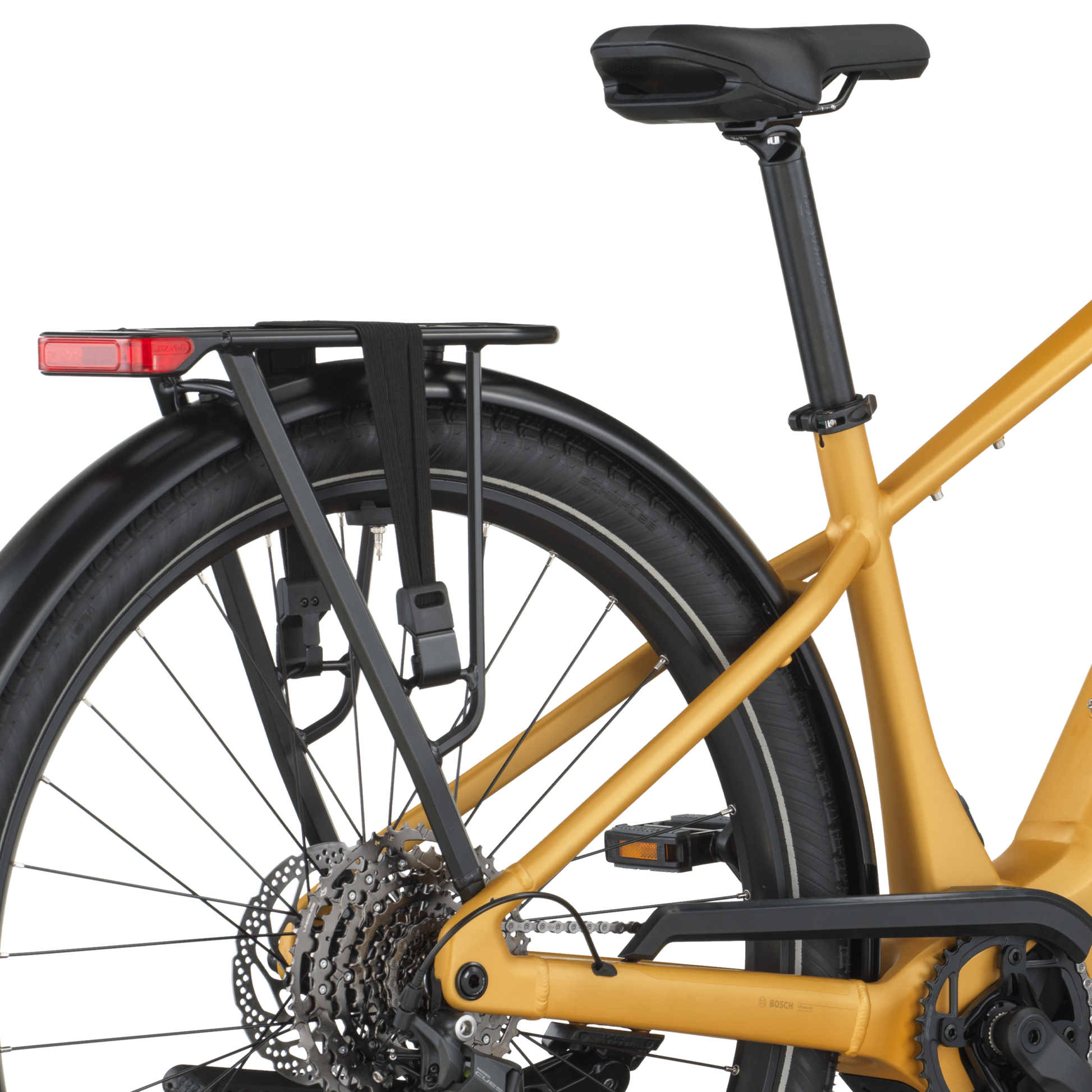

RackRacktime carrier SnapIt 2.0 27KG
PedalsMarwi SP-828
Approx weight in KG28.9
Approx weight in LBS63.71
Max. System Weight160kgThe overall weight includes the bike, the rider, the equipment, and possible additional luggage.
