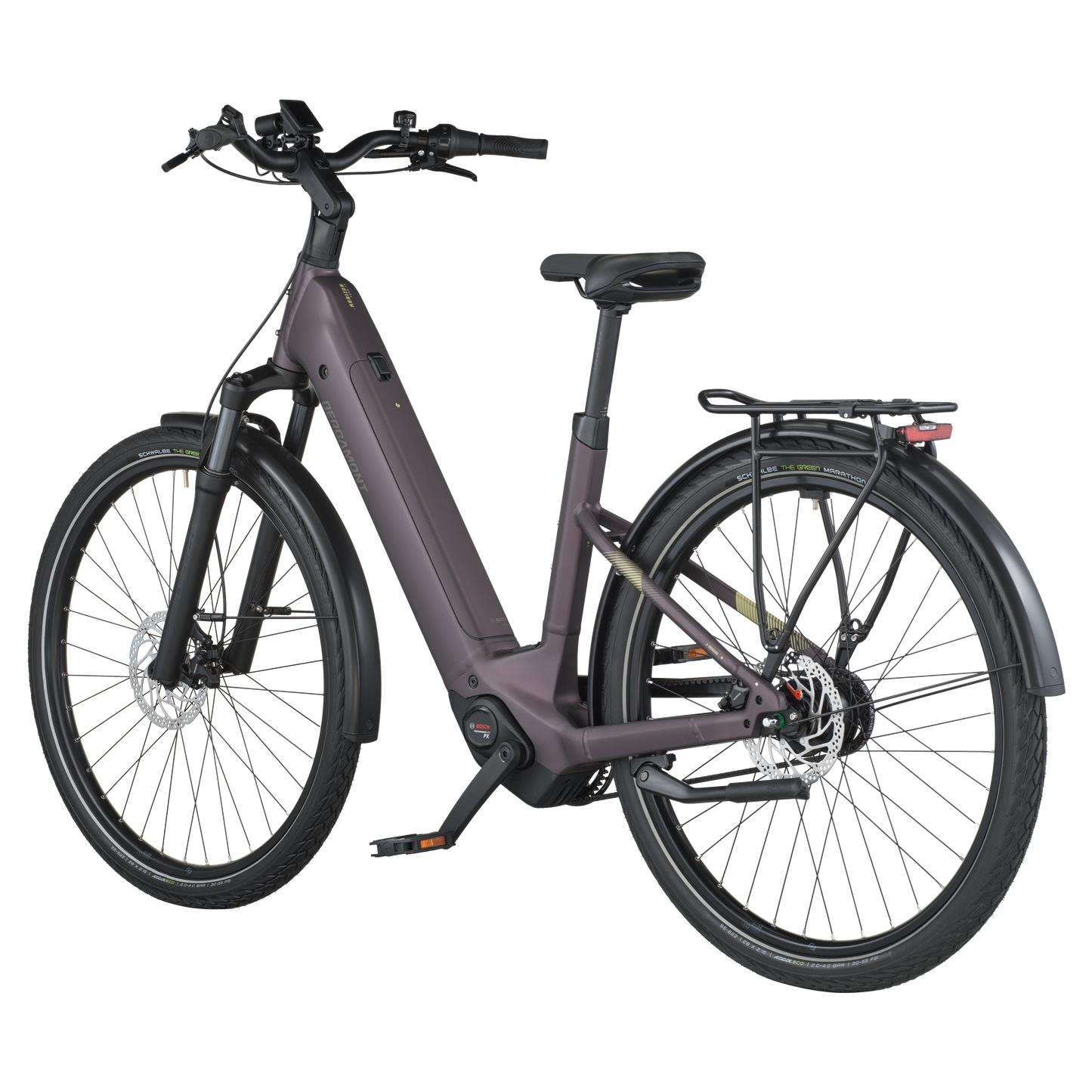

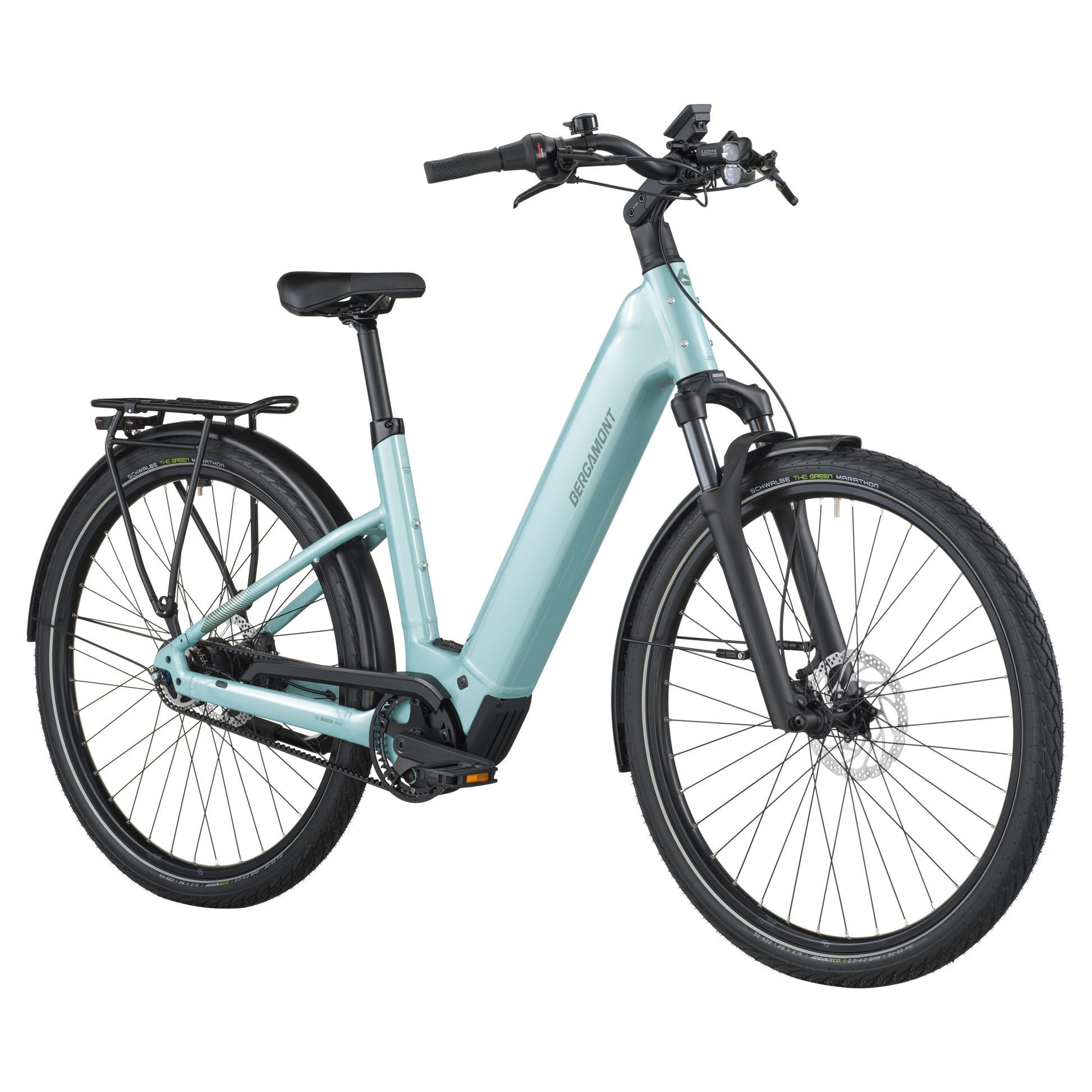

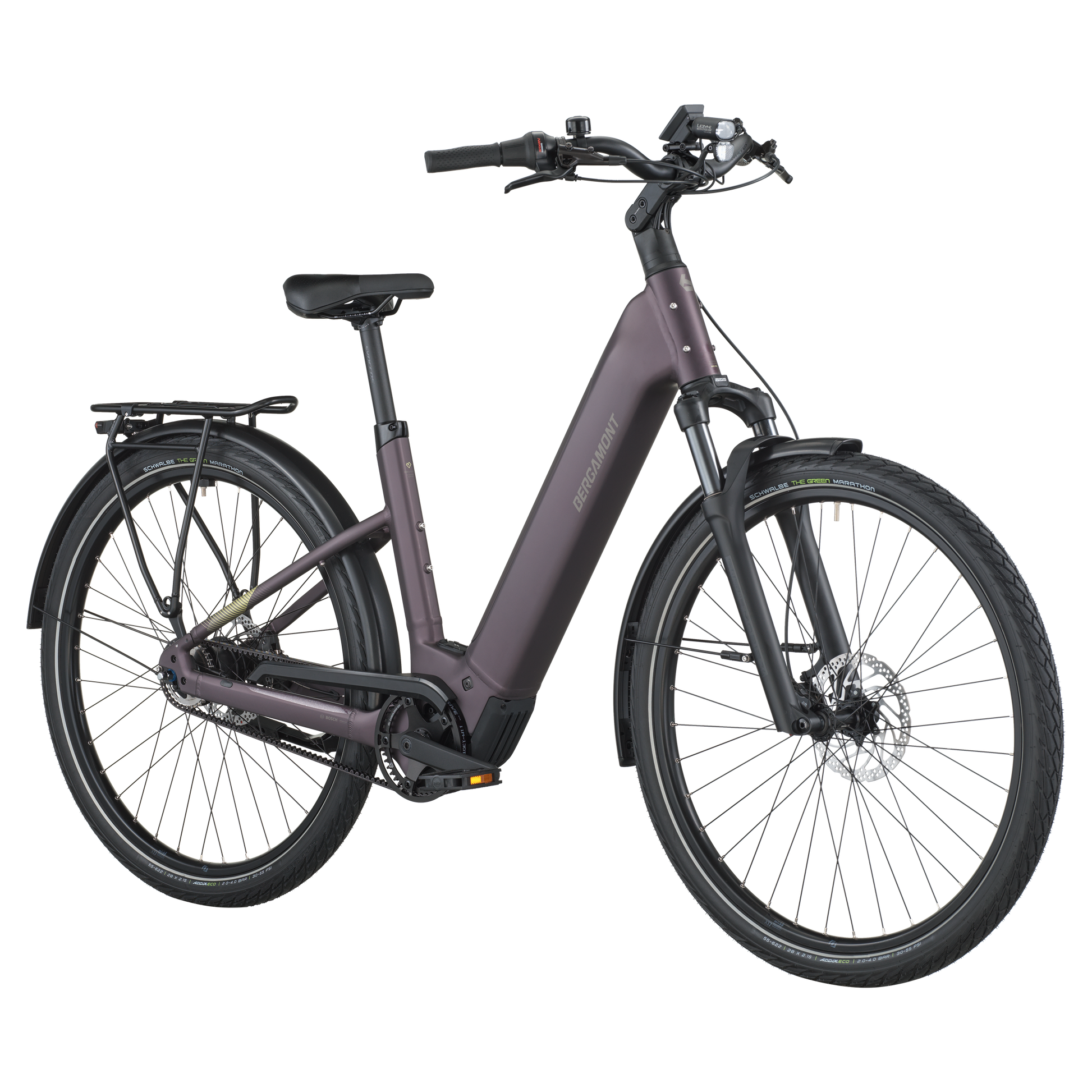

The E-Horizon Tour 10 Belt Wave is a fully equipped e-trekking bike with a low step-over height and perfectly integrated components. It includes features such as LED lights with a rear brake light function that increase rider safety in urban environments. The rear carrier is approved for 27 kg and child transportation in combination with a Thule Yepp (Nexxt) 2 maxi seat. The internal gear hub drivetrain provides reliable shifting and is low maintenance. The hydraulic disc brakes offer superior braking power and modulation even in adverse weather conditions.
The Bosch Performance Line PX electric drive system offers strong, silent and long-lasting support, giving you the freedom to explore beyond your usual routes.
The high-capacity Bosch PowerTube battery integrated into the frame can be removed for remote charging, while the battery cover remains on the bike to protect the empty battery bay from the elements. With the Bosch Smart System advanced connectivity features and upgrades are available: Use the eBike Flow App to control your bike or add optional extras like a Bosch PowerMore battery for increased range.
Frame28", super lite AL-6061 tubing, PowerTube battery

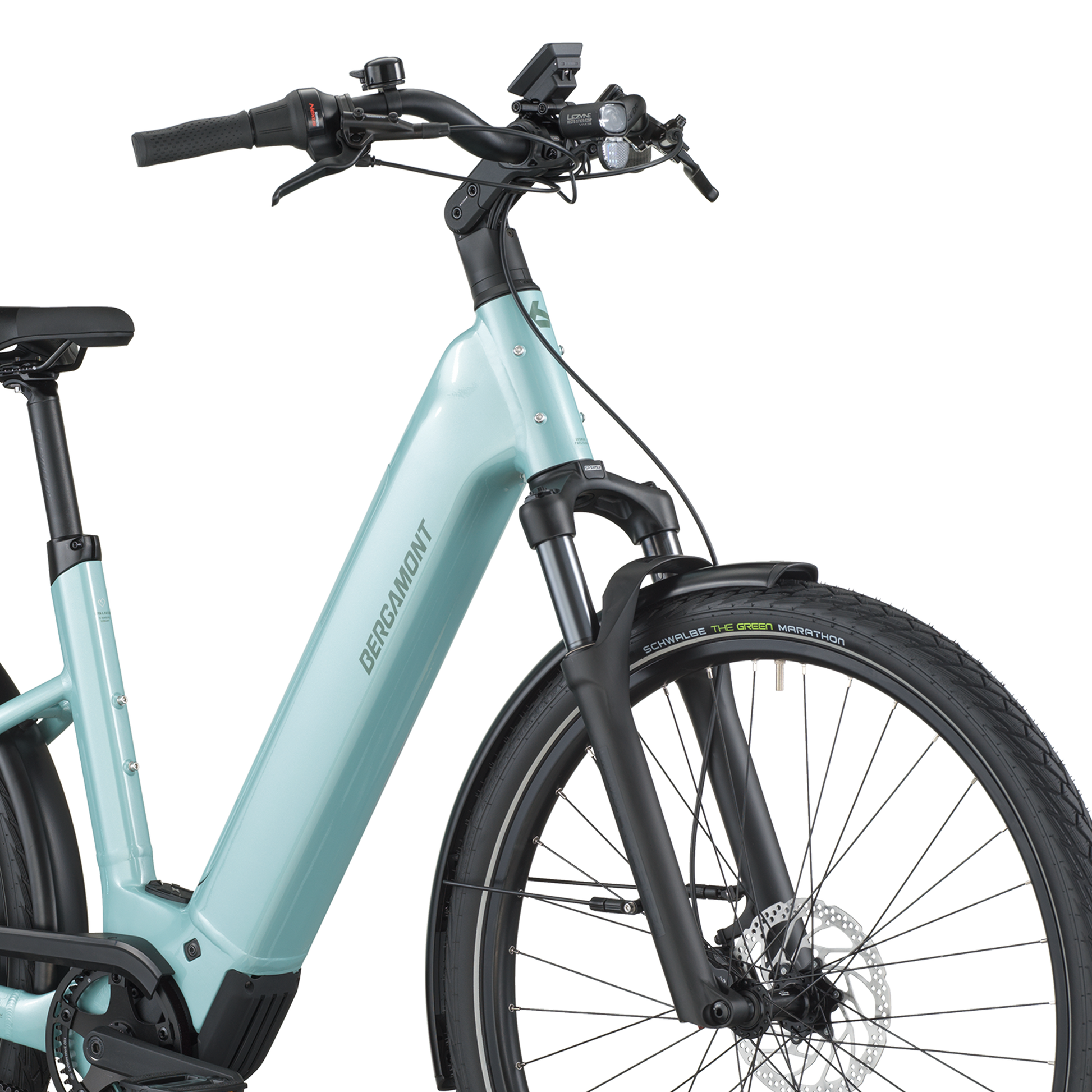

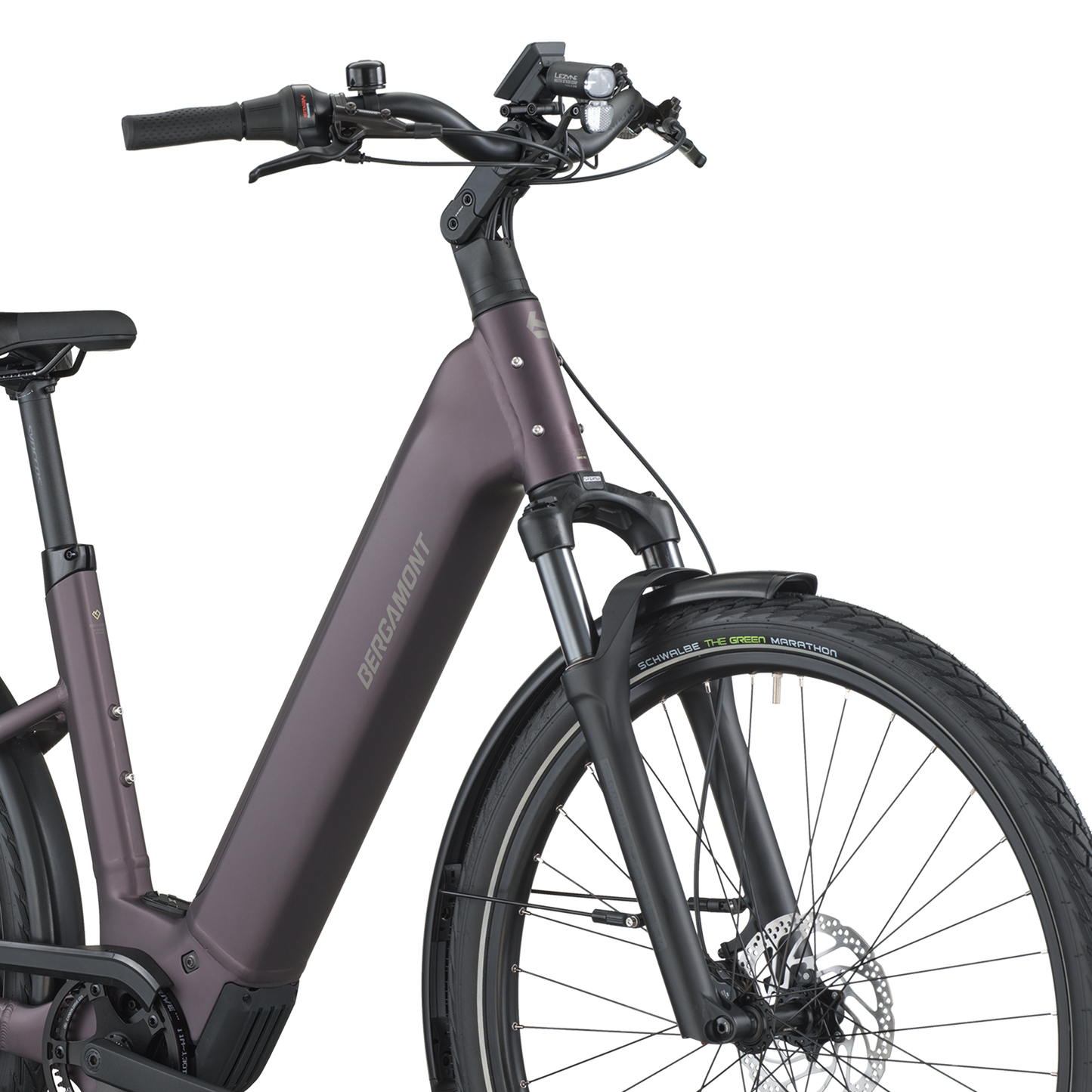

ForkSuntour Mobie 34 DS, air, 100 mm, 15x110 mm axle

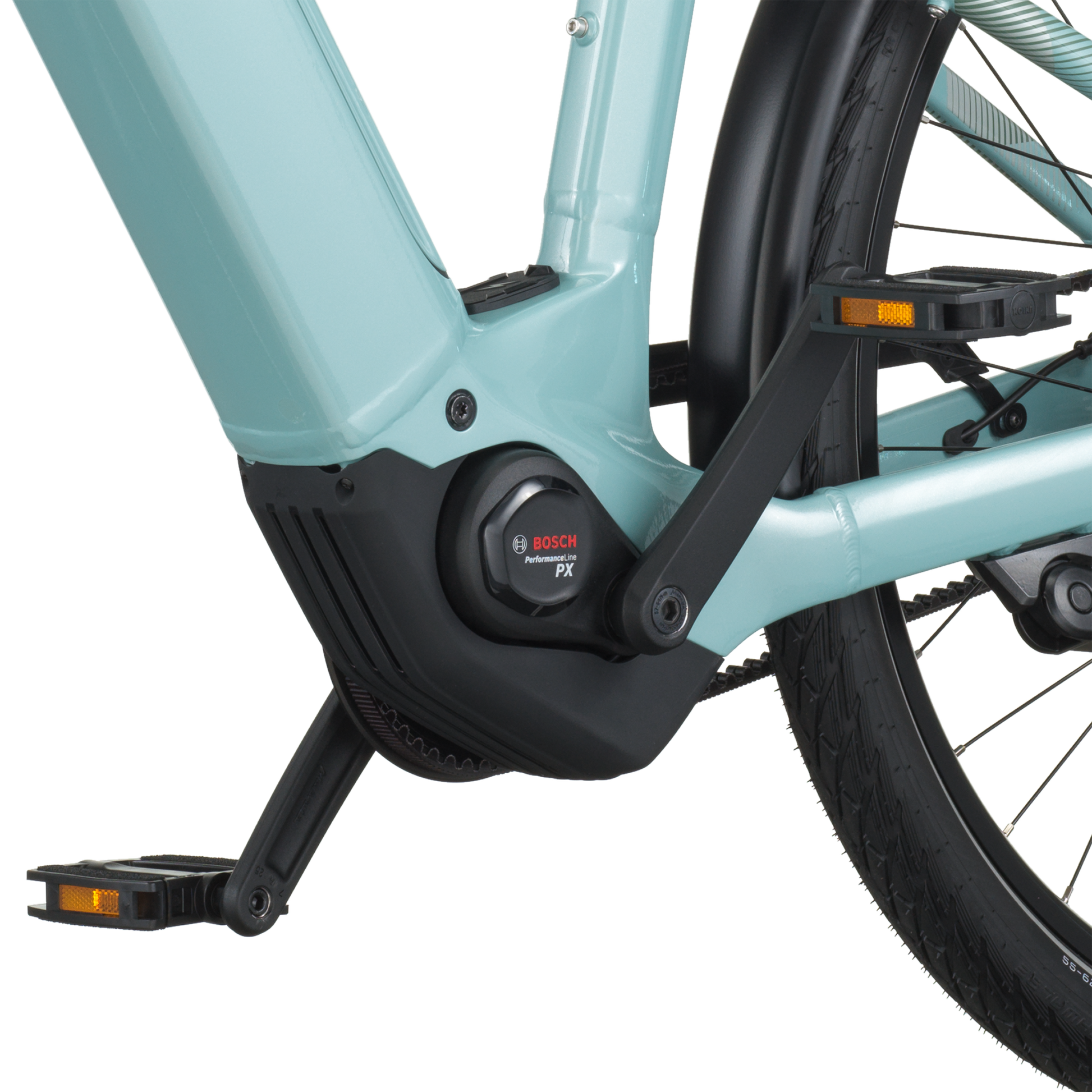

Drive UnitBosch Smart System, Performance Line PX (BDU347Y), 250 W, 36 V, max. 25 km/h
BatteryBosch PowerTube, 36 V Li Ion, 800 Wh
DisplayBosch Kiox 300 with LED Remote
ChargerBosch Smart System, 4 A
ShiftersShimano Nexus, SL-C7000, 5-speed, revo-shifter

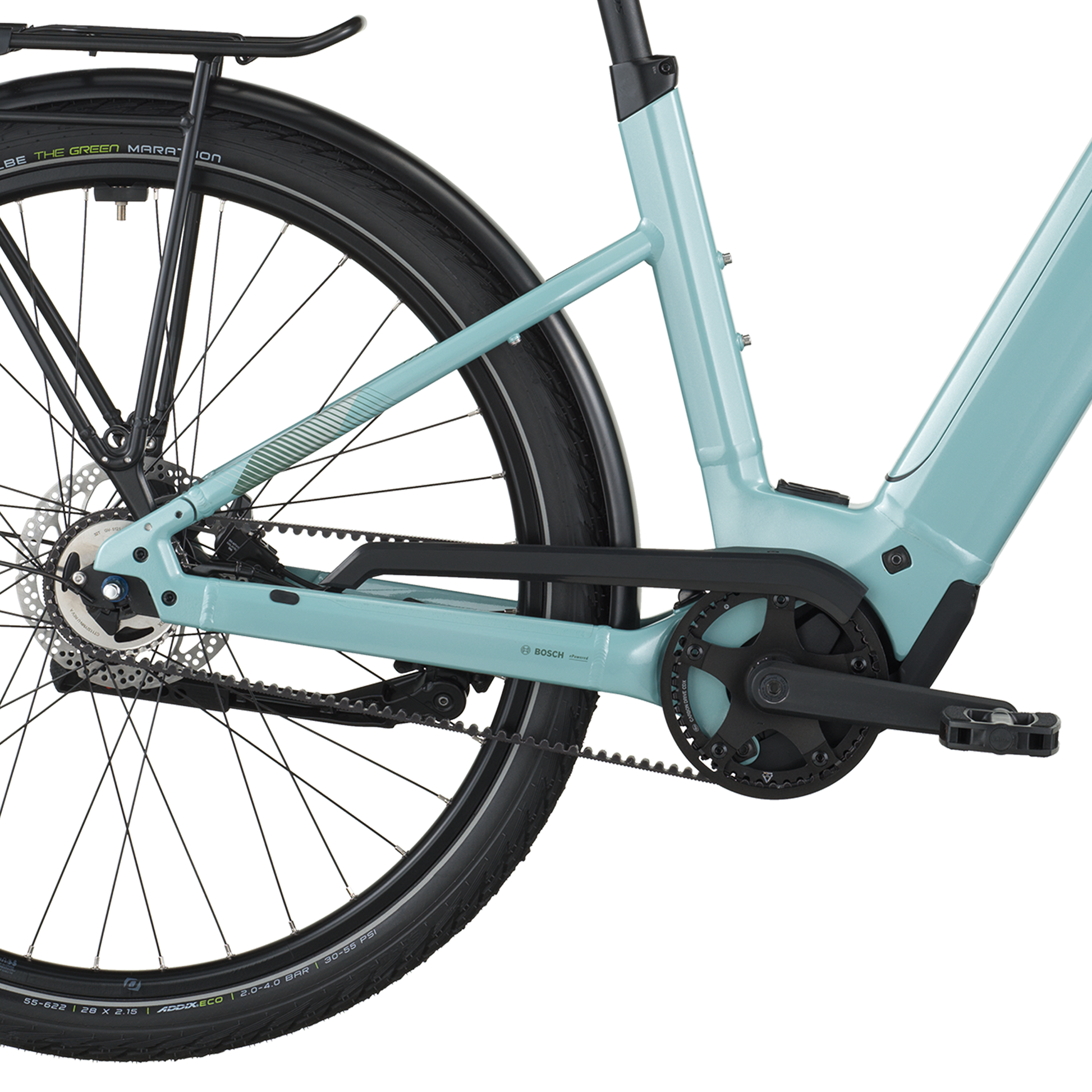

CranksetMiranda Virage, 170 mm, belt, 46t
BB-SetBosch, Isis

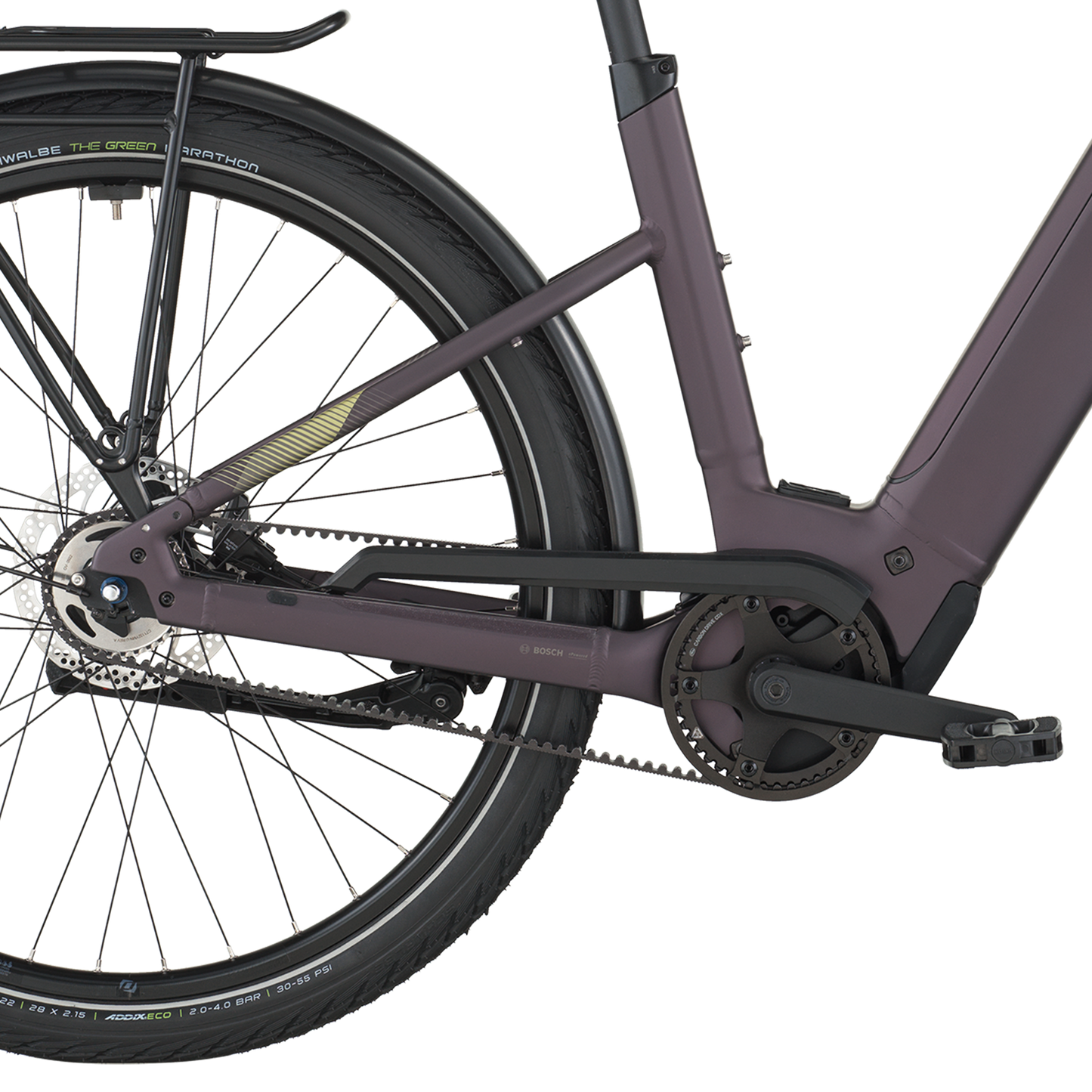

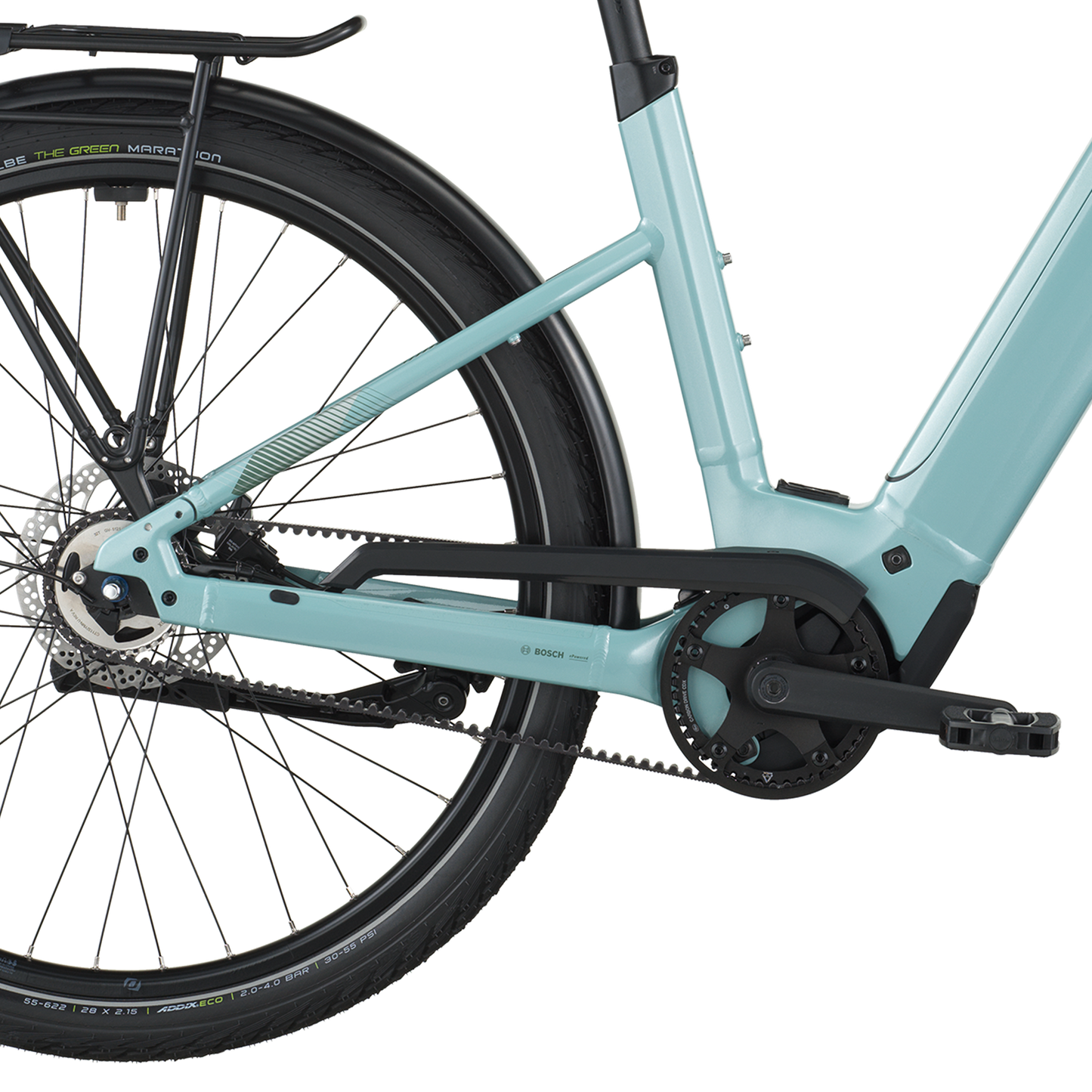

ChainGates CDX Carbon Drive Belt, Center-Track
CassetteGates CDX, 32t
Brake LeversShimano BL-MT402, hydraulic disc brake
BrakesShimano BR-MT410, hydraulic disc brake
RotorShimano SM-RT30, 180 mm
HandlebarSyncros 3.0, riserbar, backsweep: 40°, rise: 40 mm
H'stemSyncros, with SP Connect mount, adjustable
SeatpostSyncros
SeatSyncros Capilano City
HeadsetAcros, A-Headset, semi-integrated, tapered, with integrated cable routing
Front HubShimano HB-TC500-B, centerlock, disc, 15x110 mm axle
Rear HubShimano Nexus, SG-C7000-5, freehub, centerlock, disc
SpokesStainless, black
RimsSyncros X17, disc, eyelets
Front TireSchwalbe Marathon, Performance, GreenGuard, reflective stripe, 55-622Tube: Schwalbe AV19B Light
Rear TireSchwalbe Marathon, Performance, GreenGuard, reflective stripe, 55-622Tube: Schwalbe AV19B Light
LightsFront: Lezyne Hecto E350, 110 Lux, LEDRear: LED, with brake light function
RackRacktime / BGM Trekking Pro, Snapit 2.0 System
PedalsMarwi SP-827, sandblock
AccessoriesKickstand: Syncros U-mount
Approx weight in KG30,2
FenderCurana Apollo, with stainless stays
GripsSyncros Urban, Ergo, double density, lock-on
Max. System Weight160,0 kgThe overall weight includes the bike, the rider, the equipment and possible additional luggage.
