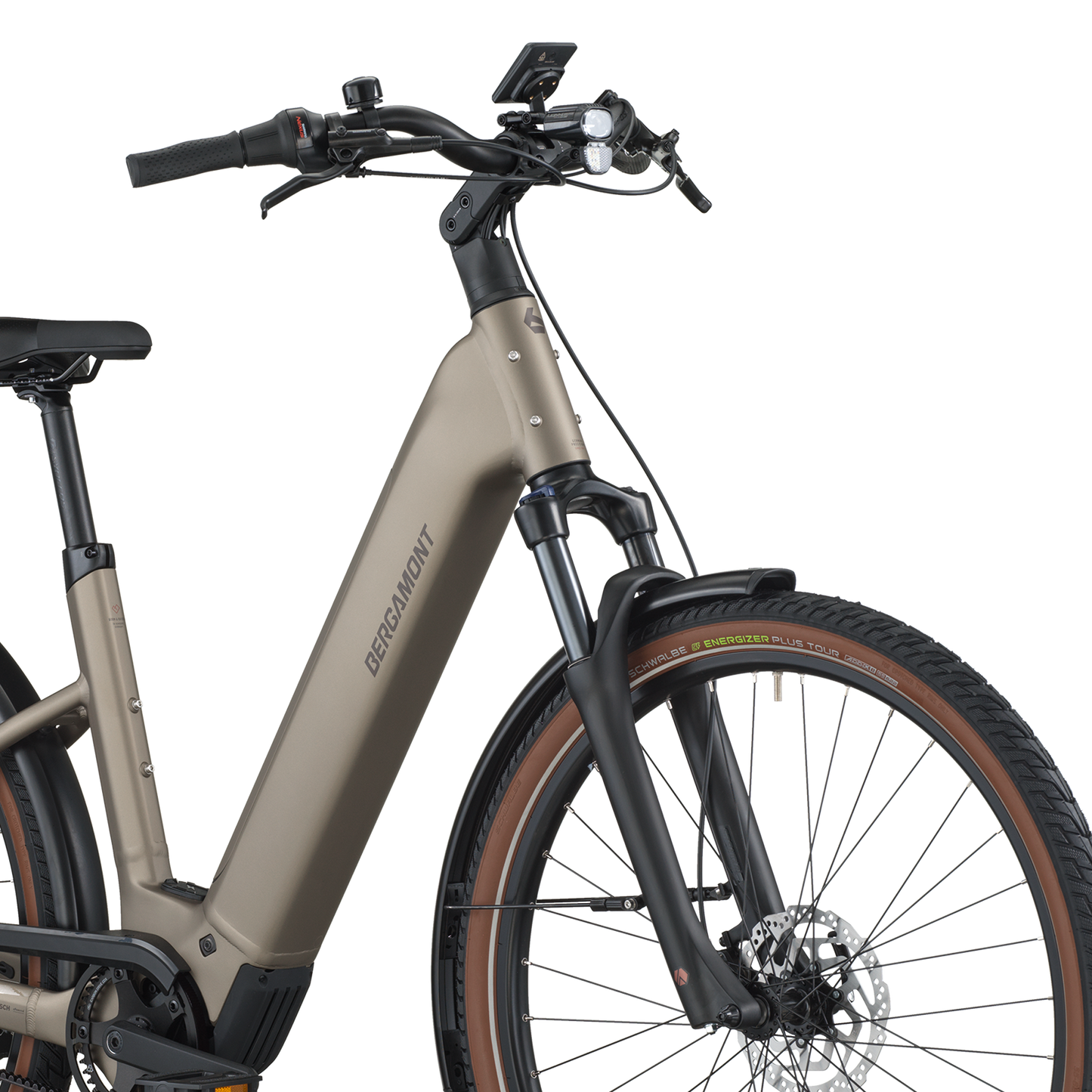

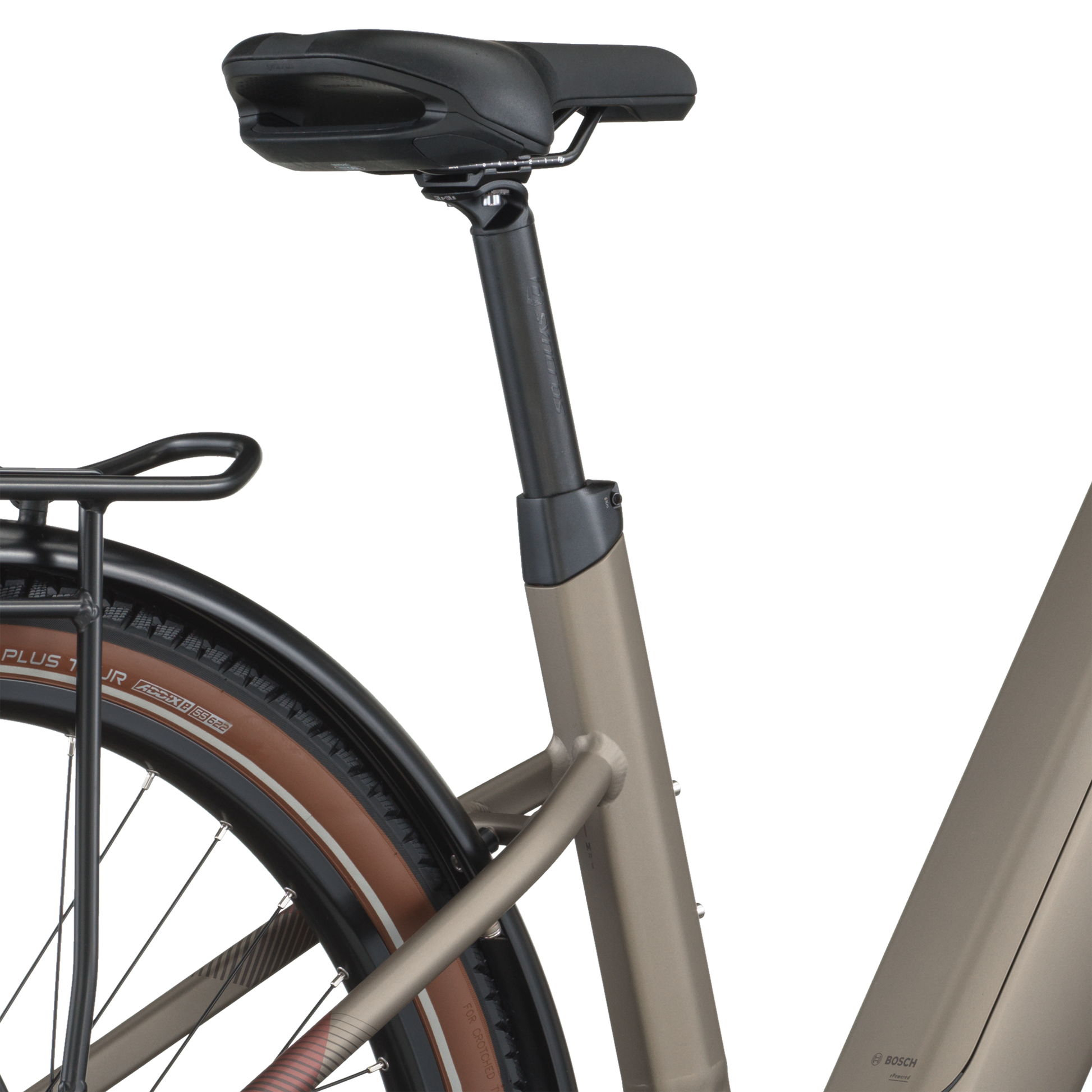

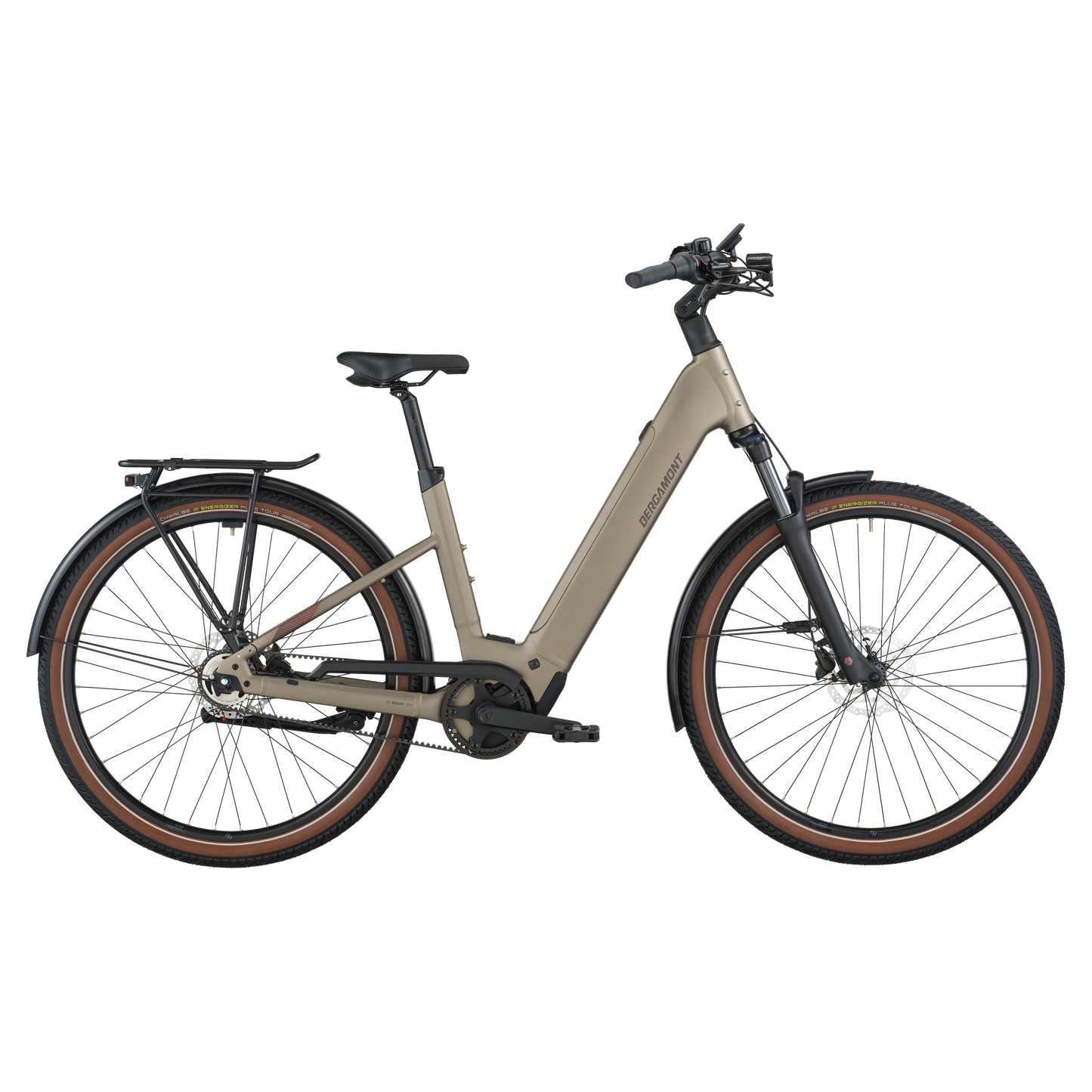

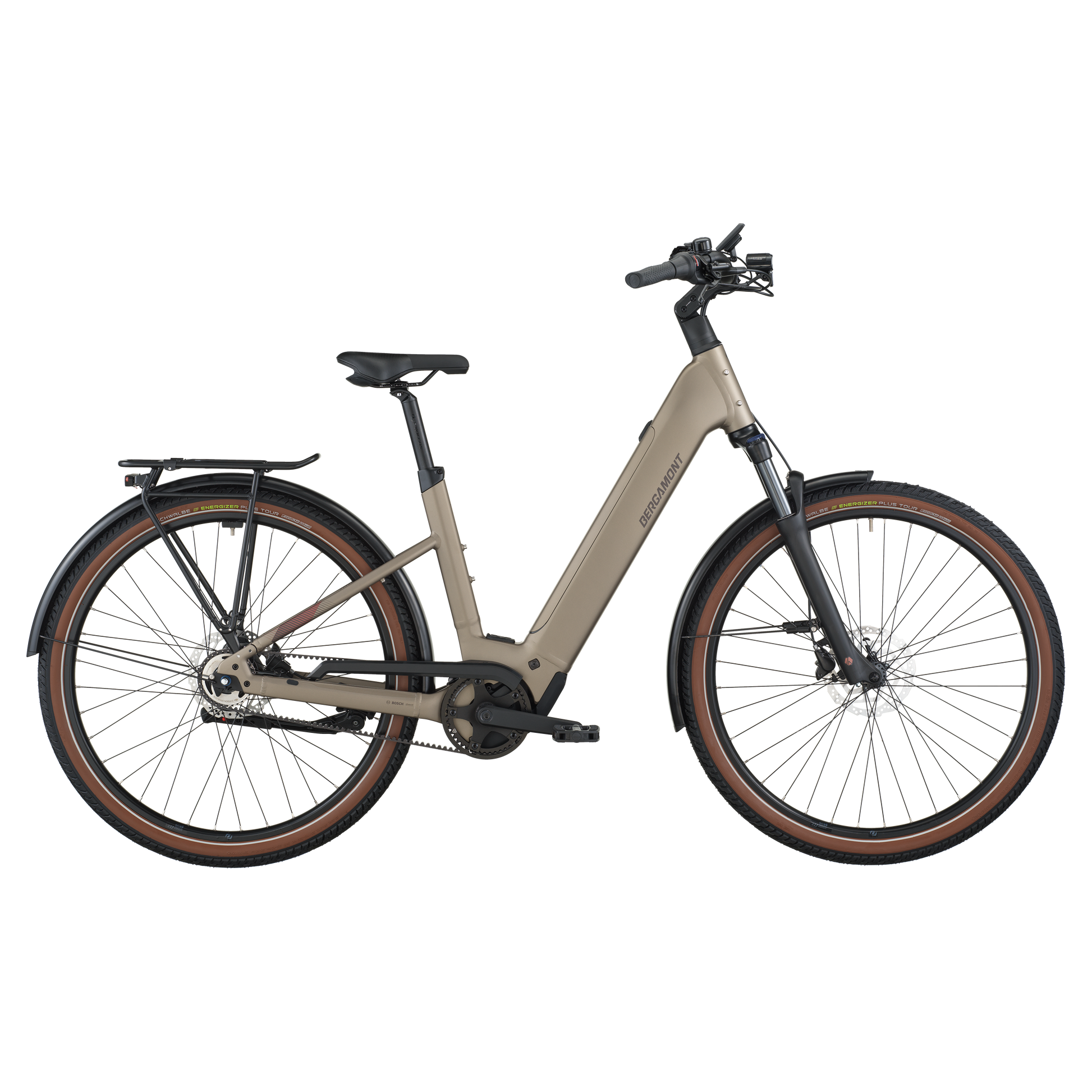

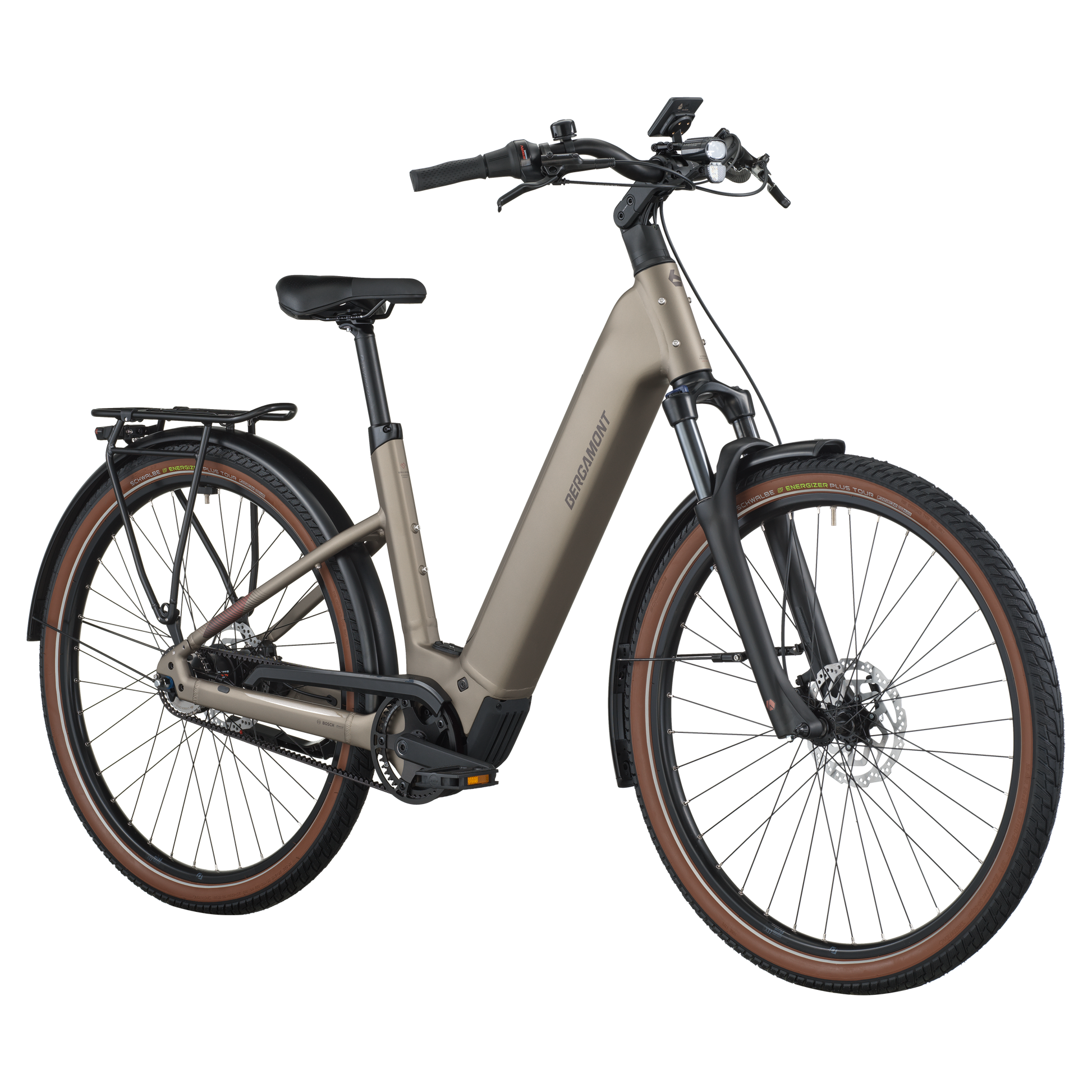

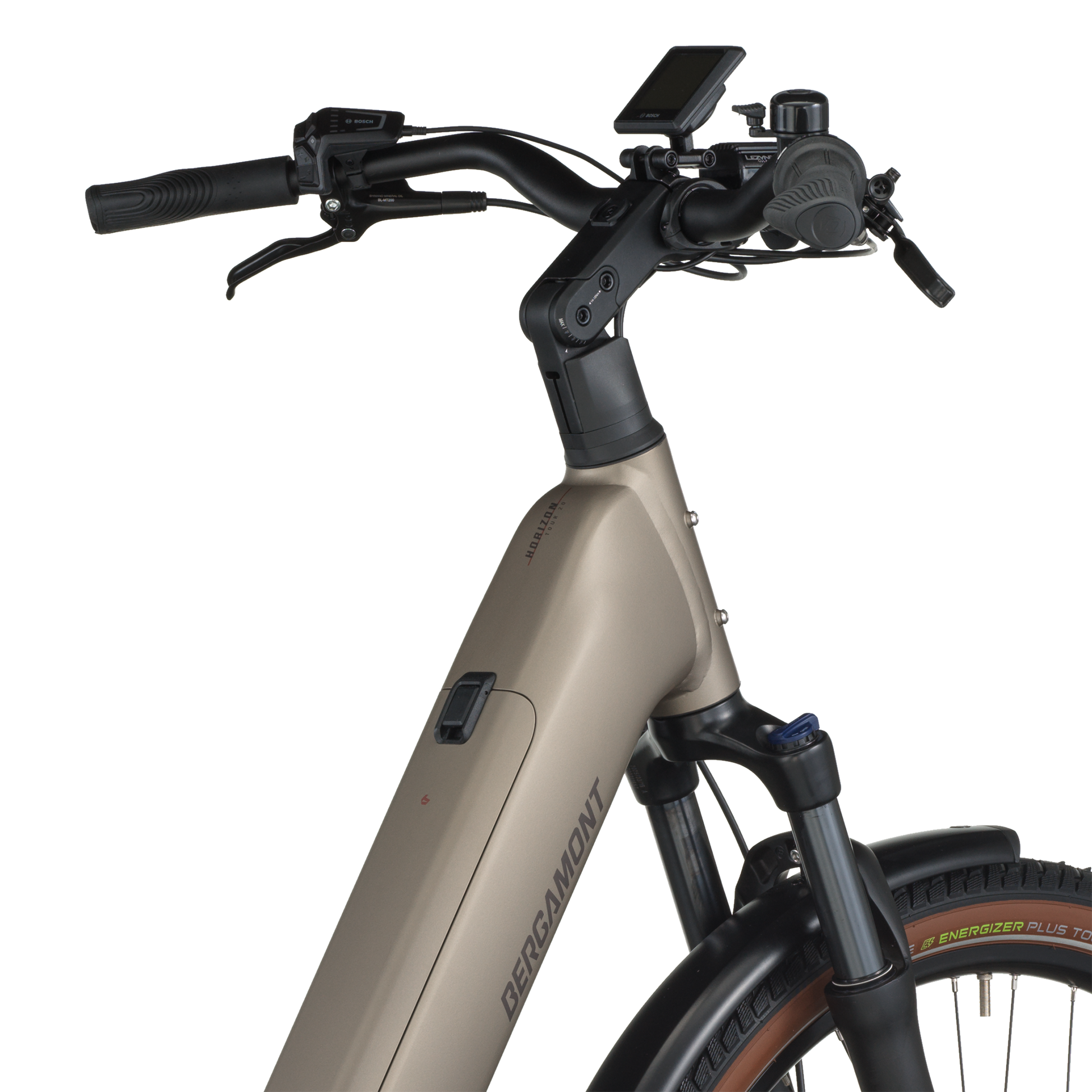

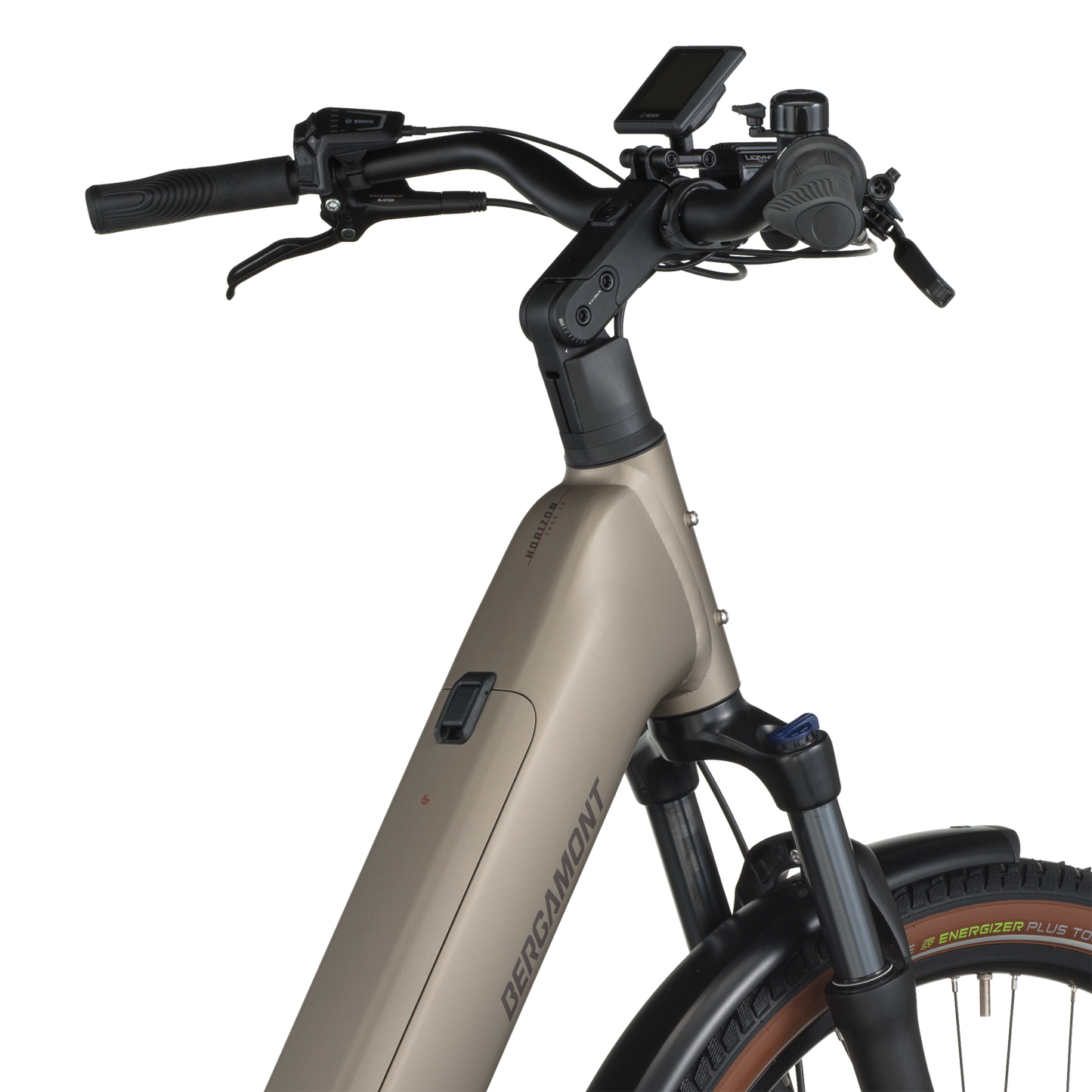

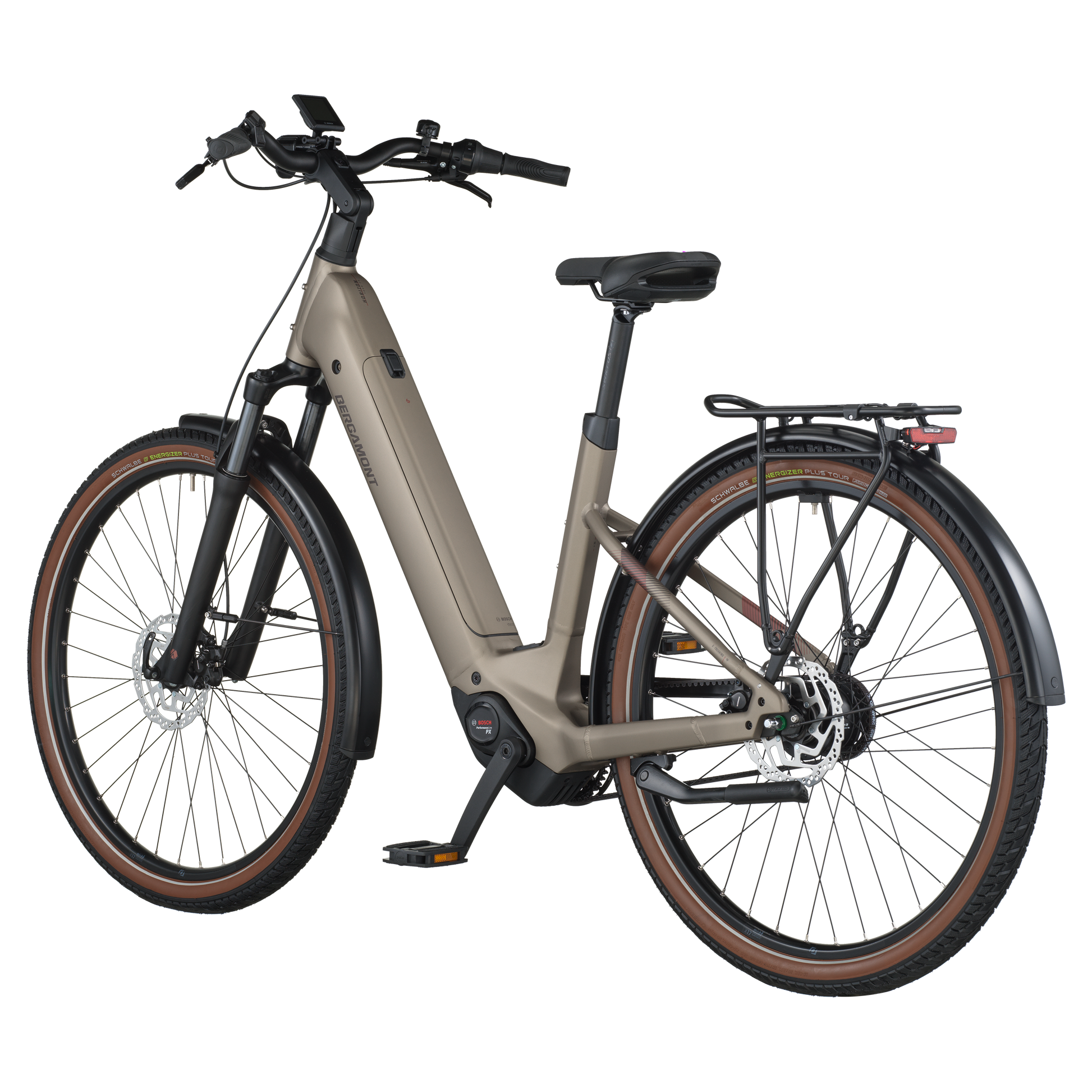

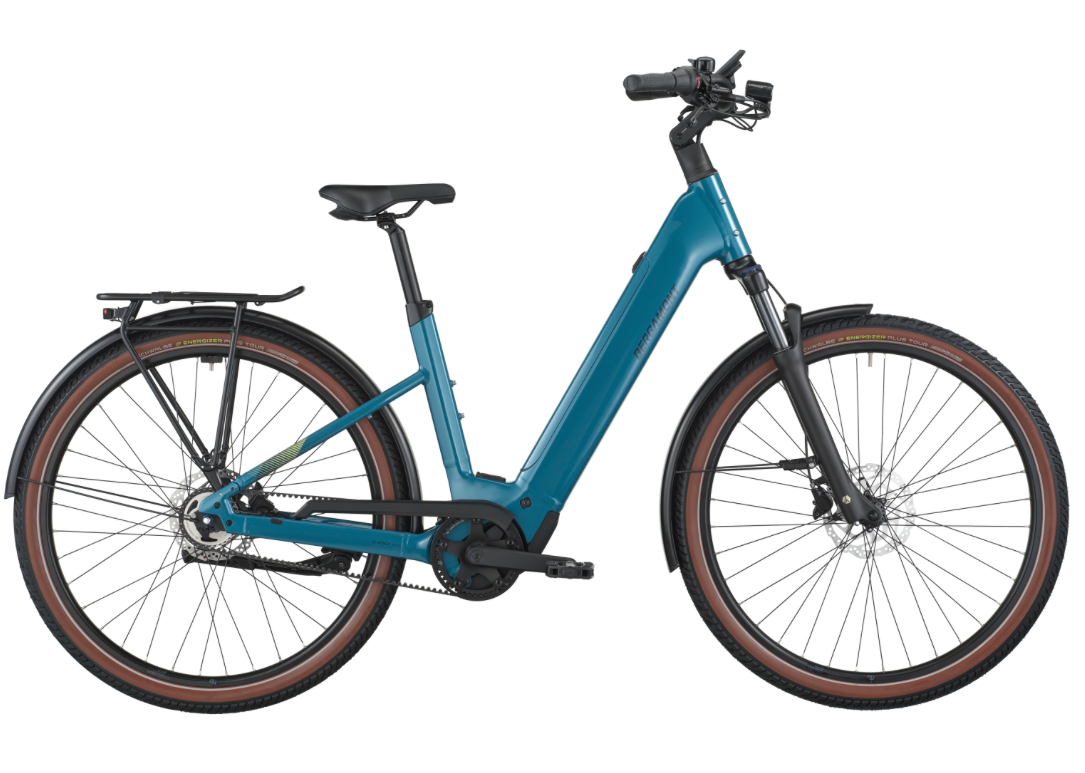

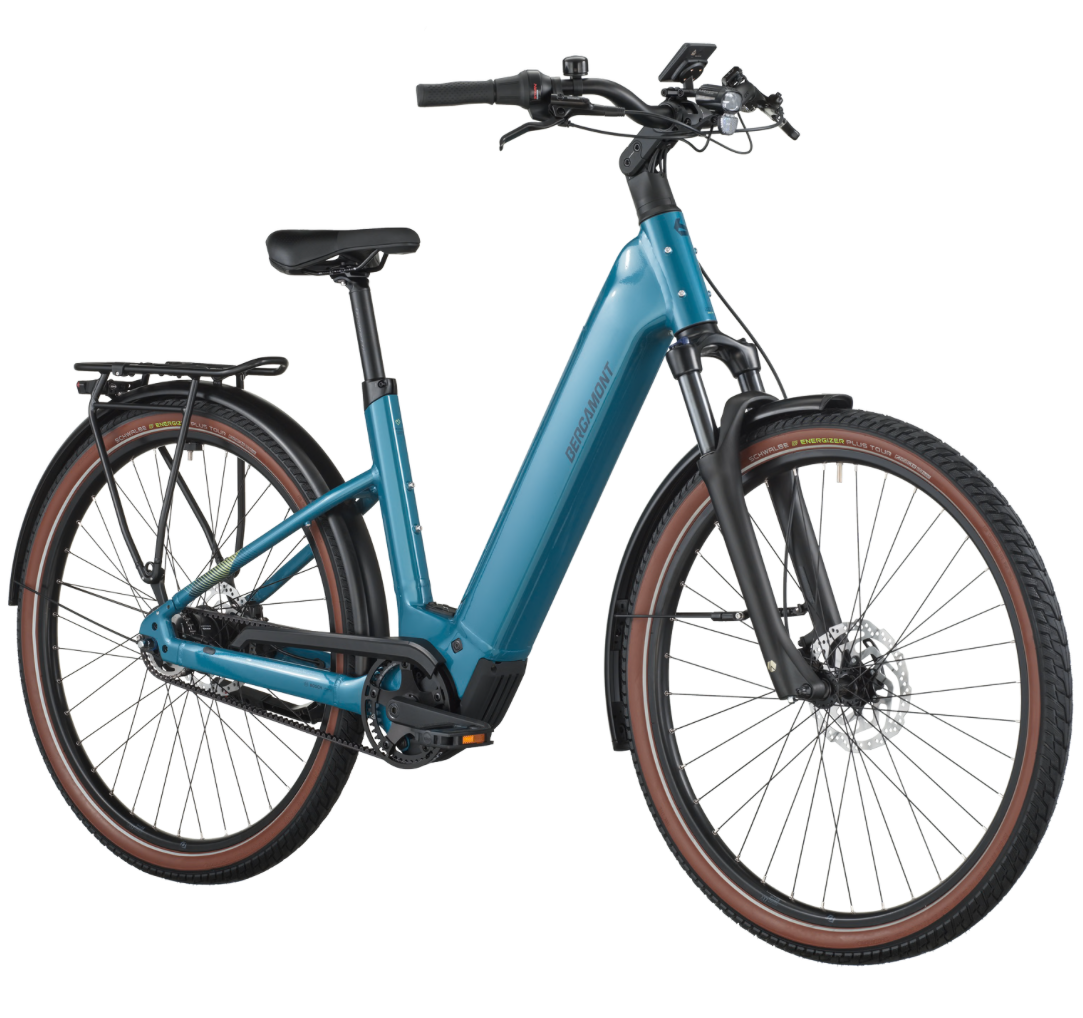

The E-Horizon Tour 20 Belt Wave is a fully equipped e-trekking bike with a low step-over height and perfectly integrated components. It includes features such as LED lights with a rear brake light function that increase rider safety in urban environments. The rear carrier is approved for 27 kg and child transportation in combination with a Thule Yepp (Nexxt) 2 maxi seat. The internal gear hub drivetrain provides reliable shifting and is low maintenance. The hydraulic disc brakes offer superior braking power and modulation even in adverse weather conditions.
The Bosch Performance Line PX electric drive system offers strong, silent and long-lasting support, giving you the freedom to explore beyond your usual routes.
The high-capacity Bosch PowerTube battery integrated into the frame can be removed for remote charging, while the battery cover remains on the bike to protect the empty battery bay from the elements. With the Bosch Smart System advanced connectivity features and upgrades are available: Use the eBike Flow App to control your bike or add optional extras like a Bosch PowerMore battery for increased range.
Frame28", super lite AL-6061 tubing, PowerTube battery
ForkSuntour NVX32 NLO DS, 100 mm

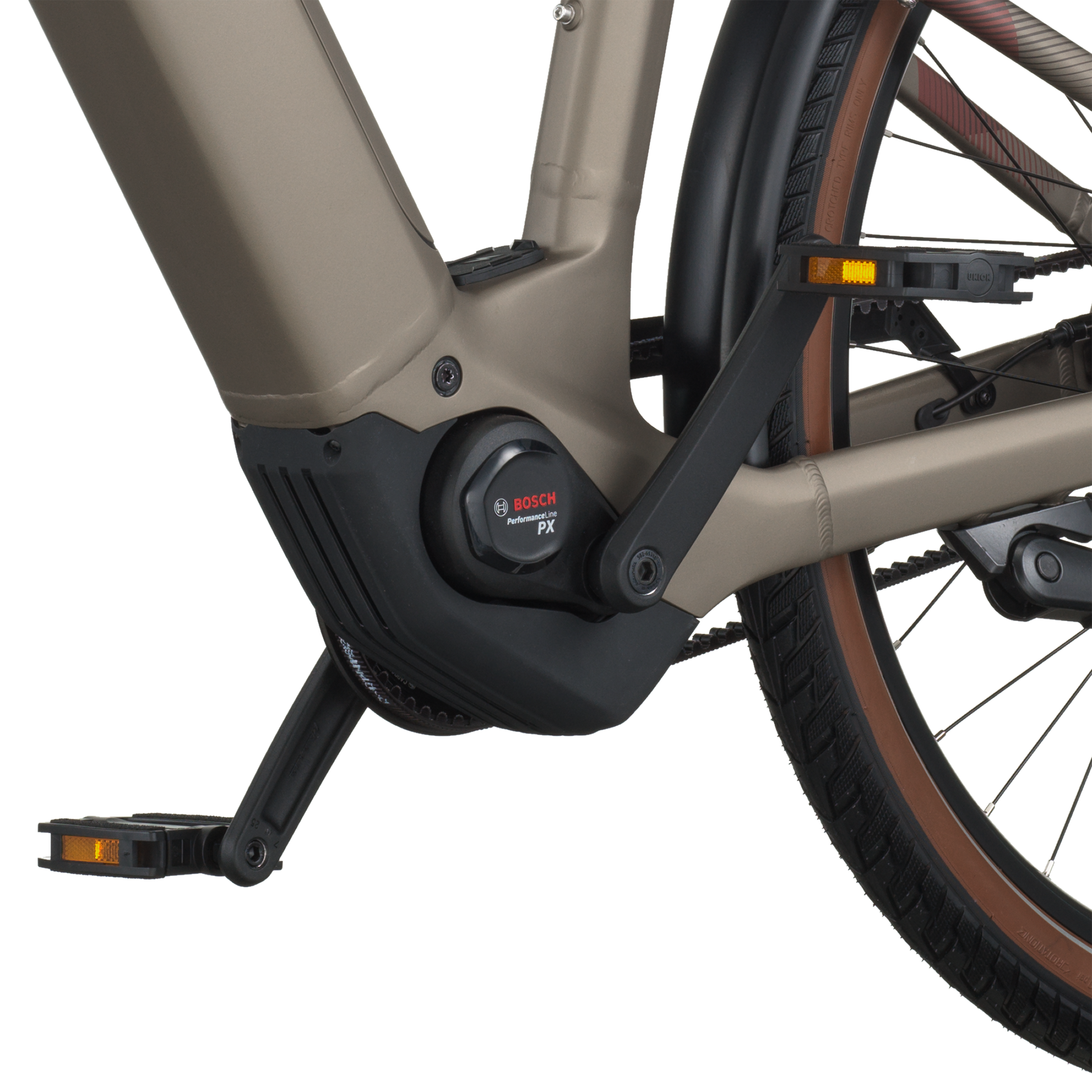

Drive UnitBosch Smart System, Performance Line PX (BDU347Y), 250 W, 36 V, max. 25 km/h
BatteryBosch PowerTube, 36 V Li Ion, 600 Wh
DisplayBosch Intuvia 100 with LED Remote
ChargerBosch Smart System, 2 A
ShiftersShimano Nexus, SL-C7000, 5-speed, revo-shifter
CranksetMiranda Virage, 170 mm, belt, 46t
BB-SetBosch, Isis

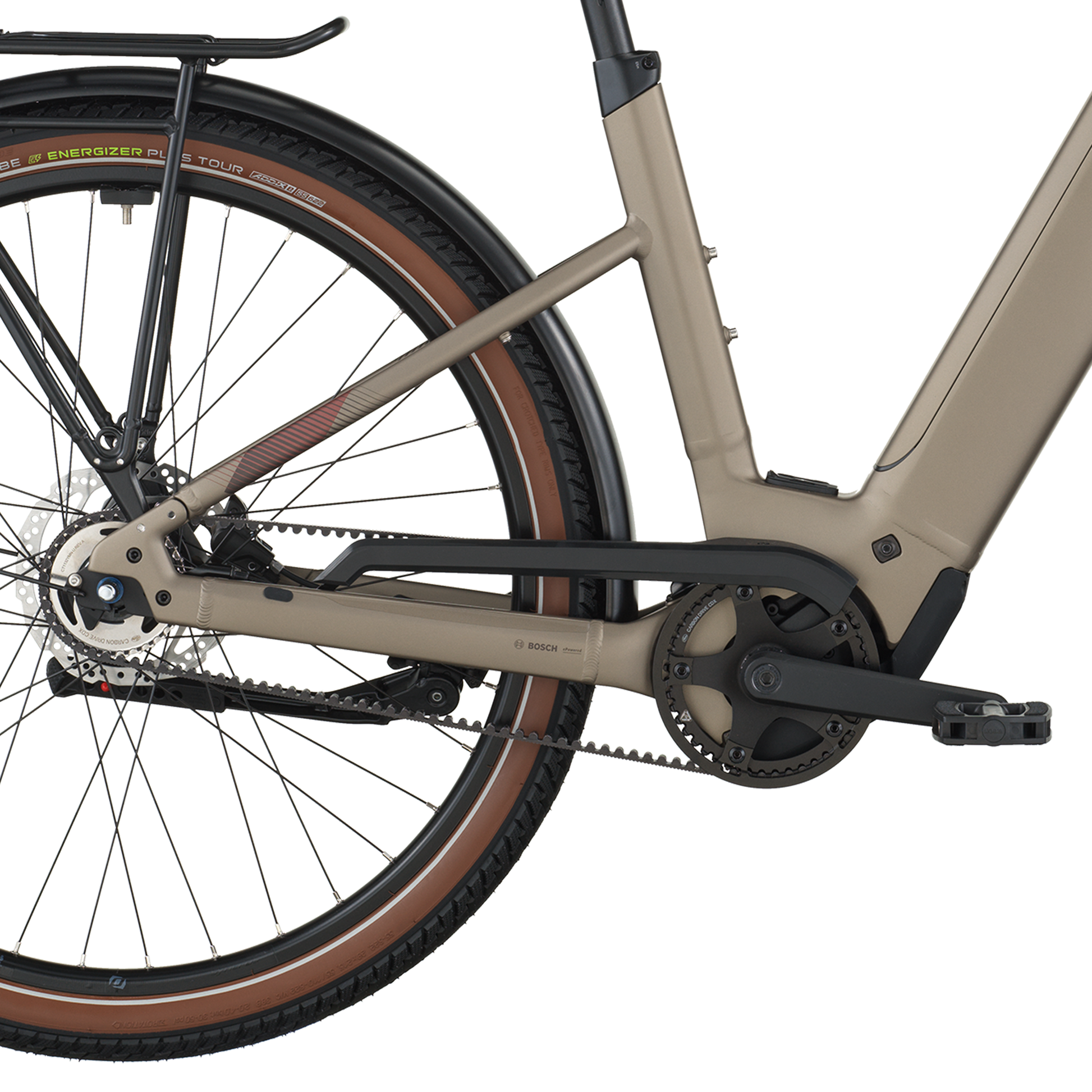

ChainGates CDX Carbon Drive Belt, Center-Track
CassetteGates CDX, 32t
Brake LeversShimano BL-MT200, hydraulic disc brake
BrakesShimano BR-MT200, hydraulic disc brake
RotorShimano SM-RT10, 180 mm
HandlebarSyncros 3.0, riserbar, backsweep: 40°, rise: 40 mm
H'stemSyncros, with SP Connect mount, adjustable
SeatpostSyncros
SeatSyncros Capilano City
HeadsetAcros, A-Headset, semi-integrated, tapered, with integrated cable routing
Front HubShimano HB-QC400, centerlock, disc, quick release
Rear HubShimano Nexus, SG-C7000-5, freehub, centerlock, disc
SpokesStainless, black
RimsSyncros X17, disc, eyelets
Front TireSchwalbe Energizer Plus Tour, Performance, Greenguard, reflective stripe, 55-622Tube: Schwalbe AV19B Light
Rear TireSchwalbe Energizer Plus Tour, Performance, Greenguard, reflective stripe, 55-622Tube: Schwalbe AV19B Light
LightsFront: Lezyne Mini E300, 100 Lux, LEDRear: LED, with brake light function
RackRacktime / BGM Trekking Pro, Snapit 2.0 System
PedalsMarwi SP-827, sandblock
AccessoriesKickstand: Syncros U-mount
Approx weight in KG30,8
FenderCurana Apollo, with stainless stays
GripsSyncros Urban, Ergo, double density, lock-on
Max. System Weight130,0 kgThe overall weight includes the bike, the rider, the equipment and possible additional luggage.
