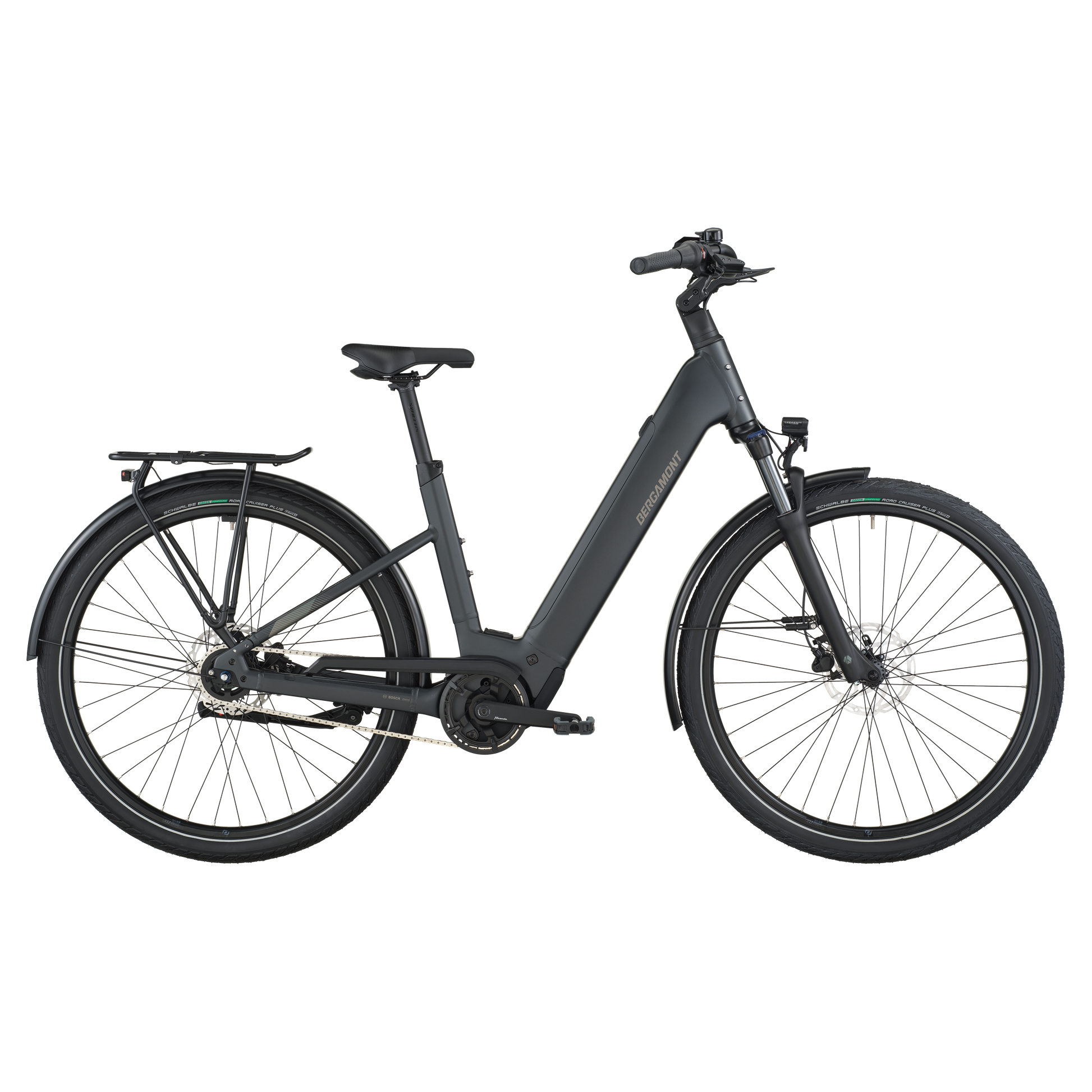

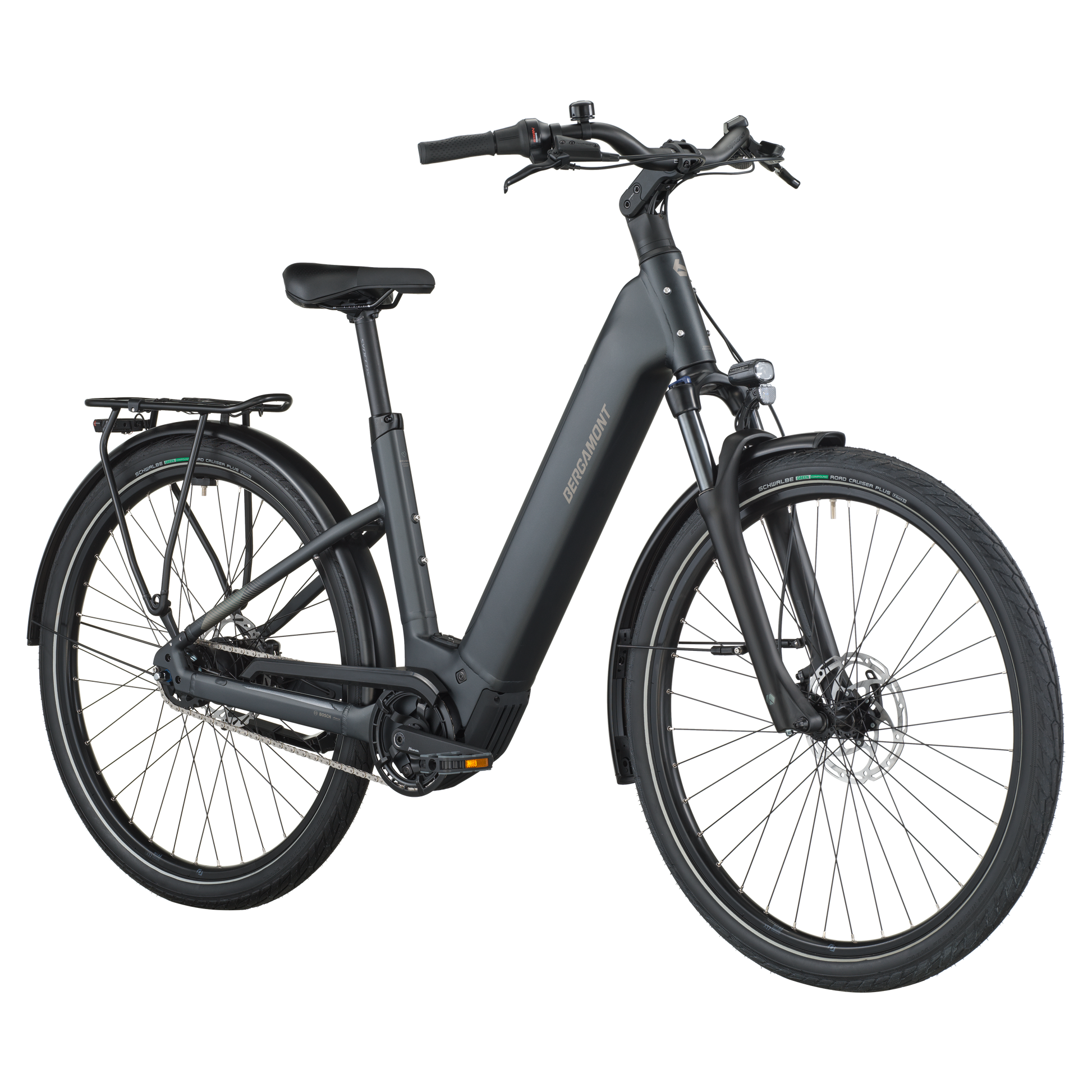

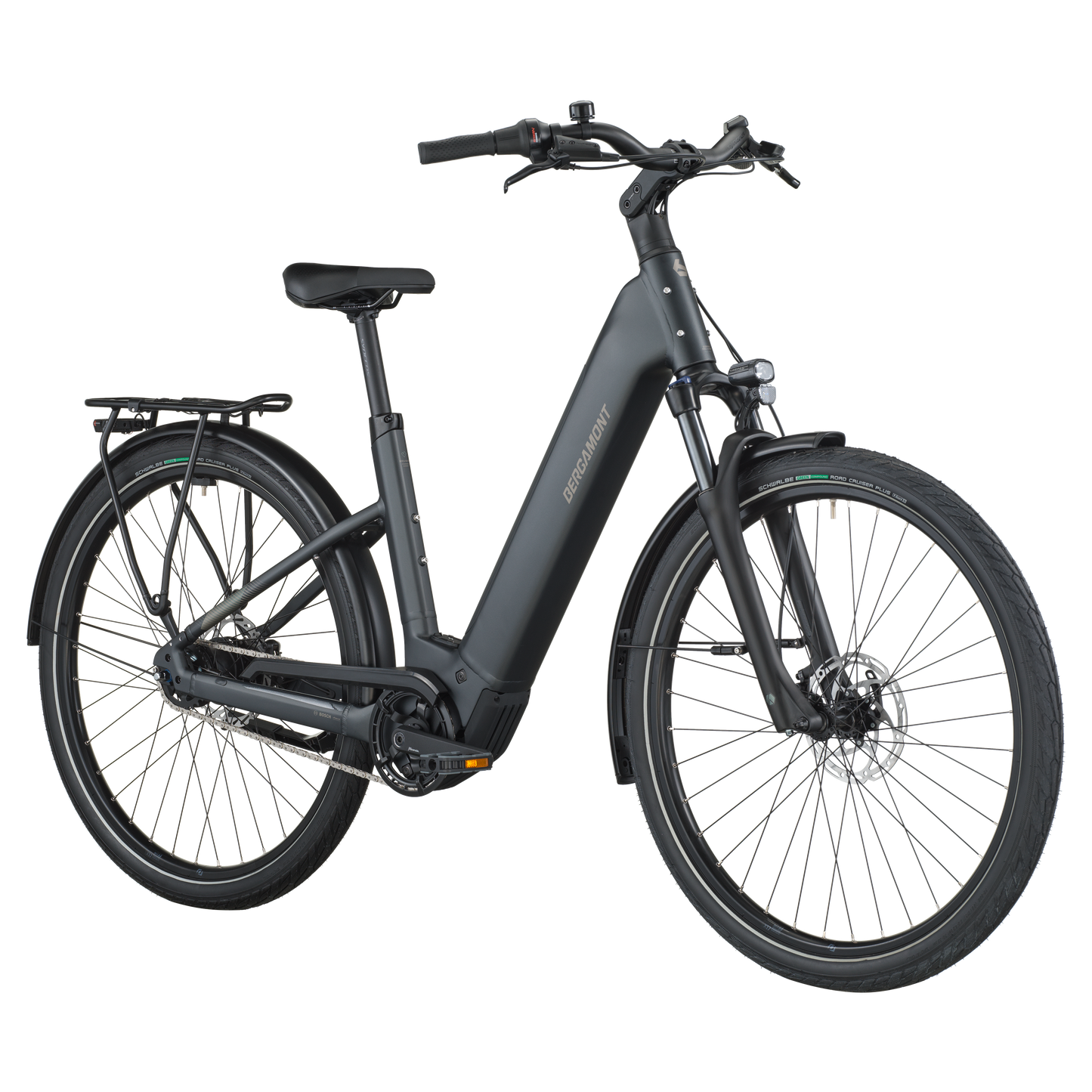

The E-Horizon Tour 40 Wave is a fully equipped e-trekking bike with a low step-over height and perfectly integrated components. It includes features such as LED lights with a rear brake light function that increase rider safety in urban environments. The internal gear hub drivetrain provides reliable shifting and is low maintenance. The hydraulic disc brakes offer superior braking power and modulation even in adverse weather conditions.
The Bosch Performance Line electric drive system offers dynamic support.
The high-capacity Bosch PowerTube battery integrated into the frame can be removed for remote charging, while the battery cover remains on the bike to protect the empty battery bay from the elements. With the Bosch Smart System advanced connectivity features and upgrades are available: Use the eBike Flow App to control your bike or add optional extras like a Bosch PowerMore battery for increased range.
Frame28", super lite AL-6061 tubing, PowerTube battery

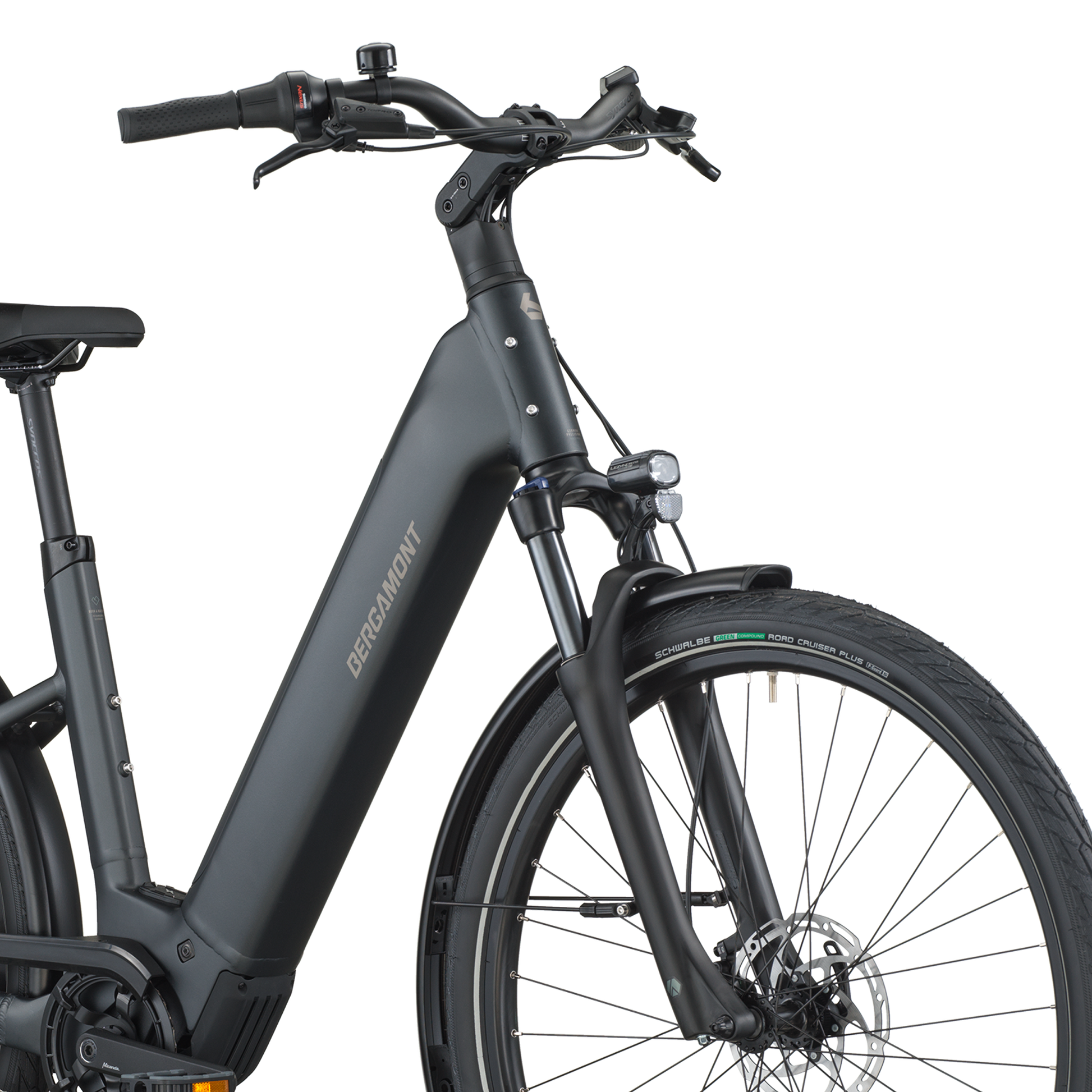

ForkSuntour NVX32 NLO DS, 100 mm
Drive UnitBosch Smart System, Performance Line (BDU346Y), 250 W, 36 V, max. 25 km/h
BatteryBosch PowerTube, 36 V Li Ion, 540 Wh
DisplayBosch Purion 200
ChargerBosch Smart System, 2 A
ShiftersShimano Nexus, SL-C7000, 5-speed, revo-shifter
CranksetMiranda Virage, 170 mm, 38t
BB-SetBosch, Isis
ChainKMC Z1E HX EPT
CassetteShimano, 27t
Brake LeversTektro HD-T280, hydraulic disc brake
BrakesTektro HD-T280, hydraulic disc brake
RotorFront: Tektro, 180-35 mmRear: Tektro, 180-47 mm

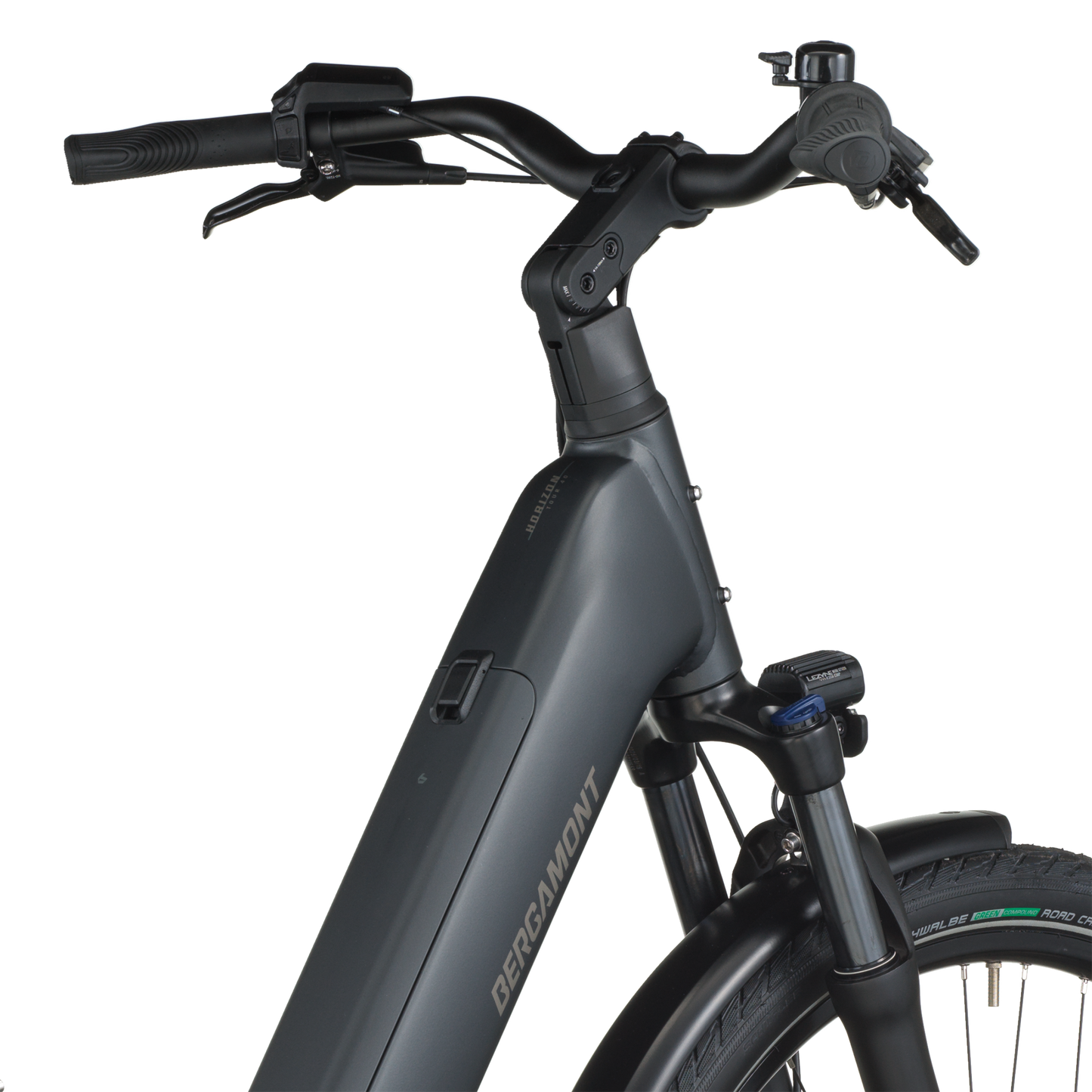

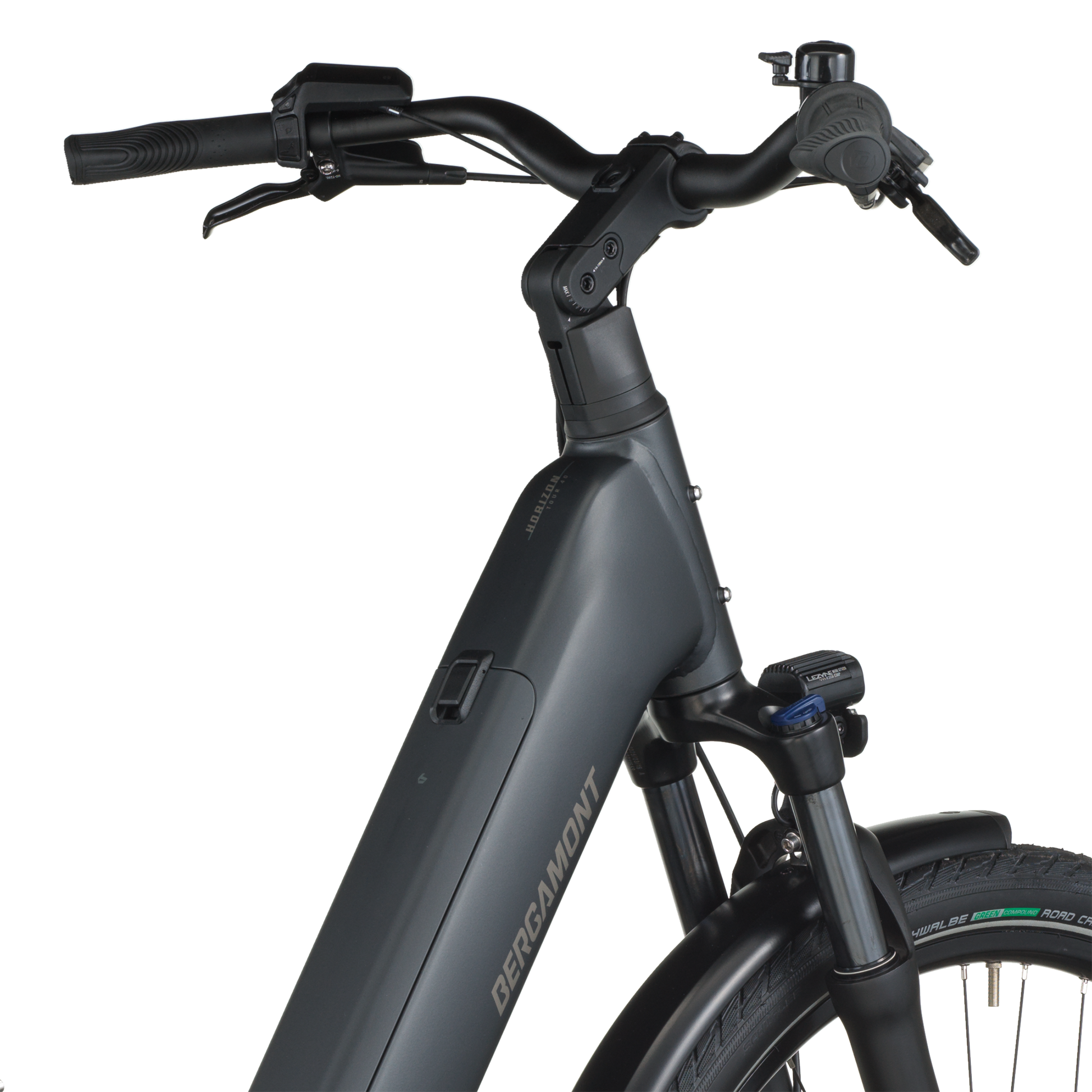

HandlebarSyncros 3.0, riserbar, backsweep: 40°, rise: 40 mm
H'stemSyncros, with SP Connect mount, adjustable

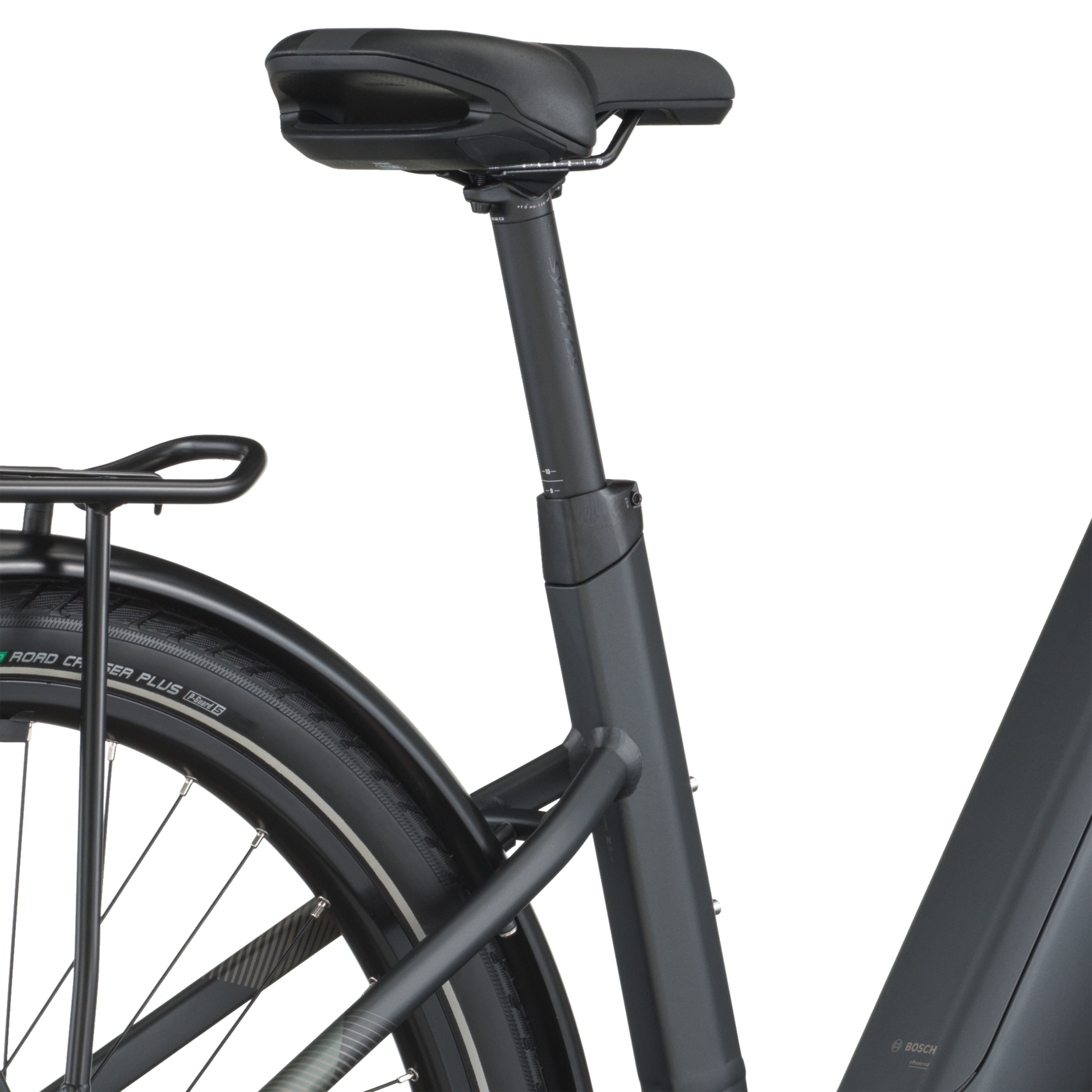

SeatpostSyncros
SeatSyncros Capilano City
HeadsetAcros, A-Headset, semi-integrated, tapered, with integrated cable routing
Front HubShimano HB-QC400, centerlock, disc, quick release

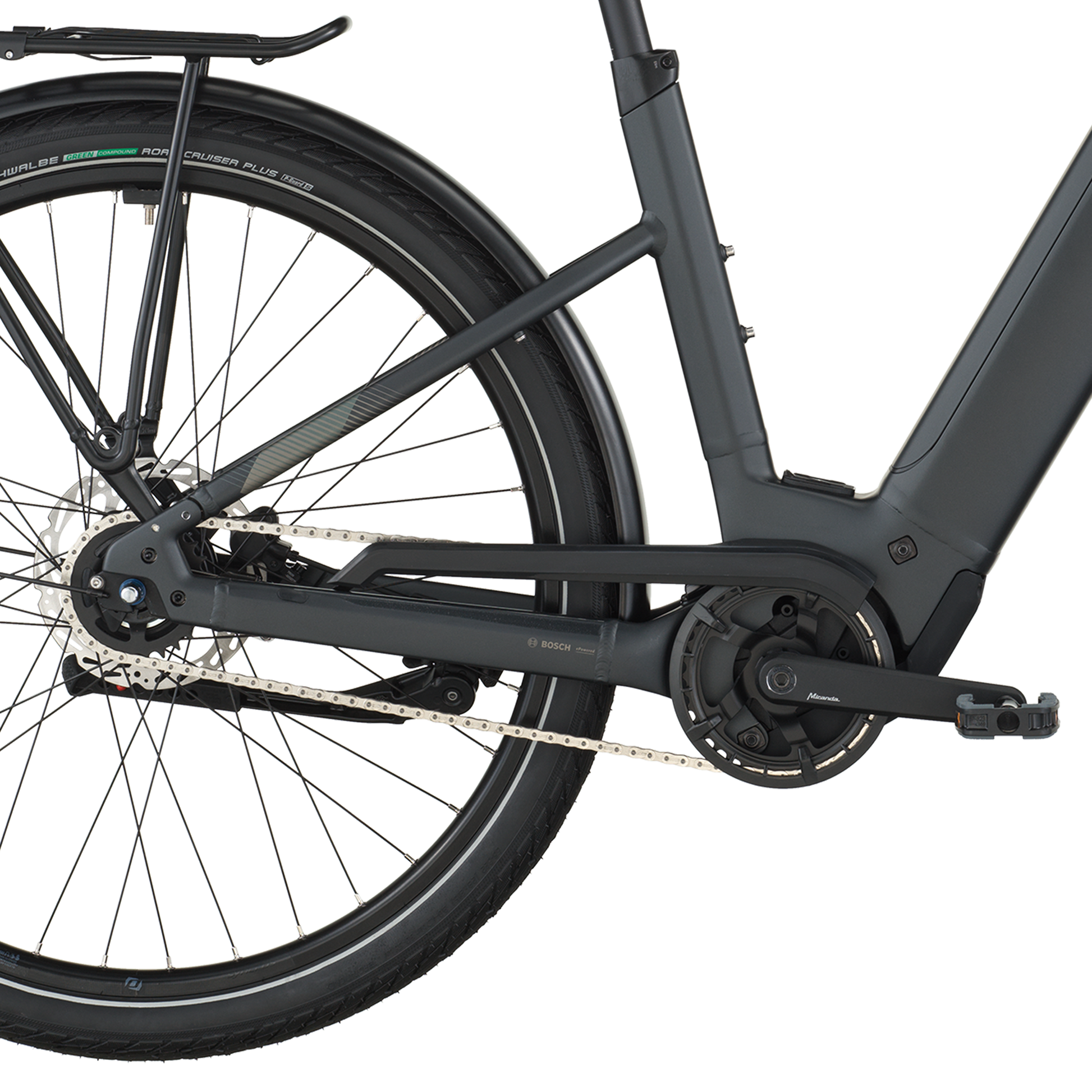

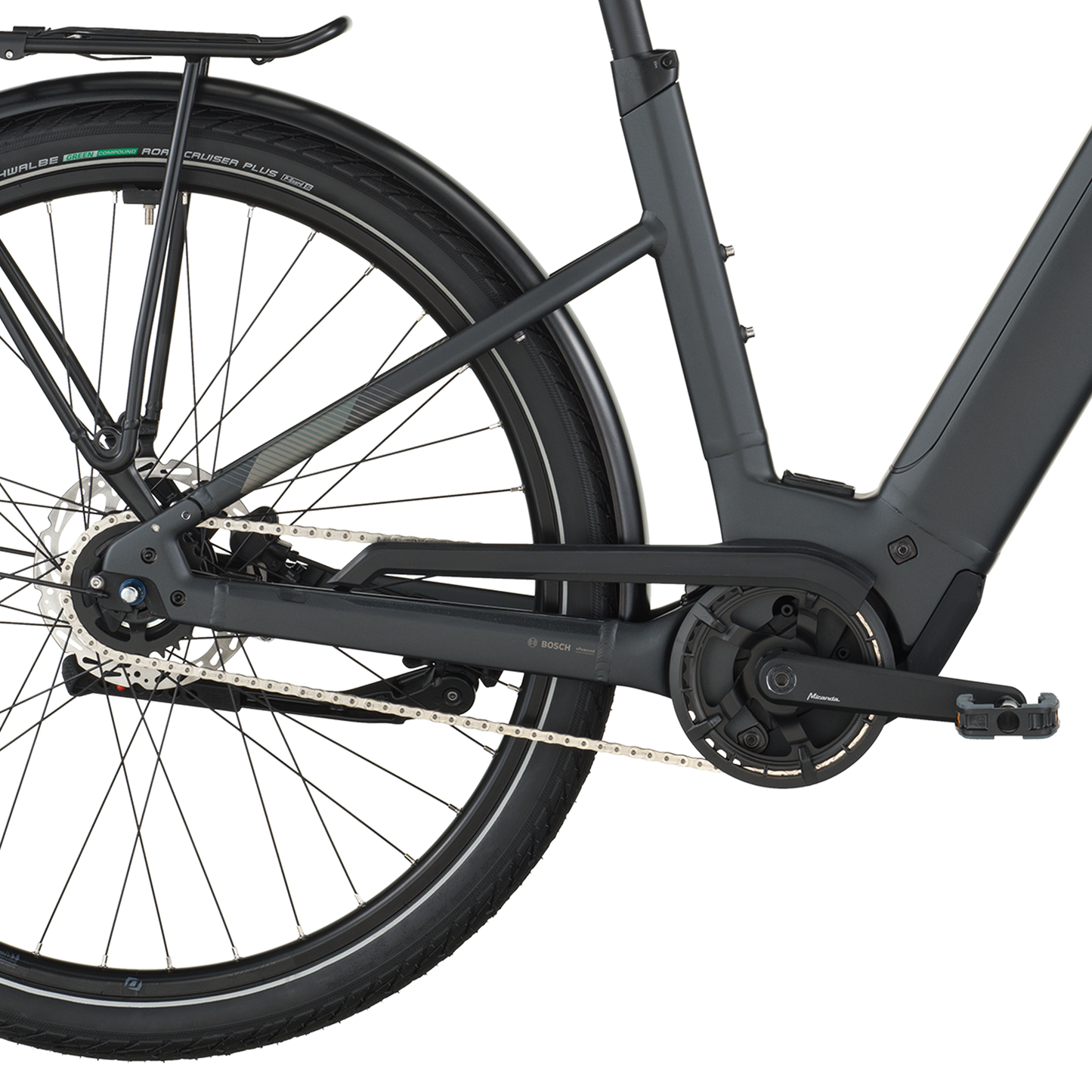

Rear HubShimano Nexus, SG-C7000-5, coaster brake, centerlock, disc
SpokesSteel, black
RimsSyncros X17, disc, eyelets
Front TireSchwalbe Road Cruiser Plus, reflective stripe, 55-622Tube: Schwalbe AV19B Light
Rear TireSchwalbe Road Cruiser Plus, reflective stripe, 55-622Tube: Schwalbe AV19B Light
LightsFront: Lezyne Mini E300, 100 Lux, LEDRear: LED, with brake light function
RackRacktime / BGM Trekking Pro, Snapit 2.0 System
PedalsTrekking alloy
AccessoriesKickstand: Syncros U-mount
Approx weight in KG30,8
FenderCurana Apollo, with stainless stays
GripsSyncros Urban, Ergo, double density, lock-on
Max. System Weight130,0 kgThe overall weight includes the bike, the rider, the equipment and possible additional luggage.
