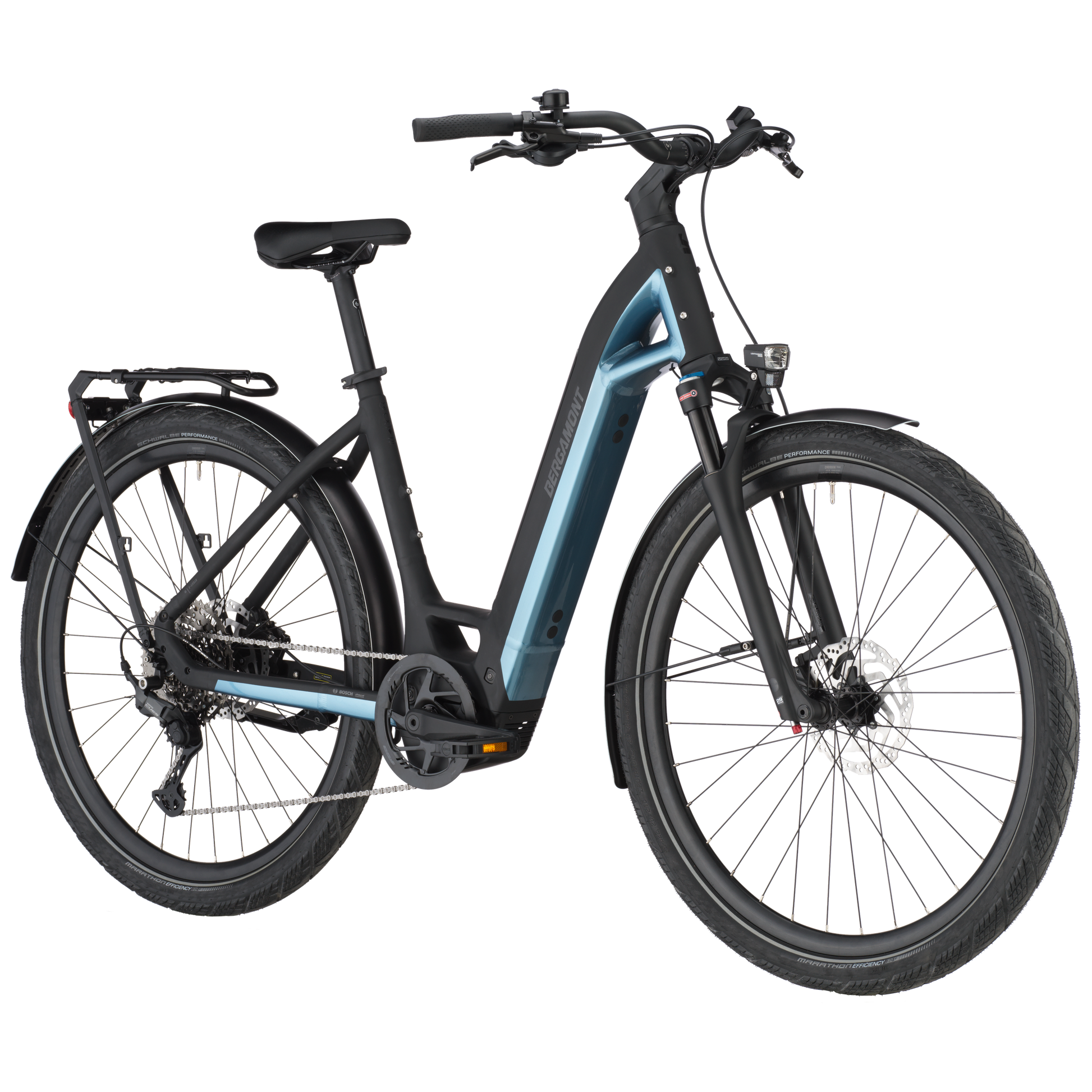

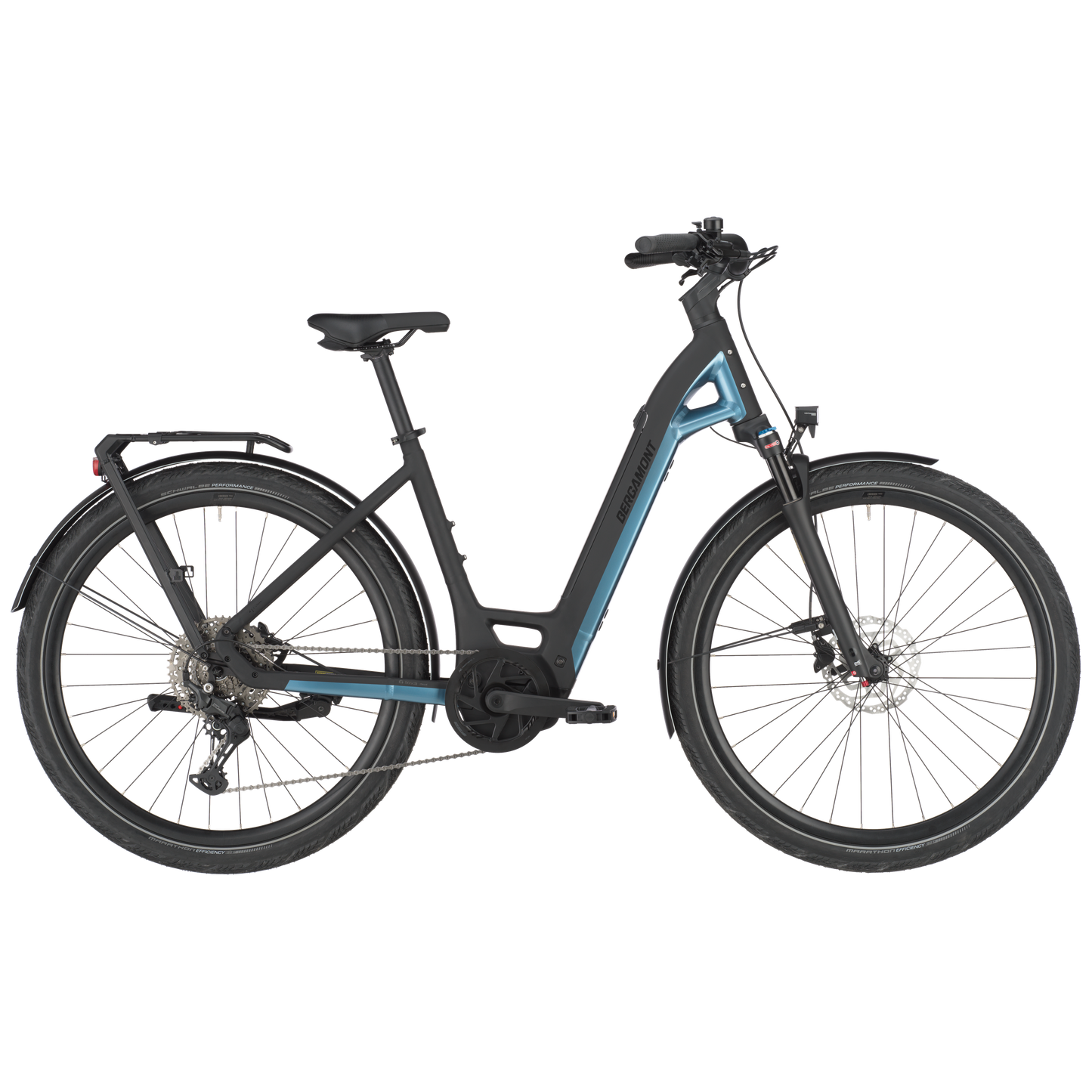

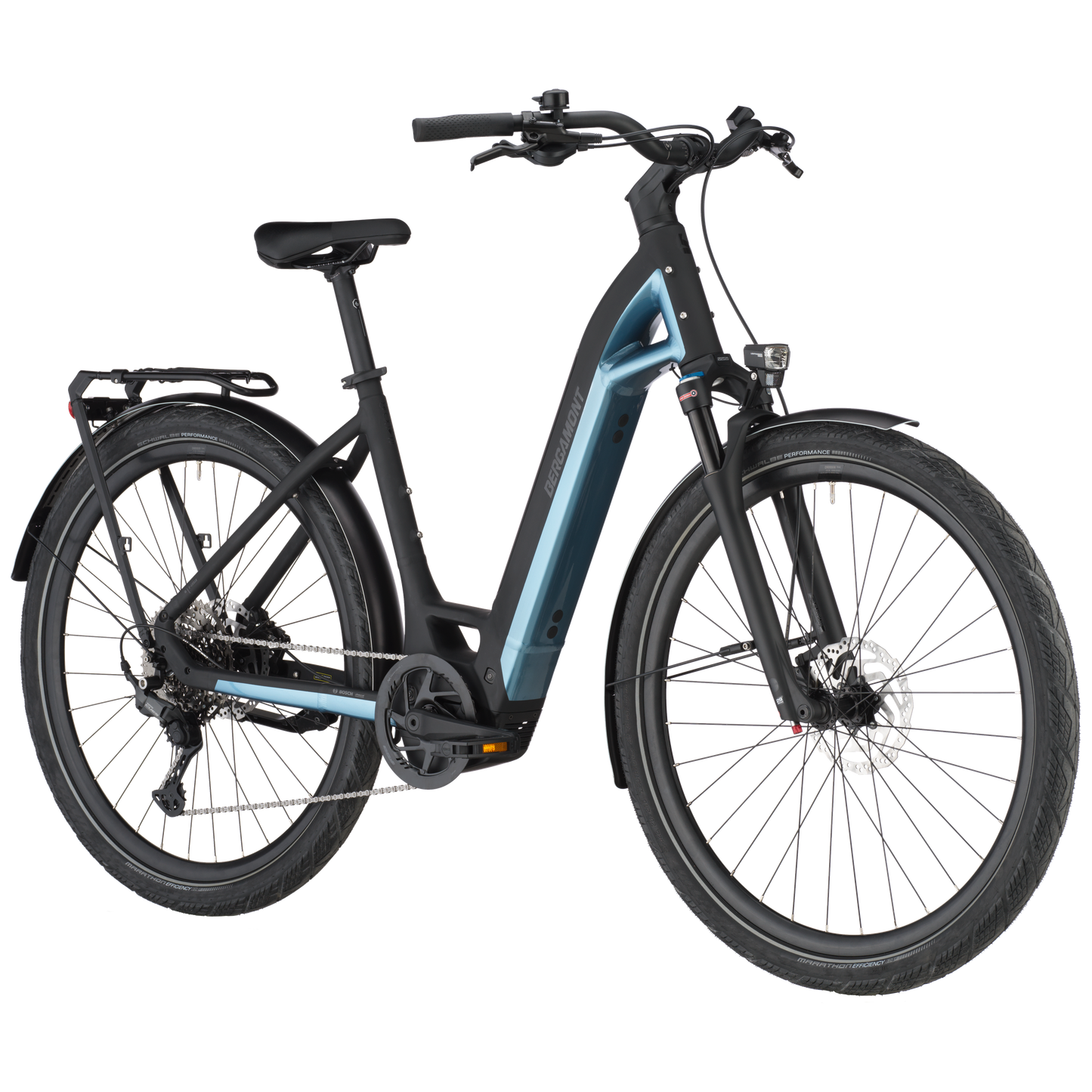

The Bergamont E-Ville is a lightweight urban bike with a low step-over height and a compact yet powerful Bosch Performance Line SX electric drive system.
It’s the perfect companion to get around town for all ages and genders. The E-Ville model range features superior riding characteristics thanks to modern manufacturing processes like an investment casting of the central flange for best possible rigidity to weight ratio and perfect component integration. This core piece of technology also doubles as a handle if you need to carry your E-Ville.
The Bosch CompactTube battery integrated into the frame can be easily removed for remote charging. With the Bosch Smart System advanced connectivity features and upgrades are available: use the eBike Flow App to control your bike or add optional extras like a Bosch PowerMore battery for increased range or a Bosch ConnectModule for GPS tracking.
Frame28", lite investment casting, ultra lite AL-6061 tubing, CompactTube battery
ForkSuntour NRX32-E-Air LOR DS, 75 mm, 15x100 mm axle
Drive UnitBosch Performance Line SX, 250 W, 36 V, max. 25 km/h
BatteryBosch CompactTube, 36 V Li Ion, 400 Wh
DisplayBosch Purion 200
ChargerBosch Compact Charger, 2A
Rear DerailleurShimano Cues, RD-U6000, Shadow Plus
ShiftersShimano Cues, SL-U6000, 1x10-speed, rapidfire plus-shifter
CranksetFSA CK-220, 170 mm, 42t
BB-SetBosch, Isis
ChainShimano Linkglide, CN-LG500
CassetteShimano Cues, CS-LG400-10, 11-48t
Brake LeversShimano BL-MT200, hydraulic disc brake
BrakesShimano BR-MT200, hydraulic disc brake
RotorShimano SM-RT10, 180 mm
HandlebarBGM Pro, riserbar, backsweep: 40°, rise: 40 mm
H'stemSatori Rana, 20°
SeatpostBGM Pro
SeatSyncros Capilano City
HeadsetAcros, A-Headset, semi-integrated, 1.5", with integrated cable routing
Front HubShimano HB-TC500, centerlock, disc, 15x100 mm axle
Rear HubShimano, FH-QC300, centerlock, disc, quick release
Spokesstainless, black
RimsBGM Pro X15, disc, eyelets
Front TireSchwalbe Marathon Efficiency, Performance, RaceGuard, reflective stripe, 55-622Tube: Schwalbe SV19B Light
Rear TireSchwalbe Marathon Efficiency, Performance, RaceGuard, reflective stripe, 55-622Tube: Schwalbe SV19B Light
LightsFront: Trelock LS830, 80 Lux, LEDRear: Axa Juno, LED, with brake light function
RackRacktime / BGM E-Ville carrier, Snapit 2.0 System
PedalsMarwi SP-827, sandblock
AccessoriesKickstand: Syncros U-mount
Approx weight in KG23,8
FenderCurana C-Lite, with stainless stays
GripsSyncros Urban, Ergo, double density, lock-on
Max. System Weight130,0 kgThe overall weight includes the bike, the rider, the equipment and possible additional luggage.
