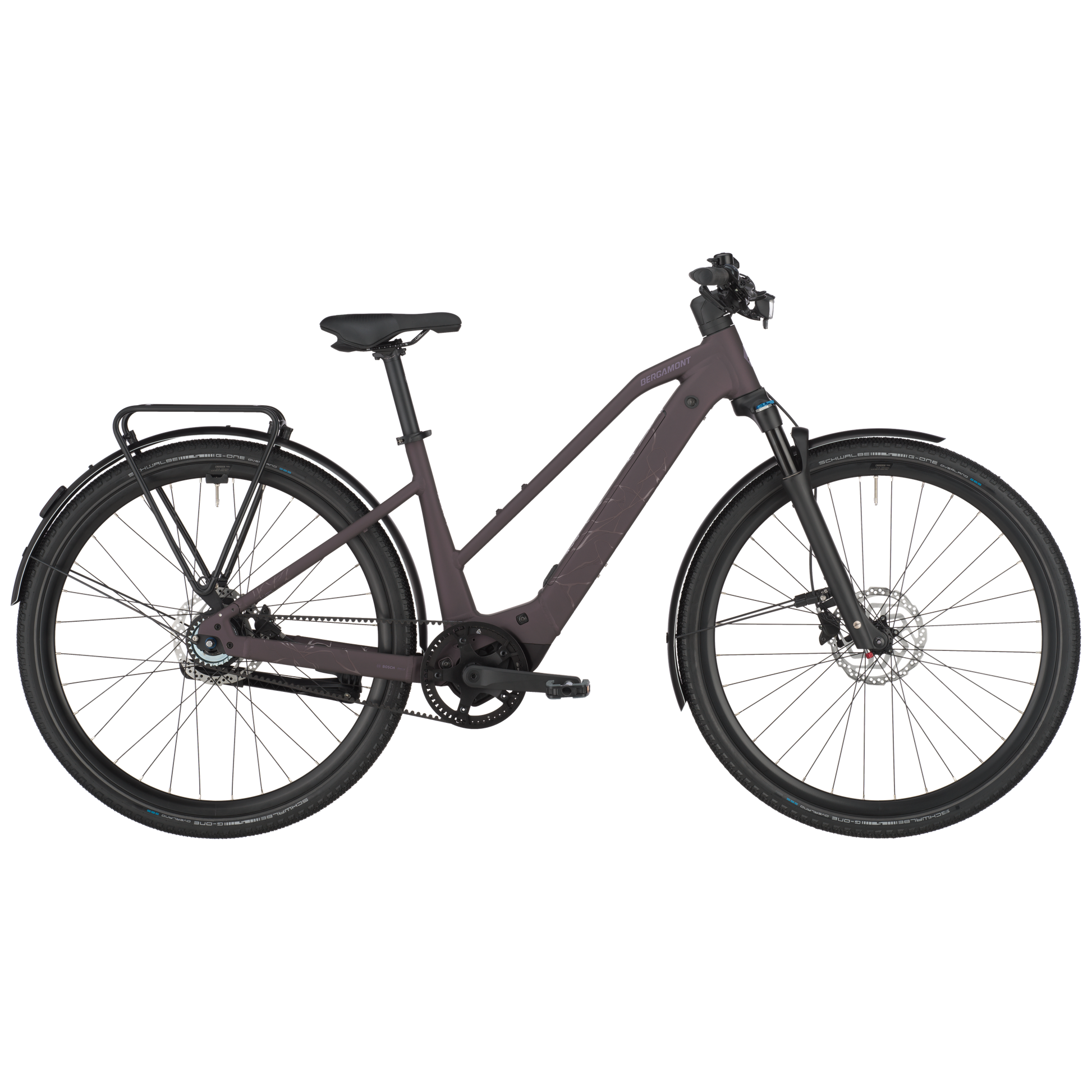

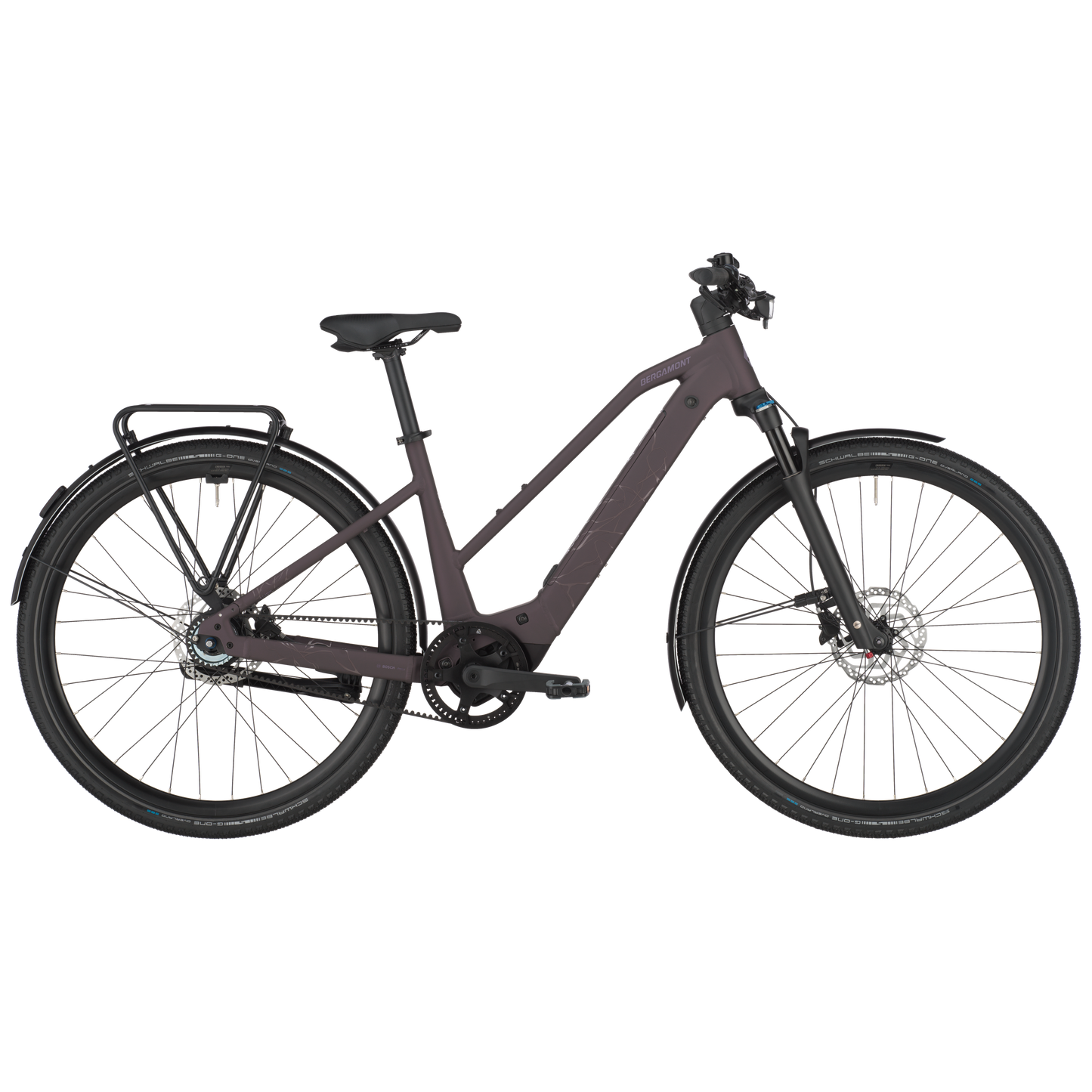

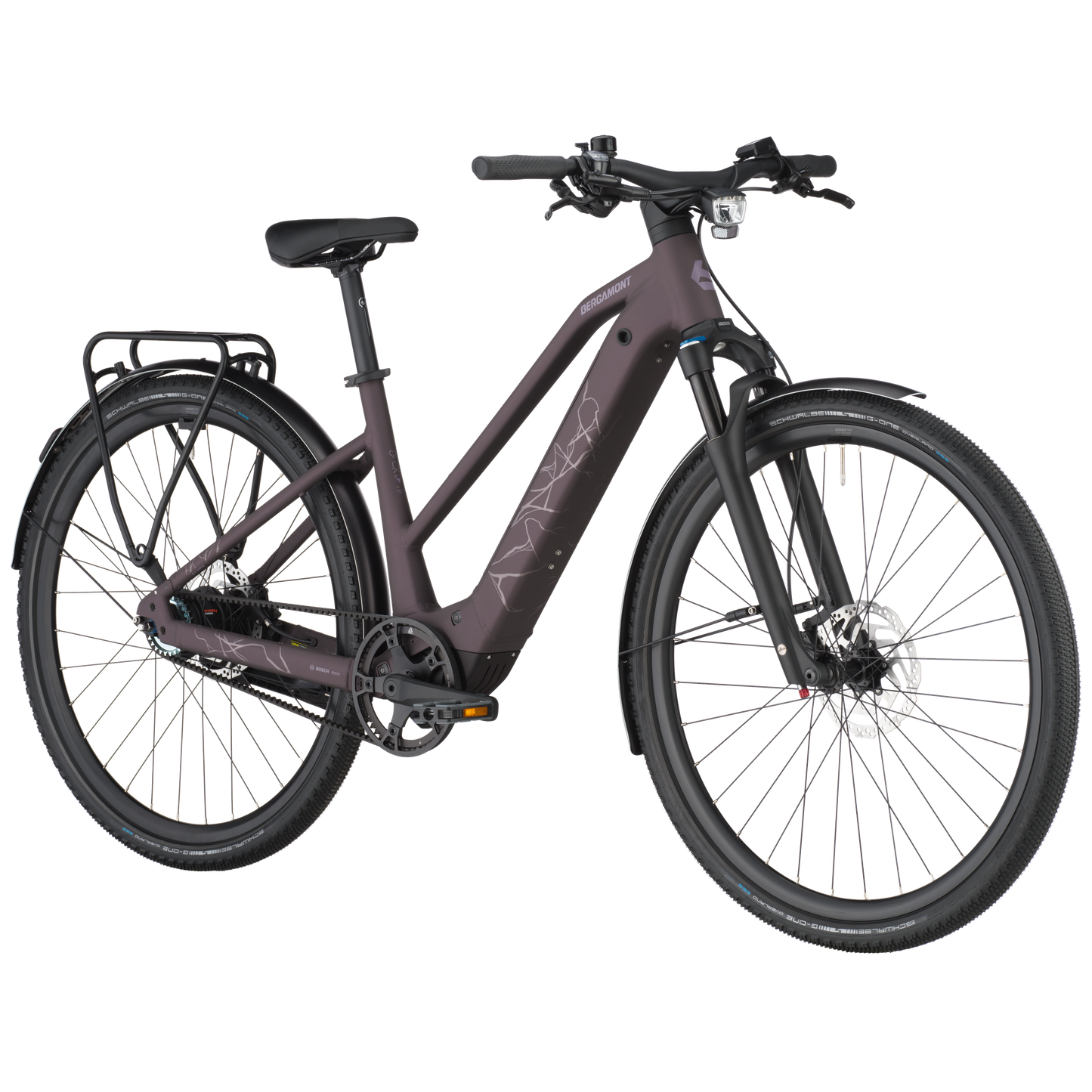

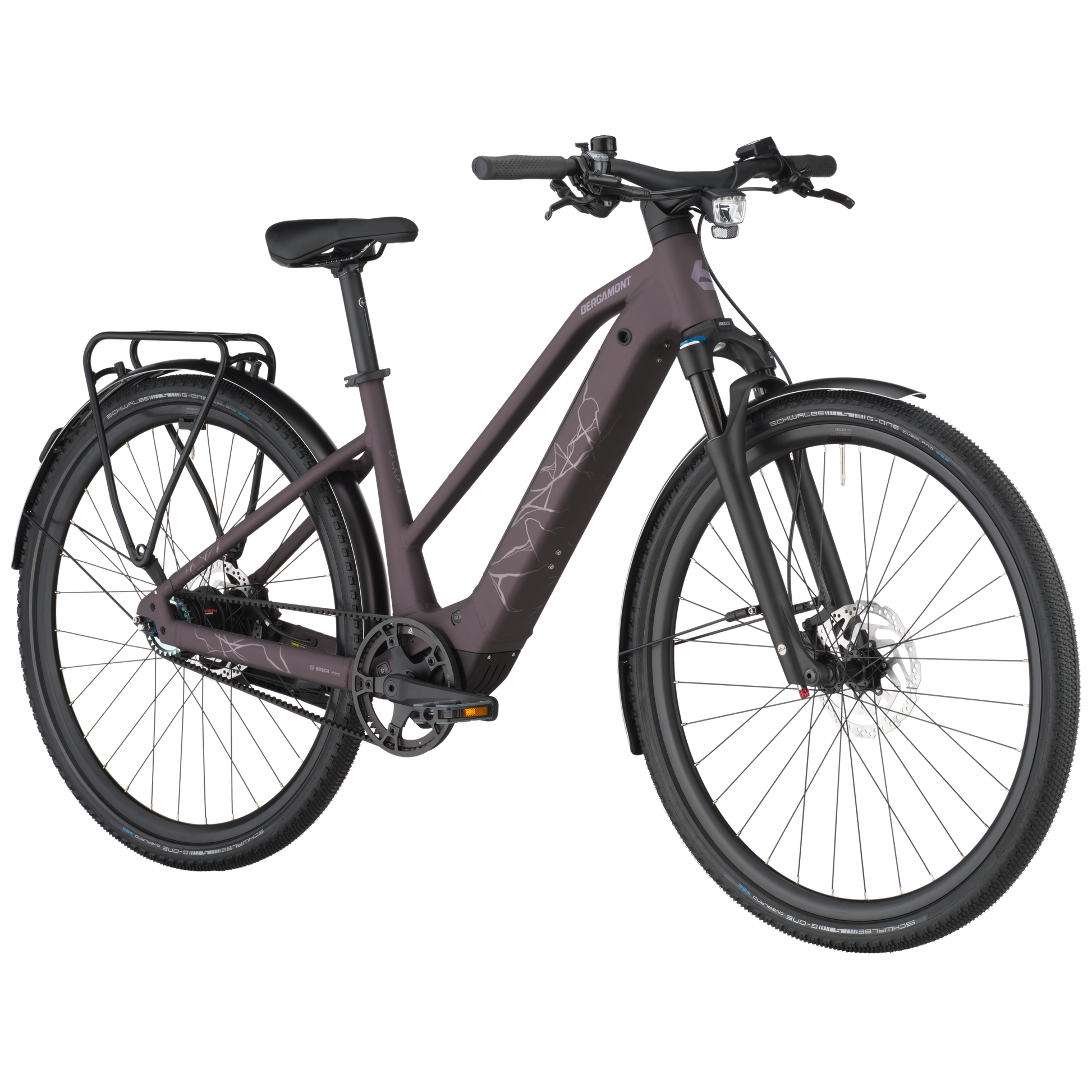

The Bergamont Helix is a lightweight urban bike with clean and sportive looks, as well as comfortable riding characteristics. The sloping top tube reduces step-over height for easier handling and improved ergonomics, especially for smaller riders. It features a compact yet powerful Bosch Performance Line SX electric drive system.
The perfect bike to get you around town, for light touring and fast commuting. Being fully equipped, all components smoothly integrate into the design language while being functional first and foremost.
The Bosch CompactTube battery integrated into the frame can be easily removed for remote charging. With the Bosch Smart System advanced connectivity features and upgrades are available: Use the eBike Flow App to control your bike or add optional extras like a Bosch PowerMore battery for increased range.
Frame28", ultra lite AL-6061 tubing, CompactTube battery
ForkSuntour NRX32-E-Air LOR DS, 75 mm, 15x100 mm axle
Drive UnitBosch Performance Line SX, 250 W, 36 V, max. 25 km/h
BatteryBosch CompactTube, 36 V Li Ion, 400 Wh
DisplayBosch Purion 200
ChargerBosch Compact Charger, 2A
ShiftersShimano Alfine, SL-S503, 8-speed, rapidfire plus-shifter
CranksetFSA CK-220, 170 mm, belt, 52t
BB-SetBosch, Isis
ChainGates CDC Carbon Drive Belt, Center-Track
CassetteGates CDC, 26t
Brake LeversShimano BL-MT200, hydraulic disc brake
BrakesShimano BR-MT200, hydraulic disc brake
RotorShimano SM-RT10, 180 mm
HandlebarSyncros Urban Combo, width: 680 mm
H'stemSyncros Urban Combo, length: 70 mm
SeatpostBGM Pro
SeatSyncros Capilano Trekking Memory Foam
HeadsetAcros, A-Headset, semi-integrated, tapered, with integrated cable routing
Front HubShimano HB-TC500, centerlock, disc, 15x100 mm axle
Rear HubShimano Nexus, SG-C6001-8, freehub, centerlock, disc
Spokesstainless, black
RimsBGM Pro X15, disc, eyelets
Front TireSchwalbe G-One Overland 365, Performance, RaceGuard, reflective stripe, 50-622Tube: Schwalbe SV19B Light
Rear TireSchwalbe G-One Overland 365, Performance, RaceGuard, reflective stripe, 50-622Tube: Schwalbe SV19B Light
LightsFront: B&M Briq-S, 60 Lux, LEDRear: Supernova, LED
RackRacktime / BGM Allroad carrier, Snapit 2.0 System
PedalsMarwi SP-827, sandblock
AccessoriesKickstand: Passage
Approx weight in KG21,9
FenderCurana C-Lite, with stainless stays
GripsSyncros Urban, Ergo, double density, lock-on
Max. System Weight130,0 kgThe overall weight includes the bike, the rider, the equipment and possible additional luggage.
