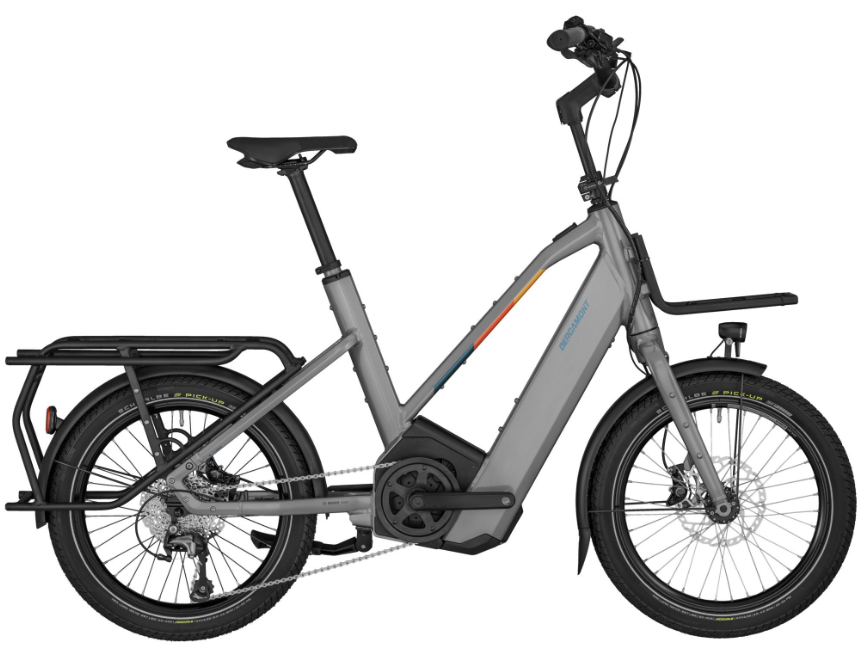

BERGAMONT HANS-E
Model : 290941
Super compact, ultra-strong and mega functional: the all-new HANS-E is developed from scratch to impress with its super-compact dimensions. With a wheelbase of just 105 cm, it is an ultra-robust construction with a wide range of use, a maximum system weight of 130 kg and a maximum rear carrier load of 20 kg. Remarkable: The special rear carrier construction enables upright parking.
Frame20", lite AL-6061 tubing, PowerTube battery
ForkBGM rigid fork, alloy, 15x100 mm axle
Drive UnitBosch Performance Line, Gen. 3, BES3, 250 W, 36 V, max. 25 km/h
BatteryBosch PowerTube, 36 V Li Ion, 500 Wh
DisplayBosch LED Remote with Intuvia 100 display
ChargerBosch Standard Charger, 4A
Rear DerailleurShimano Tiagra, RD-4700, long cage
ShiftersShimano Tiagra, SL-4700, 1x10-speed, rapidfire plus-shifter
CranksetFSA CK-200, 42t
BB-SetBosch
ChainKMC e10 EPT
CassetteShimano CS-HG500, 11-34t
Brake LeversShimano BL-MT200, hydraulic disc brake
BrakesShimano BR-MT200, hydraulic disc brake
RotorFront: Shimano SM-RT10, 180 mmRear: Shimano SM-RT10, 160 mm
HandlebarBGM Pro, high-riserbar, backsweep: 15°
H'stemSatori Fastback, with speedlifter
SeatpostSatori Trident, 450 mm
SeatSyncros Capilano Urban
HeadsetAcros, A-Headset, semi-integrated, 1.5", with integrated cable routing
Hub (Front)Shimano HB-MT400, centerlock, disc, 15x100 mm axle
Hub (Rear)Shimano FH-M3050, centerlock, disc, quick release
SpokesSapim Leader
RimsRyde Andra 40, disc
Front TireSchwalbe Pick-Up, Super Defense, reflective stripe, 65-406Tube: Impac AV20
Rear TireSchwalbe Pick-Up, Super Defense, reflective stripe, 65-406Tube: Impac AV20
LightsFront: B&M Myc, 50 Lux, LEDRear: B&M Secuzed E, integrated in fender
RackAlloy front and rear carrier with AVS click system, rear carrier with "vertical parking" function
PedalsMarwi SP-153, foldable
AccessoriesKickstand: Hebie Elex
Approx weight in KG26,3
Colorshiny mortar grey
FenderCurana Apollo, with stainless stays
Frame sizeone size
GripsBGM Comfort, Ergo, double density, clamp version
Max. System Weight130,0 kgThe overall weight includes the bike, the rider, the equipment and possible additional luggage.
