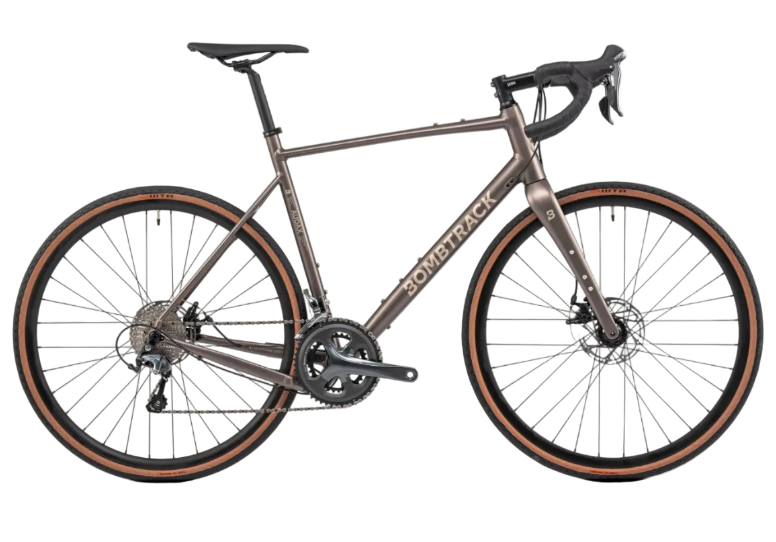

Bombtrack Audax AL Road Complete Bike

Wetrocknride: Independent Family-Run,Quality Driven, Customer Focused and here to help all our customers.

• Color 1	Matt warm grey
  Color 2	-
  Color 3	-
  Frame	6061-T6 double butted aluminium, TA, fender mounts, 86.5 mm T47 BB shell
  Fork	Full carbon, TA, 1.1/2'' - 1.1/8'', with fender / cage mounts
  Handlebar	Seido CX-10 drop bar, 31.8 mm, 10° flare
  Grips	Bombtrack Command bar tape
  Stem	Seido Meander forged aluminium stem, -6°
  Headset	Sealed integrated aheadset, 1.1/2'' - 1.1/8''
  Levers	Shimano Tiagra ST-4700 STI mechanic
  Shifter	Shimano Tiagra ST-4700 STI 2 x 10
  Brakes	TRP Spyre C flat mount mechanic disc brakes
  Rotor	Tektro 160 mm rotors
  Crankset	Shimano Tiagra FC-4700, 24 mm spindle
  BB	Seido T47 internal sealed BB for 24 mm spindle
  Pedals	-
  Chain	KMC X10 chain, 1/2'' x 11/128'', 114L
  Chainring	Shimano Tiagra, 50 T / 34 T
  Cassette	Shimano CS-HG500 10-speed, 11 - 34 T
  Front derailleur	Shimano Tiagra FD-4700-F
  Rear derailleur	Shimano Tiagra RD-4700-GS
  Front hub	Bombtrack Arc sealed hub, 6-bolt disc
  Rear hub	Bombtrack Arc sealed hub, 11-speed, 6-bolt disc
  Through axle	12 x 100 mm / 12 x 142 mm
  Front rim	Seido Sinus i21, tubeless ready, 32h
  Rear rim	Seido Sinus i21, tubeless ready, 32h
  Saddle	Seido Comp saddle
  Seat post	Seido Beech 27.2 mm x 350 mm
  Seat clamp	Bombtrack Prime 31.8 mm
  Front tire	WTB Byway TCS 700C x 34C, tubeless ready
  Rear tire	WTB Byway TCS 700C x 34C, tubeless ready
  Fender	-
  Rack	-
  Kickstand	-
  Light	-
  Weight	10.3 kg (size L)
  Weight frameset	1810 g frame (size M, incl. TA, hanger) / 530 g fork (300 mm steerer, incl. TA)
  Maximum rider weight	120 kg incl. luggage
  ASTM riding condition	2



  FRAME GEOMETRY

  Bike Size	XS	S	M	L	XL
  Wheel size	700C	700C	700C	700C	700C
  Seat Tube Length	470	500	530	560	590
  Horizontal TT length	505	527	551	569	592
  Seat Angle	75.0°	74.5°	74.0°	74.0°	73.5°
  Head Angle	71.0°	72.0°	72.0°	72.0°	72.0°
  Headtube Length	100	120	150	180	205
  BB Drop	70	68	68	65	65
  Chainstay Length	420	420	420	420	420
  Fork Offset	53	53	53	53	53
  Trail	64	57	57	57	57
  Wheelbase Length	991	1000	1021	1041	1059
  Standover	733	759	787	818	843
  Reach	368	379	390	401	411
  Stack	512	533	561	587	611
  Front Center	581	590	610	630	647
  Axle to Crown	385	385	385	385	385
  Minimum rider height ¹	1500	1600	1700	1790	1880
  Maximum rider height ¹	1610	1710	1810	1900	1990
