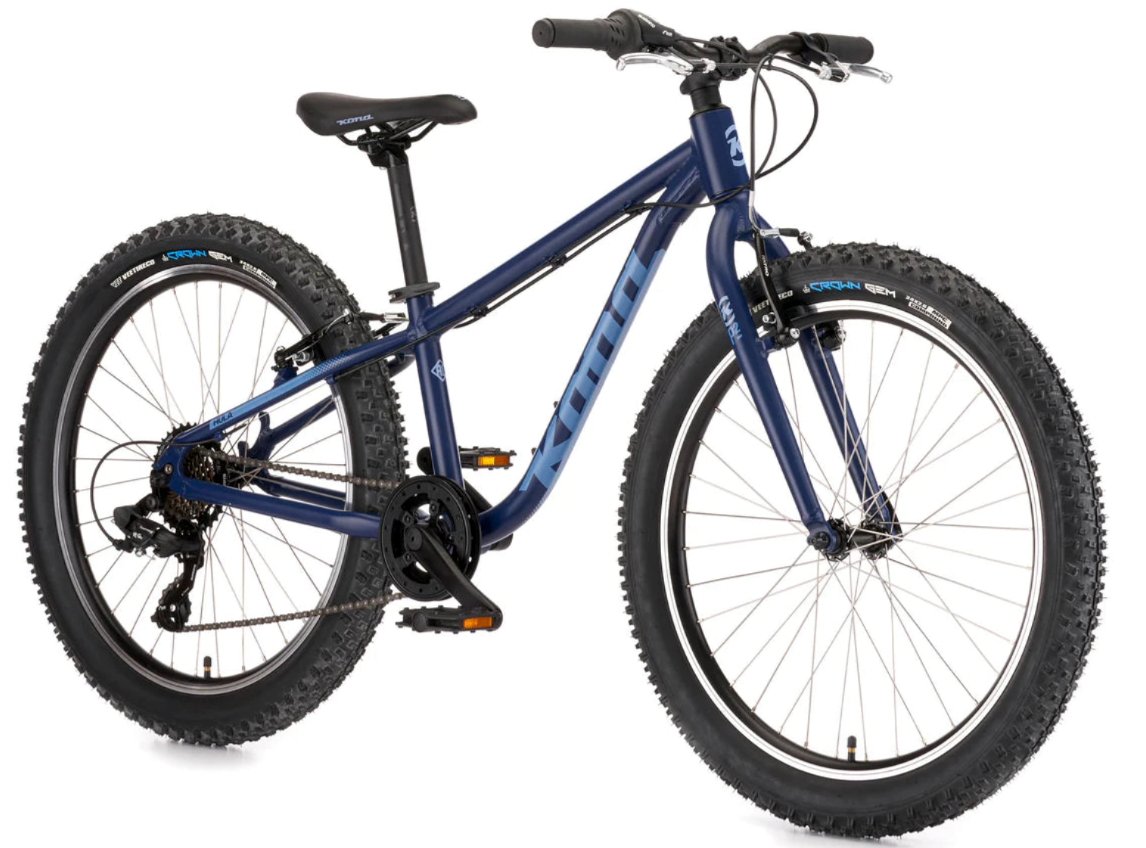

Hula 12 - Kids Bike

The 24” Hula is designed for the kid that’s a bit too tall for the 20” Makena, is quickly progressing their skills and is moving up in the neighborhood shred ranks. Running 2.6” tires ensure maximum traction. The wheels are laced to QR hubs for ease of use. A 1x drivetrain for simple shifting, a 28-tooth chainring for easy pedaling and kid-friendly geometry make the Hula the perfect bike to grow up with.

SPECIFICATIONS

FRAME MATERIAL	Kona 6061 Aluminum Butted
SIZES	12"
REAR SHOCK	n/a
FORK	Kona Project Two JR
CRANKARMS	Samox 152mm
CHAINRINGS	28t/Guard
B/B	Shimano 68mm
PEDALS	Feimin Platform
CHAIN	KMC HV500
CASSETTE	Shimano TZ 14-34t 7spd
CHAINGUIDE	n/a
F/D	n/a
R/D	Shimano
SHIFTERS	Shimano Revo Shift
BRAKE CALIPERS	Tektro V-Brake
FRONT BRAKE ROTOR	n/a
REAR BRAKE ROTOR	n/a
BRAKE LEVERS	Tektro Junior
HEADSET	Feimin FP-H863
HANDLEBAR	Kona Riser
STEM	Kona Control
SEATPOST	Kona Thumb 27.2mm
SEAT CLAMP	Kona QR
GRIPS	Velo Junior
SADDLE	Kona Junior
FRONT HUB	Joytech 100x9mm
REAR HUB	Joytech 135x10mm
SPOKES	Stainless 14g
RIMS	Double Wall alloy
FRONT TIRE	Vee Tire Crown Gem 24x2.6"
REAR TIRE	Vee Tire Crown Gem 24x2.6"
PAINT COLOUR	Matte Midnight w/ Blue-Grey Decals
EXTRAS	n/a

All specifications are subject to change without notice

GEOMETRY

	SIZE	S
1	ST LENGTH	295
2	TT LENGTH	500
3	REACH	358
4	STACK	495
5	STANDOVER	615
6	HT ANGLE	69.0
7	HT LENGTH	90
8	ST ANGLE	74.0
9	CS LENGTH	420
10	BB DROP	40
11	BB HEIGHT	285
12	WHEELBASE	1008
13	FRONT CENTER	582
14	FORK LENGTH	411
15	FORK OFFSET	45
