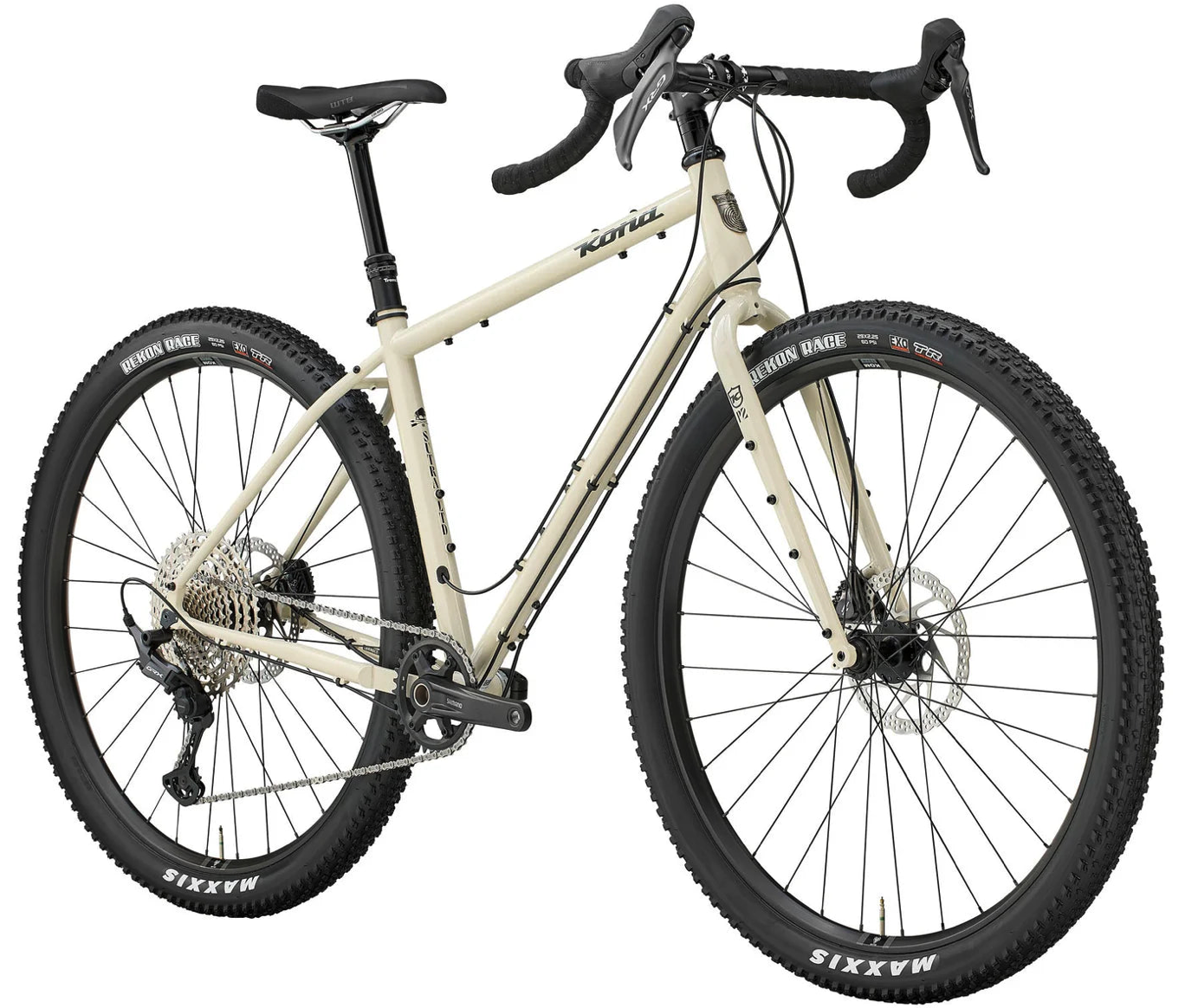

KONA Sutra LTD - Road / Gravel Bike

KONA Sutra LTD - Road / Gravel Bike

Regular price £2,599.00 GBP
Regular price Sale price £2,599.00 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.
Quantity
Wetrocknride: Family-Run,Quality Driven, Customer Focused and here to help all our customers.

    • The Sutra LTD is one of those bikes that just changes everything. You thought you were a mountain biker, but you find yourself sneaking off on adventures and enjoying the drop bars on the LTD. You thought you were a roadie but find yourself absolutely destroying singletrack when no one else is looking and suddenly getting rad is all you wanna do! That’s the best part about the Sutra LTD—it broke the mould of what a bike has to be. It’s got bigger tires, burlier construction, and enough mounts to hold a horse. But who needs a horse when this is your horse?
  • SPECIFICATIONS

    Frame Material Kona Cromoly Butted
    Sizes 48, 50, 52, 54, 56, 58
    Rear Shock n/a
    Fork Kona Project Two Cromoly Disc Touring Fork
    Crankarms Shimano Deore
    Chainrings 34t Deore
    B/B Shimano Deore 73mm
    Pedals n/a
    Chain Shimano Deore
    Cassette Shimano Deore 10-51t 12spd
    Chainguide n/a
    F/D n/a
    R/D Shimano GRX 12spd
    Shifters Shimano GRX w/ dropper lever
    Brake Calipers Shimano GRX
    Front Brake Rotor Shimano 180mm
    Rear Brake Rotor Shimano 180mm
    Brake Levers Shimano
    Headset FSA No.1/No.10
    Handlebar Kona Road
    Stem Kona Road Deluxe
    Seatpost TranzX Dropper +RAD Internal 31.6mm
    Seat Clamp Kona Clamp
    Grips Kona Cork Tape
    Saddle WTB Volt
    Front Hub Formula 100x12mm
    Rear Hub Formula 142x12mm
    Spokes Stainless Black 14g
    Rims WTB KOM Team i27 TCS 2.0
    Front Tire Maxxis Rekon Race EXO TR 29x2.25"
    Rear Tire Maxxis Rekon Race EXO TR 29x2.25"
    Paint Color Gloss Bone w/ Charcoal Decals
    All specifications are subject to change without notice.

    GEOMETRY

    Size 48 50 52 54 56 58
    1 ST Length 410 410 455 455 500 535
    2 TT Length 532 545 560 575 592 613
    3 Reach 380 385 390 395 400 405
    4 Stack 568 578 592 609 627 660
    5 Standover 735 739 773 781 827 851
    6 HT Angle 69.5 69.5 69.5 69.5 69.5 69.5
    7 HT Length 115 125 140 160 180 215
    8 ST Angle 75.0 74.5 74.0 73.5 73.0 72.5
    9 CS Length 445 445 445 445 445 445
    10 BB Drop 74 74 74 72 72 72
    11 BB Height 301 301 301 303 303 303
    12 Wheelbase 1062 1071 1081 1094 1106 1123
    13 Front Center 628 636 647 658 670 688
    14 Fork Length 430 430 430 430 430 430
    15 Fork Offset 55 55 55 55 55 55
    Bike Geometry
