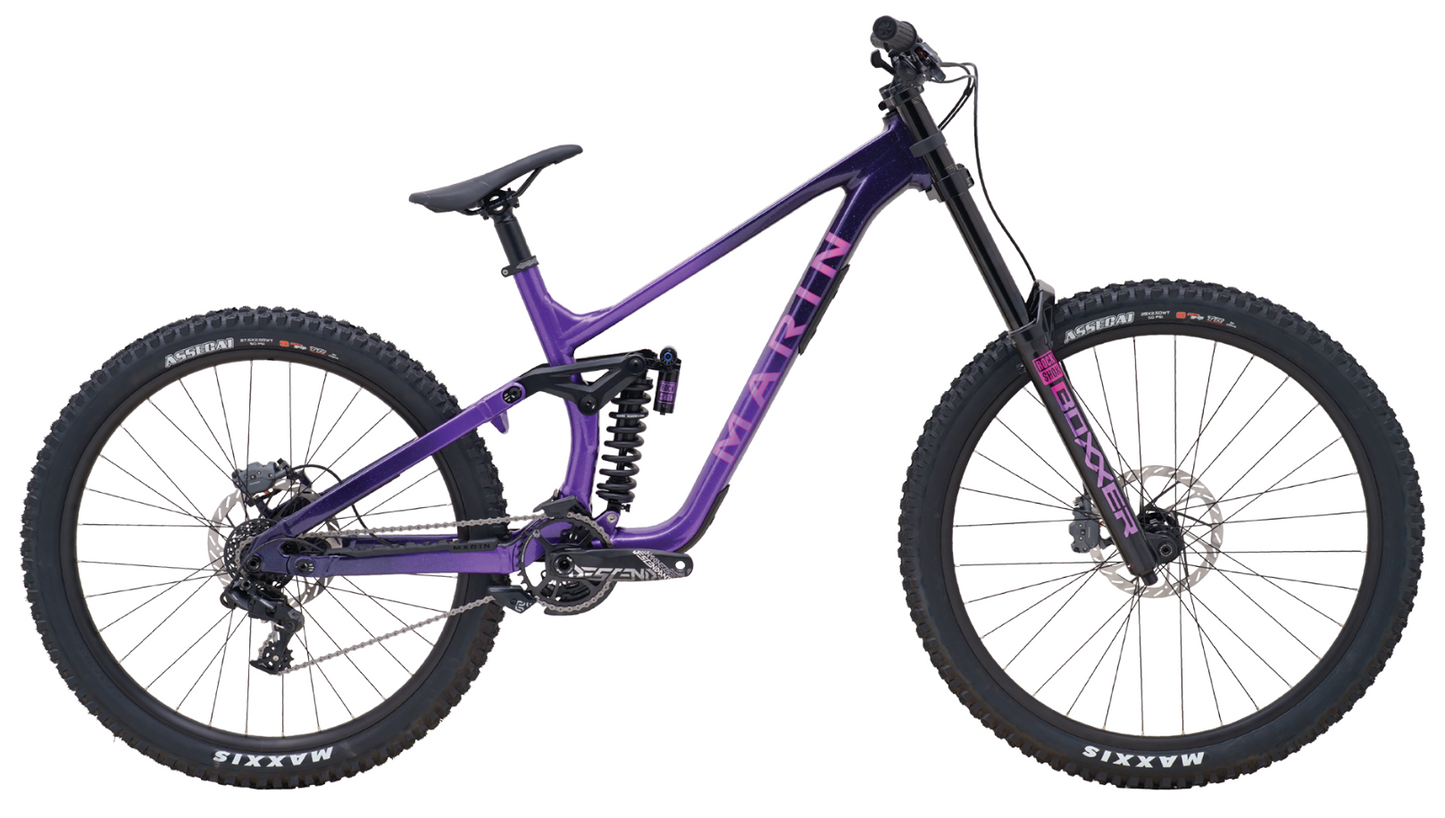

Marin QUAKE Mountain Bike
Marin QUAKE Mountain Bike
Regular price
£4,599.00 GBP
Regular price
Sale price
£4,599.00 GBP
Taxes included.
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Product Description
Designed for bike park laps and the DH course, the all-new Quake has benefited from an immersive development cycle where top riders have provided invaluable feedback over multiple generations of development samples. During this time, it was proven both strong and capable by some of the best riders in the sport, including Matt Jones, Mark Matthews, and Vinnie Moonen at some of the most demanding events, including Darkfest and Hardline, along with some of the steepest and most challenging tracks on earth
Product Specification
| Frame | All New Series 4 Alloy, 180mm MultiTrac LT Suspension, Adjustable CS Length/Height, 27.5" or 29" compatible, 148mm Rear Thru-Axle, & frame protection, UDH |
| Rear Suspension | Rock Shox Vivid Coil Ultimate DH, 225x75mm Trunnion Upper Mount, 30xM8 Lower Mount, Custom Tune, S = 350 lb/in / M = 450 lb/in / L = 550 lb/in |
| Headset | FSA No 74 |
| Stem | Sram Descendant DH Direct Mount, 31.8mm Clamp, 50mm Length |
| Handlebar | Sram Descendant DH Bar, 31.8mm Clamp, 25mm Rise, 9 Degree Backsweep, 5 Degree Upsweep |
| Grip | Marin Grizzly Lock-On |
| Brake Levers | Sram Maven Bronze |
| Brake, Front | Sram Maven Bronze, 200mm HS2 Rotor |
| Brake, Rear | Sram Maven Bronze, 200mm HS2 Rotor |
| Tires | Maxxis Assegai, 2.5", Tubless Ready, 3C MaxxGrip, DH Casing |
| Rims | Marin Double Wall Alloy, 29mm Inner, Sleeved Joint, Disc Specific, 32H, Tubeless Compatible |
| Hub, Front | Marin Forged, 110x20mm, 6-Bolt Disc, 32H |
| Hub, Rear | Formula, DDL-348S, 148x12mm, 6-Bolt Disc, 32H, Shimano Freehub Body |
| Derailleur, Rear | Sram GX DH |
| Shift Lever | Sram GX DH, 7-Speed |
| Chain | Sram PC-1110 |
| Crankset | Sram Descendant Alloy 34T, 165mm |
| Saddle | Marin Short Nose |
| Seatpost | Marin Alloy, 34.9mm |
| Cassette | GS DH, 11-15T |
| Front Suspension | Rock Shox Boxxer Charger 3.0 RC, 200mm Travel, 29" , 110x20mm Maxle Stealth, 52mm Offset |
