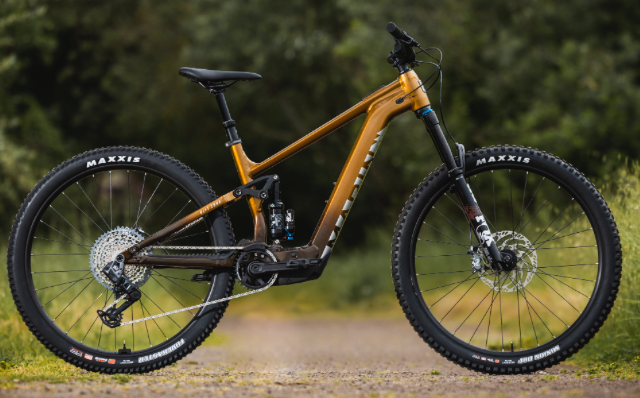

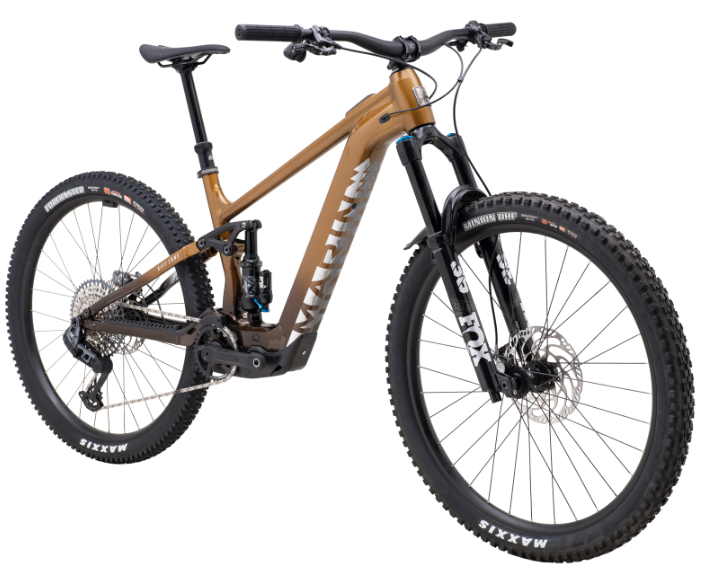

Marin Rift Zone EL XR CE TAN BROWN

FREE PEDALS

• Marin Rift Zone  EL XR CE TAN BROWN

•

  The all-new Rift Zone EL ("Electric Light") trail eMTBs take everything you love about the Rift Zone and repurposes it into bikes that share the capability of the full-powered versions but in lighter packages.

  Made possible in part by Bosch's new lightweight Performance Line SX drive unit and CompactTube internal battery, the Rift Zone EL models deliver a decidedly playful ride with a power delivery so natural you might forget its an ebike. With all the benefits without the bulk, the Rift Zone EL is the perfect platform for those who don't require the full range and power output of more traditional eMTBs.

  The flagship Rift Zone EL XR is decked out with a gamut of high performance components, including the impressive Fox 36/Float X Performance Elite suspension combo, SRAM's GX AXS wireless T-type transmission drivetrain and Magura MT-7 4-piston brakes.

  • FRAME

    All New Series 4 Alloy Lightweight E, 140mm MultiTrac Suspension, Integrated Battery/Charging Port, 148mm Rear Thru-Axle

  • FRONT SUSPENSION

    Fox 36 Performance Elite, 150mm Travel, 29", 110x15 Kabolt, 44mm Offset

  • REAR SUSPENSION

    Fox Float X, Performance Elite, EVOL Air Spring, Climb Switch, Rebound Adjustment, Custom Tune, 210x55mm, 25xM8 Upper Mount, No Lower DU or Hardware

  • RIM

    Marin Aluminum Double Wall, 29" Diameter, 32mm Inner Rim Width, Welded Joint, Disc Specific, Tubeless Compatible

  • HUB REAR

    Formula DC-711, 110x15, 6-Bolt, 32H

  • HUB FRONT

    Formula DCL-3482, 4 Sealed Bearings, 148x12, XD Driver, 6-Bolt, 32H

  • SPOKES

    14g Black Stainless Steel

  • TIRES

    Front: Maxxis Minion DHF, 29x2.4" MAXXGRIP, Tubeless ready, EXO+, Rear: Maxxis Forecaster 29x2.4", Tubeless Ready MAXX TERRA EXO+

  • DERAILLEUR REAR

    SRAM GX AXS T-Type

  • DERAILLEUR FRONT

    -

  • SHIFT LEVER

    SRAM AXS POD

  • CRANKSET

    e*thirteen e*spec Plus, 160mm Length, 34T

  • MOTOR

    Bosch Performance Line SX, 600W, 55Nm torque, 20MPH (32km/h) Top Assisted Speed

  • CHAIN

    SRAM GX T-Type

  • CASSETTE

    SRAM CS-XS-1275 T-Type, 10-52T

  • BRAKES FRONT

    Magura MT7, 4-Piston Hydraulic Disc, E-Specific Pads, 203mm MDR Rotor

  • BRAKES REAR

    Magura MT7, 4-Piston Hydraulic Disc, E-Specific Pads, 203mm MDR Rotor

  • BRAKE LEVERS

    Magura HC3

  • HANDLEBAR

    Marin Trail, 35mm Clamp, 7000 Alloy Bar, 800mm Length, 20mm Rise, 5 Degree Up, 8 Degree Back

  • STEM

    Marin CNC, 35mm Length, 35mm Bar Bore

  • GRIPS

    Marin Grizzly Lock On

  • HEADSET

    FSA Custom, Adjustable HTA Design

  • SEATPOST

    PNW Loam Post with Range Lever, Size S 150mm Travel, Size M-L 170mm Travel, Size XL 200mm Travel, 34.9mm

  • SADDLE

    Marin Speed Concept

  • PEDALS

    Marin MTB Plastic

  • BATTERY

    Bosch 400 Wh Internal (Optional PowerMore 250 wh external battery using PowerMore 150mm cable EB12.120.036)

  • DISPLAY

    Bosch BRC3100 Systems Controller

  • SWITCH

    Bosch BRC3300 Bluetooth Remote 22.2mm Clamp

  • EXTRAS

    e*thirteen e*Spec Chainguide

  • EXTRAS

    Bolt-On 12mm Thru-Axle, 174mm Length, 1.0 Thread Pitch, 16.5mm, Tapered Head, Bosch EB12.110.016; 2A Charger

  • RANGE, CHARGING TIME

    15-55 miles (Based on Rider Weight, Terrain, Climate and Level of Assist Used), 6 Hours (estimated, under ideal conditions)
