AVAILABLE TO ORDER
Model : 280720

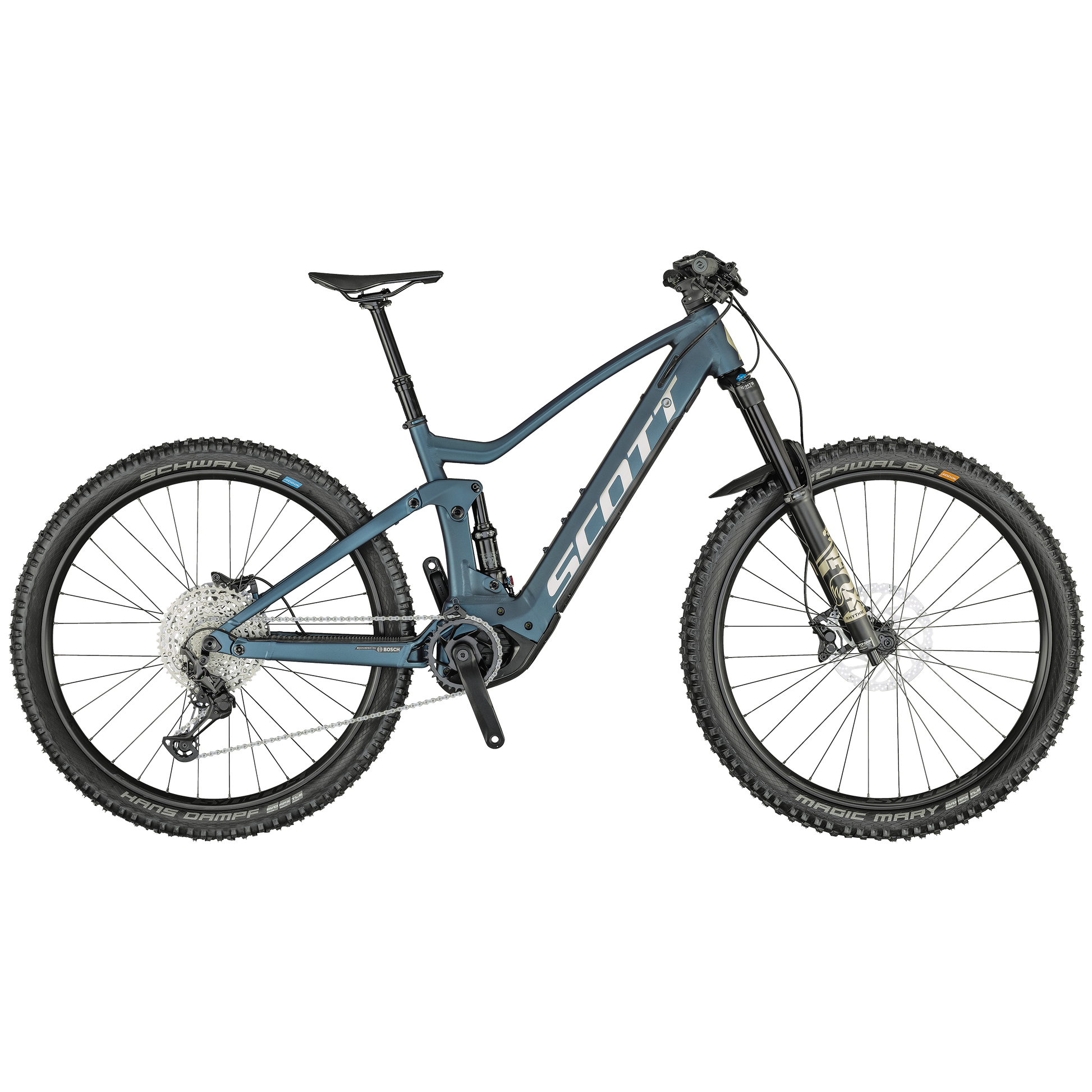

Welcome to the next E-Bike generation with the new Genius eRIDE 920. Avant-garde design, cutting edge technologies and integration, and advanced battery management, the Genius eRIDE 920 places priority on the riding experience. This is the ultimate choice for riders who want confidence when the terrain gets rougher!
-
FRAME
Alloy Frame / Virtual 4 link kinematic VLK
27.5" and 29" compatible / geo adj. / Boost 148x12mm
150mm travel / Bosch Gen4 / Integr. removable Battery
Tapered Headtube E2/Forkstop, Central Kickstand Mount
Range Booster Ready -
TRAVEL
Front: 160mm / Rear: 150mm -
FORK
FOX 36 Rhythm Air
Grip 3 / 3-Modes / 15x110mm QR axle
tapered steerer / Reb. Adj. / Lockout / 160mm travel -
REAR SHOCK
FOX Float EVOL Performace Trunnion
3 modes / Lockout-Trail-Descend
DPS / Reb. Adj.
Travel 150mm / 185x55mm
-
REMOTE SYSTEM
SCOTT TwinLoc Suspension System
3 modes front and rear / integ. Grip clamp -
DRIVE UNIT
Bosch Performance CX
EU: 25kmh / US: 20mph -
BATTERY
PowerTube 625Wh -
DISPLAY
Bosch Purion -
CHARGER
4A Charger -
REAR DERAILLEUR
Shimano XT / 12 Speed -
SHIFTERS
Shimano SL-M6100 -
CRANKSET
FSA CK-745 165mm / 34T -
CHAINGUIDE
SCOTT Custom -
CHAINRING
FSA WB345 / 34T / DM / Steel -
CHAIN
KMC e12S -
CASSETTE
Shimano CS-M6100 / 10-51 T -
BRAKES
Shimano BR-MT420 4 Piston -
ROTOR
Front: SM-RT30 CL 203mm / Rear: RT-EM300 CL 203mm -
HANDLEBAR
Syncros Hixon 2.0 / Alloy 6061D.B.
12mm rise / 9° / 780mm
Syncros Pro lock-on grips -
H'STEM
Syncros FL2.0 / 6061 Alloy
L-Shape Spacer & Top Cap / 31.8mm / 6° / 1 1/8" -
SEATPOST
Syncros Duncan Dropper Post 2.5
31.6mm / S size 100mm / M 125mm / L size 150mm / XL 170mm -
SEAT
Syncros Tofino 2.0 Regular
CRMO rails -
HEADSET
Acros Blocklock / Tapered 1.5"-1 1/8"
OD 52/62mm / ID 44/56mm -
HUB (FRONT)
Shimano HB-MT400-B CL / 15x110mm -
HUB (REAR)
Shimano FH-MT410-B CL / Boost 12x148mm -
SPOKES
Stainless Black -
RIMS
Syncros MD30 / 32H / 30mm / Pin Joint
Tubeless ready -
FRONT TIRE
Schwalbe MagicMary 29x2.6"
Snake Skin / TL-Easy / SuperTrail / Addix Soft -
REAR TIRE
Schwalbe Hans Dampf 29x2.6"
Snake Skin / TL-Easy / SuperTrail / Addix Speedgrip -
LIGHTS
Bosch Light Cable pre-installed F&R -
EXTRAS
Syncros Trail Fender -
APPROX WEIGHTS IN KG
23.40 -
APPROX WEIGHTS IN LBS
51.59 -
MAX. SYSTEM WEIGHT
128 kg
The overall weight includes the bike
the rider
the equipment
and possible additional luggage.
