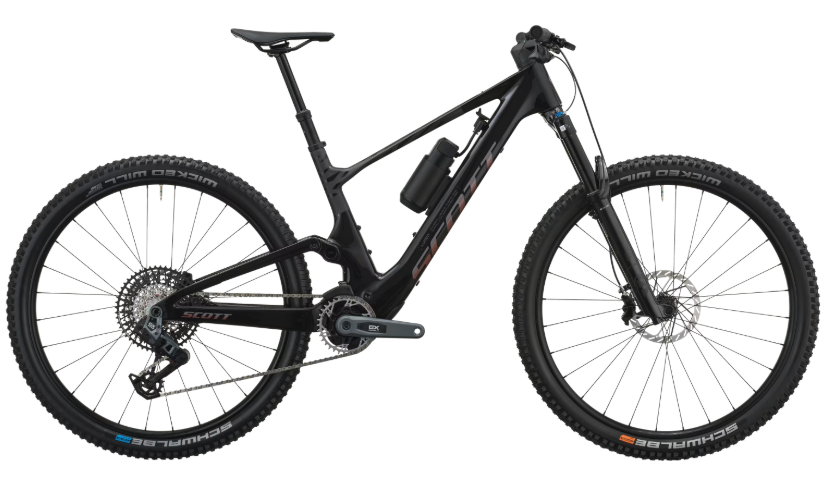

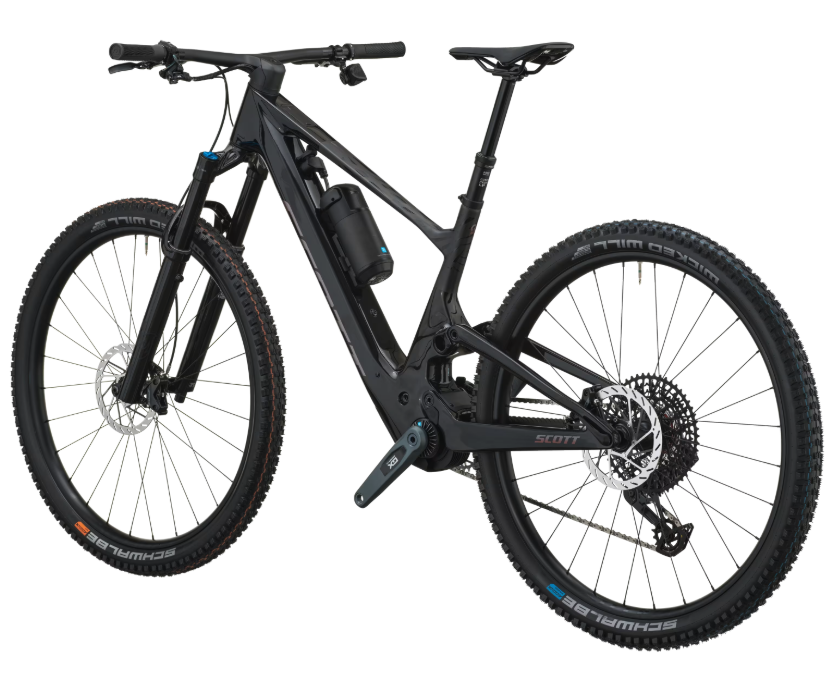

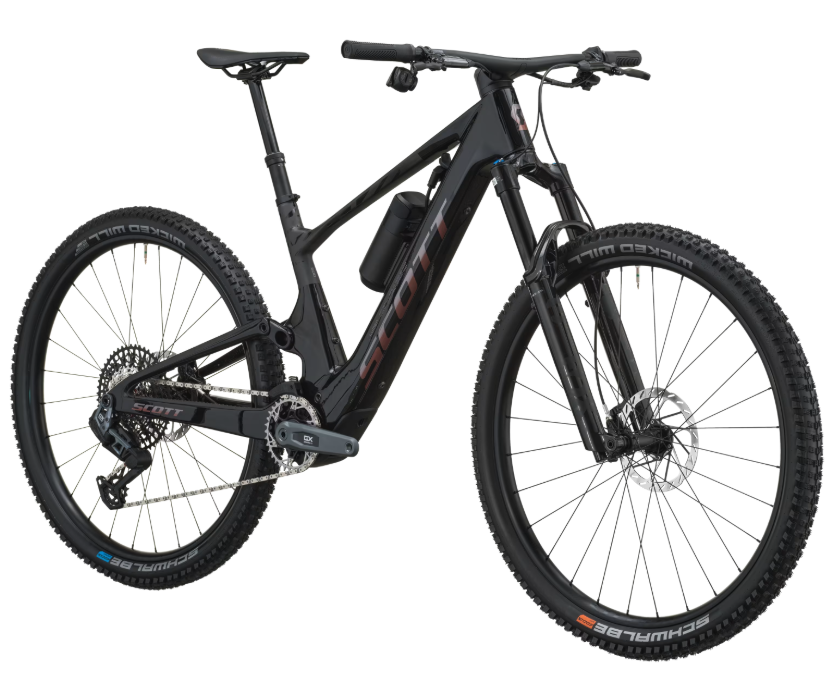

Lighting up your MTB ride has never felt more electrifying than on the updated Lumen 900 e-MTB. With more power and additional range in a lightweight, playful build, your ultimate downcountry trail bike happens to pack the pep to take your rides to the next level.

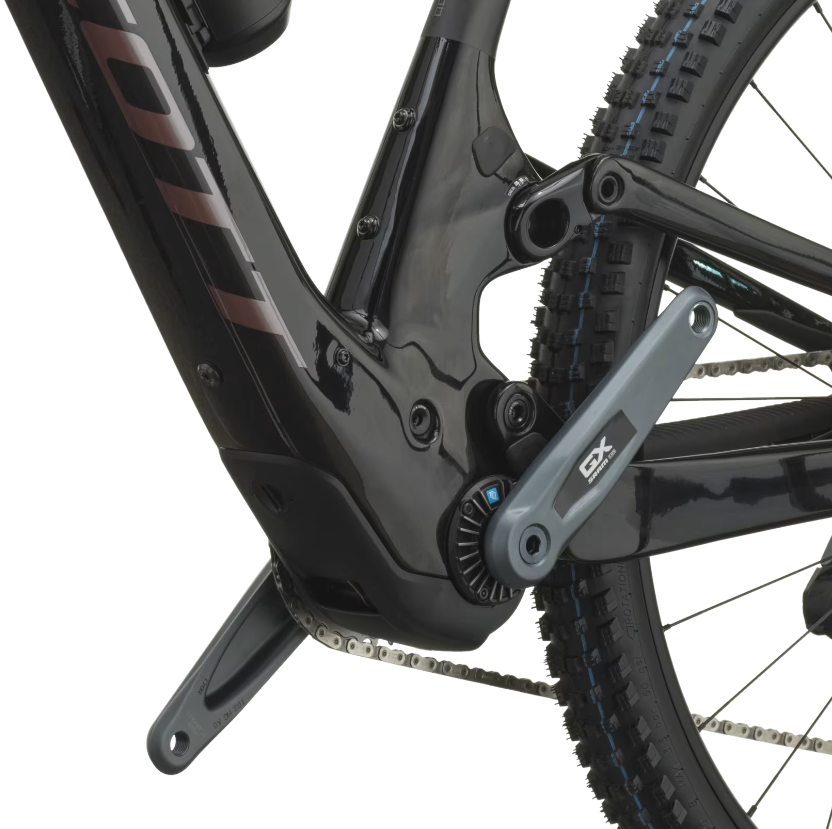

Updated from the previous Lumen 900 is TQ’s new HPR60 motor unit which boosts torque to 60Nn for 20% more thrust than before. It’s a dream upgrade that adds extra grunt and power to capitalize on the nimble, responsive, quick-handling traits riders love about the Lumen. Blast out of hairpins, crush monster climbs, and keep up with full-powered e-bikes on even the most challenging trails.

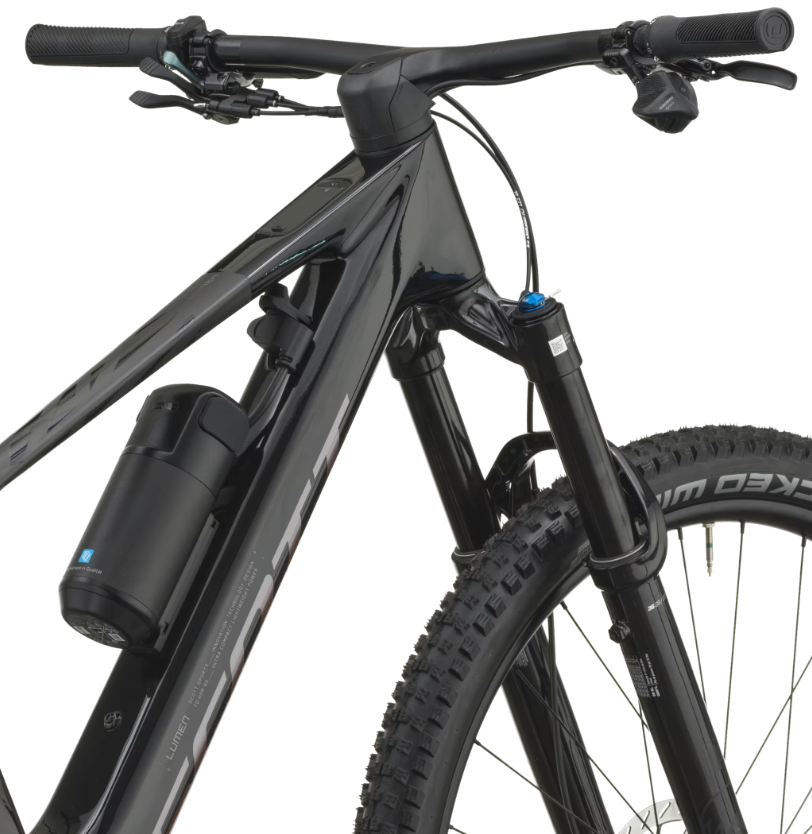

We built Lumen as the mountain biker’s e-bike. And fittingly, Lumen gets a bump up in range, so you can stay out on the trails longer and push yourself further. Lumen’s 360Wh main battery now gets extra support with an included 160 Wh Range Extender Battery. The pint-size extender easily attaches with a quick-release mount to supply that extra juice and maximum performance you’ll need to send a massive ride. Or you can stow it away in a small pack to carry along for those just-in-case moments. And not to worry, if you blow it all before you’re back to the trailhead, the Lumen 900 is lightweight enough to pedal it on empty with the no-drag motor switched off.

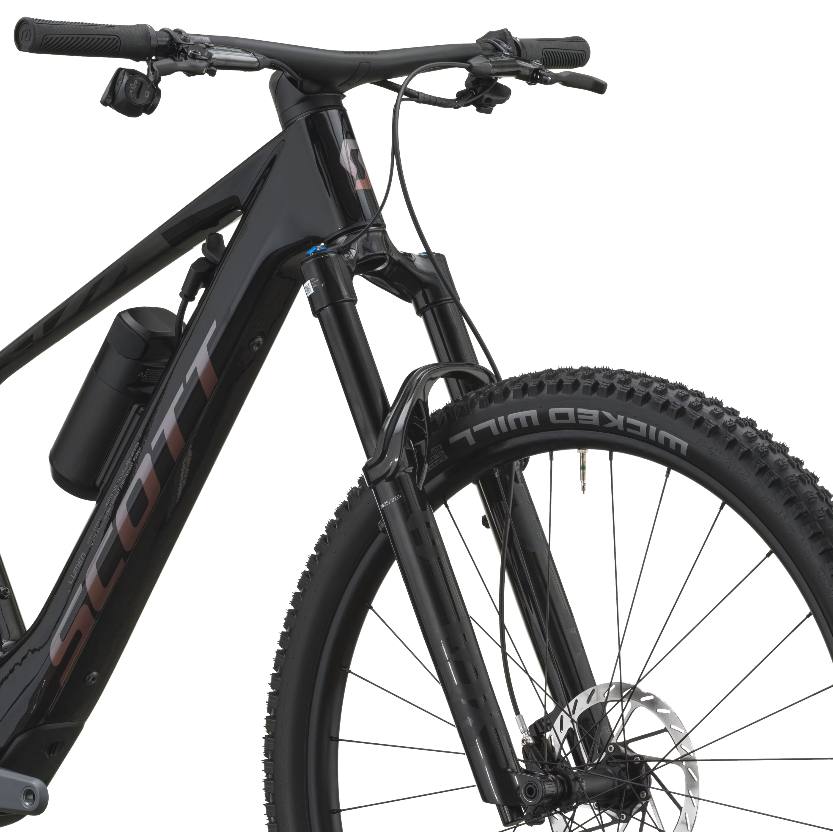

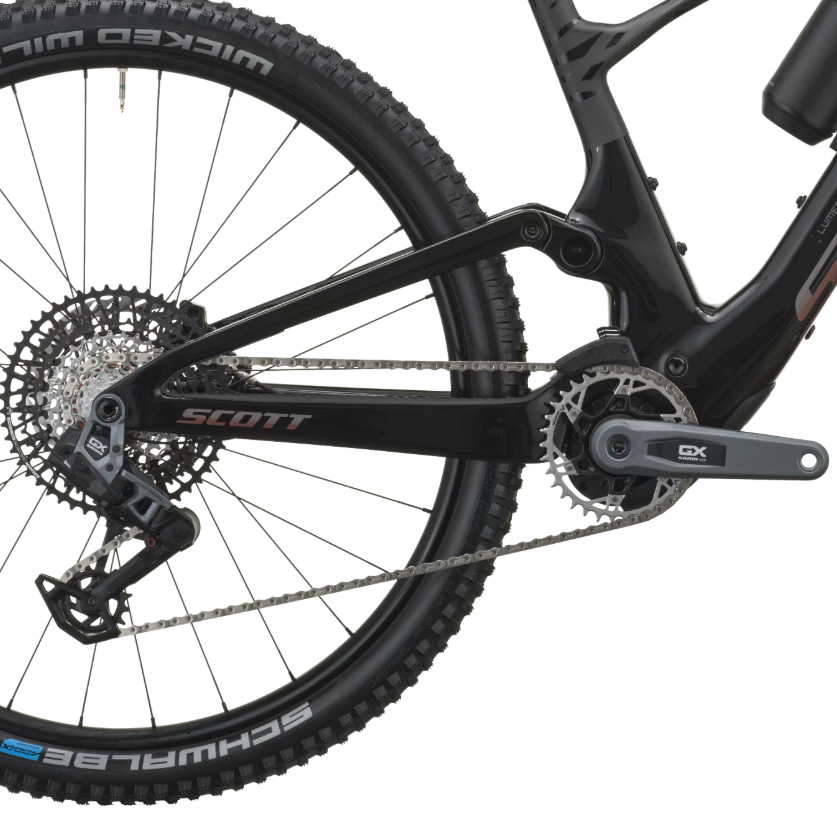

This Lumen 900 features a brightly illuminated black and white data management screen and is specced with performance-focused components like FOX’s 36SL Performance Elite 140mm fork, our custom 130mm integrated shock, SRAM GX Eagle AXS, and Motive Silver brakes.
| Frame |
Carbon HMX, Integrated Suspension Technology, Flex Pivot, adjustable head angle, Syncros Cable Integration System, TQ HPR60, UDH interface, 12x148mm with 55mm chainline
|
| Fork |
Fox 36SL Performance Elite Grip SL , 3P with low speed adj., Kabolt 15x110mm axle, tapered steerer, Reb. Adj., Lockout
|
| Travel |
Front: 140 mm / Rear: 130 mm
|
| Rear Shock |
Fox Nude 6 EVOL Trunnion, SCOTT custom w. travel, geo adj., 3 modes: Lockout-Traction Control-Descend, low speed Adj., Custom large Air volume, Reb. Adj., Bearing Hardware, T165X45mm
|
| Remote System |
SCOTT TwinLoc Technology, 3 Suspension modes
|
| Headset |
Syncros - Acros Angle adjust & Cable Routing HS System, Stainless, +-0.6° head angle adjustment, ZS56/28.6 – ZS56/40 MTB
|
| Rear Derailleur |
SRAM GX Eagle AXS Transmission 12 Speed, Wireless Electronic Shift System
|
| Shifters |
SRAM AXS Rocker Pod Controller
|
| Brakes |
SRAM Motive Silver 4-Piston
|
| Crankset |
SRAM GX Eagle, alloy
|
| Front Disc Rotor |
SRAM HS2 CL, 180mm
|
| Chainguide |
e*thirteen, e*spec Slider
|
| Rear Disc Rotor |
SRAM HS2 CL, 180mm
|
| Chainring |
SRAM XX Direct Mount TQ 34T
|
| Handlebar |
Syncros Fraser iC SL DC Carbon, 0° rise, back sweep 8°, mini Rise, 760mm
|
| Seatpost |
Syncros dropper post SP-M300-AL2, +RAD drop adjust, 31.6mm
|
| Seat |
Syncros Tofino R 1.5
|
| Chain |
SRAM GX Eagle Transmission
|
| Wheelset |
Syncros Silverton 1.5-30 CL, F: 15x110mm, R: 12x148mm, 30mm Tubeless ready rim 28H, XD Driver, Syncros Axle w/Removable Lever, with 6mm Allen, T30 and T25 Tools
|
| Cassette |
SRAM GX Eagle XS-1275 Transmission, 10-52T
|
| Extras |
TQ 160Wh Range Extender
|
| Accessories |
Milkit Sealant
|
| Approx weight in KG |
18.2
|
| Approx weight in LBS |
40.12
|
| Drive Unit |
TQ HPR60 Mid Motor drive 60Nm max Torque, EU: 25kmh - INT: 20mph - US: 28mph
|
| Battery |
TQ Internal 360Wh
|
| Display |
TQ HPR, Bluetooth, ANT+, Dedicated Smartphone app
|
| Charger |
TQ 4A 100-240V
|
| Grips |
Syncros Performance XC Lock-On
|
| Front Tire |
Schwalbe Wicked Will EVO, TLE 29 x 2.40
|
| Rear Tire |
Schwalbe Wicked Will EVO, TLE 29 x 2.40
|
| Max. System Weight |
130kgThe overall weight includes the bike, the rider, the equipment and possible additional luggage.
|
