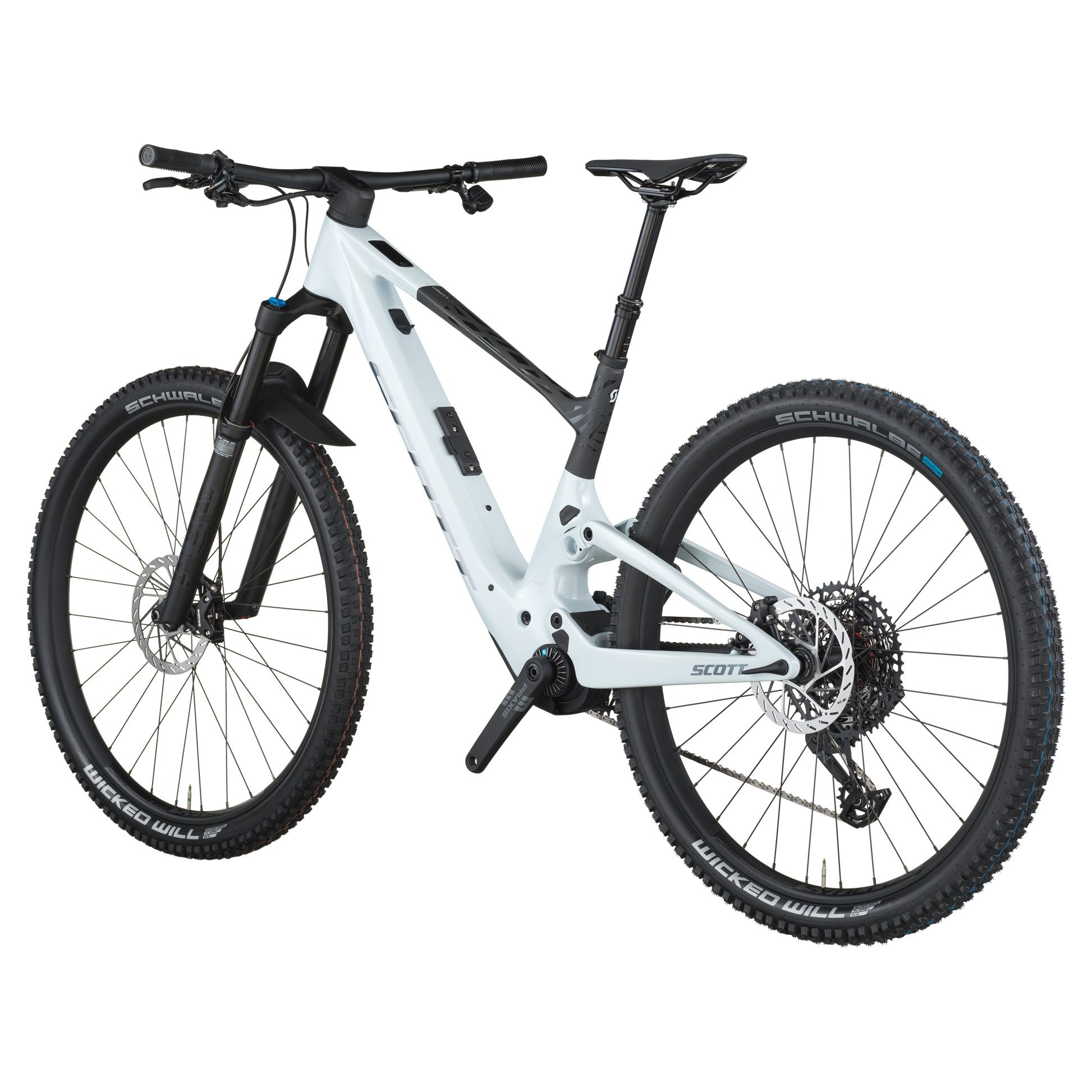

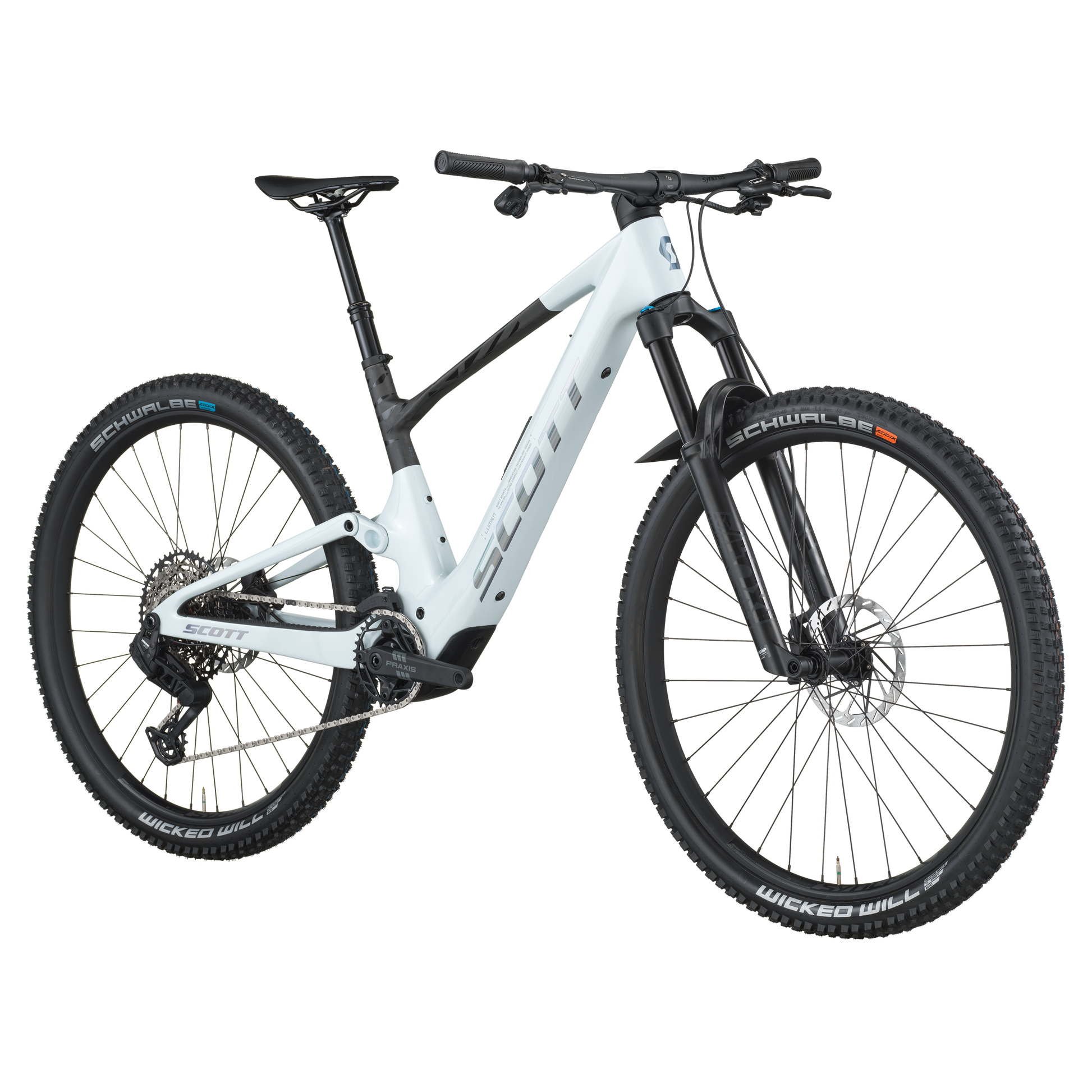

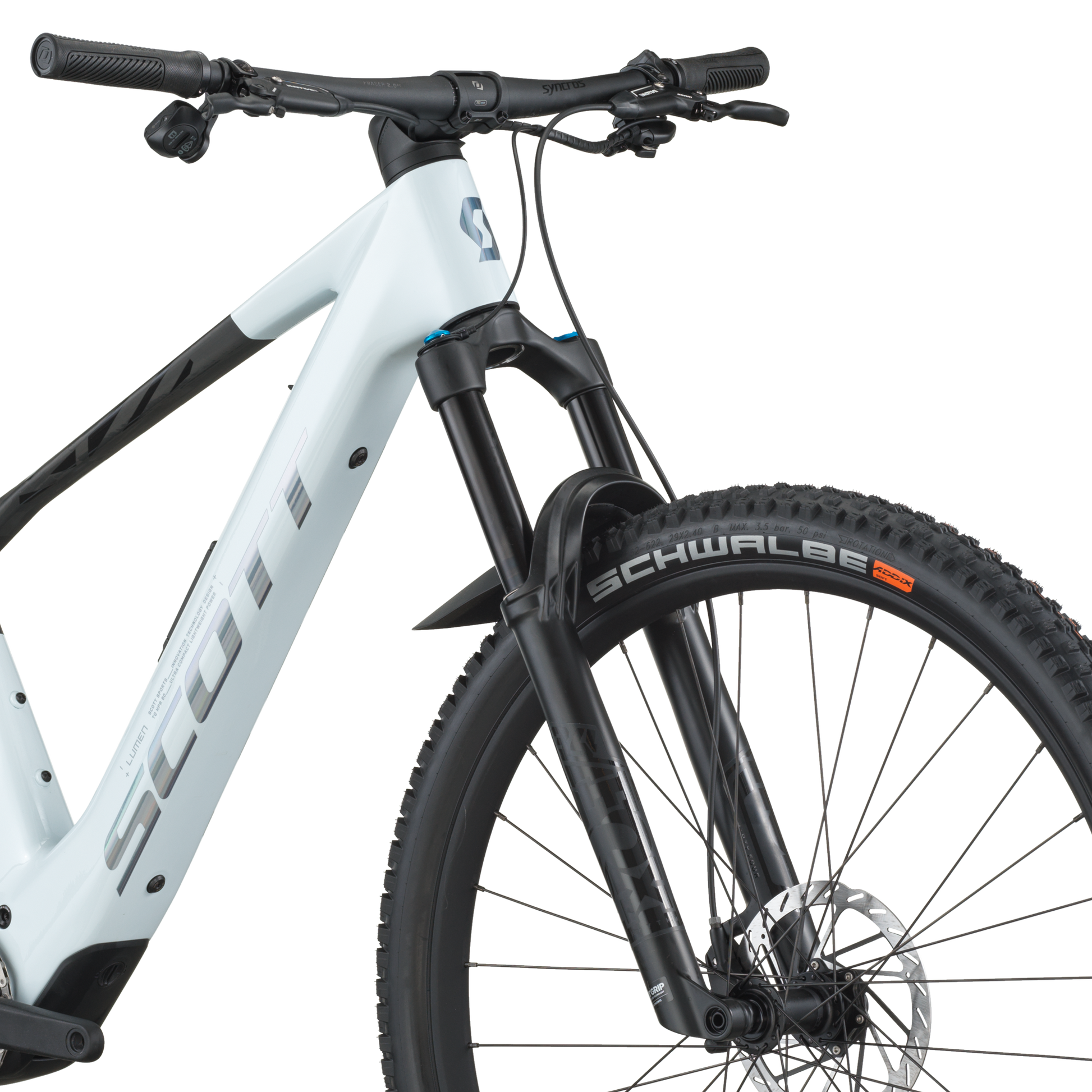

Take your trail rides to the next level on the updated Lumen 910 eMTB. With a lightweight design that rides like a playful, non-powered trail bike combined with the power of the new TQ HPR60, you’ll have the best of both worlds as you push the pace on the singletrack.
The Lumen has always been beloved for its agile, flickable, responsive ride quality, making it feel more like a traditional MTB than a full-powered e-MTB. But now it’s 20% stronger than ever thanks to the new HPR60 motor unit which boosts torque from 50Nm to 60Nm for thrust you can feel gripping out of hairpins and powering over the steepest inclines. It’s the extra spice that brings Lumen 910 into its own in the lightweight e-MTB category.

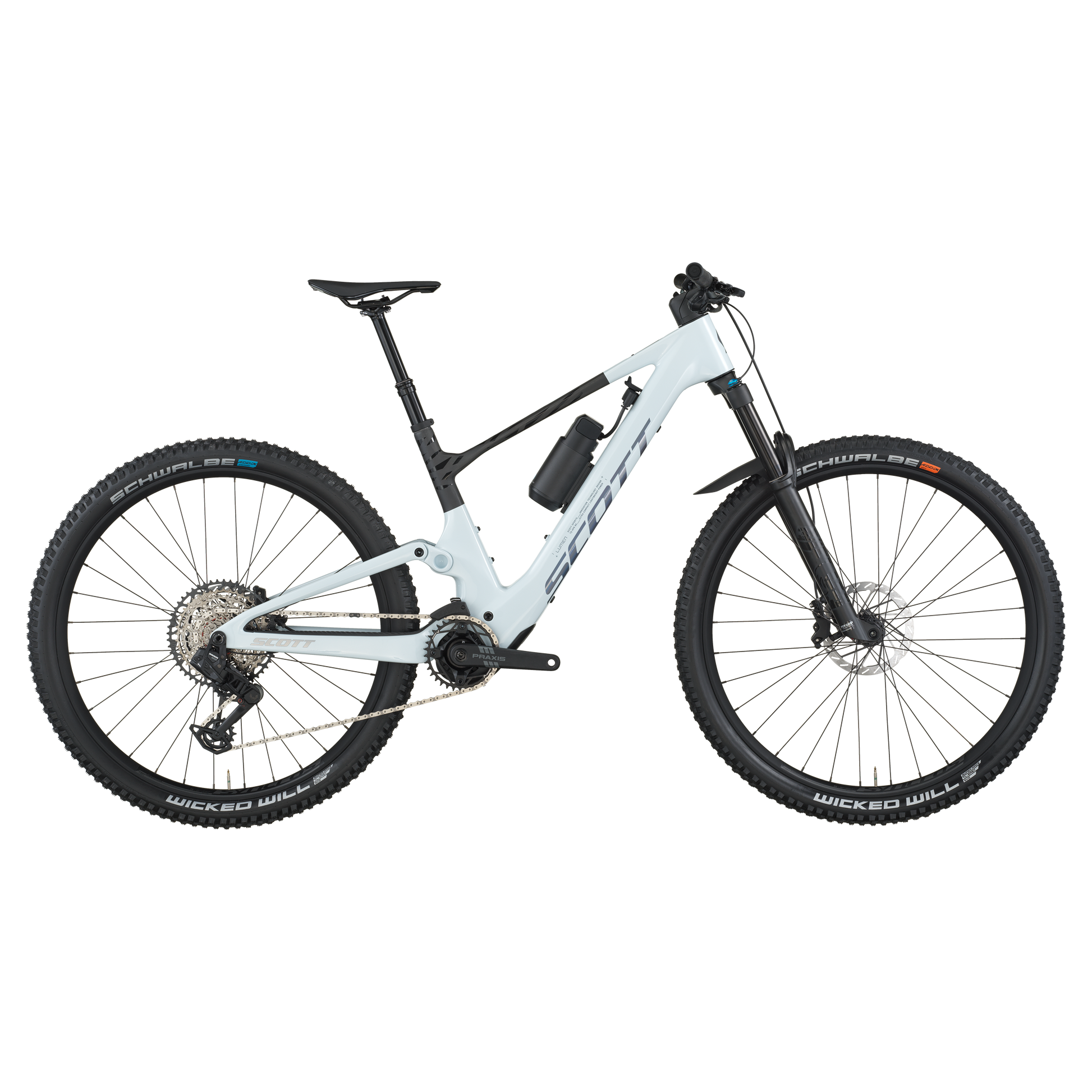

Lightweight doesn’t mean short laps either. Every Lumen 910 comes with a 160Wh Range Extender Battery to complement the 360Wh main battery for peace of mind to take your ride further. The size of a small water bottle, it easily attaches with a quick-release mount or can be stowed in a small pack to have along on the ride in case you need it. And not to worry, Lumen’s light weight and drag-free motor mean that if you play til the tank is empty, you’ve still got a fun and pedalable bike to spin back to the trailhead.
This Lumen 910 features a brightly illuminated black and white display and is specced with 140mm of front and 130mm of rear travel, SRAM Transmission drivetrain, and powerful Motive Bronze brakeset to equip you for elite-level rides without breaking the bank.
FrameCarbon HMXIntegrated Suspension TechnologyFlex Pivot, Adjustable head angleSyncros Cable Integration System, UDH Interface, 12x148mm with 55mm Chainline
TravelFront: 140mm, Rear: 130mm

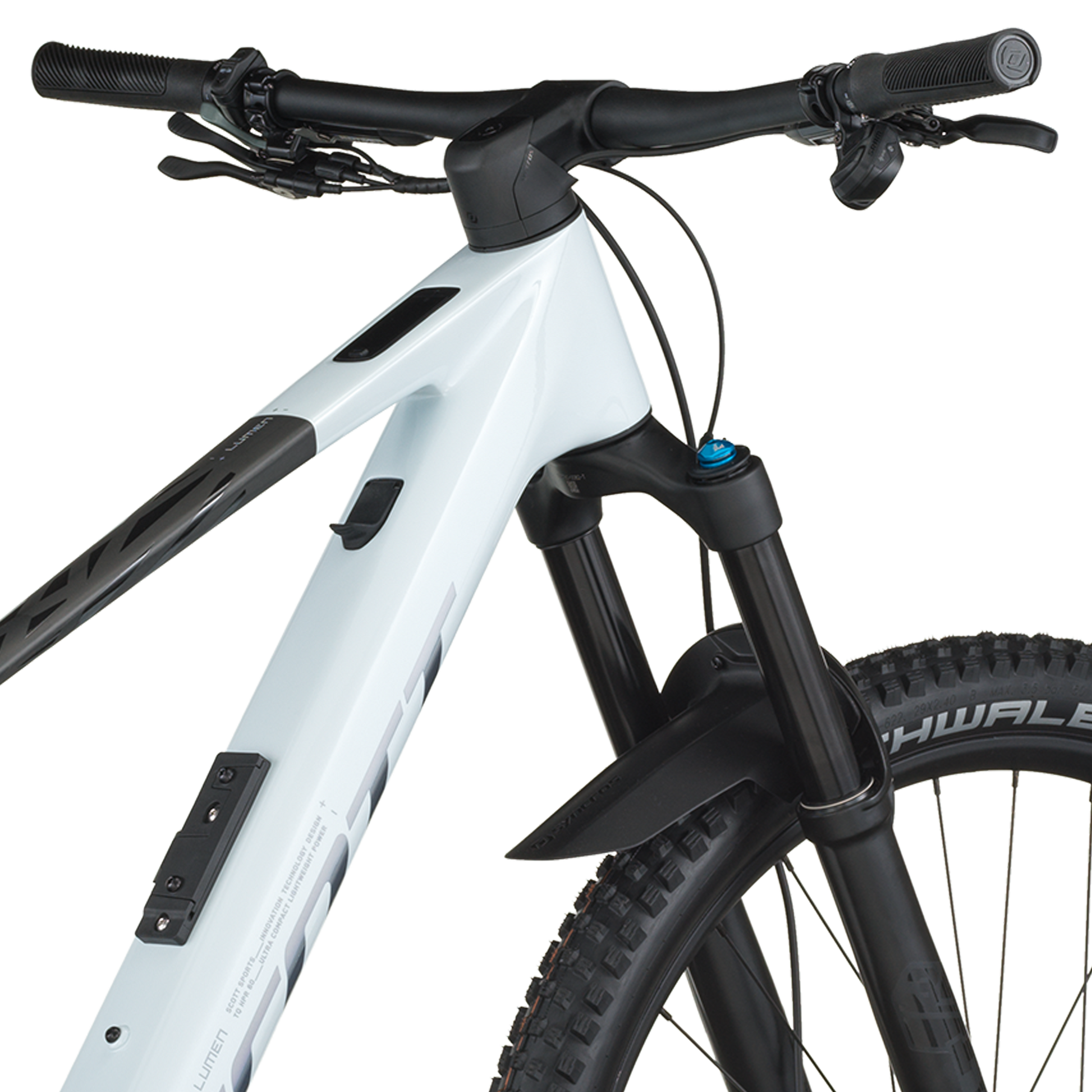

ForkFOX 34 Rhythm Air Grip3-Modes, Kabolt 15x110mm axle, tapered steerer44mm offset, Reb. Adj., Lockout, 140mm travel
Rear ShockFOX NUDE 6T EVOL TrunnionSCOTT custom w. travel, geo adj.3 modes: Lockout-Traction Control-DescendLow Speed Adj., Custom large Air volume, Reb. Adj.Bearing Hardware, Travel 130-90-Lockout, T165X45mm
Remote SystemSCOTT TwinLoc 2 TechnologySuspension & Dropper Remote3 Suspension modes

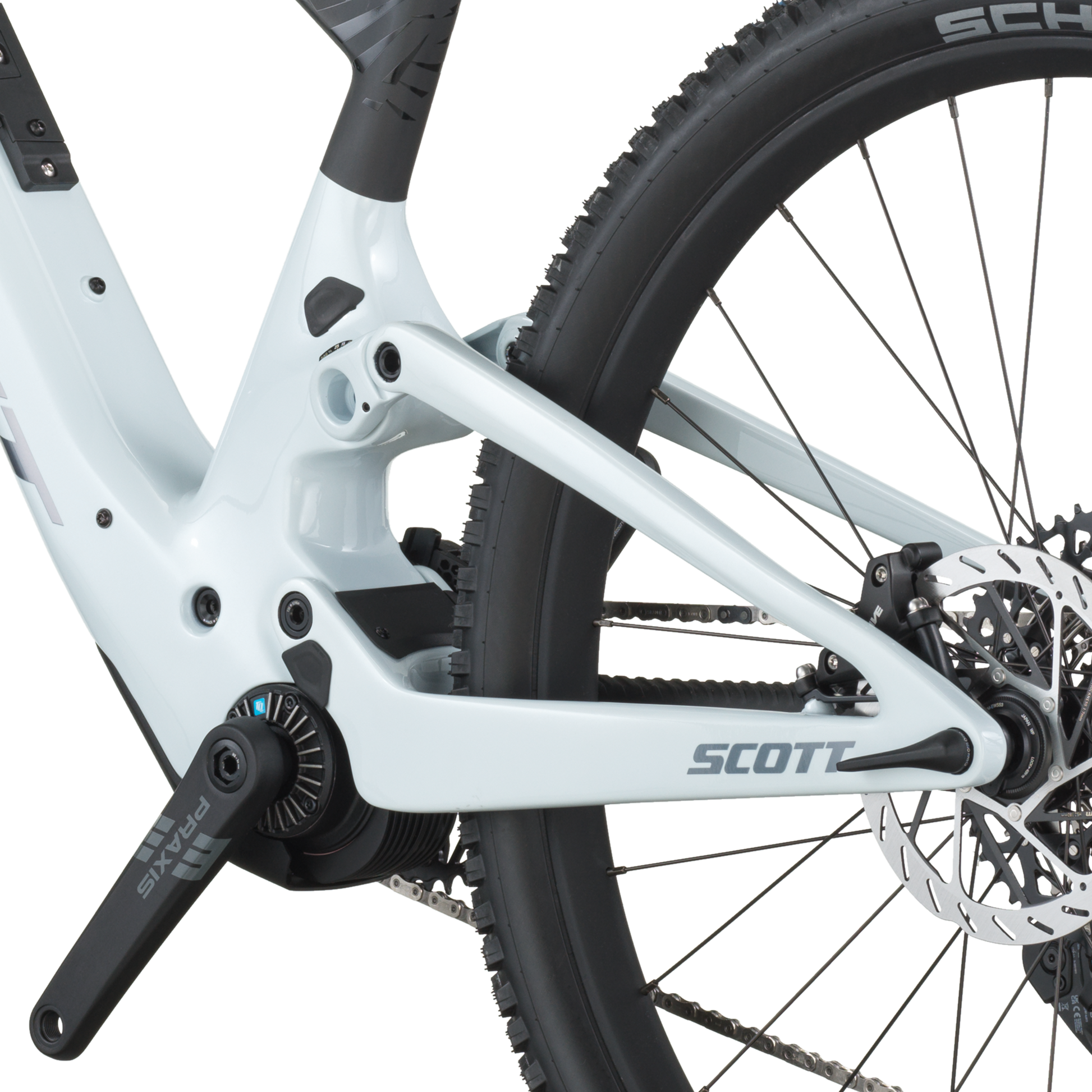

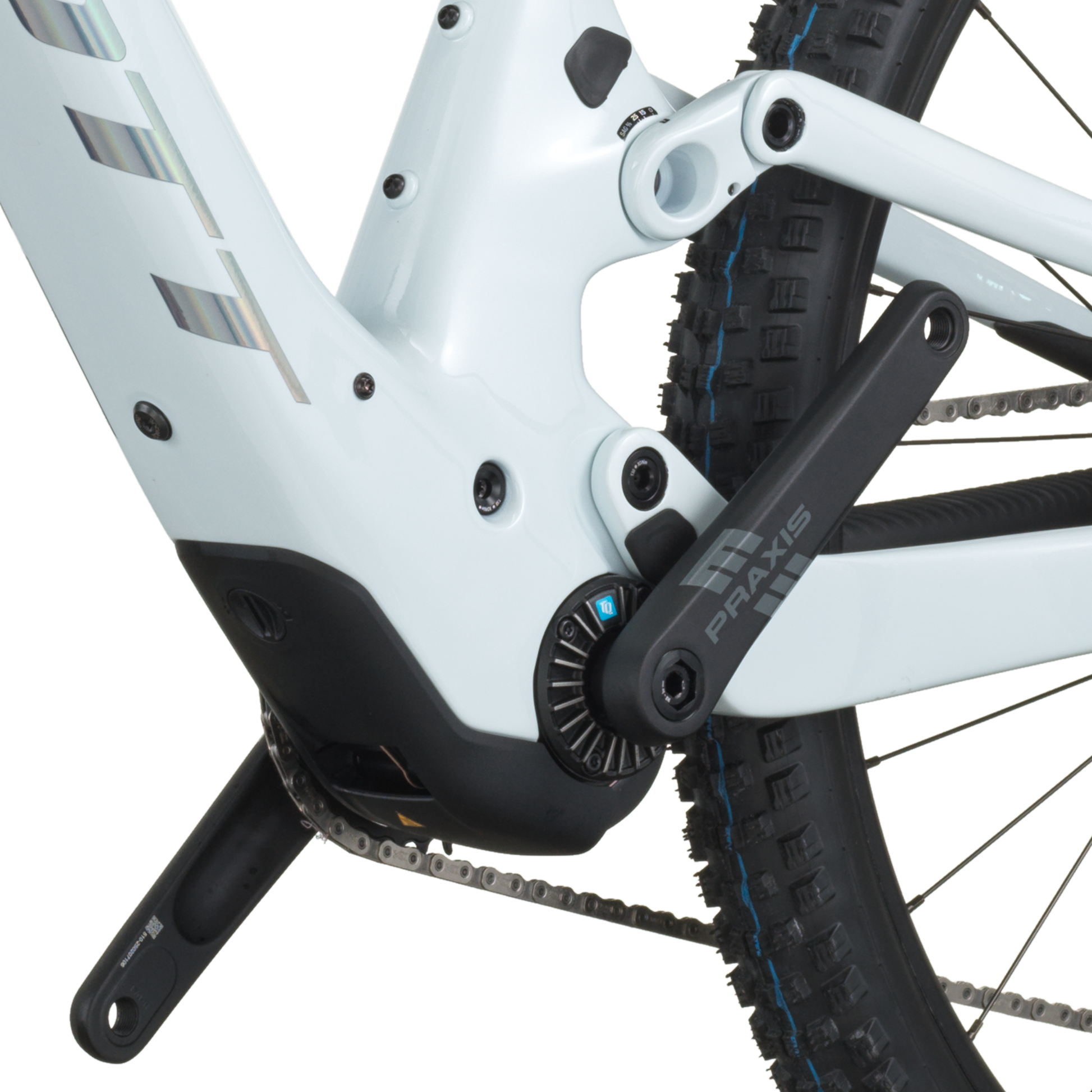

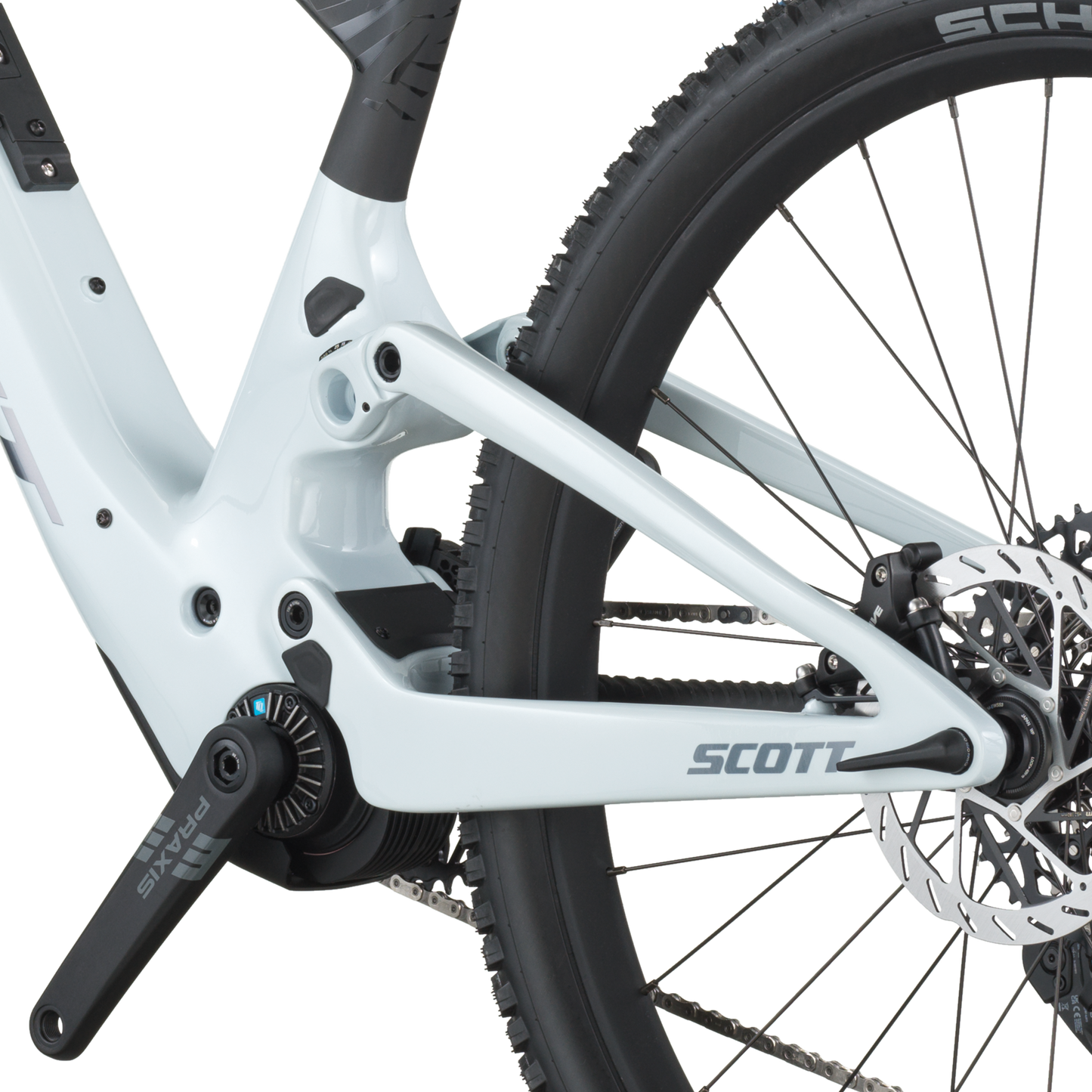

Drive UnitTQ HPR60 Mid Motor drive 60Nm max Torque, EU: 25kmh, US: 20mph
BatteryTQ Internal 360Wh + Range Extender 160Wh
DisplayTQ HPRBluetooth, ANT+, Dedicated Smartphone app
ChargerTQ 100-240V-4A

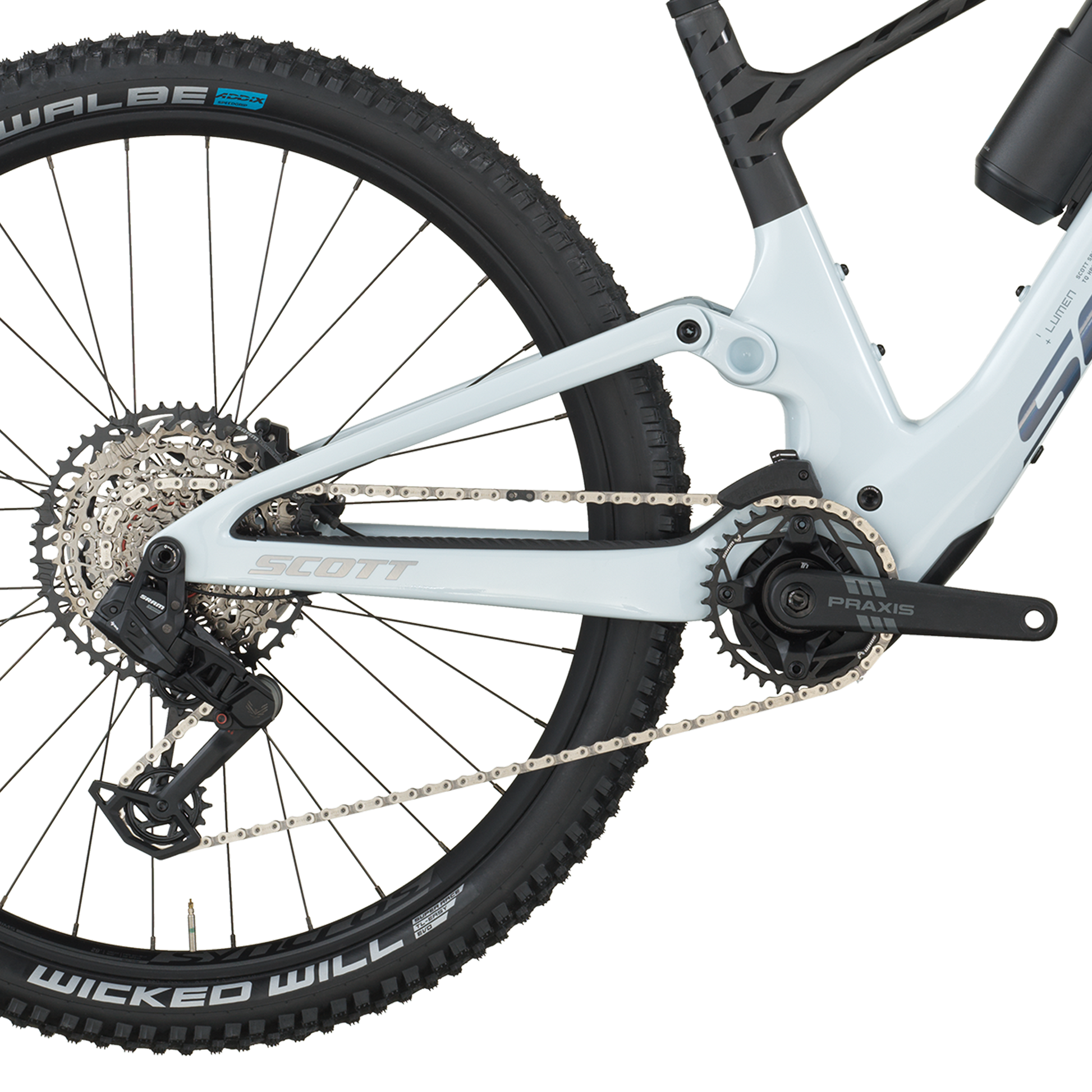

Rear DerailleurSRAM S1000 Eagle AXS Transmission 12 SpeedWireless Electronic Shift System
ShiftersSRAM AXS Pod Controller
CranksetPraxis Alloy
Chainguidee*thirteen, e*spec Slider
ChainringPraxis spider, SRAM Eagle Transmission 34T chainring
ChainSRAM CN GX Eagle Transmission
CassetteSRAM Eagle XS 1270 Transmission 10-52
BrakesSRAM Motive Bronze Stealth 4-Piston Disc
RotorSRAM HS2 CL Rotors, F&R 180mm
HandlebarSyncros Fraser 2.0 DC Alloy 6061 D.B.Syncros Performance XC lock-on gripsmini Rise, back sweep 8°, 760mm
H'stemSyncros DC 2.0Syncros Cable Integration System0° rise, 6061 Alloy, 31.8mm, 1 1/8"
SeatpostSyncros Duncan Dropper Post 2.031.6mm, S & M size 125mm, L size 150mm, XL size 170mm
SeatSyncros Tofino 1.5 RegularTitanium rails
HeadsetSyncros - Acros Angle adjust & Cable Routing HS System+-0.6° head angle adjustmentZS56/28.6 – ZS56/40 MTB
Hub (Front)Formula CL-811, 15x110mm
Hub (Rear)Formula CL-148S, 12x148mm
SpokesStainless Black 15G, 1.8mm
RimsAlexrims X-30S, 32H, 30mmTubeless ready
Front TireSchwalbe Wicked Will 29x2.4" EVOSuper Race, TLE, 67EPI, Addix Speed Soft
Rear TireSchwalbe Wicked Will 29x2.4" EVOSuper Race, TLE, 67EPI, Addix Speed Grip
Approx weight in KG17.8 Tubless setup without RE (1.1kg)
Approx weight in LBS39.24 Tubless setup without RE (1.1kg)
Max. System Weight130kgThe overall weight includes the bike, the rider, the equipment, and possible additional luggage.
