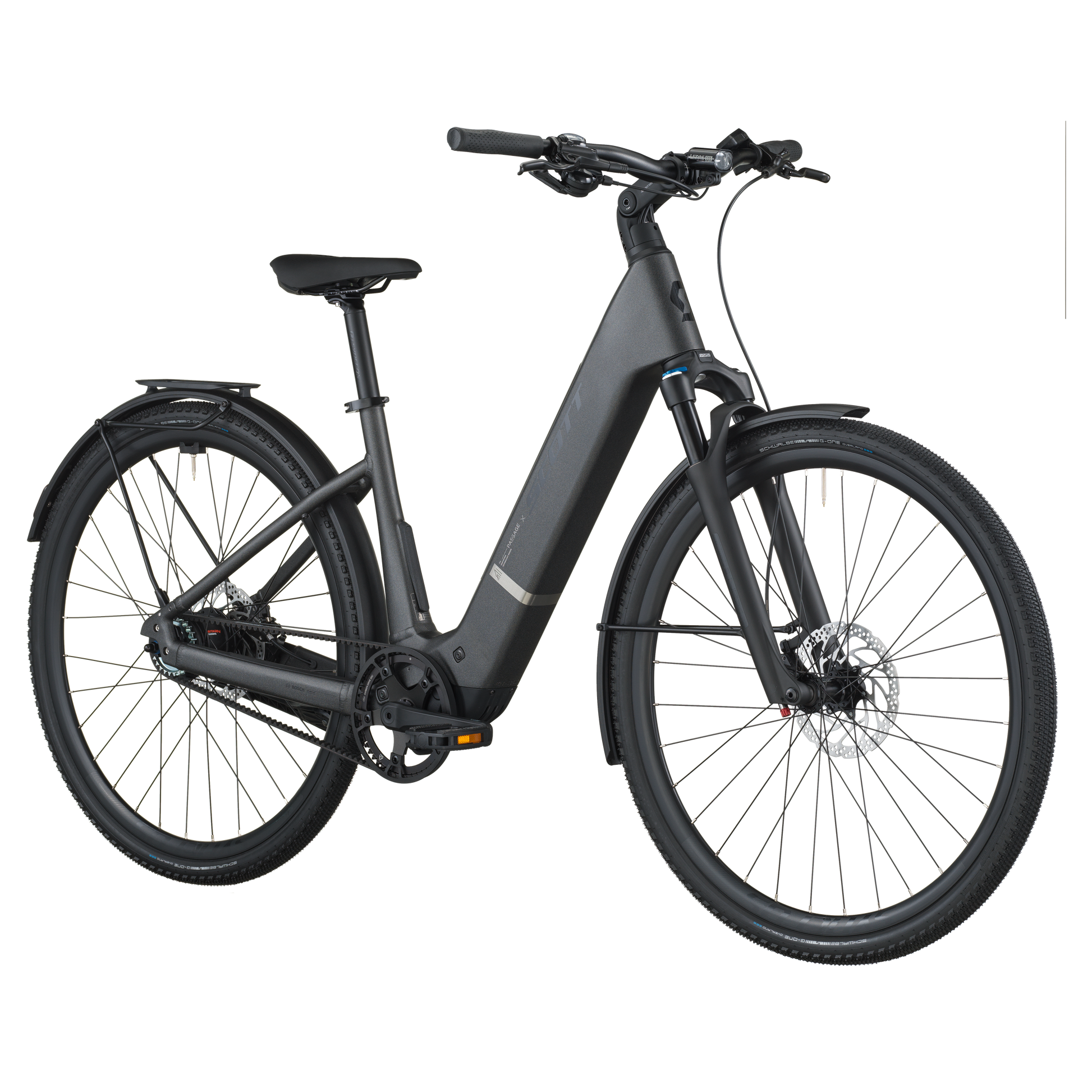

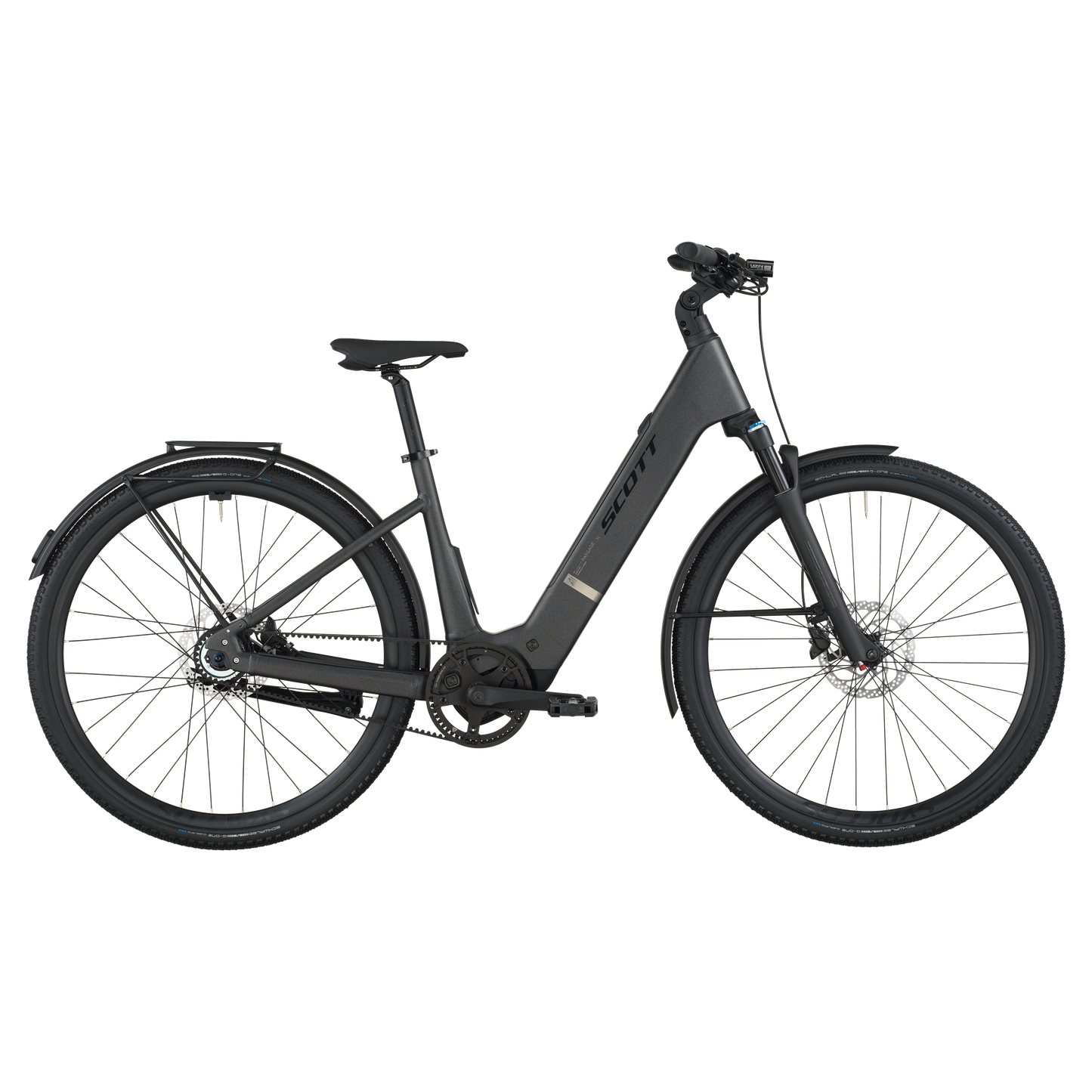

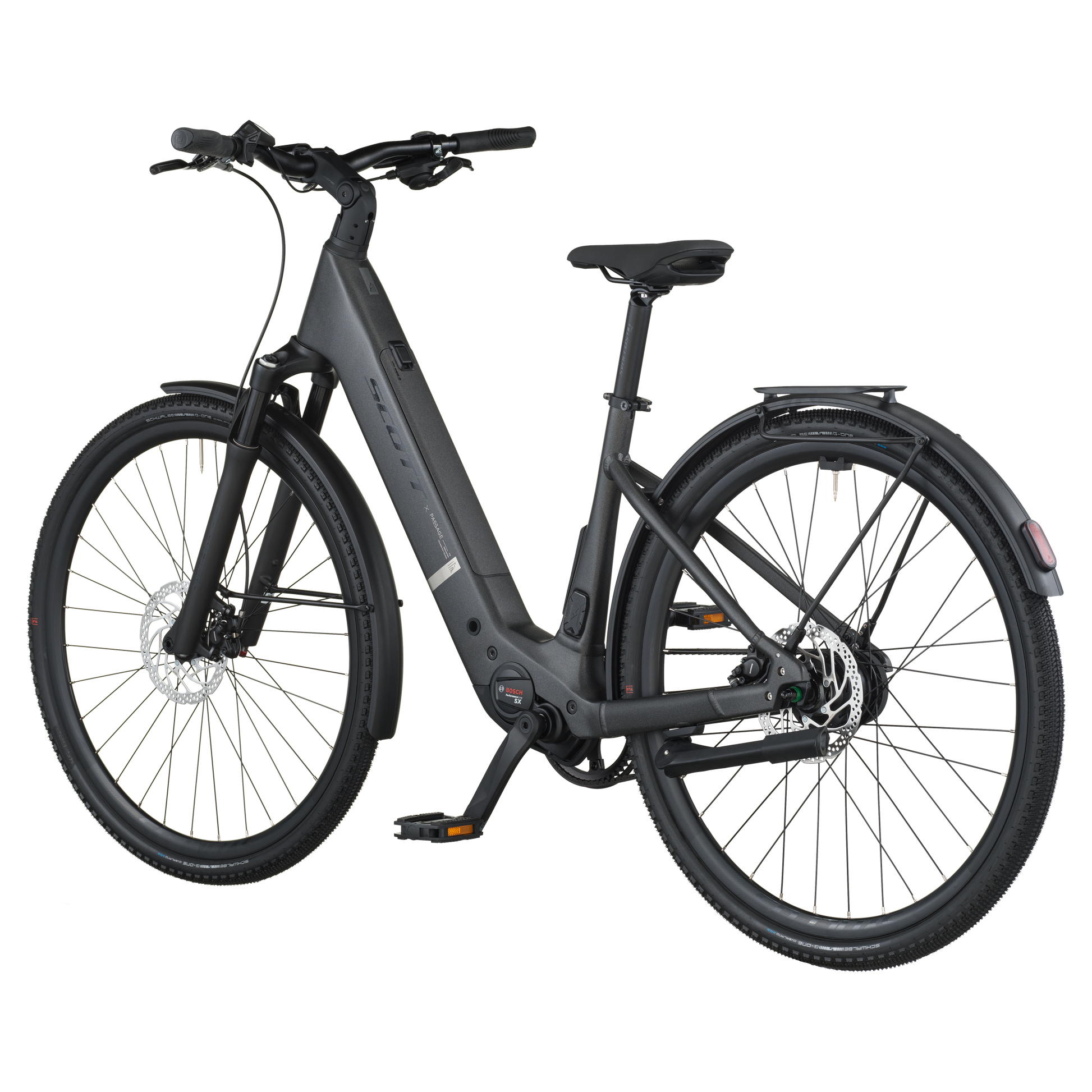

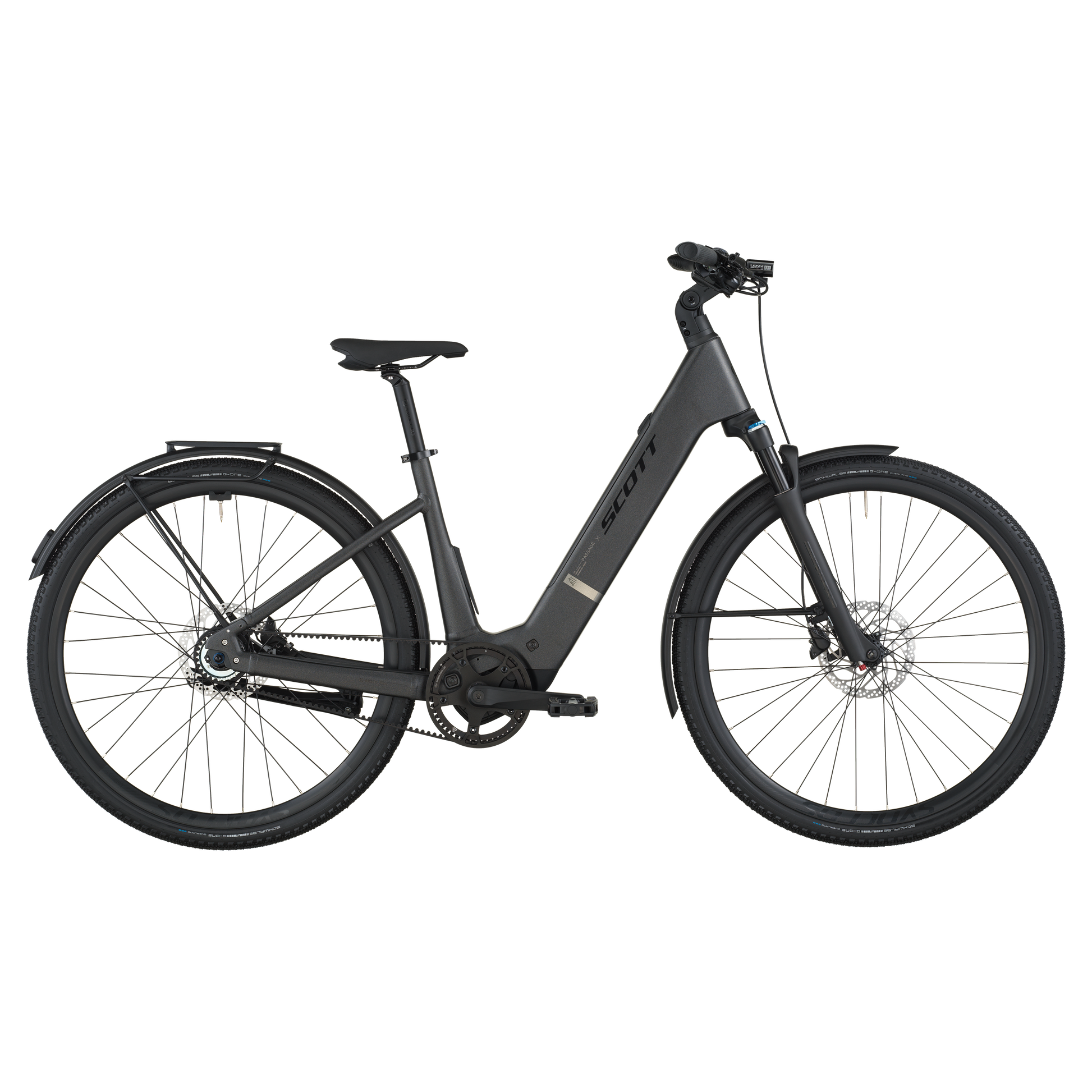

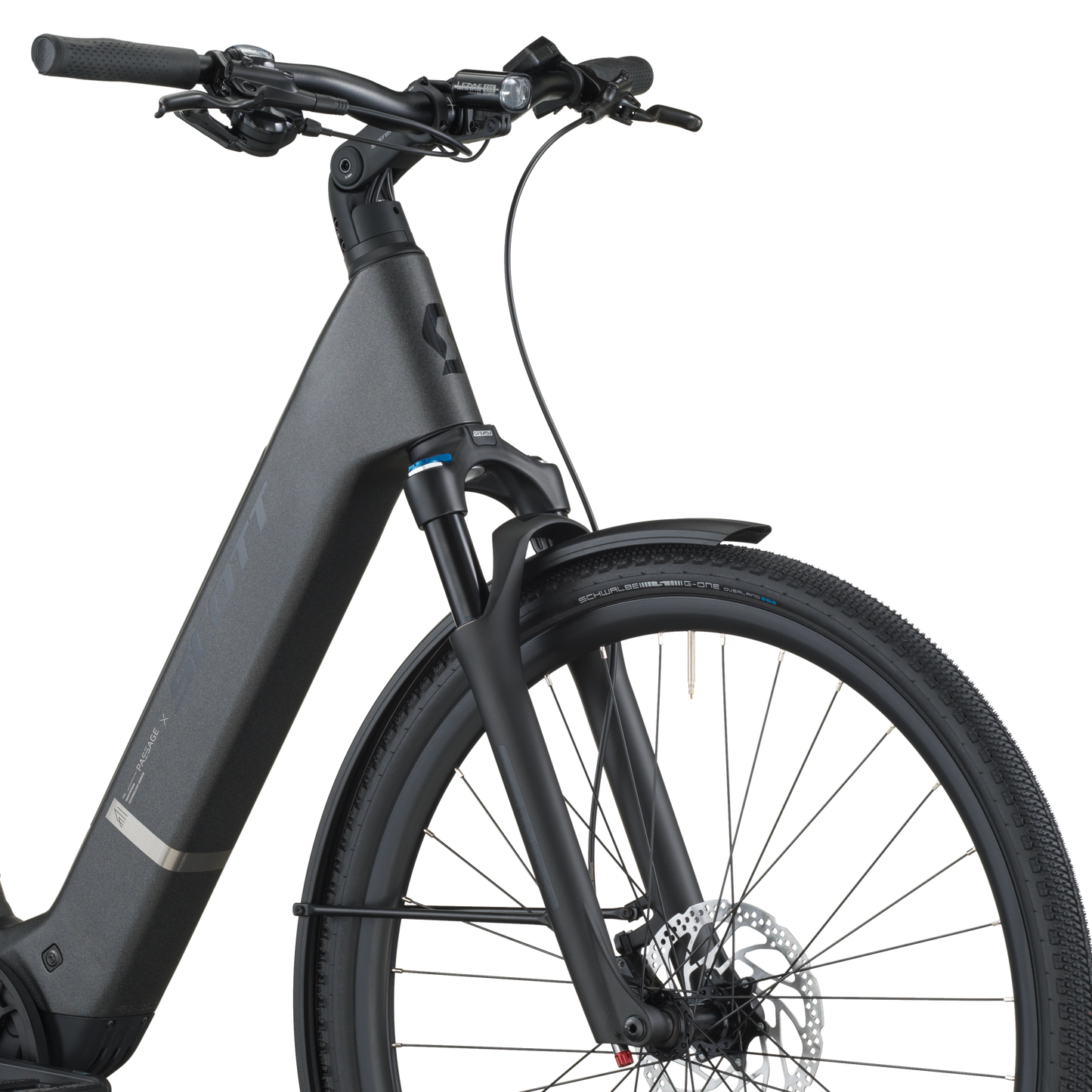

Scott PASSAGE 10 WAVE,e-URBAN, e-trekking, 400Wh,Bosch Purion 200,Bosch E-Bike 2026

Scott PASSAGE 10 WAVE,e-URBAN, e-trekking, 400Wh,Bosch Purion 200,Bosch E-Bike 2026

Regular price £3,689.00 GBP
Regular price Sale price £3,689.00 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.
Quantity

all inclusive no hidden fees on cycle to work schemes

425615

SCOTT PASSAGE 10 WAVE BIKE

The Passage 10 Wave Bike is our e-URBAN machine that’s easy to ride, thanks to its low standover height, making it a cinch for everyone in the family to get on and enjoy riding in the city.

At first glance, you may not even register Passage 10 as an E-Bike, with its trim lines and non-intimidating stance. That’s thanks to Bosch’s SX motor (which weighs just 2kg) and slim 400Wh battery. It’s a powerful combo that keeps the bike light, agile, and balanced while delivering power whenever you need it and the range to handle a long commute easily.

In addition to being easy to mount, Passage 10 is nicer to ride than larger E-Bikes. The Bosch SX motor features a narrower Q-factor that lets you have a natural pedaling style and handling you may be used to feeling on lightweight bikes. Out front is a 75mm suspension fork that cushions your ride from rougher pavement as you zip around town. And if taking the scenic route or packing extra for the commute in, the rear rack sets you up to stow the day’s essentials.

We equipped this Passage 10 with Shimano’s 8-speed drivetrain for plenty of gearing to enjoy your city streets and 45mm tires to add stability and comfort to navigate any surprises on the route. There’s also a kickstand for easy parking at your destination.

FrameAlloy S-L=29", 6061 Alloy custom butted tubingTop extraction battery

Travel75mm

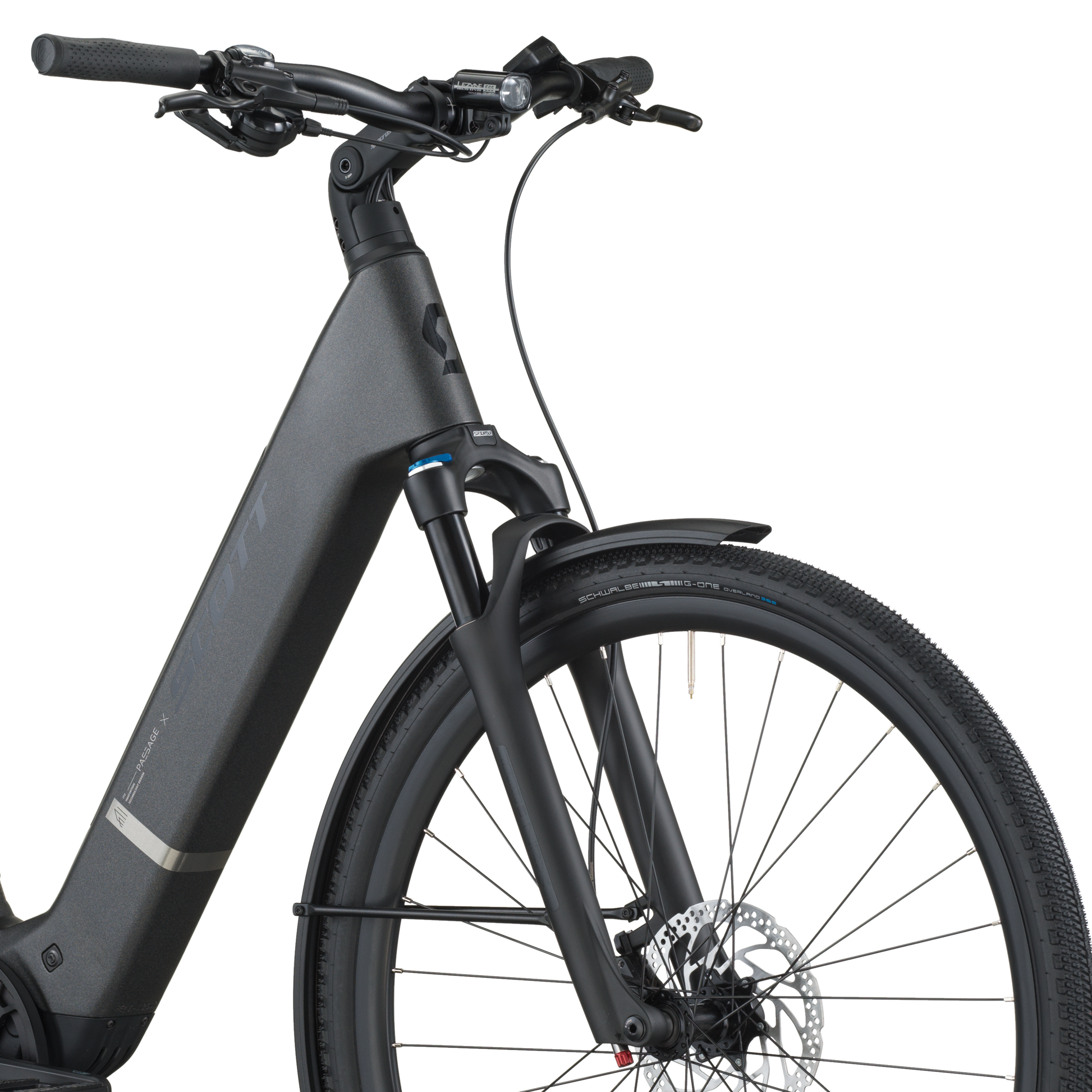

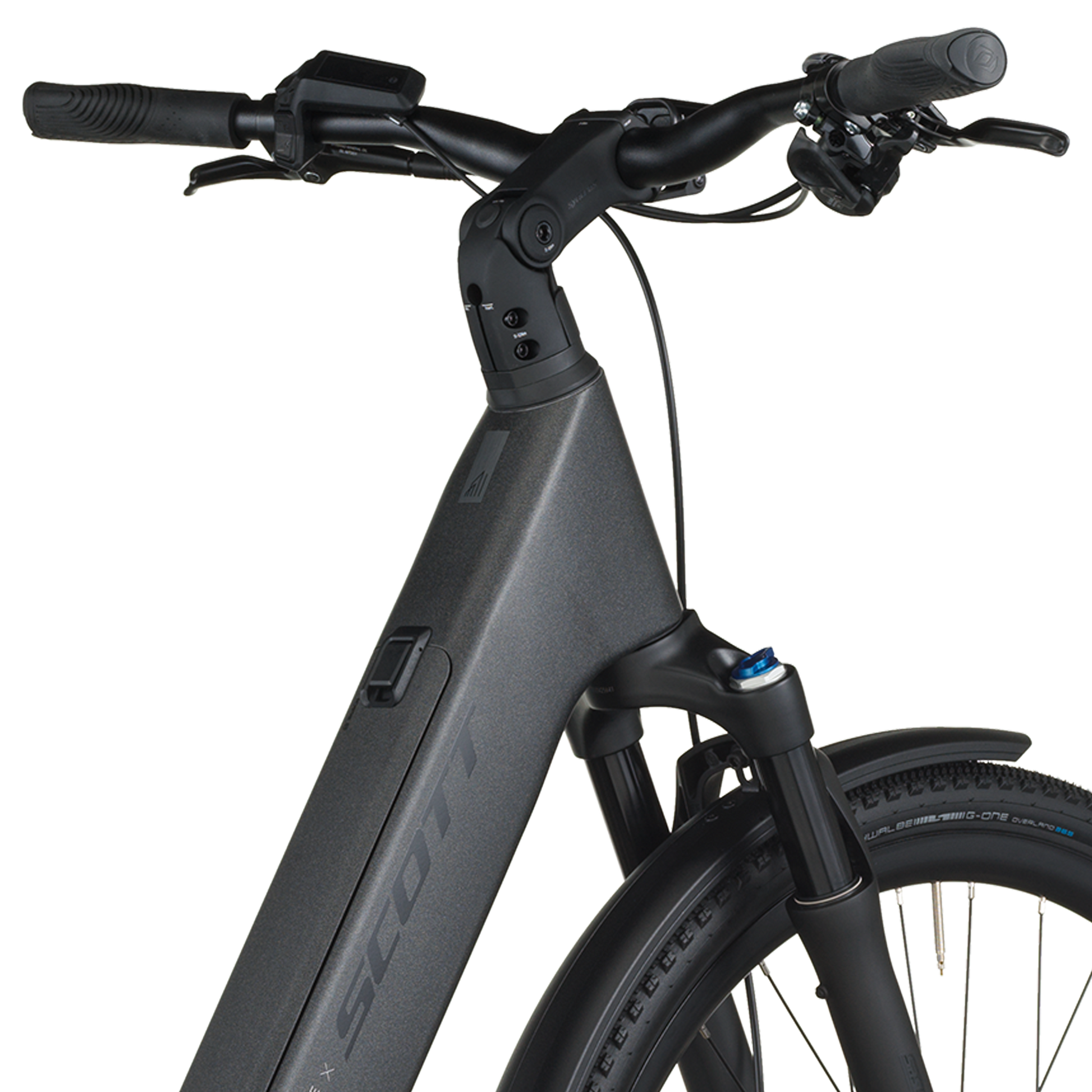

ForkSR Suntour NRX32-E Air LO R, Tapered , 15x100 bolt Axle, Remote Lock Out , Alloy Steerer, 75mm Travel

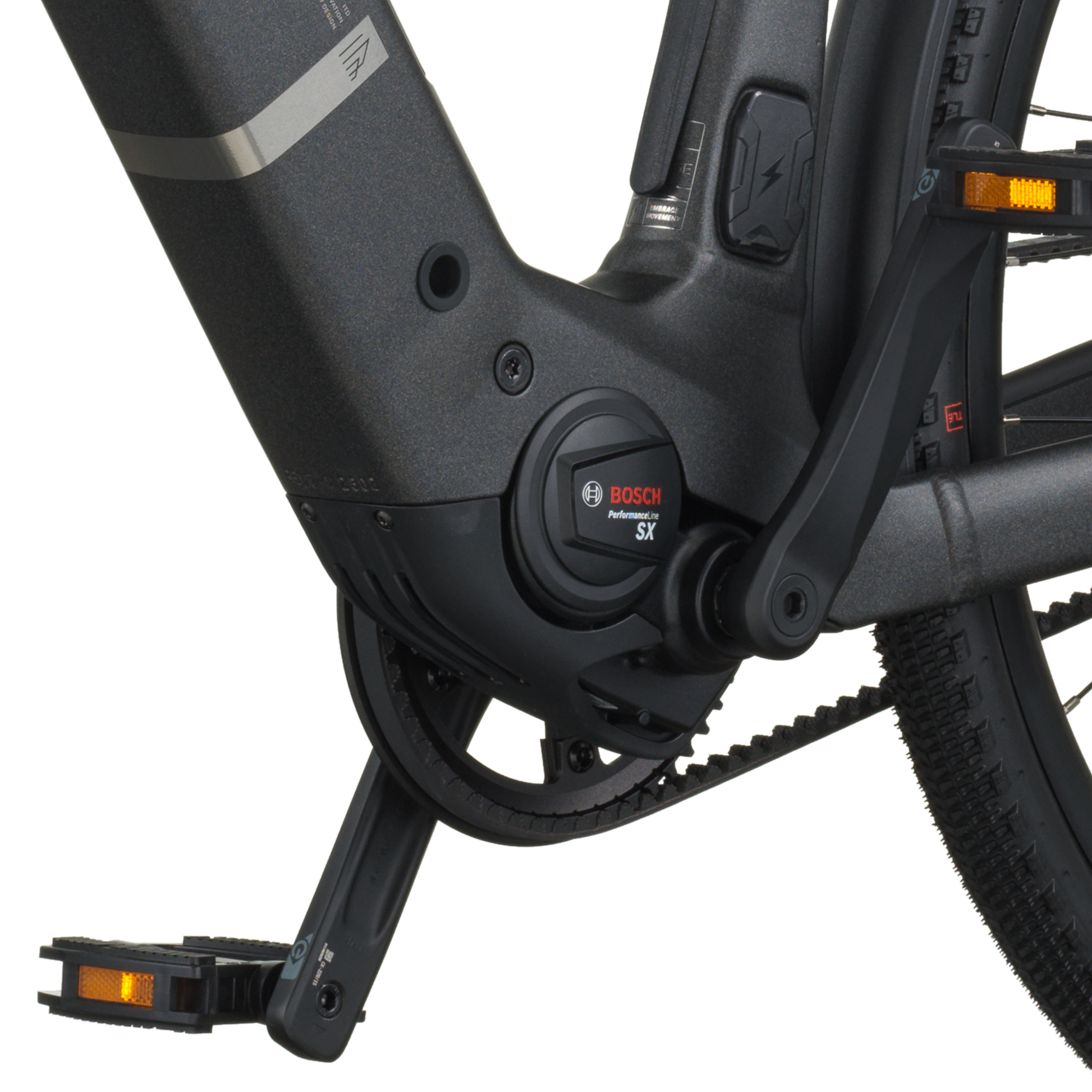

Drive UnitBosch Performance Line SX (BDU314Y)EU: 25kmh

BatteryCompact Tube 400Wh

DisplayBosch Purion 200

Charger2A Charger

ShiftersShimano Alfine SL-S503 Rapid Fire Plus

CranksetFSA CK-220 170mm

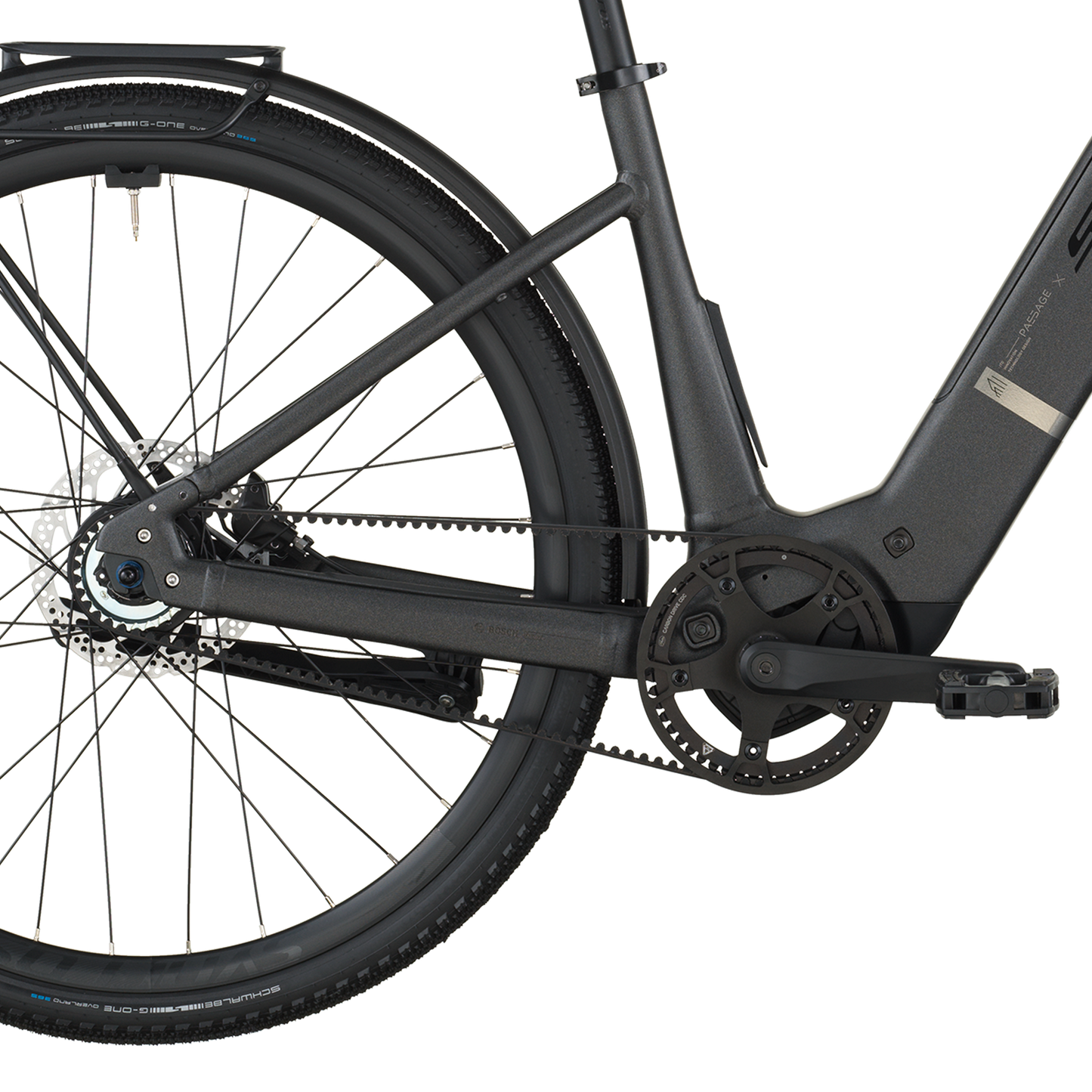

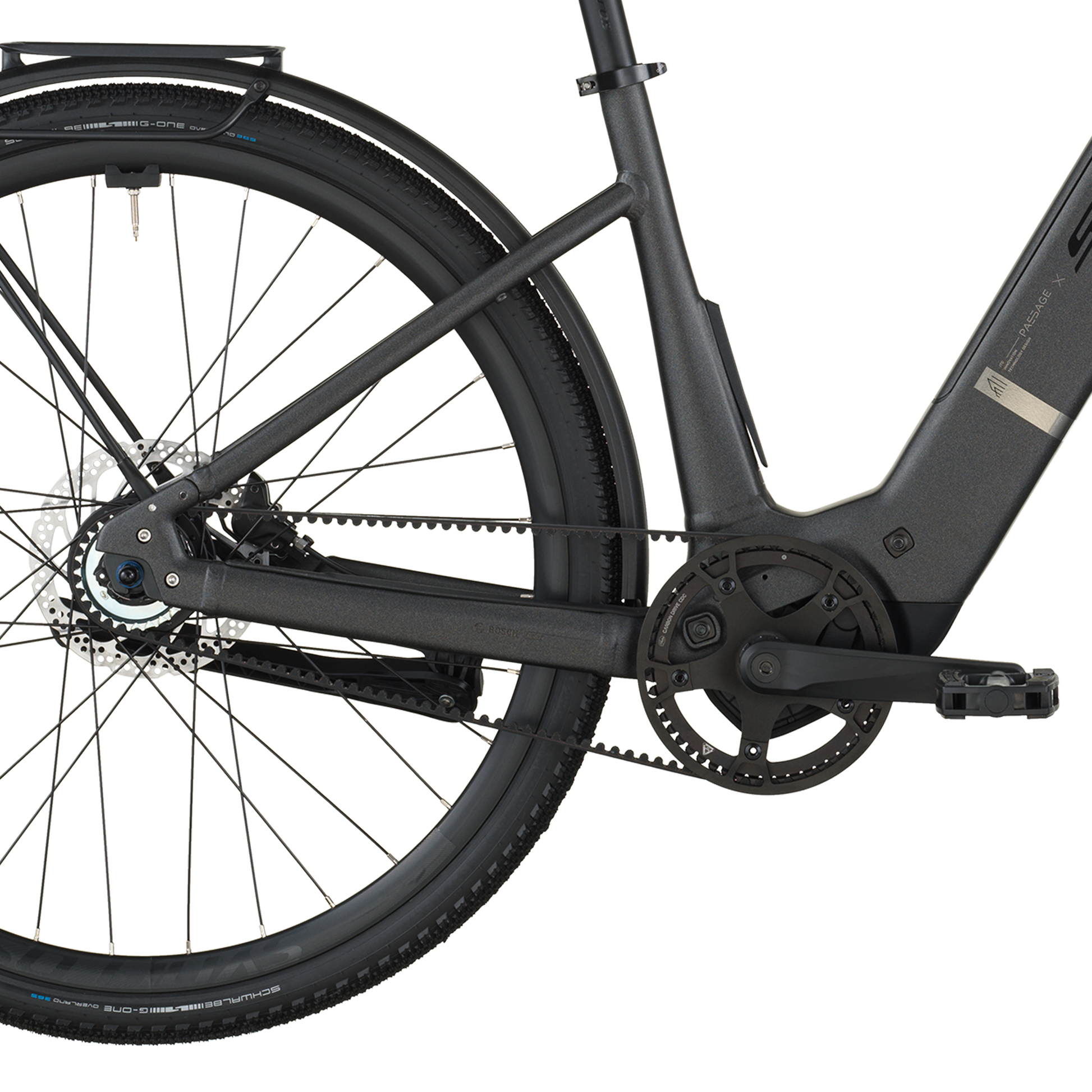

ChainringGates CDC 52T w/Guard

ChainGates CDC 125T

CassetteGates CDC 26T

BrakesShimano BR-MT200 Disc

RotorFront: SM-RT30 CL 180mm, Rear: SM-RT30 CL 160mm

HandlebarSyncros Welded Alloy Combo 680mm, Backsweep 9°, Upsweep 8°, 70mm, with front Light mount

SeatpostSyncros M3.0, 31.6

SeatSyncros Capilano

HeadsetAcros, 1.5"- 1.5"semi integ. OD 50/61mm, ID 44/55mm

Hub (Front)Shimano HBTC50015B CL, 15x100mm

Hub (Rear)Shimano Nexus 8 Speed

SpokesBlack Spokes

RimsSyncros X15 Disc

Front TireSchwalbe G-One Overland 365 Performance, 700x45C

Rear TireSchwalbe G-One Overland 365 Performance, 700x45C

LightsLezyne Fusion E550SM front lightRear Supernova TL3Z

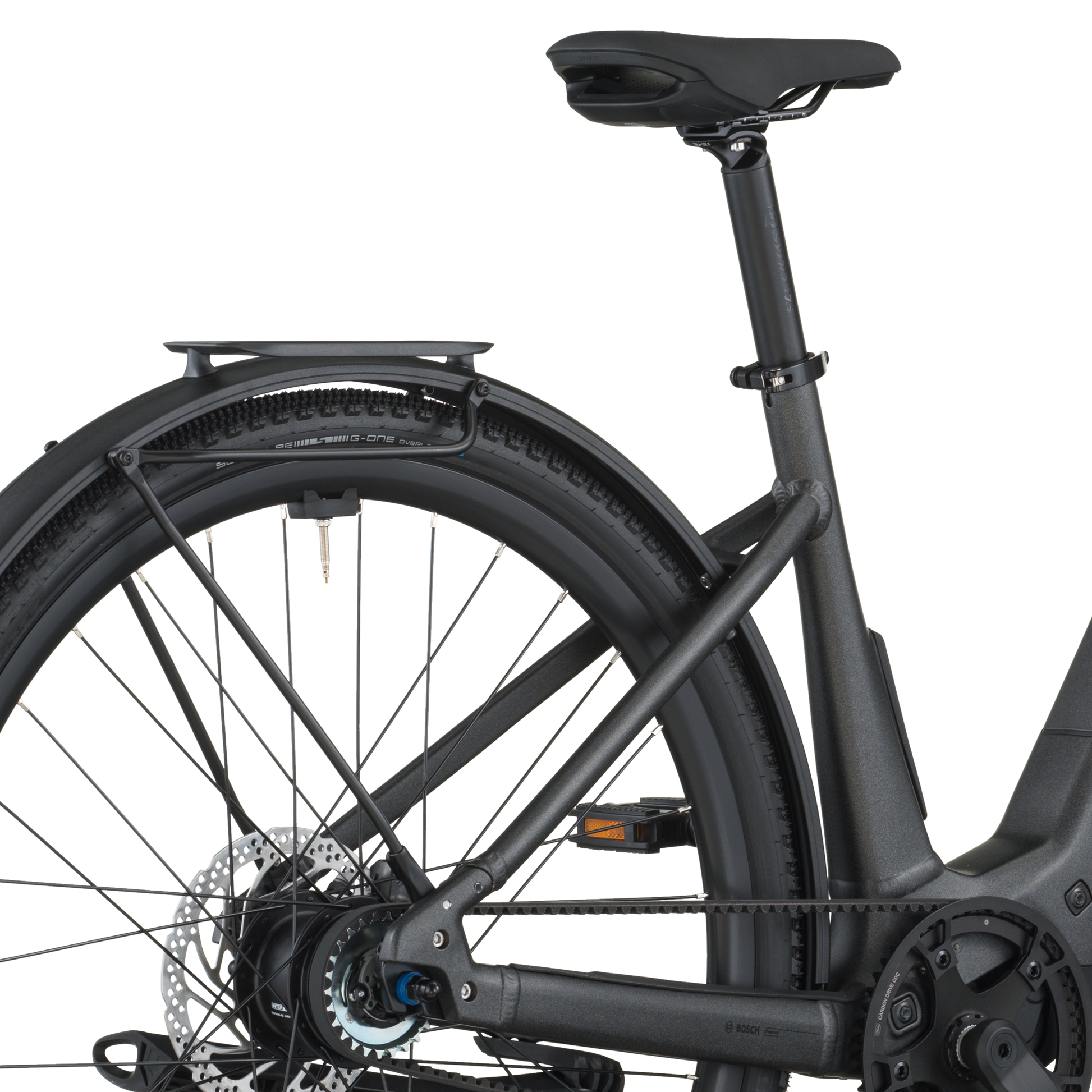

RackRacktime Micro Rack SnapIt 2.0 8KG

PedalsMarwi SP-827

ExtrasAlumee alloy profile FenderPassage Kickstand

Approx weight in KG22.5

Approx weight in LBS49.6

Max. System Weight130kgThe overall weight includes the bike, the rider, the equipment, and possible additional luggage.
