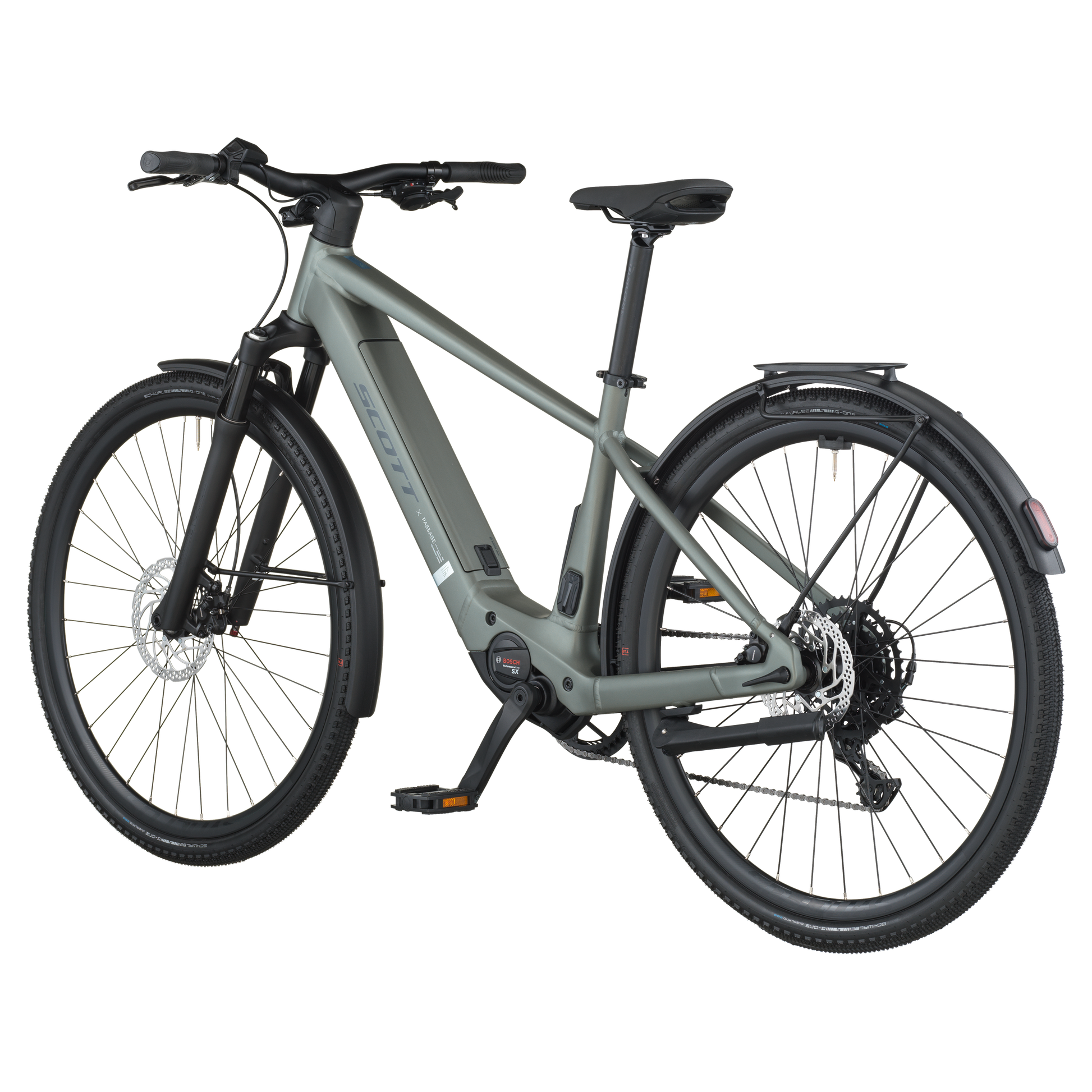

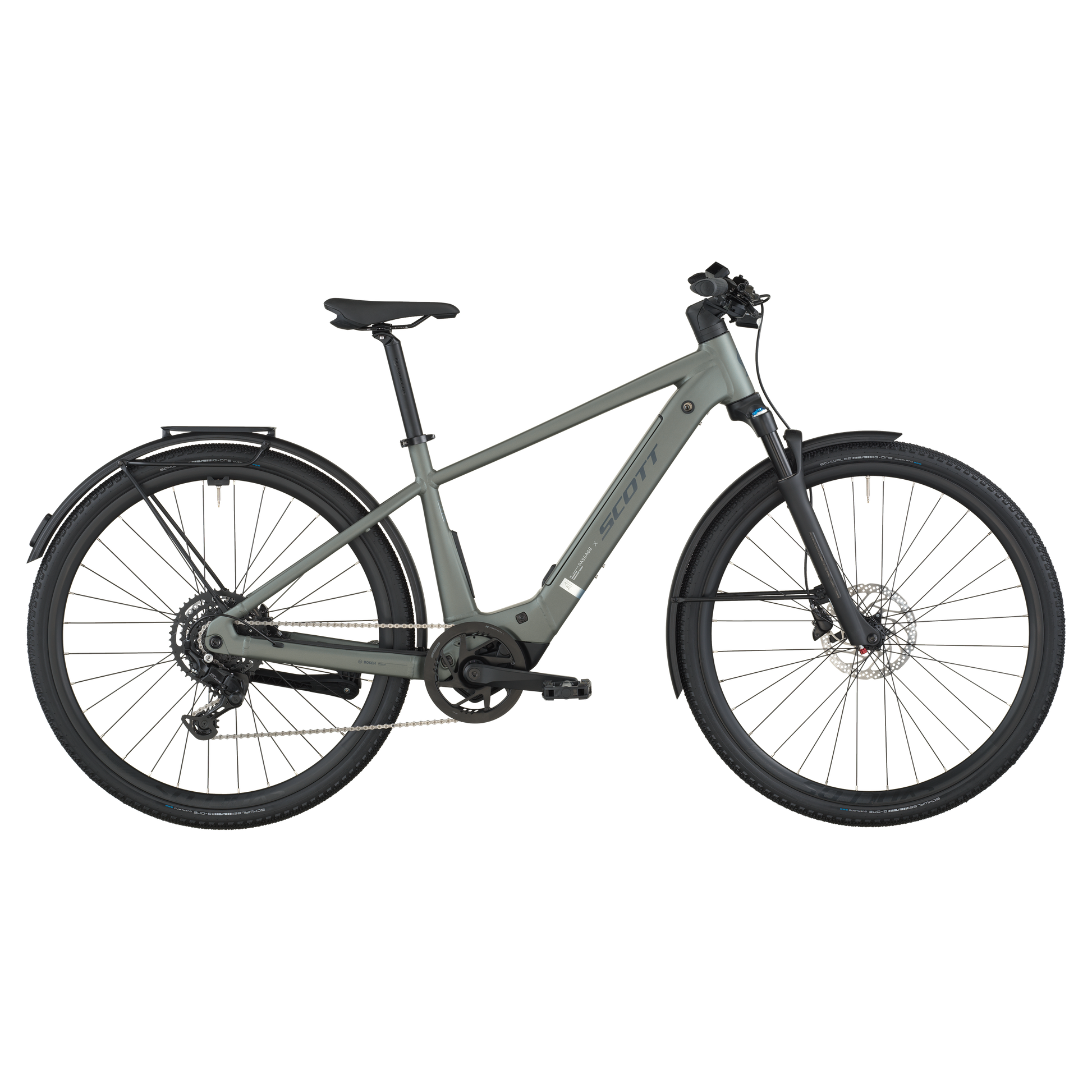

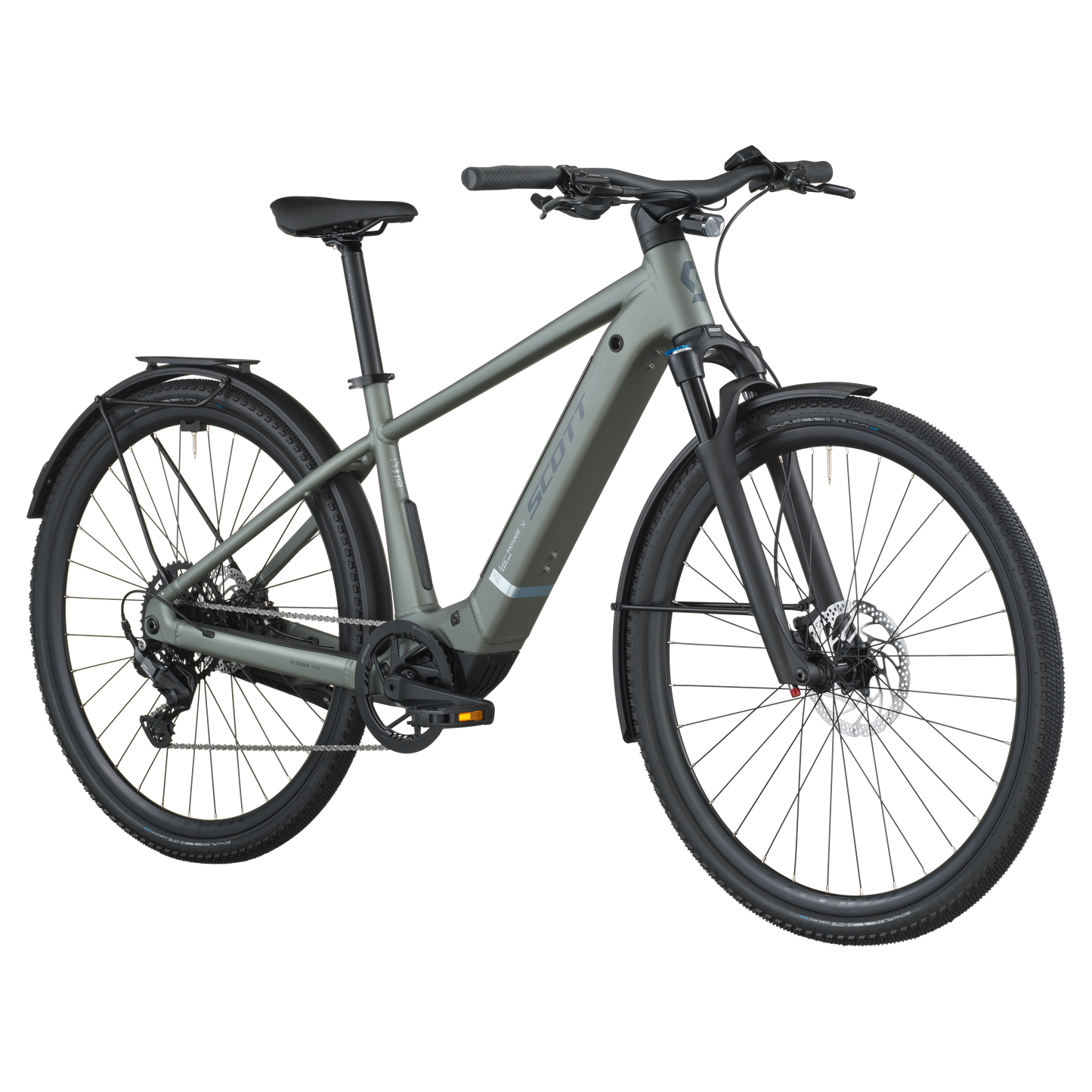

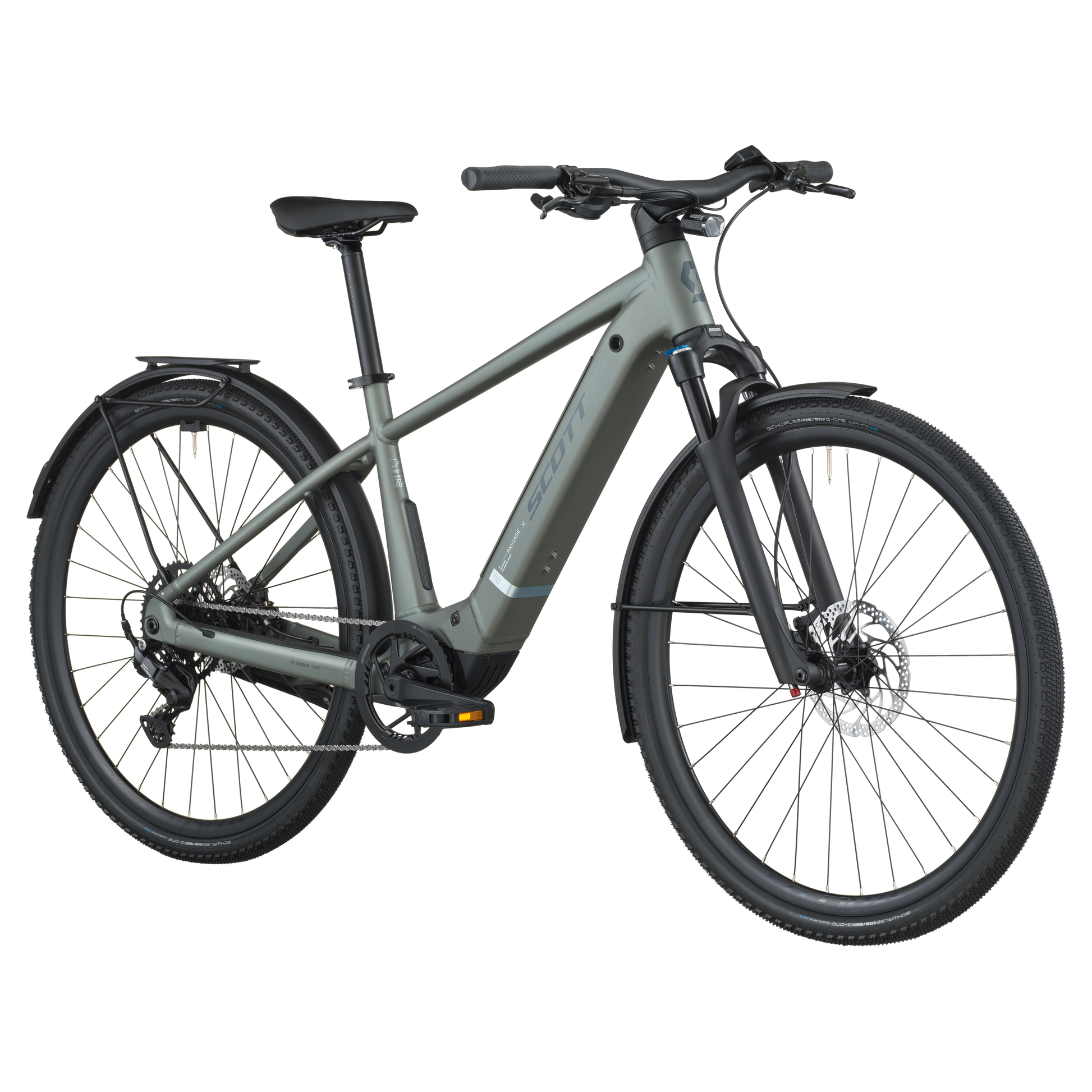

Scott PASSAGE 20,Bosch SX motor and 400Wh battery, e-commut, e-trekkig, e-urban e-Bike 2026

Scott PASSAGE 20,Bosch SX motor and 400Wh battery, e-commut, e-trekkig, e-urban e-Bike 2026

Regular price £3,299.00 GBP
Regular price Sale price £3,299.00 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.
Quantity

all inclusive no hidden fees on cycle to work schemes


425616

Riding around the city is a breeze on the Passage 20 E-Bike. Its midweight design centers around a lightweight yet powerful Bosch SX motor and 400Wh battery, which optimizes handling for an effortless ride and supplies all the pep and range you'll need around town.

On the ride, Passage 20 zips around effortlessly, with plenty of power on tap when you need it to flatten hills, navigate traffic, or carry the extra load on your commute. Best of all, its trim frame design and lightweight 2kg motor drive give you the power to own the roads without the cumbersome heft of a heavier urban e-bike.

We equipped this Passage 20 with a 75mm suspension fork to soften rough pavement on your routes and 45mm tires to add stability and durability no matter what comes your way. Its 9-speed drivetrain gives you the gearing range to ride around town like a pro, and the rear rack sets you up to stow the day’s essentials.

FrameAlloy S-XL=29", 6061 Alloy custom butted tubingTop extraction battery

Travel75mm

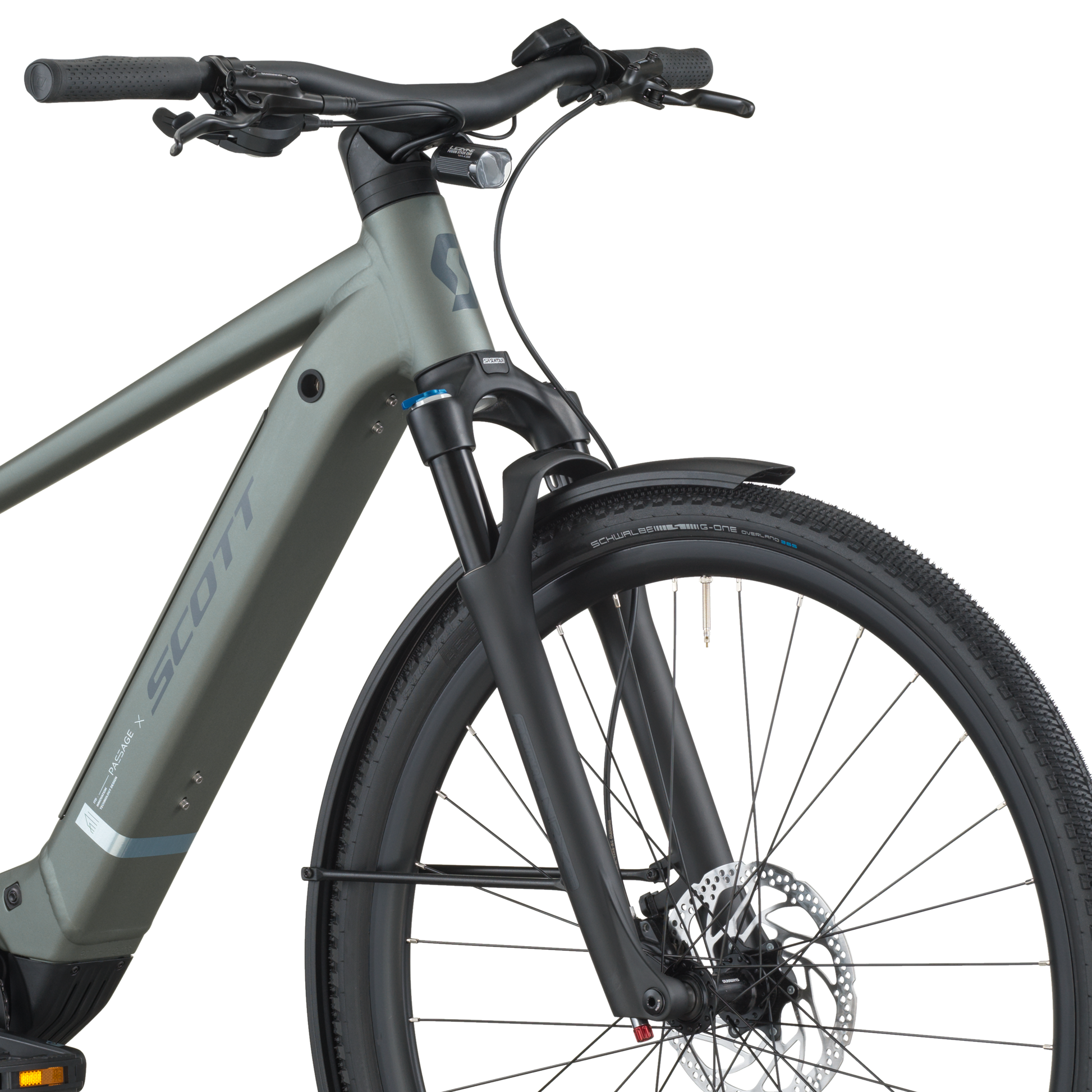

ForkSR Suntour NRX32-E Air LO R, Tapered, 15x100 bolt Axle, Remote Lock Out, Steel Steerer, 75mm Travel

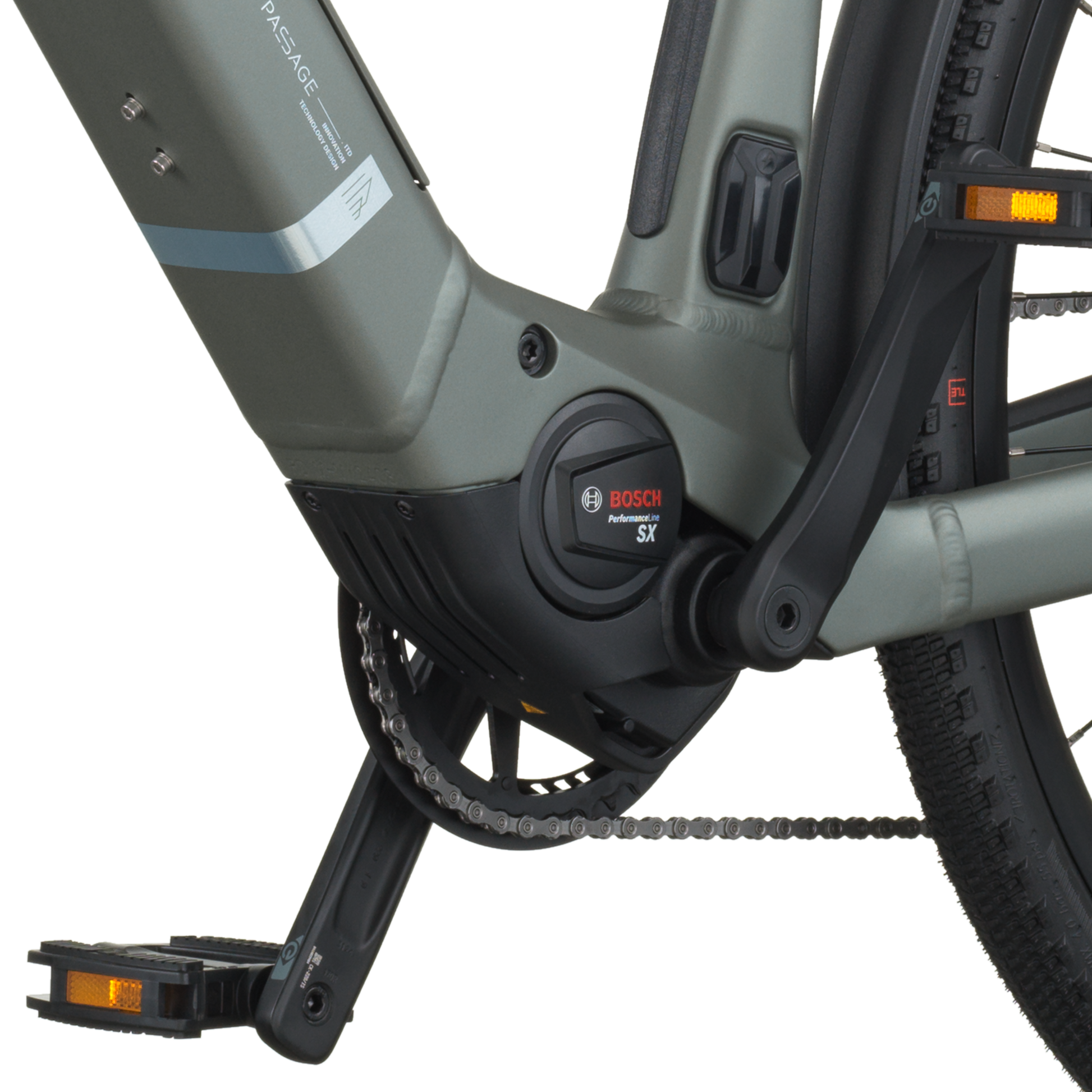

Drive UnitBosch Performance Line SX (BDU314Y)EU: 25kmh

BatteryCompact Tube 400Wh

DisplayBosch Purion 200

Charger2A Charger

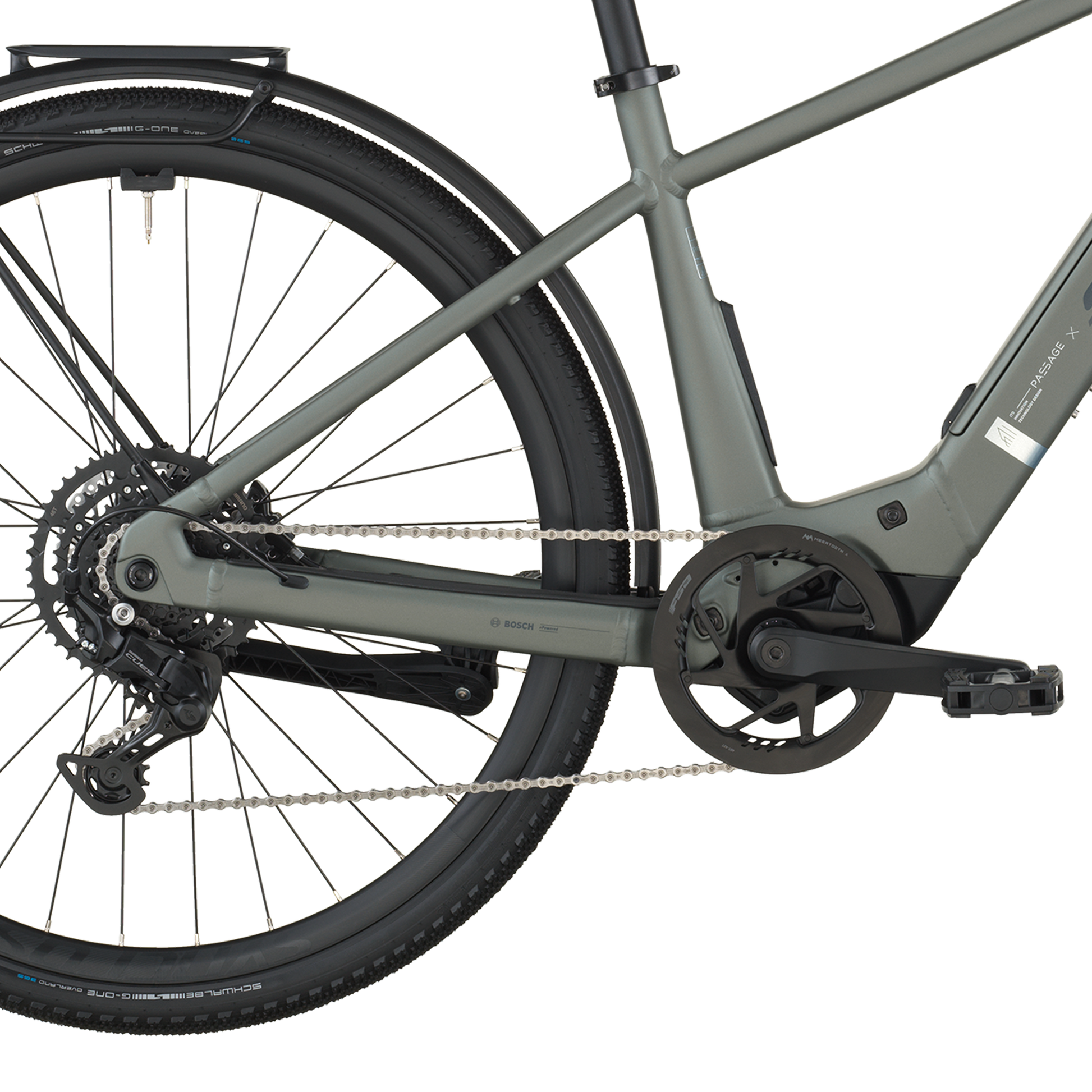

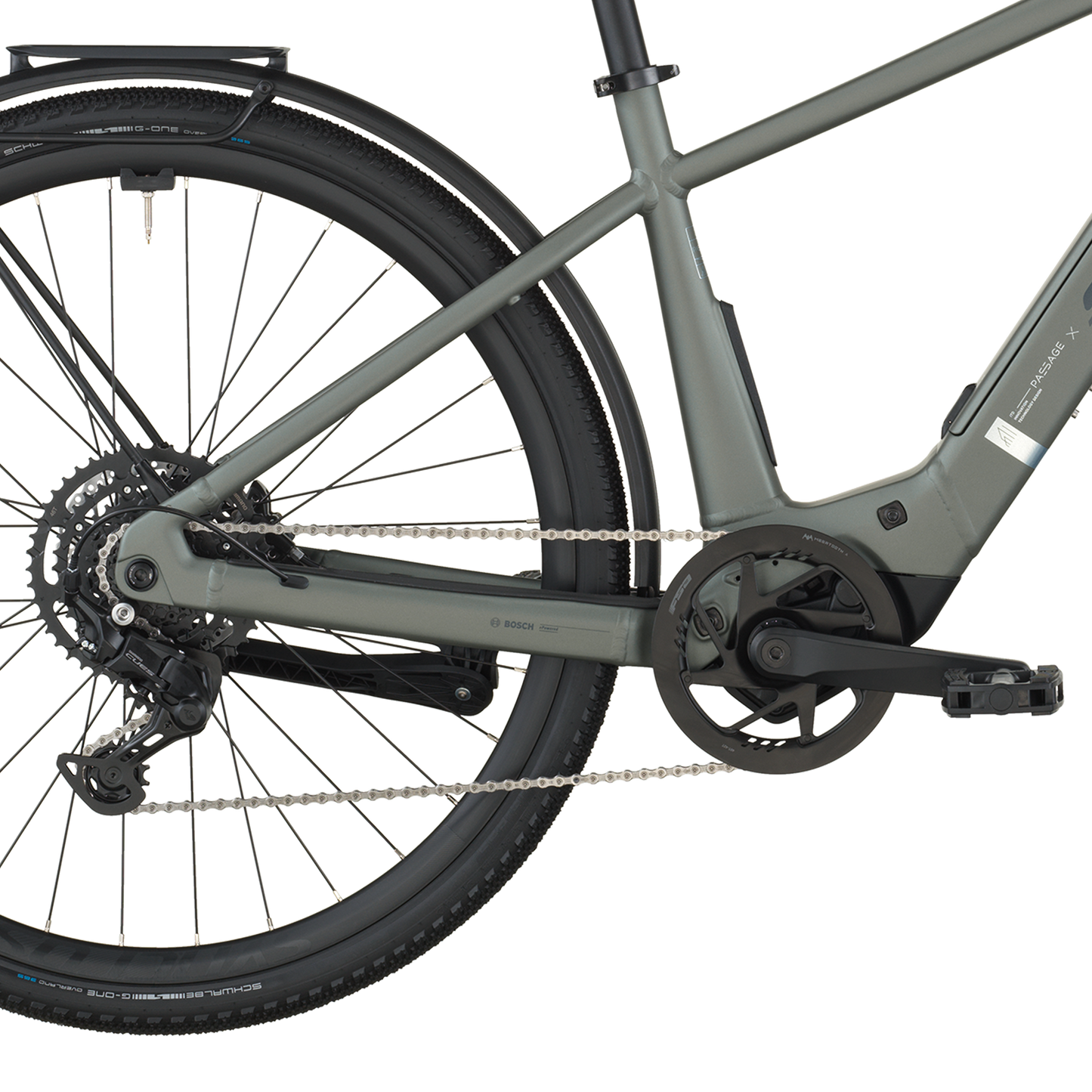

Rear DerailleurShimano CUES RDU4000GS 9 Speed

ShiftersShimano CUES SLU4009RC, 9 Speed

CranksetFSA CK-220 170mm

ChainguideSyncros

ChainringFSA 38T

ChainShimano LG500

CassetteShimano LG300, 11-46T

BrakesShimano BR-MT200 Disc

RotorFront: SM-RT30 CL 180mm, Rear: SM-RT30 CL 160mm

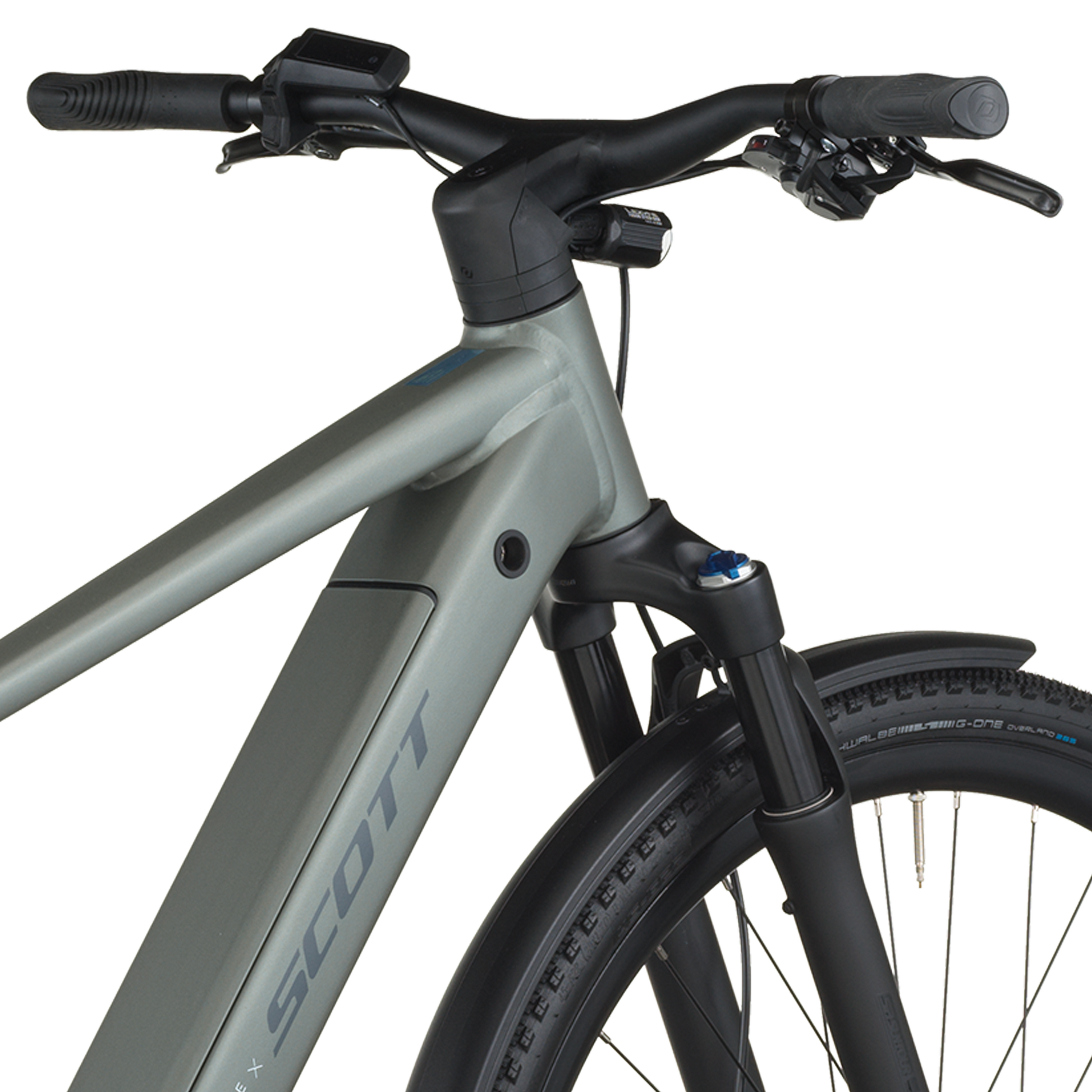

HandlebarSyncros Welded Alloy Combo 680mm, Backsweep 9°, Upsweep 8°, 70mm, with front Light mount

SeatpostSyncros M3.0, 31.6

SeatSyncros Capilano

HeadsetAcros, 1.5"- 1.5"semi integ. OD 50/61mm, ID 44/55mm

Hub (Front)Shimano HBTC50015B CL, 15x100mm

Hub (Rear)Shimano FHTC500HMB CL, 12x142mm

SpokesBlack Spokes

RimsSyncros X15 Disc

Front TireSchwalbe G-One Overland 365 Performance, 700x45C

Rear TireSchwalbe G-One Overland 365 Performance, 700x45C

LightsLezyne Fusion E550SM front lightRear Supernova TL3Z

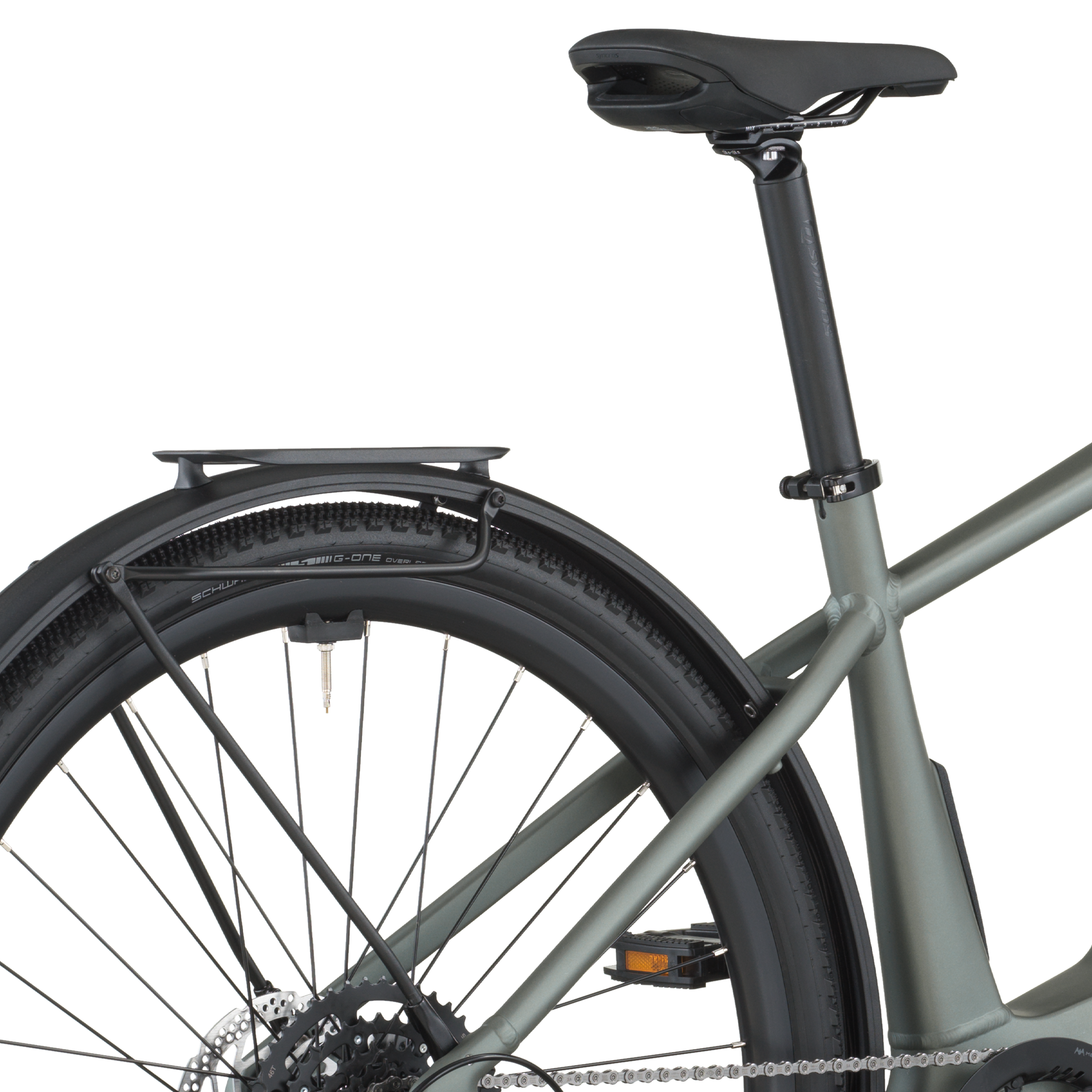

RackRacktime Micro Rack SnapIt 2.0 8KG

PedalsMarwi SP-827

ExtrasAlumee alloy profile FenderPassage Kickstand

Approx weight in KG21.3

Approx weight in LBS46.96

Max. System Weight130kgThe overall weight includes the bike, the rider, the equipment, and possible additional luggage.
