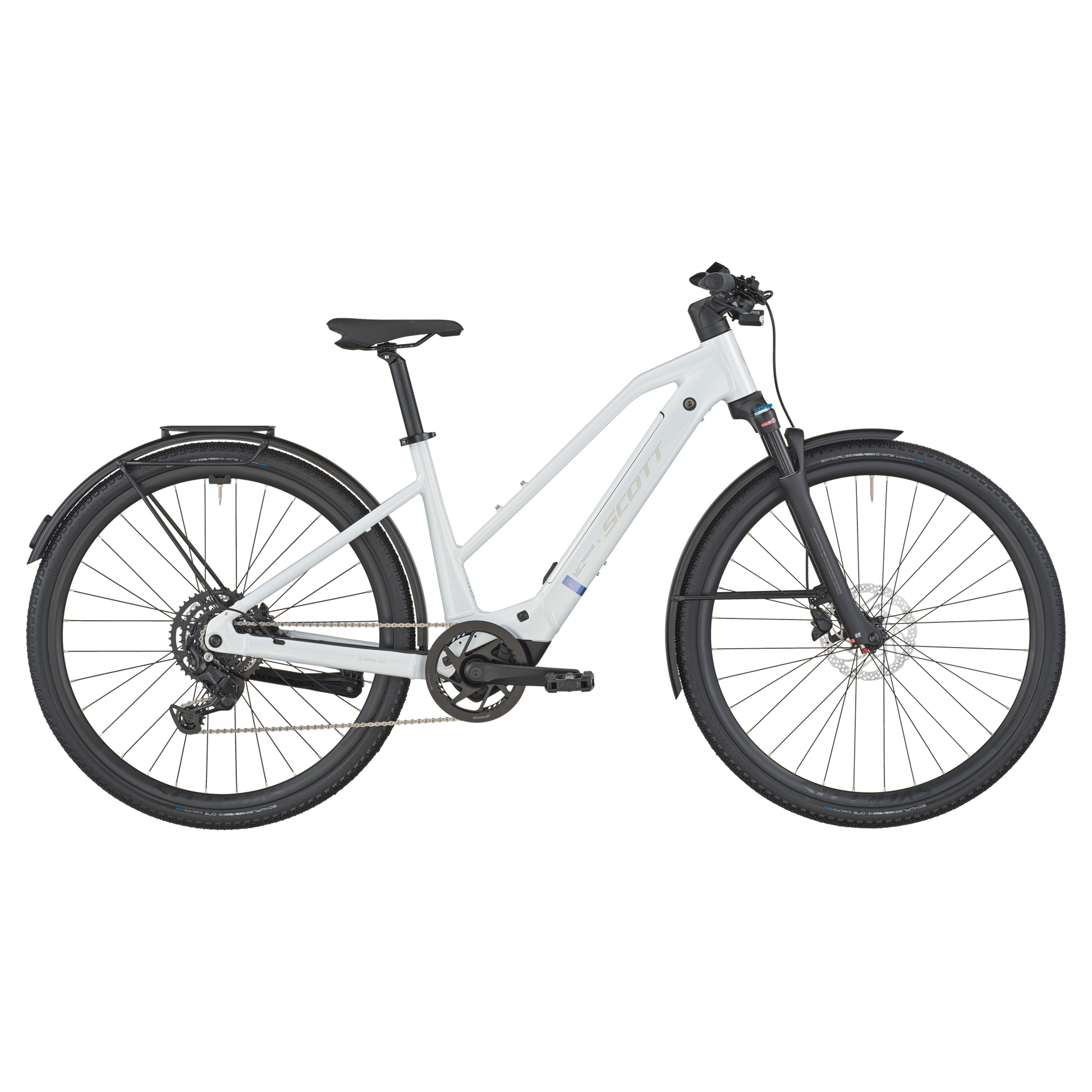

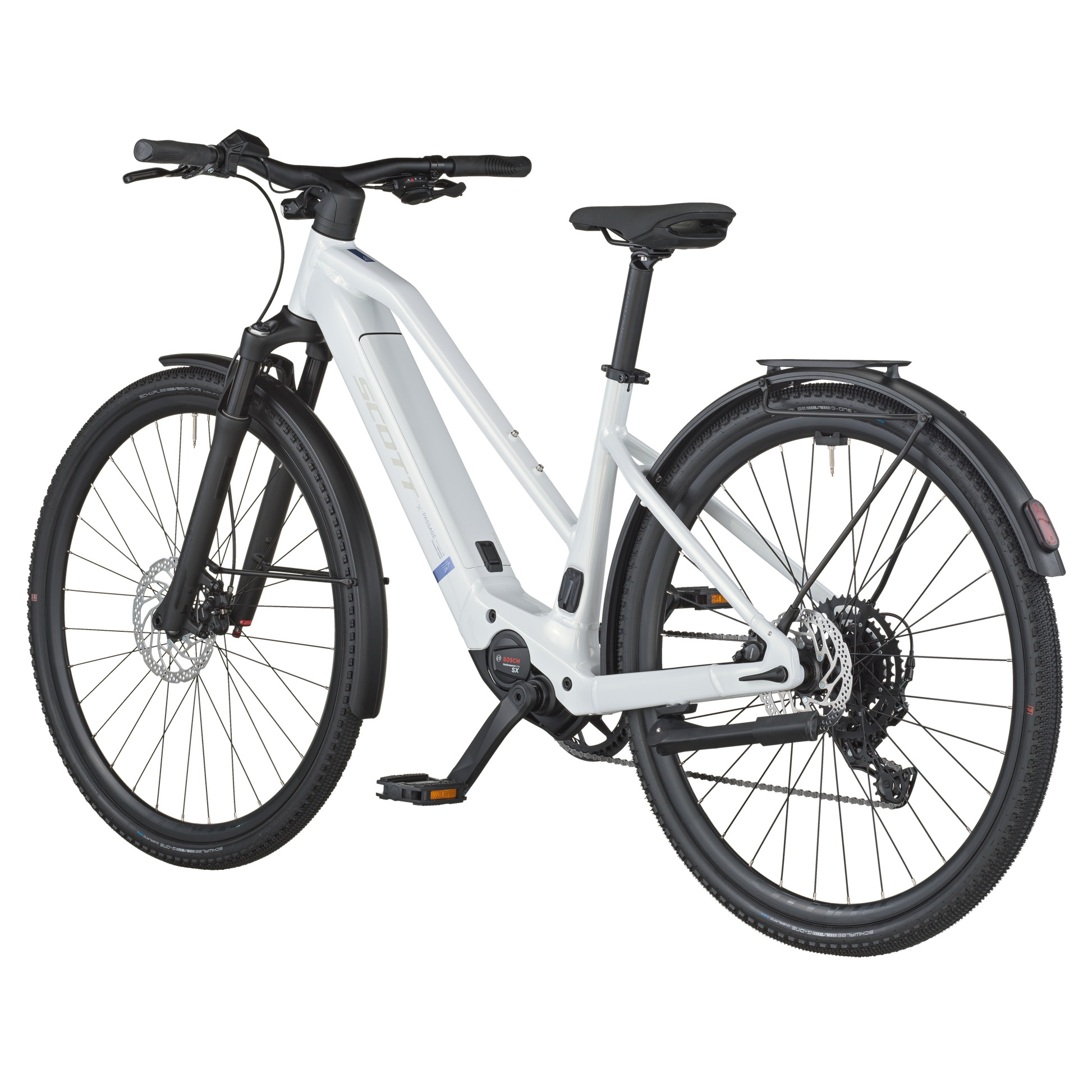

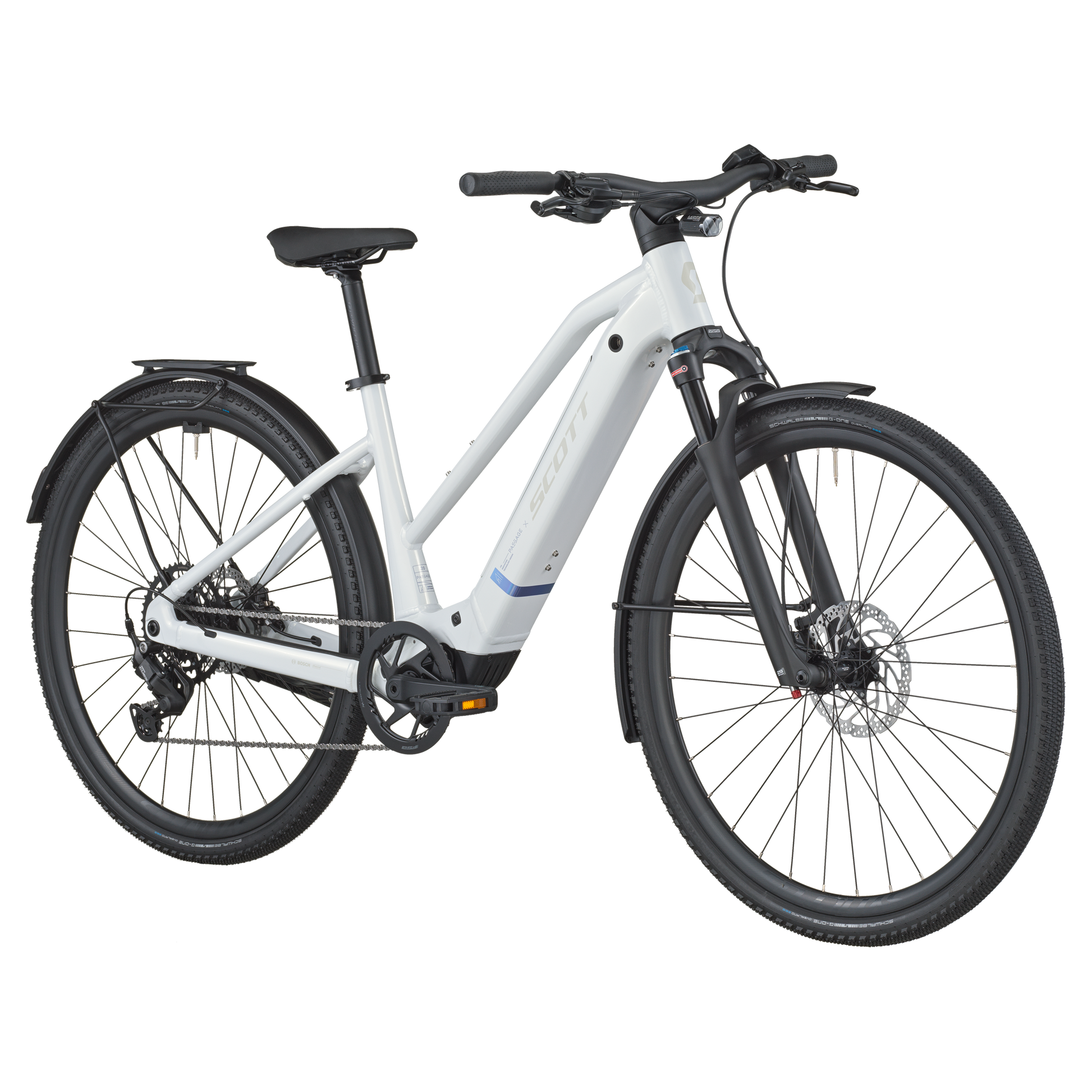

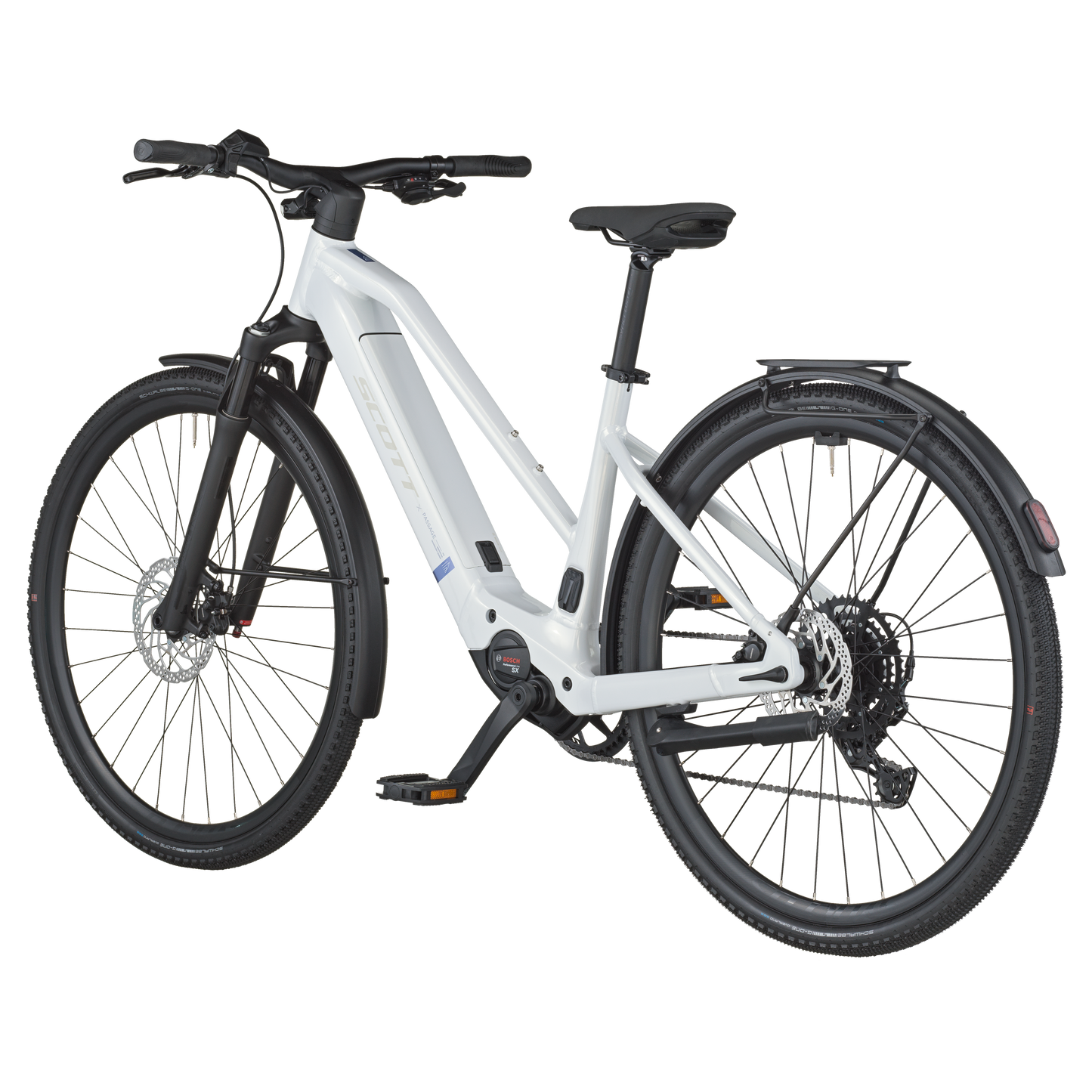

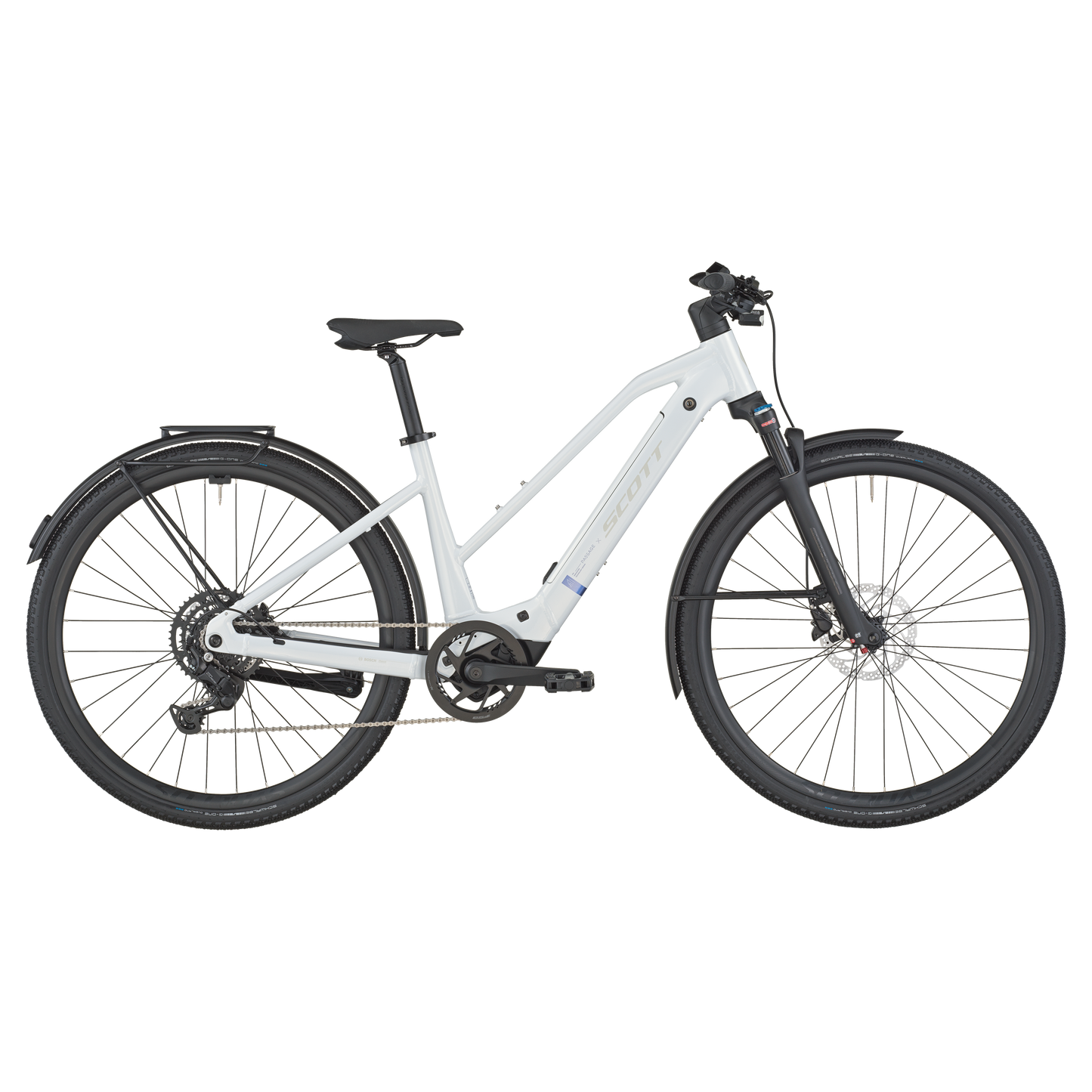

Scott PASSAGE 20 SLOPE ,e-commut, e-trekking,e-urban e-Bike

Scott PASSAGE 20 SLOPE ,e-commut, e-trekking,e-urban e-Bike

Regular price £3,299.00 GBP
Regular price Sale price £3,299.00 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.
Quantity

all inclusive no hidden fees on cycle to work schemes

425617

Swing a leg over the easy-to-mount Passage 20 Slope E-Bike and make riding around town a breeze. With a gently sloping top tube, this Passage 20 makes getting on the bike easier for those with shorter legs, hip mobility limitations, or anyone who prefers a step-through design over the traditional over-the-saddle mounting style.

Passage 20 Slope brings all the performance specs and ride quality of the Passage 20. Its midweight design centers around a lightweight yet powerful Bosch SX motor and 400Wh battery, which optimizes handling for an effortless ride and supplies all the pep and range you'll need around town.

On the ride, Passage 20 feels effortless, accelerating smoothly over hills, providing confident torque from a stop, and the pull to power you to your destination on the other side of town. It also feels like a traditional bike, thanks to the trim frame design and lightweight 2kg motor drive, so navigating congested roads feels less cumbersome and sluggish compared to a heavier urban E-Bike. Plus, the compact motor drive is narrower than a traditional e-bike, meaning Passage 20 won't leave you feeling like you're pedaling a bike that's too wide.

We equipped this Passage 20 with a 75mm suspension fork to soften rough pavement on your routes and 45mm tires to add stability and durability no matter what comes your way. Its 9-speed drivetrain gives you the gearing range to ride around town like a pro, and the rear rack sets you up to stow the day’s essentials.

FrameAlloy S-L=29", 6061 Alloy custom butted tubingTop extraction battery

Travel75mm

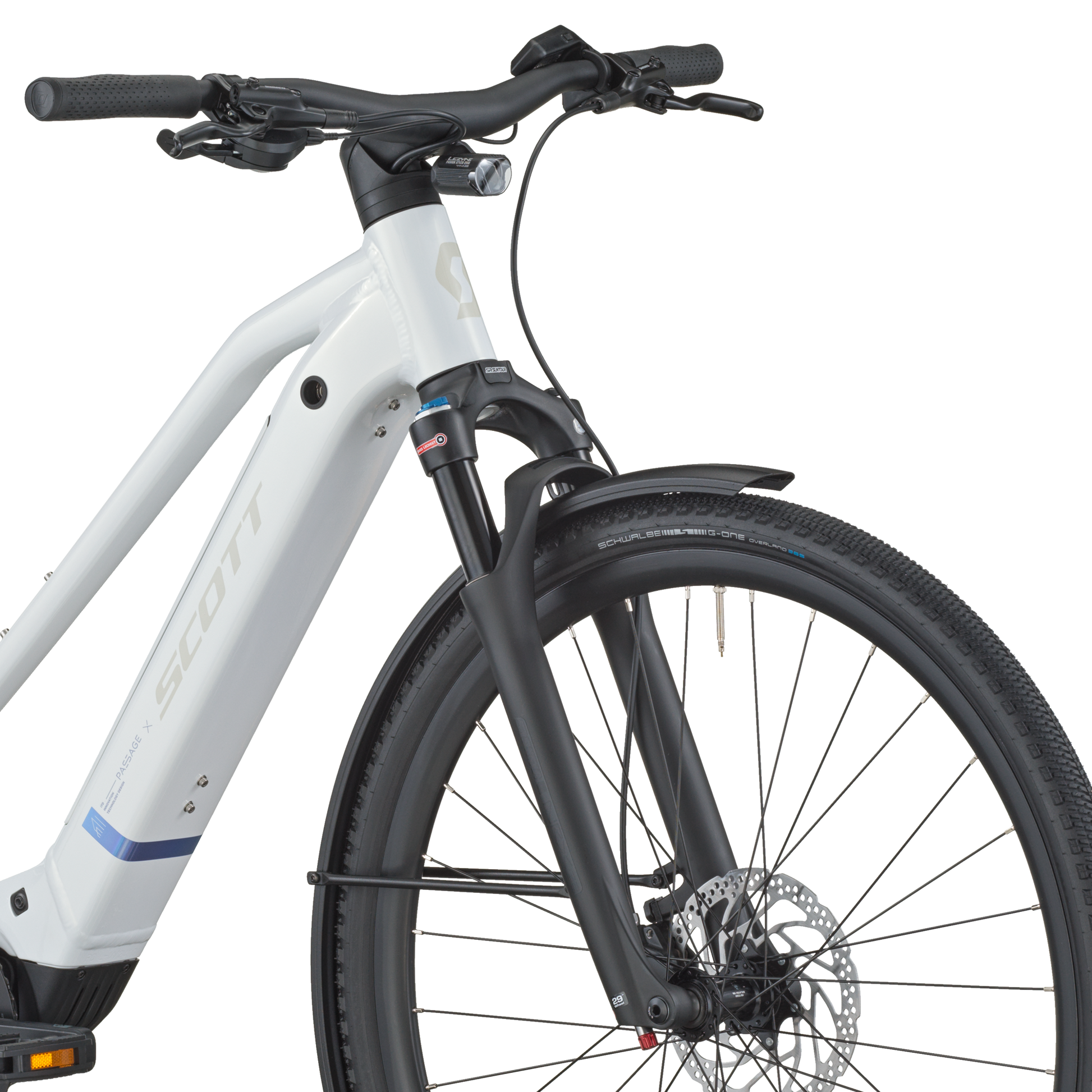

ForkSR Suntour NRX32-E Air LO R, Tapered , 15x100 bolt Axle, Remote Lock Out , Steel Steerer, 75mm Travel

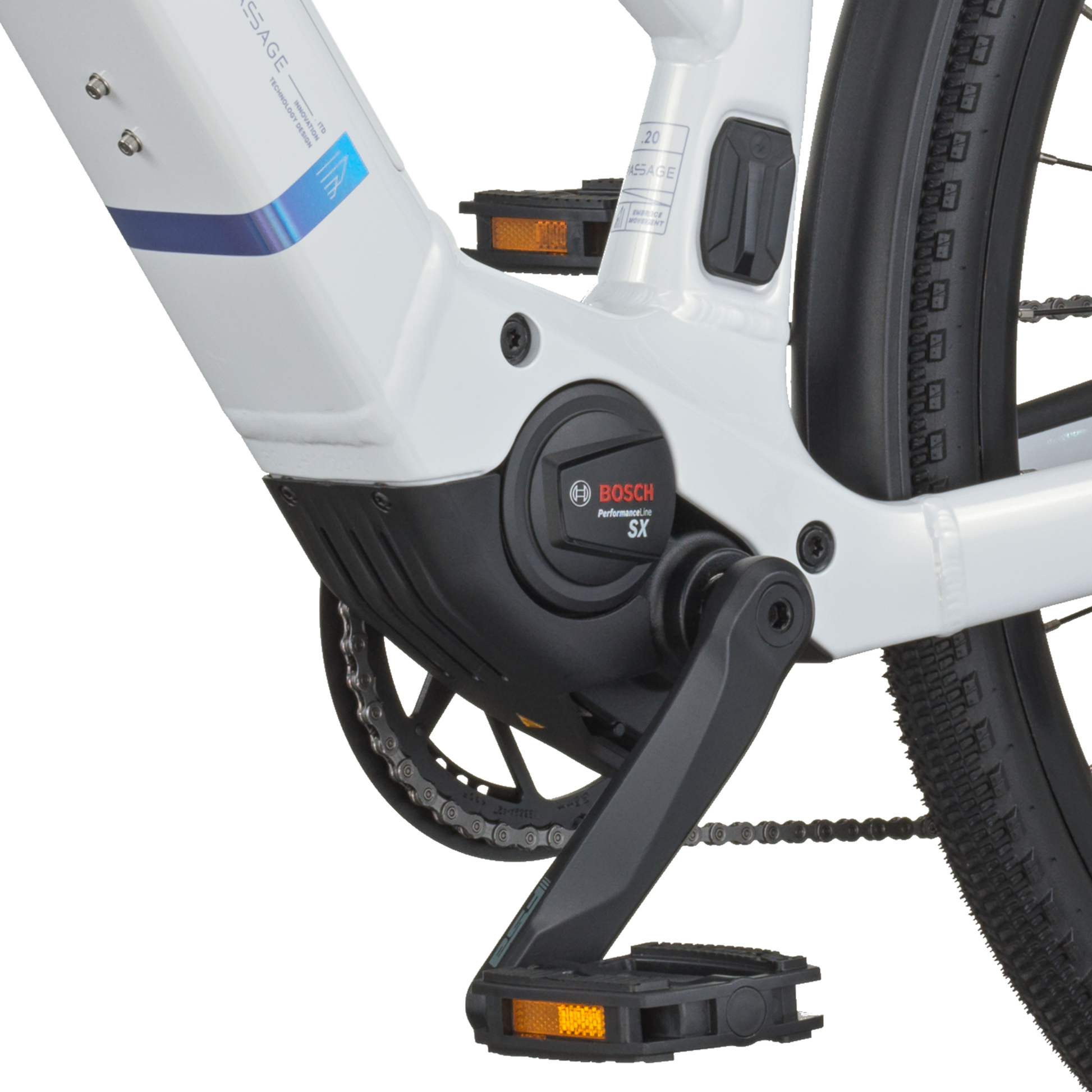

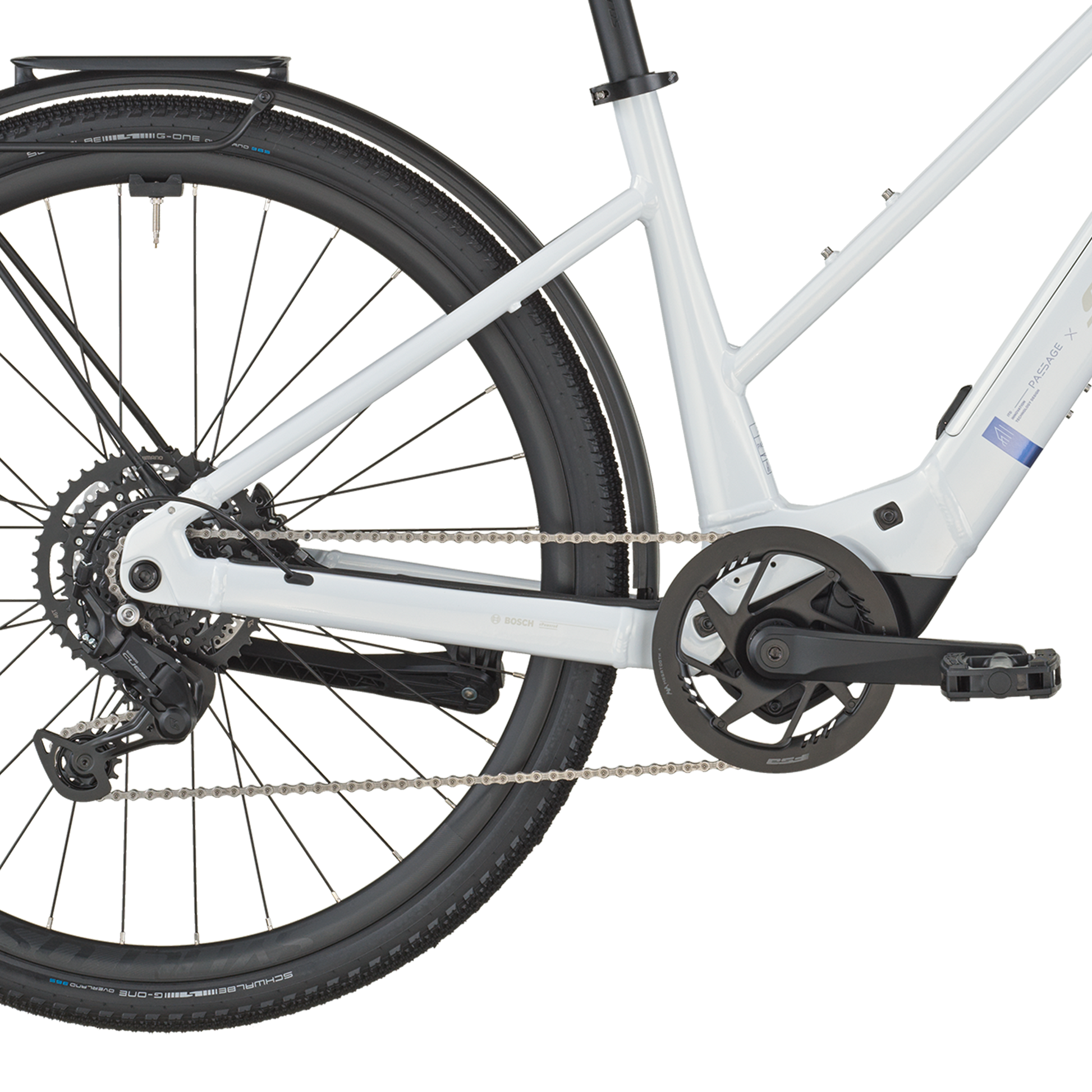

Drive UnitBosch Performance Line SX (BDU314Y)EU: 25kmh

BatteryCompact Tube 400Wh

DisplayBosch Purion 200

Charger2A Charger

Rear DerailleurShimano CUES RDU4000GS 9 Speed

ShiftersShimano CUES SLU4009RC, 9 Speed

CranksetFSA CK-220 170mm

ChainguideSyncros

ChainringFSA 38T

ChainShimano LG500

CassetteShimano LG300, 11-46T

BrakesShimano BR-MT200 Disc

RotorFront: SM-RT30 CL 180mm, Rear: SM-RT30 CL 160mm

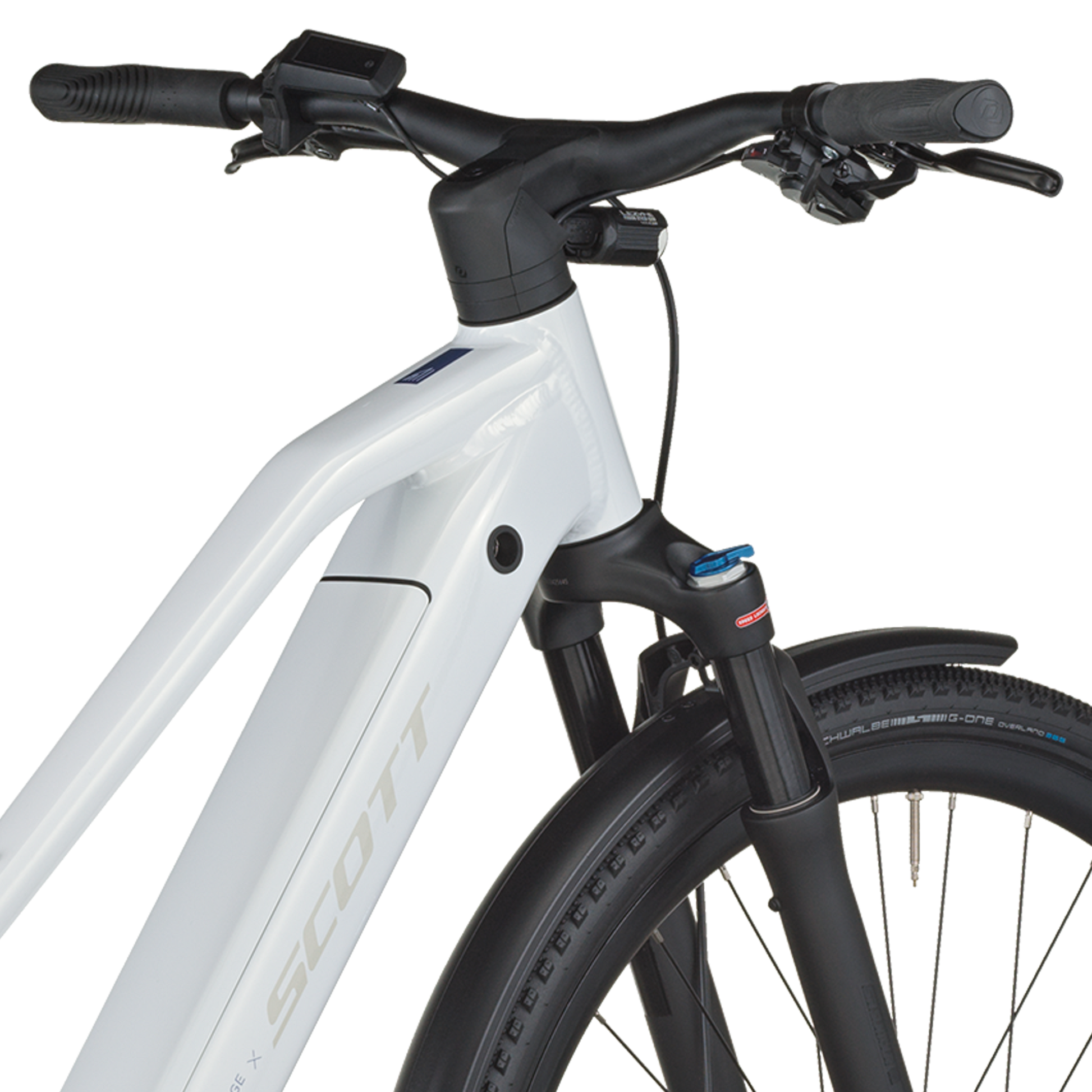

HandlebarSyncros Welded Alloy Combo 680mm, Backsweep 9°, Upsweep 8°, 70mm, with front Light mount

SeatpostSyncros M3.0, 31.6

SeatSyncros Capilano

HeadsetAcros, 1.5"- 1.5"semi integ. OD 50/61mm, ID 44/55mm

Hub (Front)Shimano HBTC50015B CL, 15x100mm

Hub (Rear)Shimano FHTC500HMB CL, 12x142mm

SpokesBlack Spokes

RimsSyncros X15 Disc

Front TireSchwalbe G-One Overland 365 Performance, 700x45C

Rear TireSchwalbe G-One Overland 365 Performance, 700x45C

LightsLezyne Fusion E550SM front lightRear Supernova TL3Z

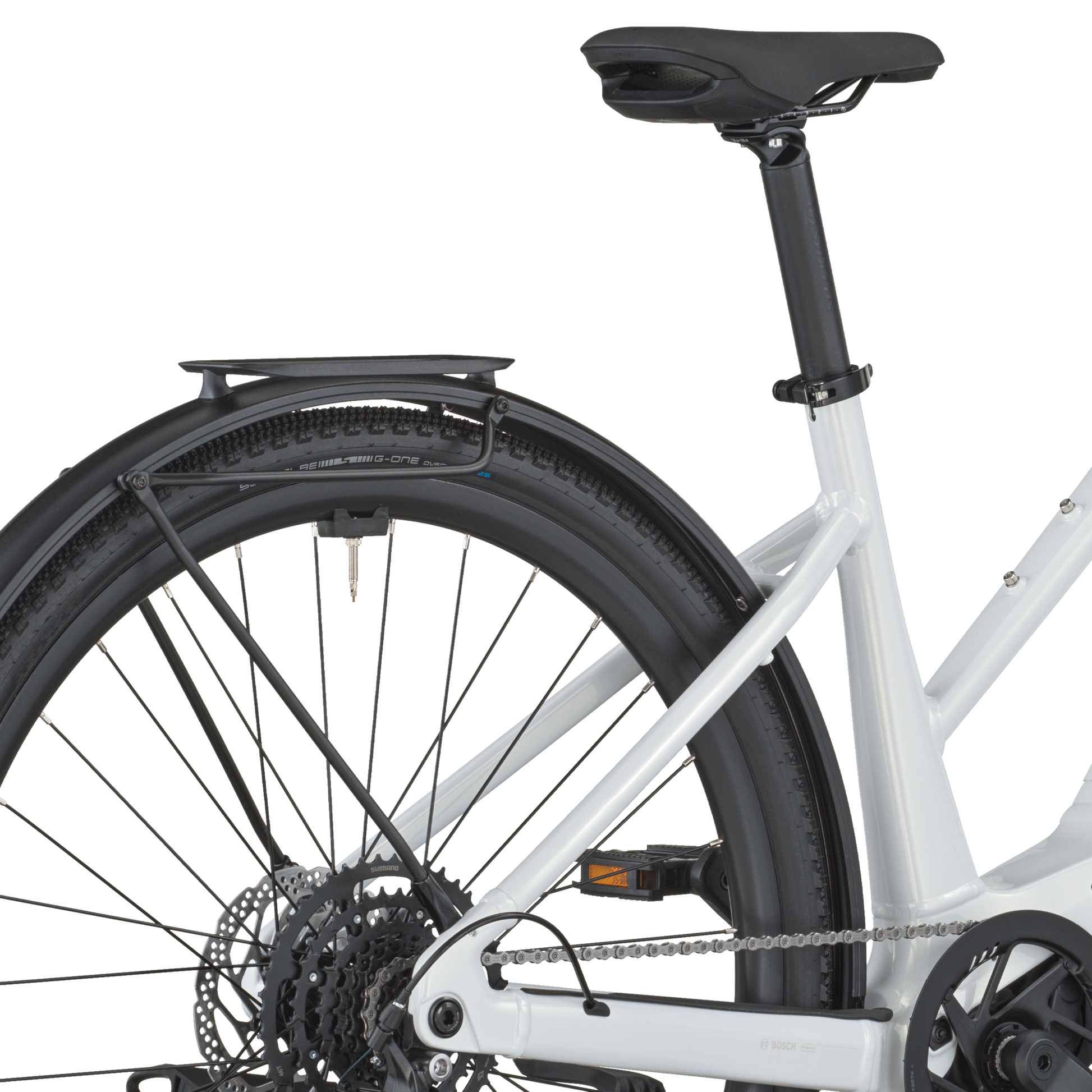

RackRacktime Micro Rack SnapIt 2.0 8KG

PedalsMarwi SP-827

ExtrasAlumee alloy profile FenderPassage Kickstand

Approx weight in KG21.5

Approx weight in LBS47.4

Max. System Weight130kgThe overall weight includes the bike, the rider, the equipment, and possible additional luggage.
