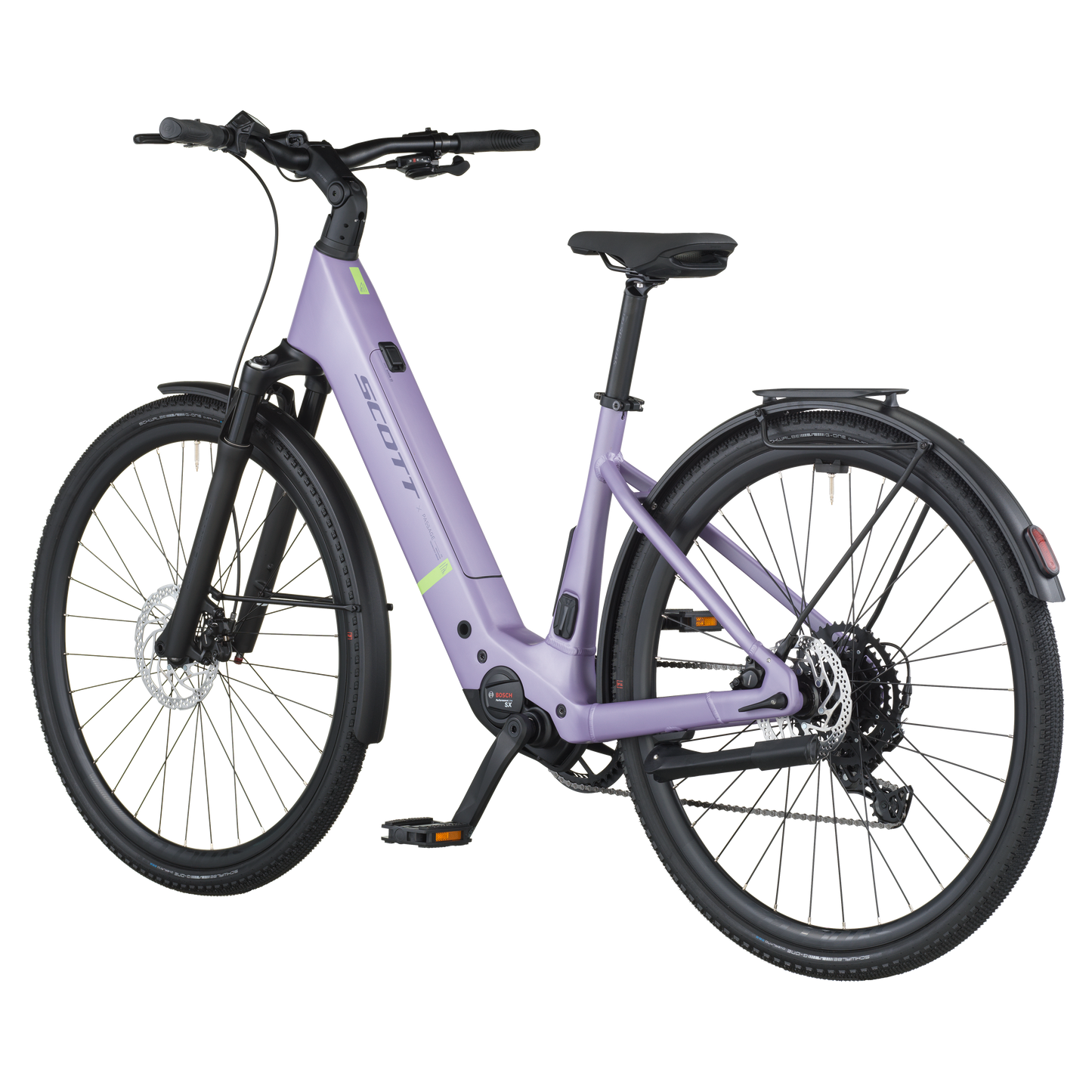

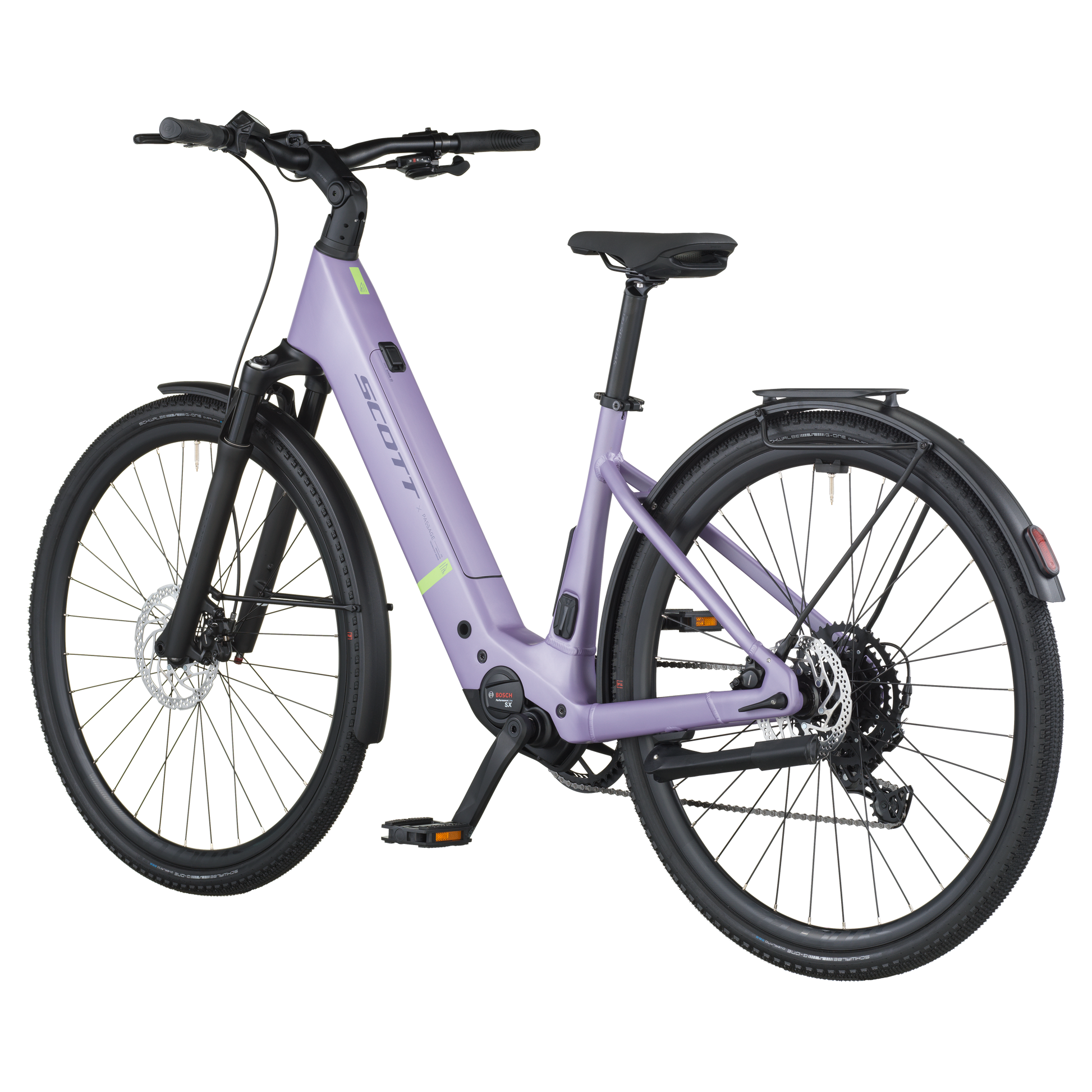

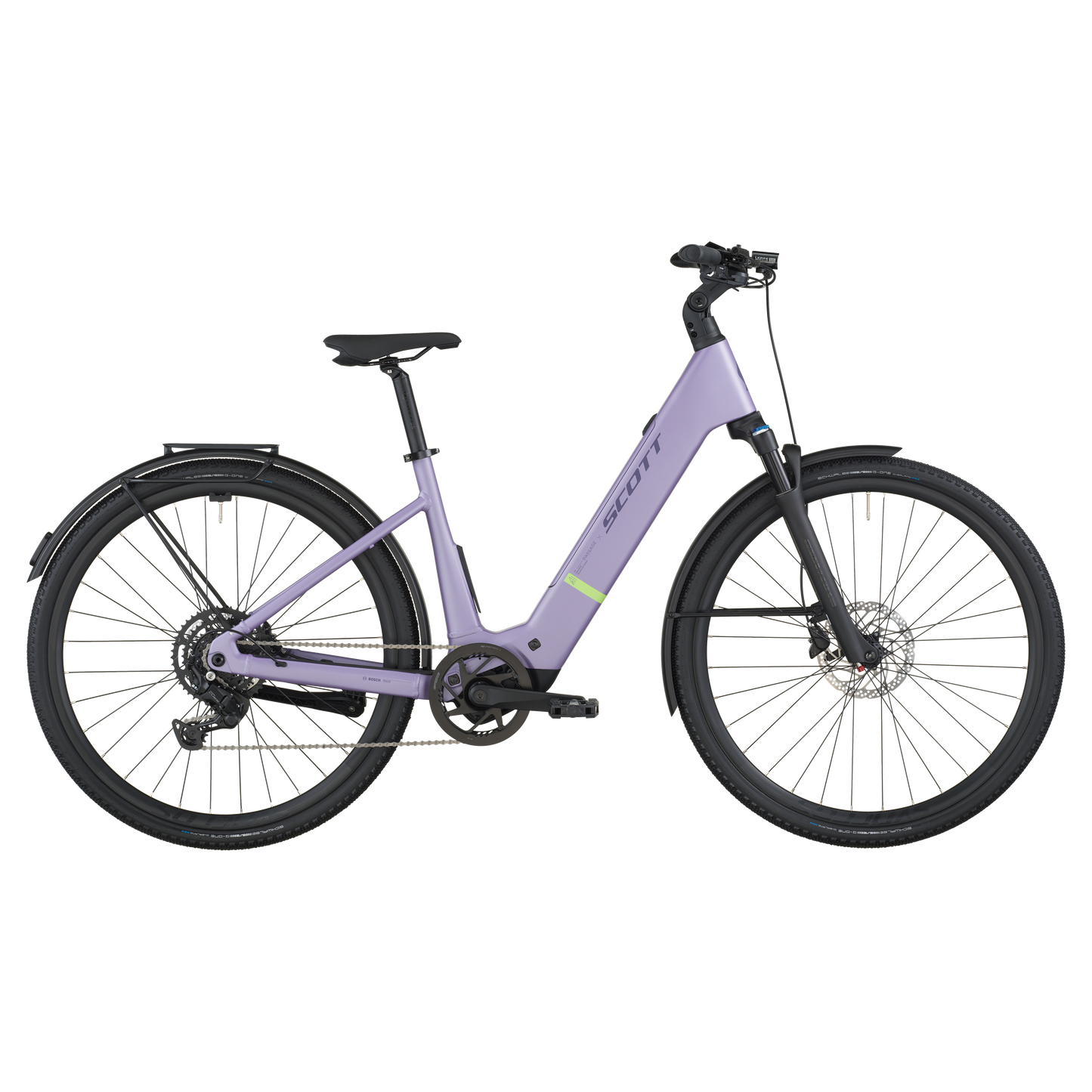

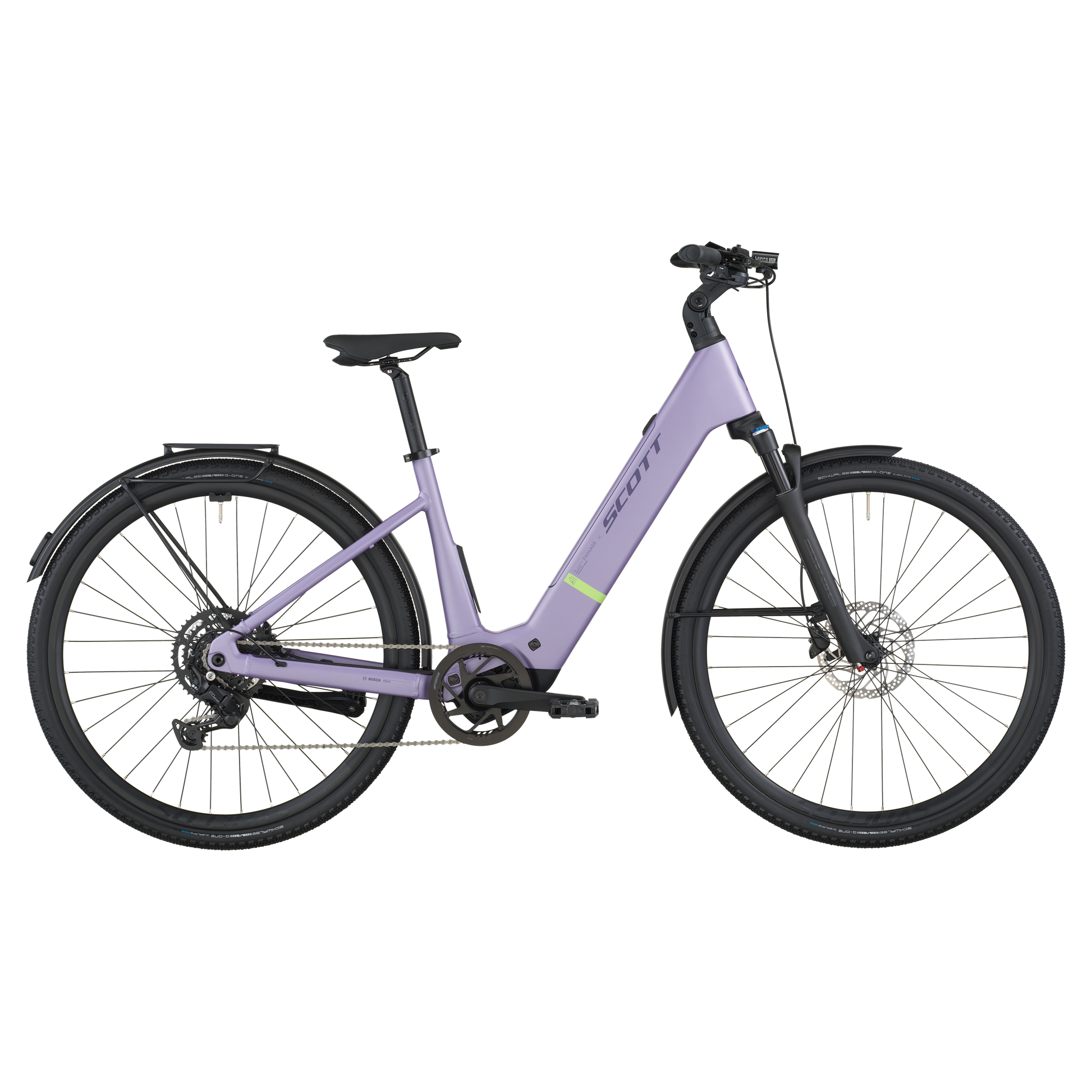

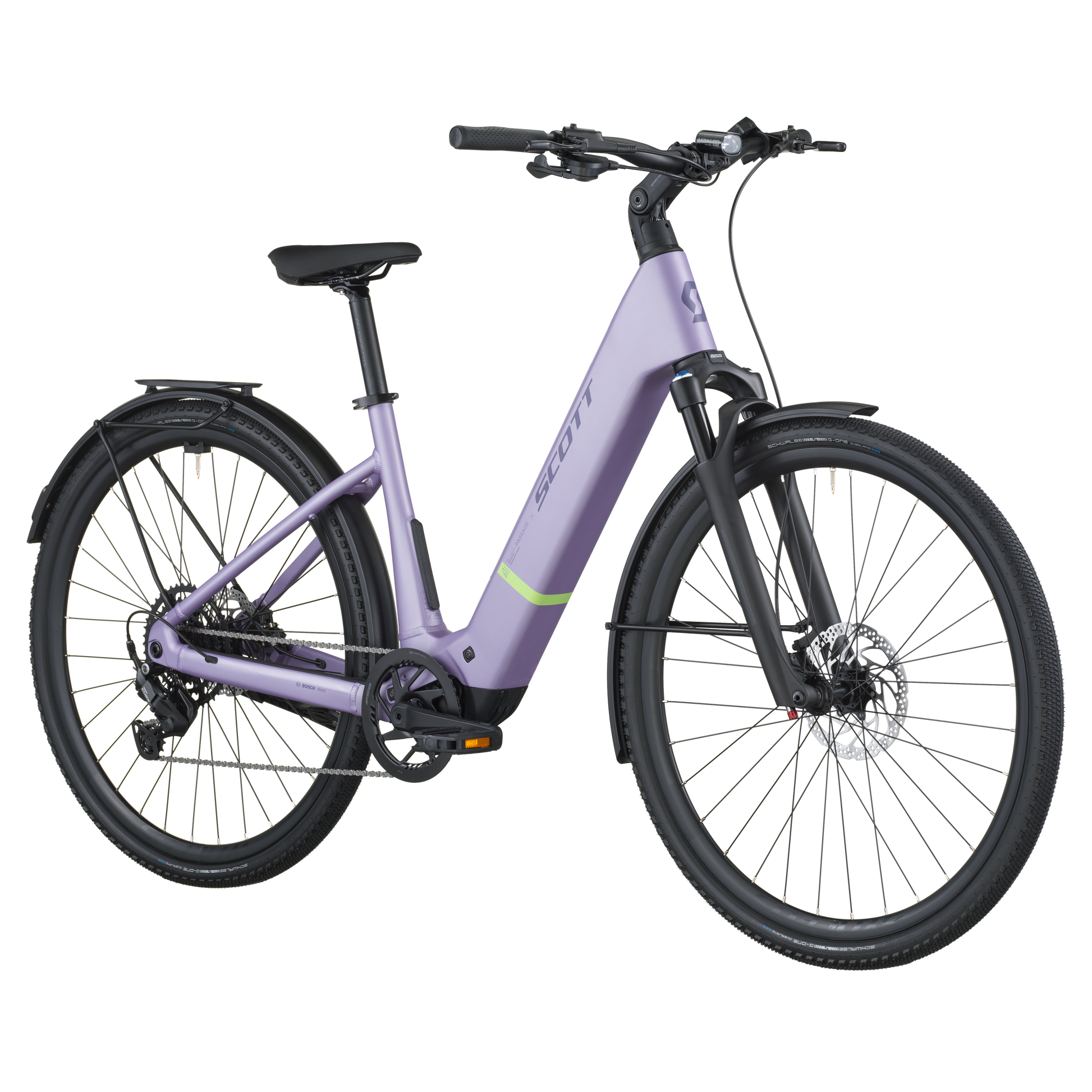

Scott PASSAGE 20 WAVE,BatteryCompact Tube 400Wh,DisplayBosch Purion 200,e-trekking,e-urban e-Bike 2026

Scott PASSAGE 20 WAVE,BatteryCompact Tube 400Wh,DisplayBosch Purion 200,e-trekking,e-urban e-Bike 2026

Regular price £3,289.00 GBP
Regular price Sale price £3,289.00 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.
Quantity

all inclusive no hidden fees on cycle to work schemes

425618

Passage 20 Wave is a full step-through E-Bike designed to take your urban riding to the next level. The open design makes it easy to mount and dismount the bike, whether on a commute or enjoying a tour around town.

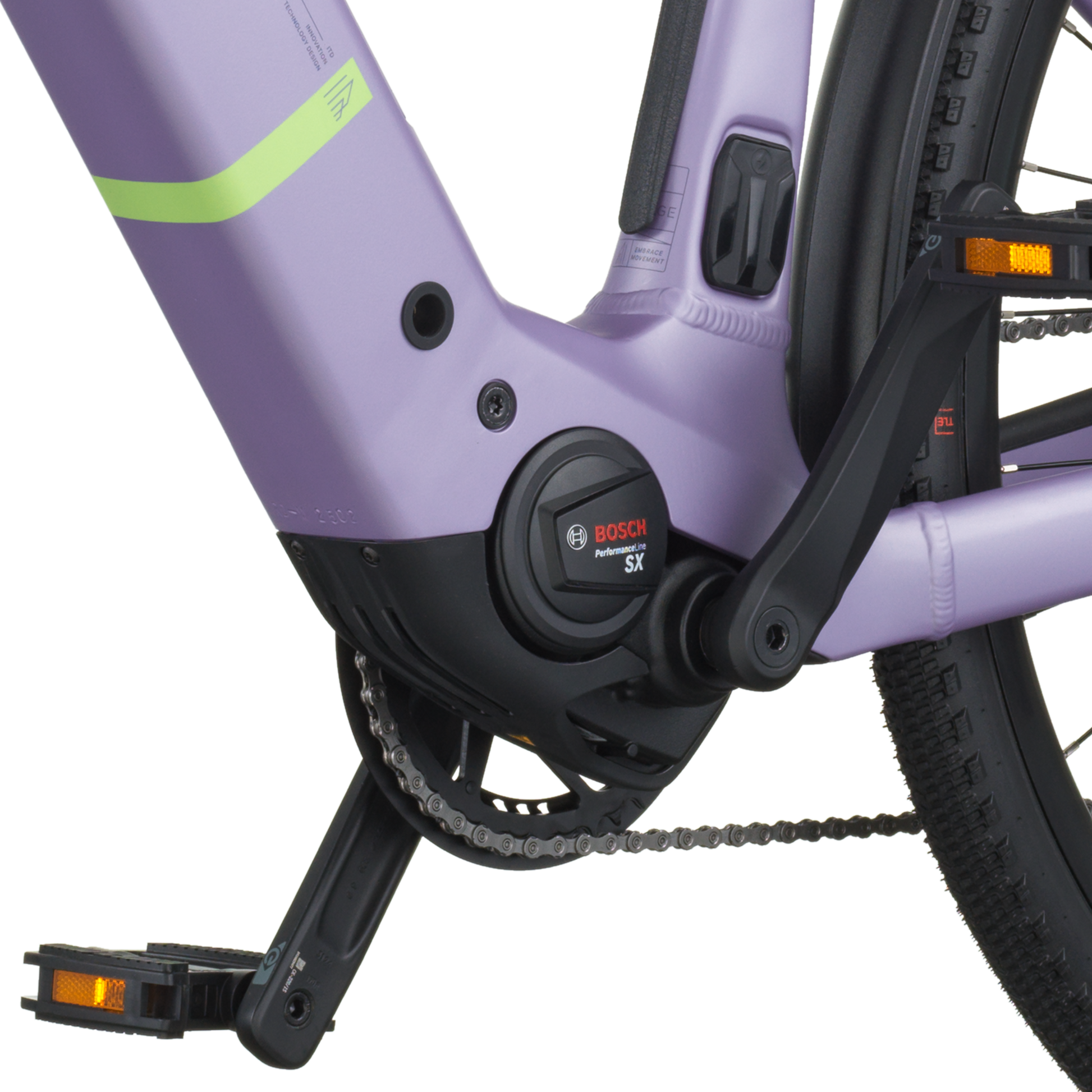

The center of it all is the lightweight yet strong Bosch SX motor unit and tidy 400Wh battery. On the ride, the combo provides effortless performance on the pedals, accelerating smoothly over hills, delivering confident torque from a stop, and supplying the range to power you to your destination on the other side of town.

Handling is also light and easy, feeling more like a traditional bike than cumbersome and sluggish compared to a heavier urban E-Bike. The motor unit is just 2kg, low in the frame, and compact enough to provide confidence when navigating and a more natural pedaling style thanks to its favorable Q-factor.

FrameAlloy S-L=29", 6061 Alloy custom butted tubingTop extraction battery

Travel75mm

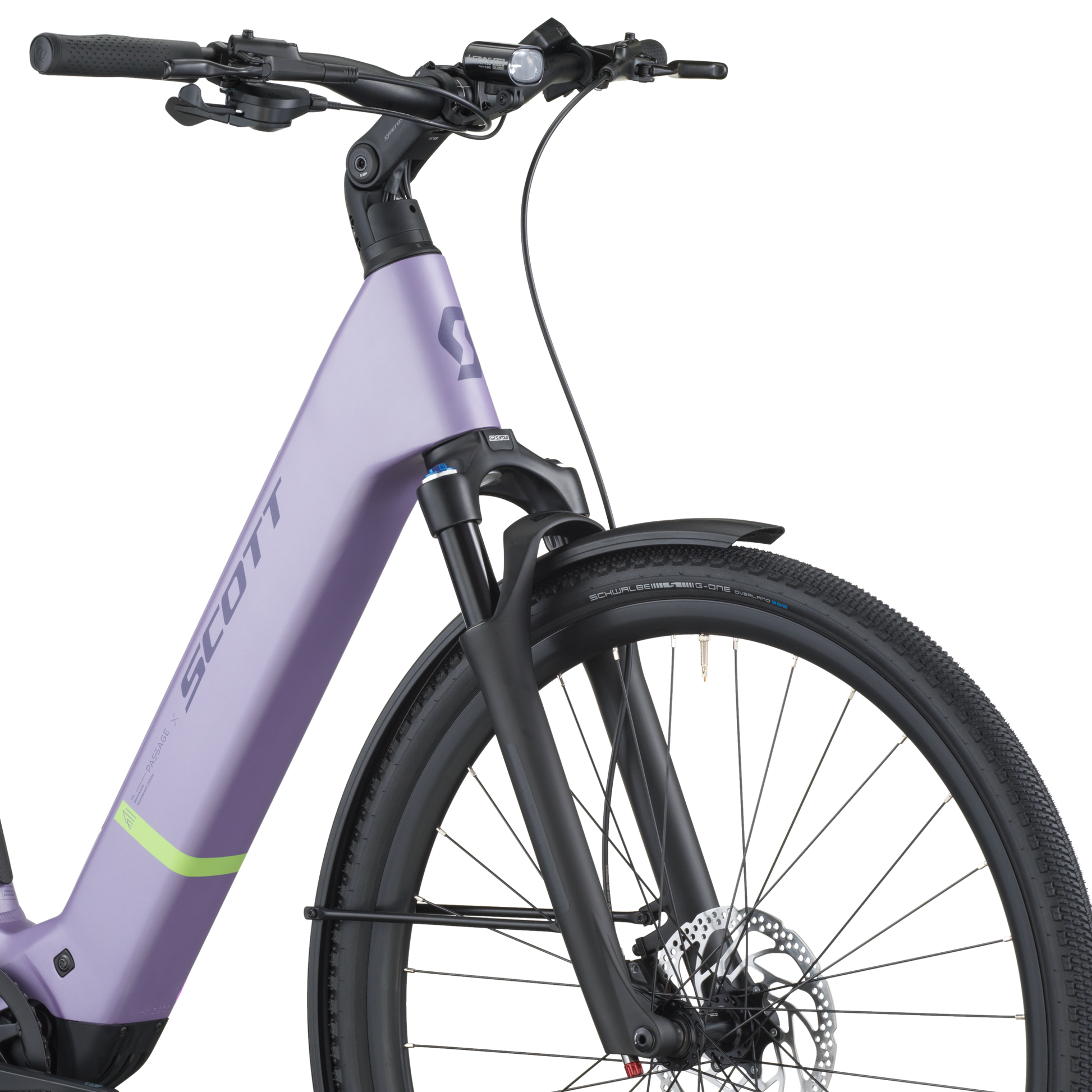

ForkSR Suntour NRX32-E Air LO R, Tapered , 15x100 bolt Axle, Remote Lock Out , Steel Steerer, 75mm Travel

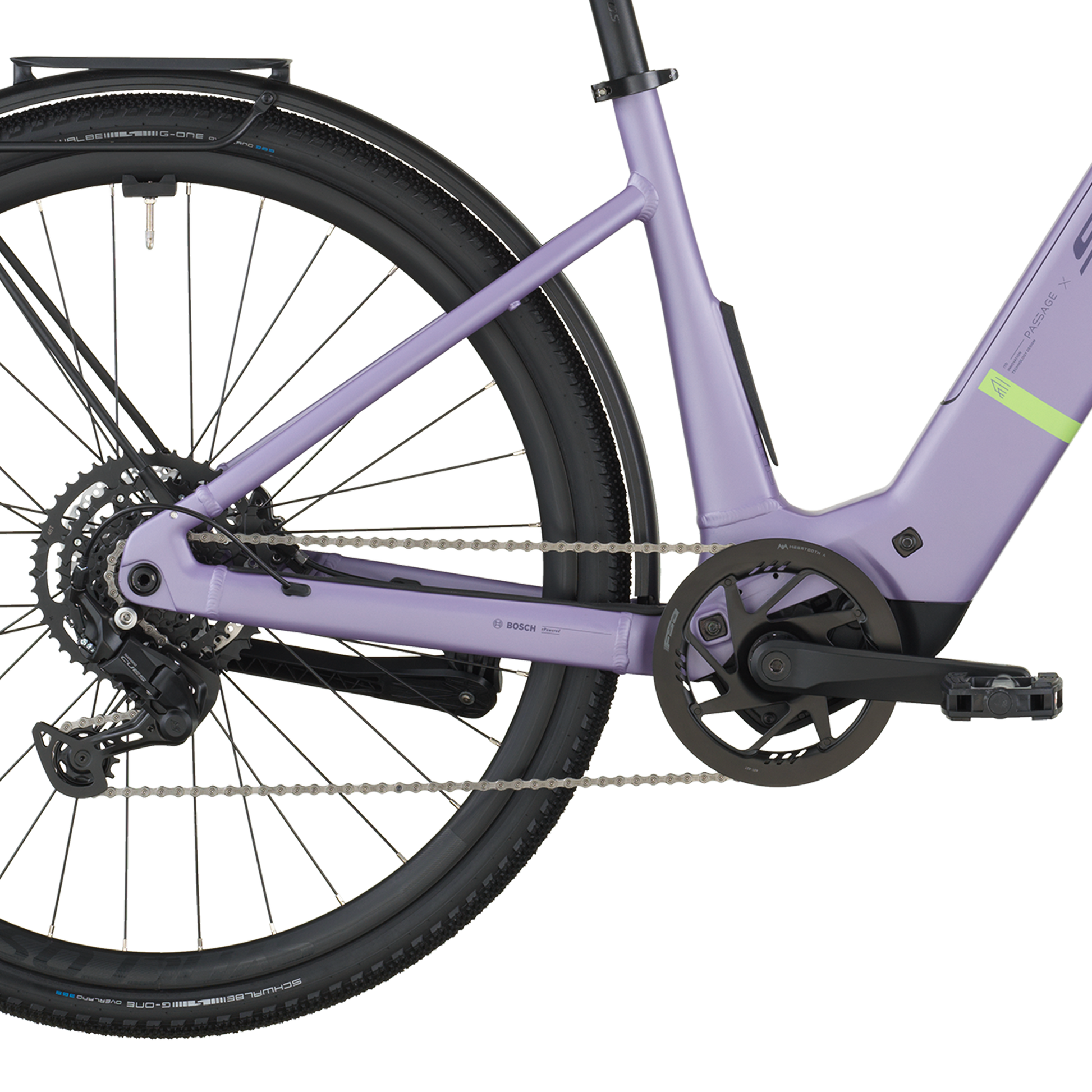

Drive UnitBosch Performance Line SX (BDU314Y)EU: 25kmh

BatteryCompact Tube 400Wh

DisplayBosch Purion 200

Charger2A Charger

Rear DerailleurShimano CUES RDU4000GS 9 Speed

ShiftersShimano CUES SLU4009RC, 9 Speed

CranksetFSA CK-220 170mm

ChainguideSyncros

ChainringFSA 38T

ChainShimano LG500

CassetteShimano LG300, 11-46T

BrakesShimano BR-MT200 Disc

RotorFront: SM-RT30 CL 180mm, Rear: SM-RT30 CL 160mm

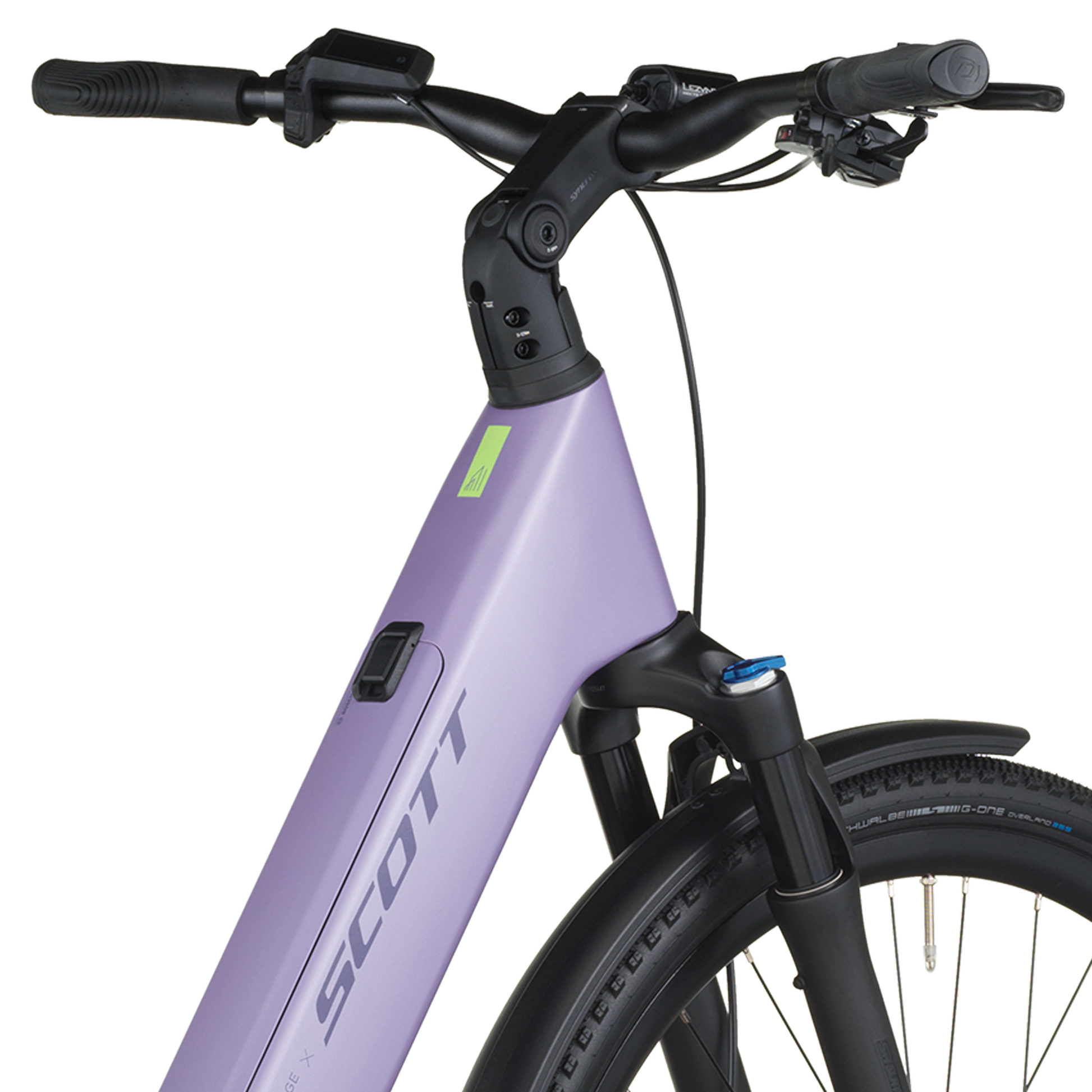

HandlebarSyncros Welded Alloy Combo 680mm, Backsweep 9°, Upsweep 8°, 70mm, with front Light mount

SeatpostSyncros M3.0, 31.6

SeatSyncros Capilano

HeadsetAcros, 1.5"- 1.5"semi integ. OD 50/61mm, ID 44/55mm

Hub (Front)Shimano HBTC50015B CL, 15x100mm

Hub (Rear)Shimano FHTC500HMB CL, 12x142mm

SpokesBlack Spokes

RimsSyncros X15 Disc

Front TireSchwalbe G-One Overland 365 Performance, 700x45C

Rear TireSchwalbe G-One Overland 365 Performance, 700x45C

LightsLezyne Fusion E550SM front lightRear Supernova TL3Z

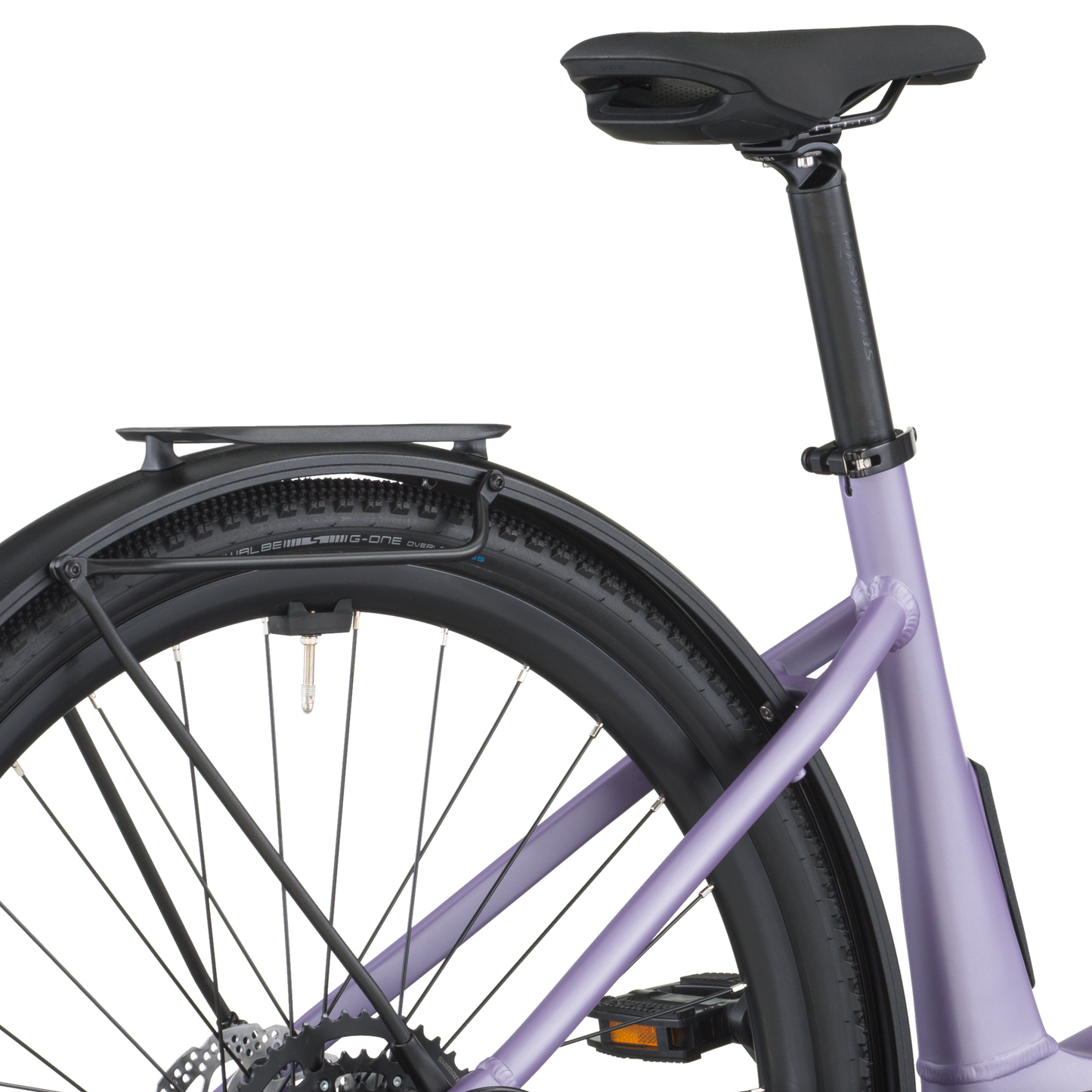

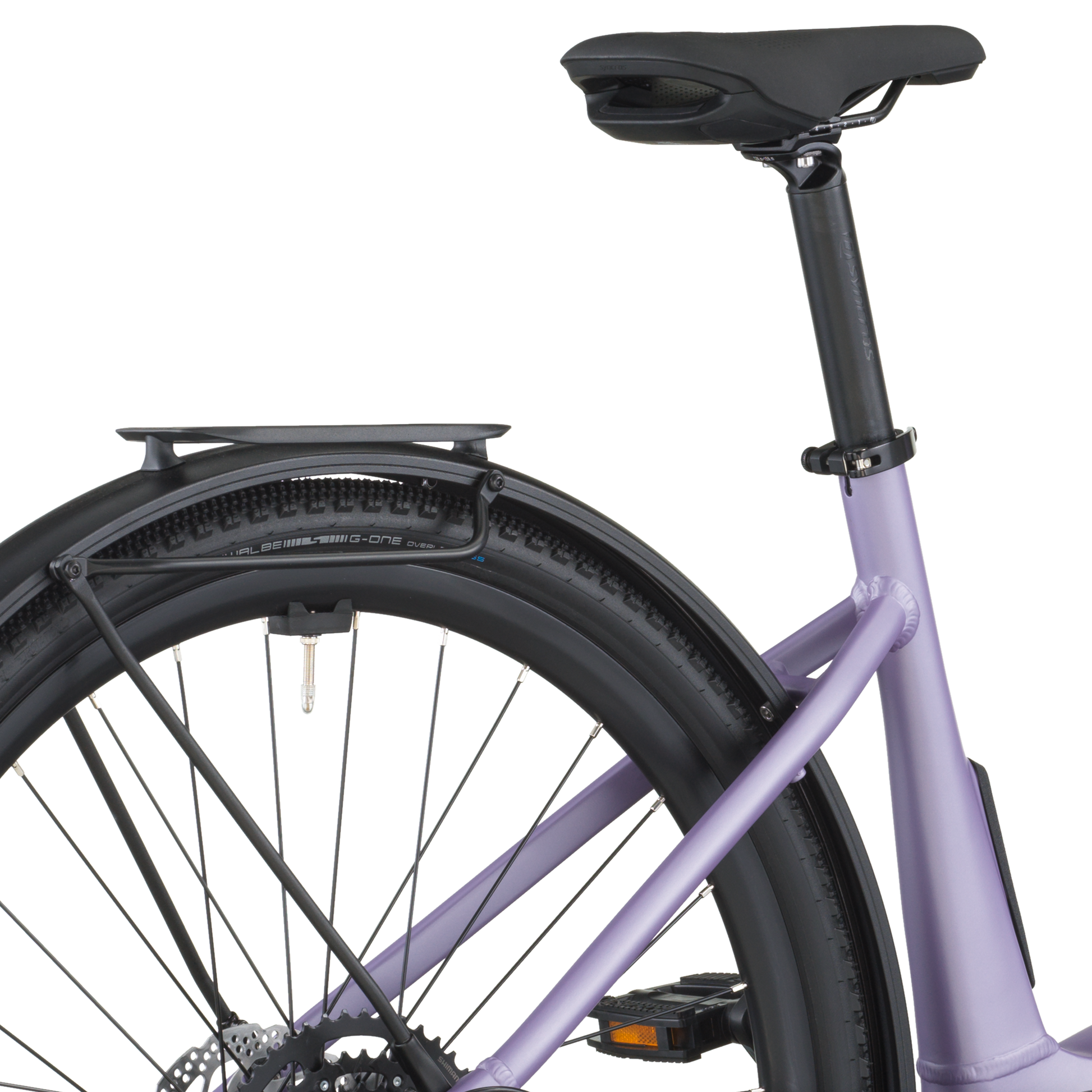

RackRacktime Micro Rack SnapIt 2.0 8KG

PedalsMarwi SP-827

ExtrasAlumee alloy profile FenderPassage Kickstand

Approx weight in KG22.2

Approx weight in LBS48.94

Max. System Weight130kgThe overall weight includes the bike, the rider, the equipment, and possible additional luggage.
