obsidian red/carbon black

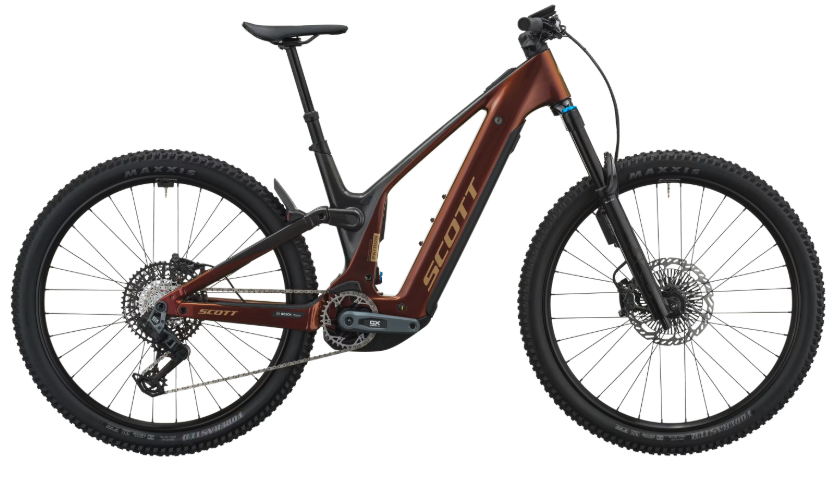

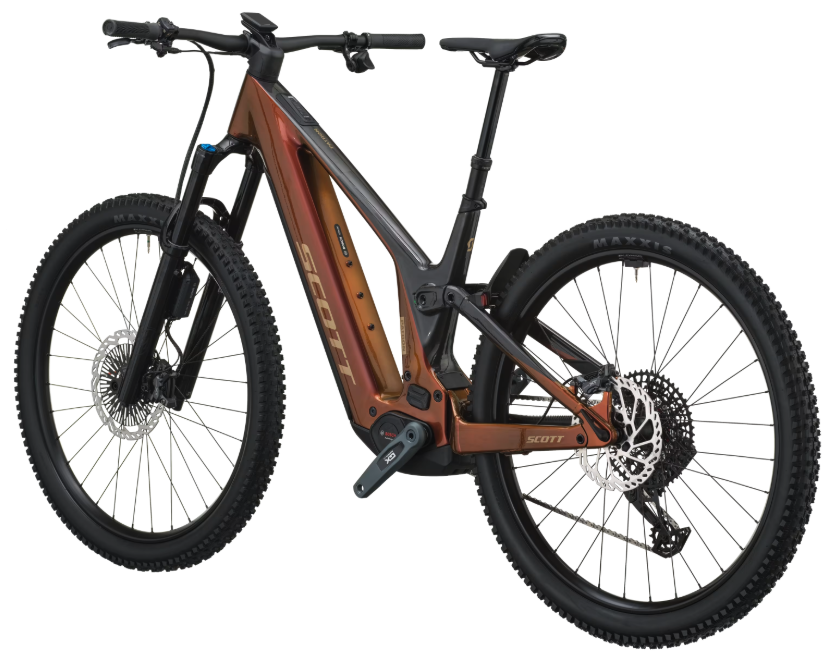

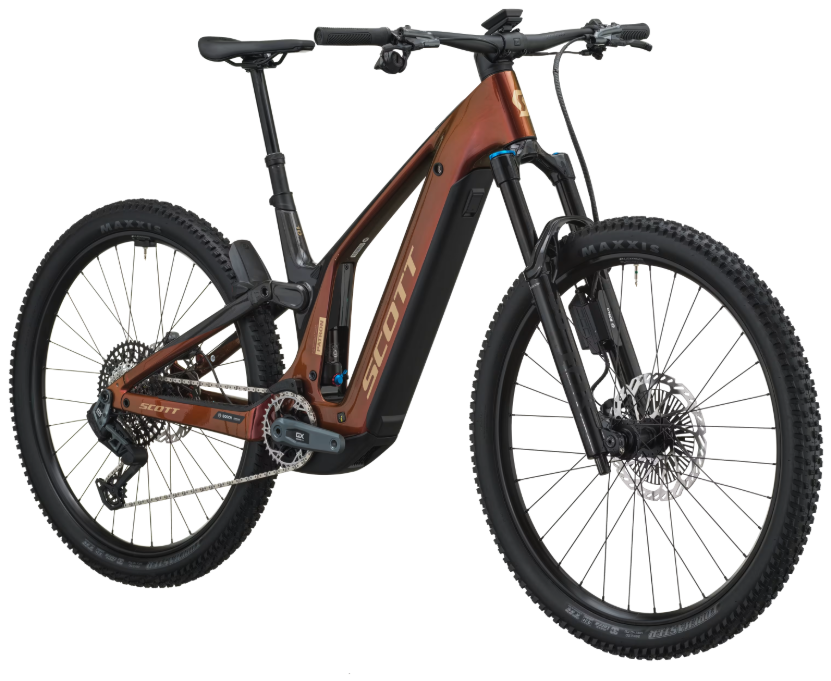

The best of all worlds. Do it all with the Patron eRIDE 10.
Ready to tackle any climb with ease and scream back down with sure footed and confidence inspiring handling. 150mm of front and rear travel gobbles up the terrain to give you an efficient ride in all conditions..
Careful engineering and design makes this E-Bike a dream to work on with clever integration, easily removable battery and great access to the shock. The cover keeps everything clean, reducing service intervals.

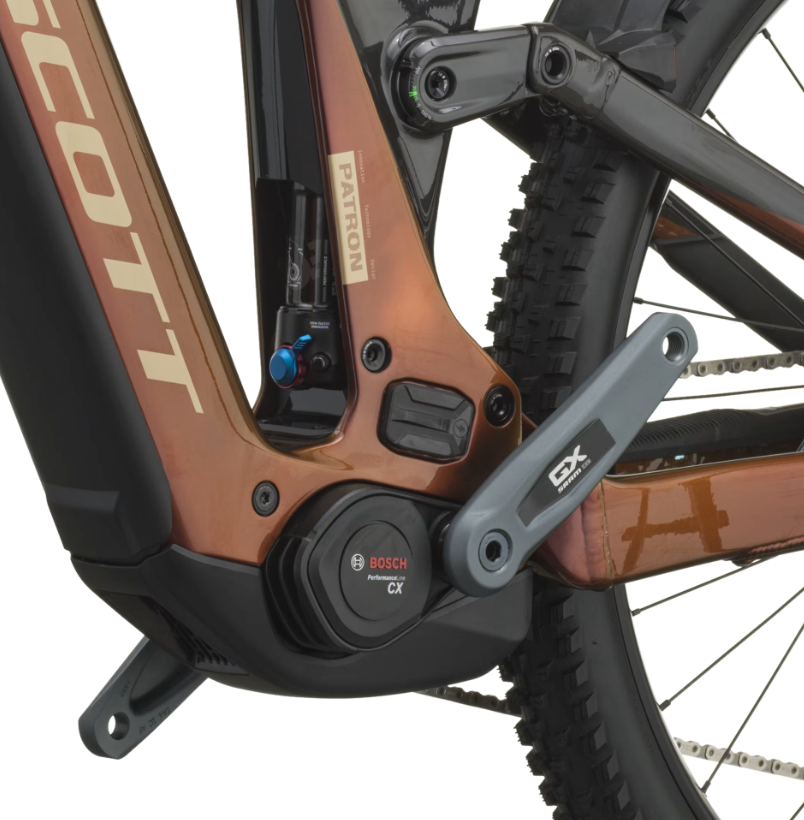

Being an E-Bike, the Bosch CX drive unit provides up to 100Nm of power while the 800Wh battery gives you the range to conquer any ride from time crunched hour of power to all day epics. The decision is yours.
| Frame |
Carbon Main Frame, alloy SST-CST, Integrated Suspension Technology, Virtual 4 Link kinematic, Adjustable head angle, Syncros Cable Integration System, Bosch Smart System, UDH Interface, 12x148mm with 55mm Chainline, Bosch PowerMore Ready
|
| Fork |
Fox 36 Perf. Air, eOptimized, Grip, 3Pos Microadj, Reb Adj, QR Axle 15x110mm axle, tapered steerer
|
| Travel |
Front travel: 150 mm / Rear travel: 150 mm
|
| Rear Shock |
Fox Float Performance EVOL, LSR, 2P Lever
|
| Headset |
Syncros - Acros Angle adjust & Cable Routing HS System, Stainless, +-0.6° head angle adjustment, ZS56/28.6 – ZS56/40 MTB
|
| Rear Derailleur |
SRAM GX Eagle AXS Transmission 12 Speed, Wireless Electronic Shift System
|
| Shifters |
SRAM AXS Rocker Pod Controller
|
| Brakes |
Shimano XT BR-M8220 ABS Pro 4-Piston
|
| Crankset |
SRAM GX Eagle, alloy
|
| Front Disc Rotor |
Shimano RT-6B750, 220mm
|
| Chainguide |
e*thirteen, e*spec Slider
|
| Rear Disc Rotor |
Shimano RT-6B750, 200mm
|
| Chainring |
SRAM XX Direct Mount Bosch 34T
|
| Handlebar |
Syncros Hixon 1.5 alloy 7050, back sweep 8°, 780mm
|
| H'stem |
Syncros AM 1.5, Syncros Cable Integration System, 4° rise, 7050 alloy, 31.8mm, 1 1/8"
|
| Seatpost |
Syncros dropper post SP-M300-AL2, +RAD drop adjust, 31.6mm
|
| Seat |
Syncros Tofino-E 1.5, Titanium rails
|
| Front Hub |
Formula DC-611, 15x110mm
|
| Rear Hub |
Formula EHL-148S, Boost 148x12mm
|
| Chain |
SRAM GX Eagle Transmission
|
| Cassette |
SRAM GX Eagle XS-1275 Transmission, 10-52T
|
| Front Rim |
Alex Rims MD30 Disc 29" 32H, Black, Tubeless Ready
|
| Rear Rim |
Alex Rims MD30 Disc 29" 32H, Black, Tubeless Ready
|
| Accessories |
Milkit Sealant
|
| Approx weight in KG |
24.4
|
| Approx weight in LBS |
53.79
|
| Drive Unit |
Bosch Performance Line CX (BDU384Y)
|
| Battery |
Bosch PowerTube 800Wh
|
| Display |
Bosch Kiox 300
|
| Charger |
Bosch 4A Charger 230V
|
| Grips |
Syncros Performance XC Lock-On
|
| Front Tire |
Maxxis Forekaster 29x2.6", 60TPI Foldable, Tubeless Ready, EXO 3C maxx Terra
|
| Rear Tire |
Maxxis Forekaster 29x2.6", 60TPI Foldable, Tubeless Ready, EXO 3C maxx Terra
|
| Max. System Weight |
130kgThe overall weight includes the bike, the rider, the equipment and possible additional luggage.
|
