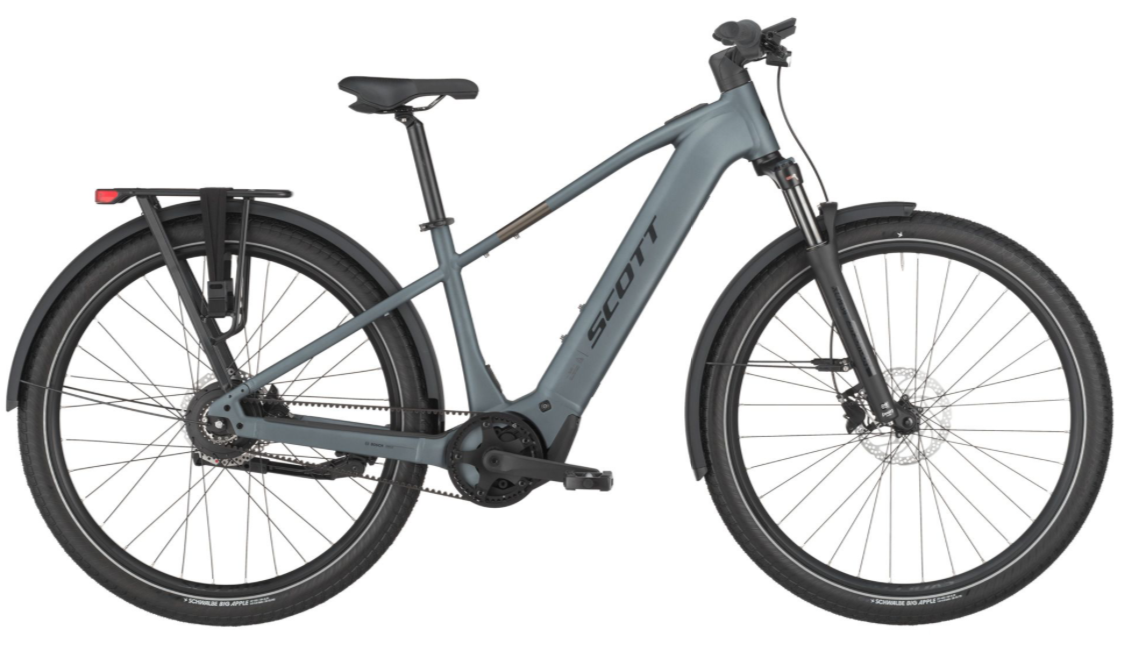

Scott Sub 10 Belt Bike
Model : 423103
The power to do more.
This is the ALL-NEW SCOTT SUB eRIDE: an electric urban bike powered by the ALL-NEW Bosch Performance CX motor and 800Wh battery - goodbye range anxiety.
To minimize maintenance, SUB features a belt-driven drivetrain, no need to oil a chain anymore. Even more? You can now bring along the kids with you thanks to the new Syncros Heavy Duty rack that can carry up to 27kg.
No more barriers. Move with SUB.
FrameAlloy S-XL=29" / 6061 Alloy custom butted tubingSide extraction batteryUDH Interface / 135mm with 46mm Beltline
Travel100mm
ForkSR Suntour XCM34 LO Coil / Tapered / 15x110 bolt Axle / Lock Out / 100mm Travel
Drive UnitBosch Performance CXEU: 25kmh
BatteryPowerTube 800Wh

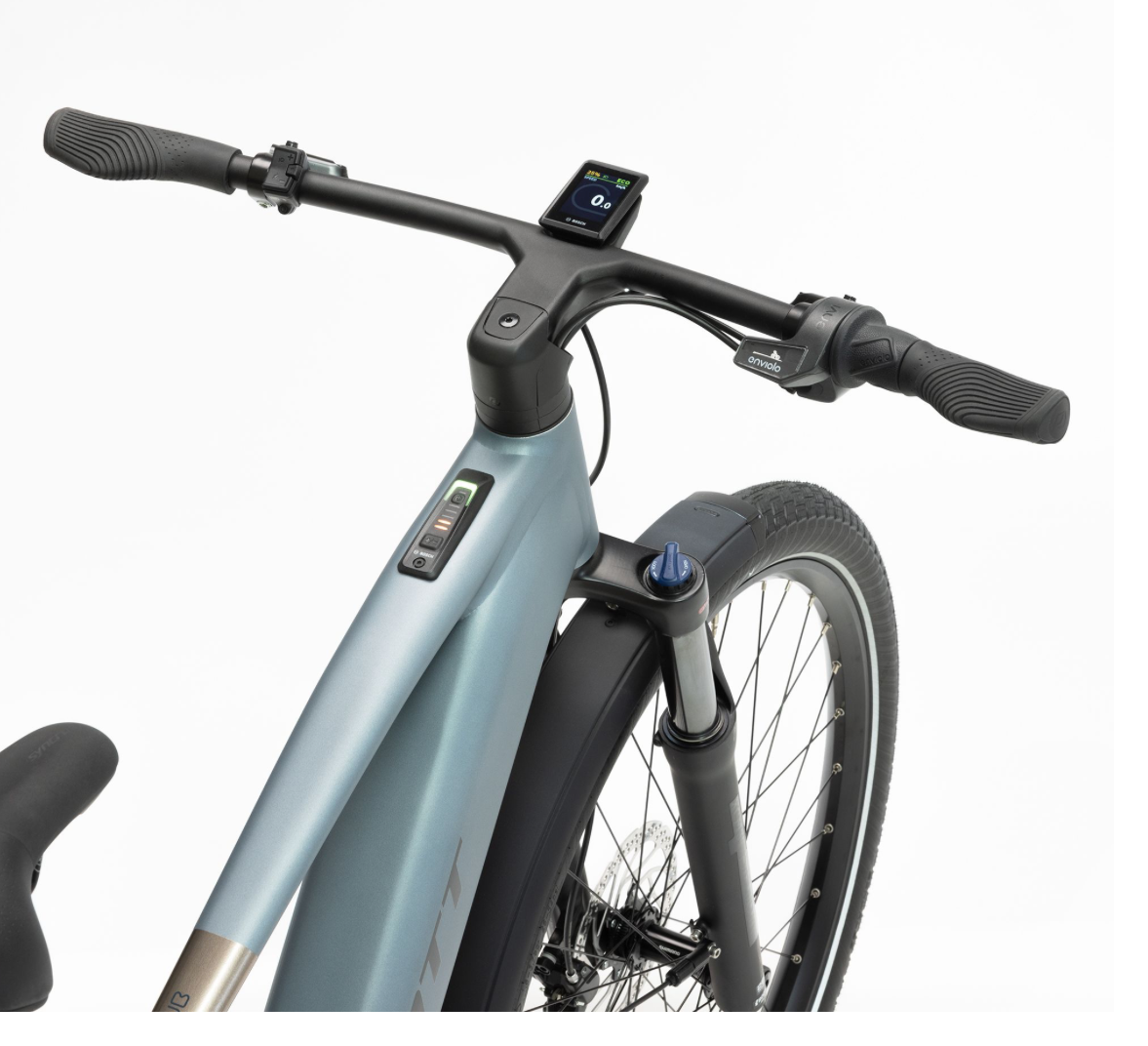

DisplayBosch System ControllerKiox 300Mini remote
Charger4A Charger
ShiftersEnviolo Manual Controller
CranksetFSA CK-220 170mm
ChainringGates CDX 46T w/Guard
ChainGates CDX 125T
CassetteGates CDX 24T
BrakesShimano BR-MT200 Disc
RotorFront: SM-RT30 CL 180mm / Rear: SM-RT30 CL 160mm
HandlebarSyncros Forged Alloy Combo 680mm / Backsweep 9° / Upsweep 8° / 70mm / with front Light mount and Kiox 300 mount
SeatpostSyncros 3.0 / 31.6mm / 350mm
SeatSyncros Capilano
HeadsetAcros / 1.5"- 1.5"semi integ. OD 50/61mm / ID 44/55mm
Hub (Front)Shimano HBTC50015BB CL / 15x110mm
Hub (Rear)Enviolo Trekking
SpokesBlack Spokes
RimsSyncros X18 Disc
Front TireSchwalbe Big Apple Performance60-622
Rear TireSchwalbe Big Apple Performance60-622
LightsLezyne Fusion E550SM front lightRear Lezyne Rack Light
RackRacktime carrier SnapIt 2.0 27KG
PedalsMarwi SP-828
ExtrasCurana alloy profile Fender / Ursus Kickstand
Approx weight in KG29.4
Approx weight in LBS64.82
Max. System Weight128kgThe overall weight includes the bike, the rider, the equipment, and possible additional luggage.
