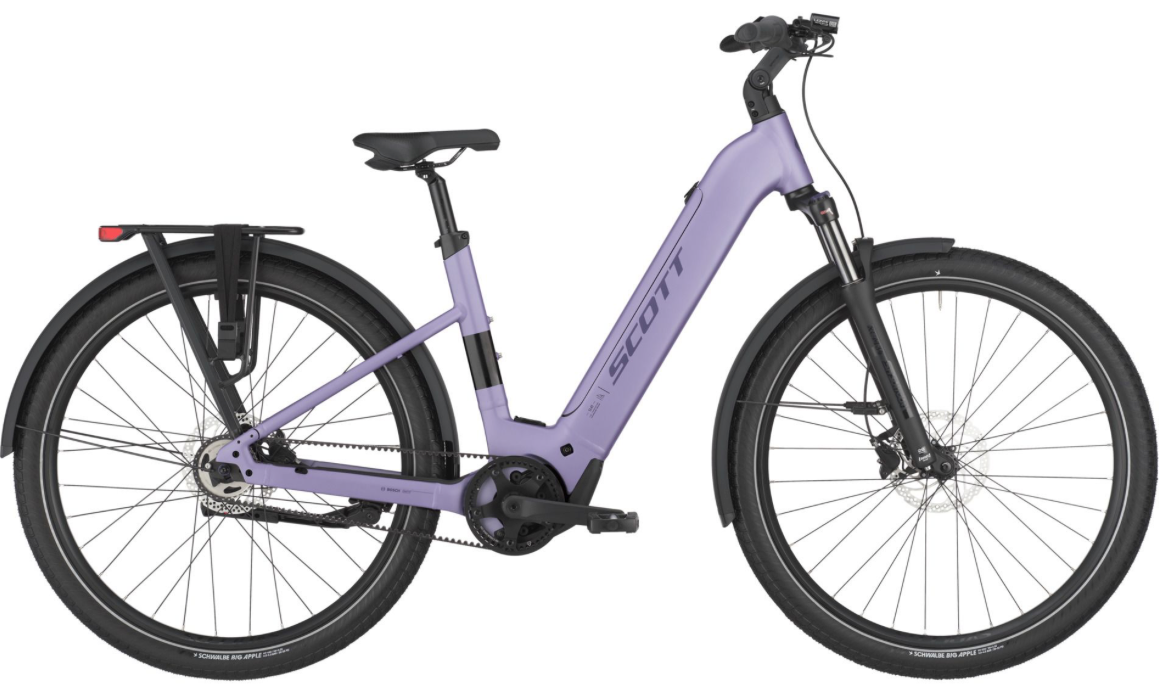

SCOTT SUB 20 BELT BIKE
Model : 423112
The power to do more.This is the ALL-NEW SCOTT SUB eRIDE: an electric urban bike powered by the ALL-NEW Bosch Performance CX motor and 800Wh battery - goodbye range anxiety.
To minimize maintenance, SUB features a belt-driven drivetrain, no need to oil a chain anymore. Even more? You can now bring along the kids with you thanks to the new Syncros Heavy Duty rack that can carry up to 27kg.
No more barriers. Move with SUB.
FrameAlloy S-XL=29" / 6061 Alloy custom butted tubingSide extraction batteryUDH Interface / 135mm with 46mm Beltline
Travel100mm
ForkSR Suntour XCM34 LO Coil / Tapered / 15x110 bolt Axle / Lock Out / 100mm Travel
Drive UnitBosch Performance CXEU: 25kmh
BatteryPowerTube 600Wh
DisplayBosch Purion 200
Charger2A Charger
ShiftersShimano Nexus Inter 5e
CranksetFSA CK-220 170mm
ChainringGates CDX 46T w/Guard
ChainGates CDX 130T
CassetteGates CDX 32T
BrakesShimano BR-MT200 Disc
RotorFront: SM-RT30 CL 180mm / Rear: SM-RT30 CL 160mm
HandlebarSyncros UC3.0 680mm / Rise 12mm / Backsweep 15°
H'stemSyncros UC 3.0 adjustable with front Light mount and Intuvia 100 mount
SeatpostSyncros 3.0 / 31.6mm / 350mm
SeatSyncros Capilano
HeadsetAcros / 1.5"- 1.5"semi integ. OD 50/61mm / ID 44/55mm
Hub (Front)Shimano HBTC50015BB CL / 15x110mm
Hub (Rear)Shimano Nexus Inter 5e
SpokesBlack Spokes
RimsSyncros X18 Disc
Front TireSchwalbe Big Apple Performance60-622
Rear TireSchwalbe Big Apple Performance60-622
LightsFront Lezyne Hecto E65Rear Lezyne Rack Light
RackRacktime carrier SnapIt 2.0 27KG
PedalsMarwi SP-828
ExtrasCurana alloy profile Fender / Ursus Kickstand
Approx weight in KG30.6
Approx weight in LBS67.46
Max. System Weight128kgThe overall weight includes the bike, the rider, the equipment, and possible additional luggage.
