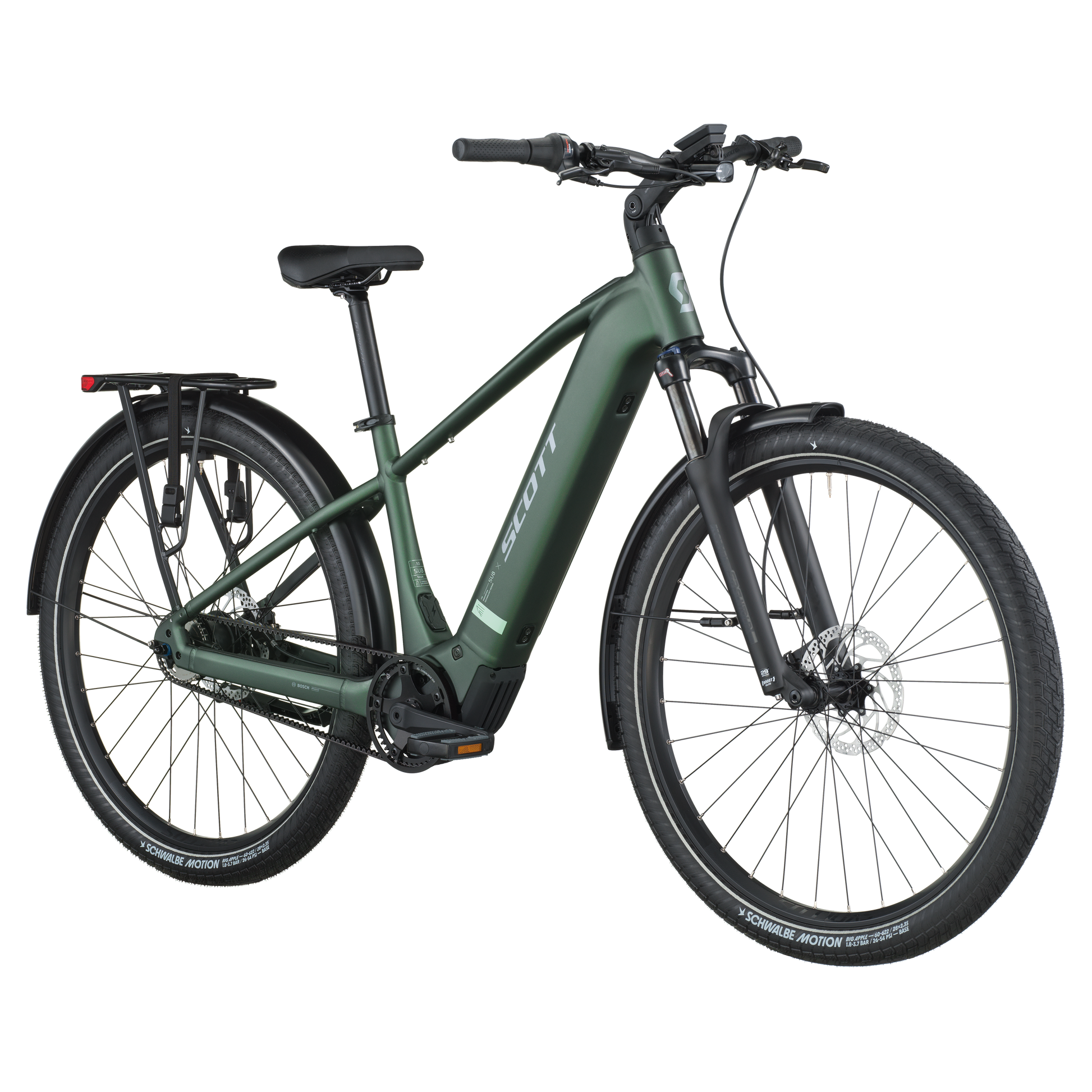

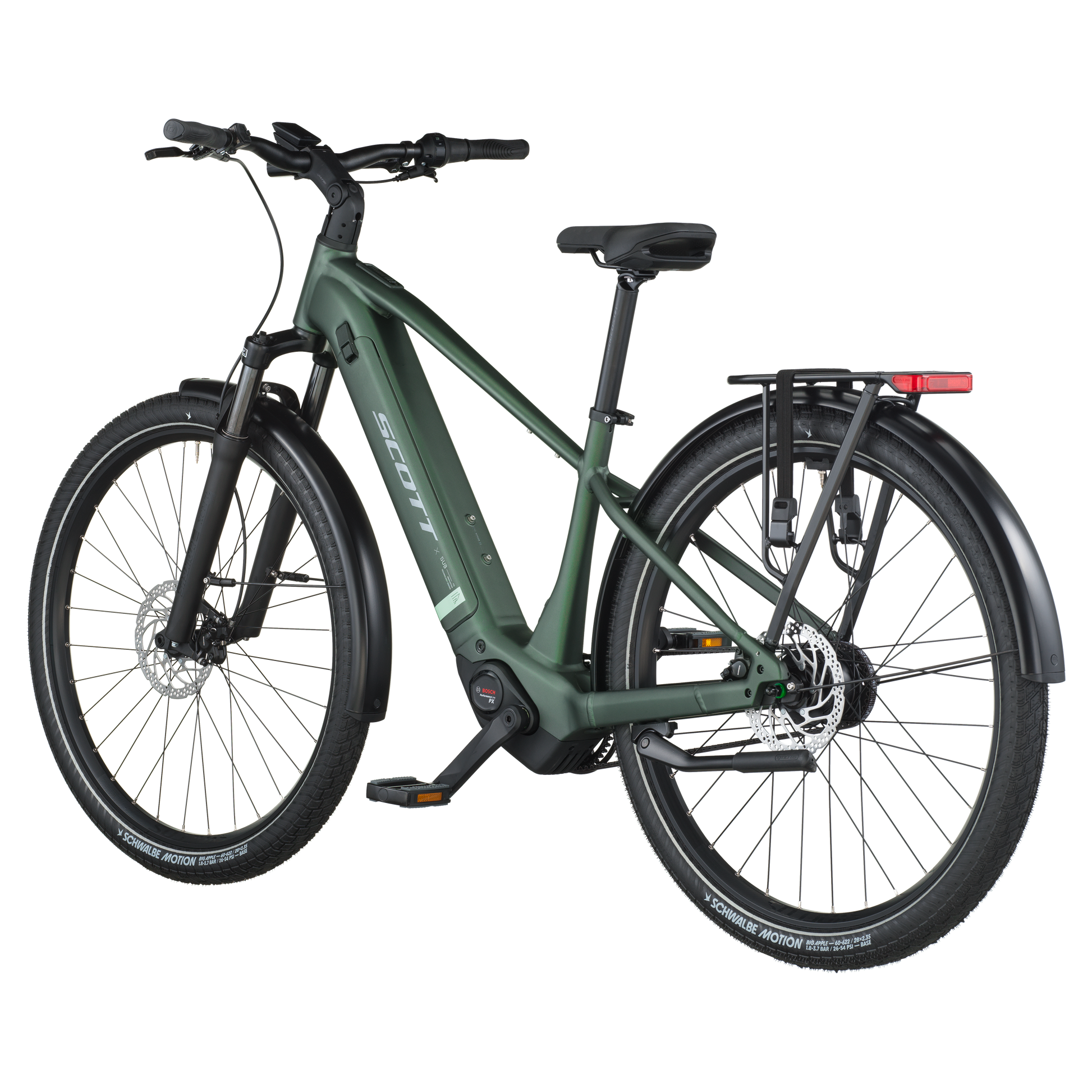

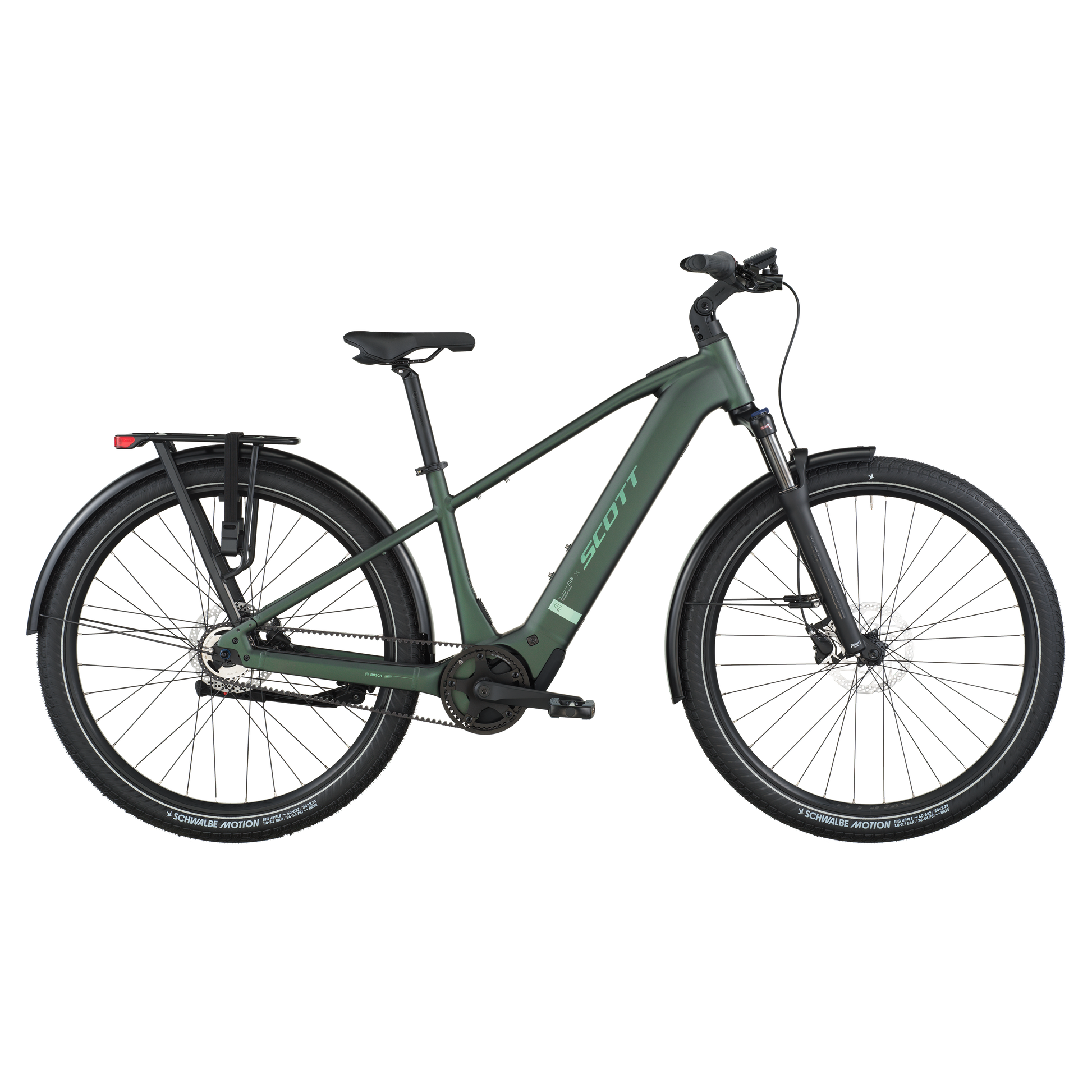

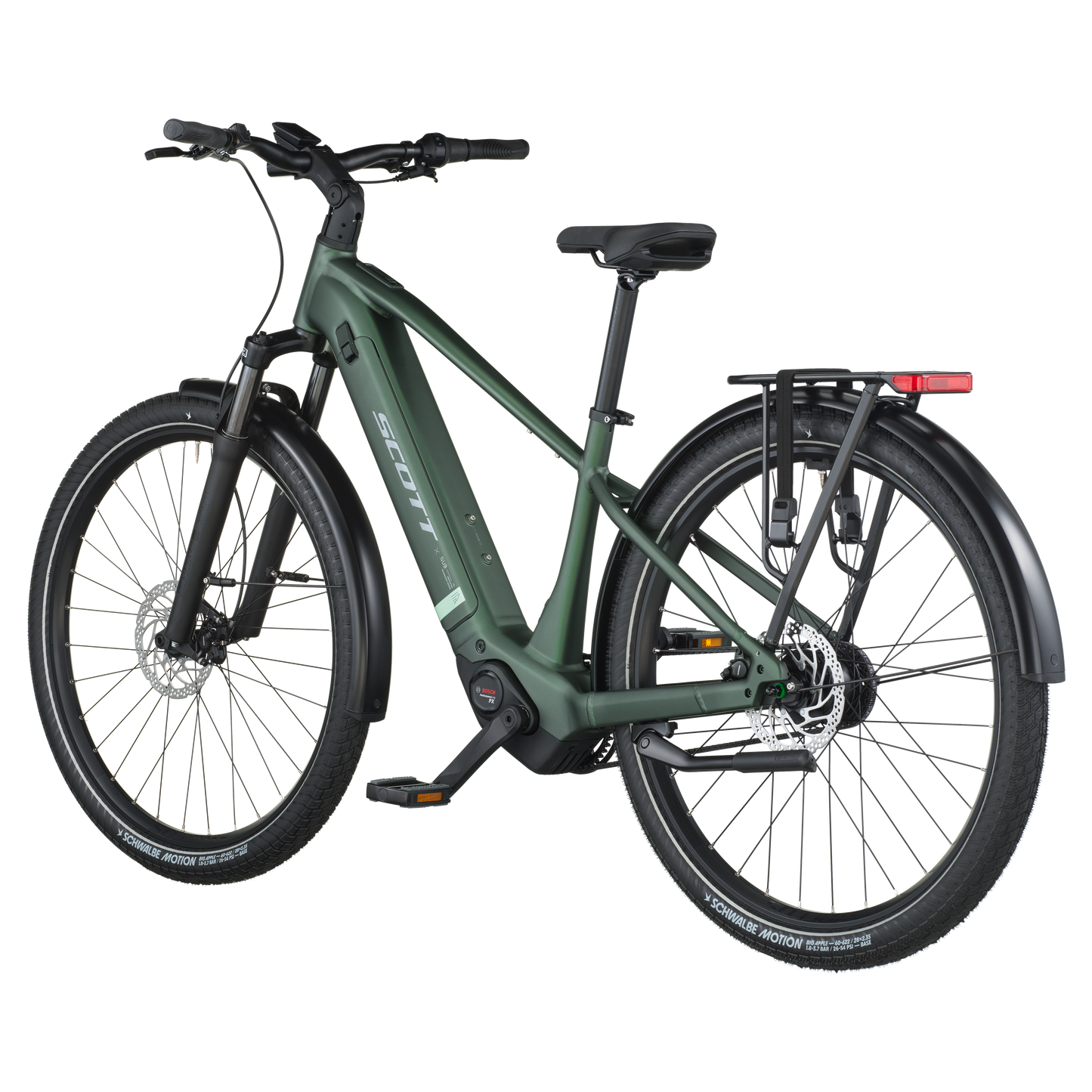

Empower your rides around town with the smooth rolling and versatile Sub Tour 10 E-Bike. For commutings into the office, a full day of running errands with the wind in your hair, or exploring beyond the city on a chill weekend with the fam, the Sub Tour delivers the power to easily handle it all.
Driven by Bosch’s quiet Performance PX motor and 800Wh battery, Sub Tour's intuitive handling makes it feel natural to ride. Accelerations are smooth, getting over the hills is a breeze, and there’s a power mode for any situation you’ll need Sub Tour to tackle. Its rear rack can support up to 27kg—including an optional kids’ seat. Think of it as your escape from the traffic that lets you embrace movement and enjoy the ride.

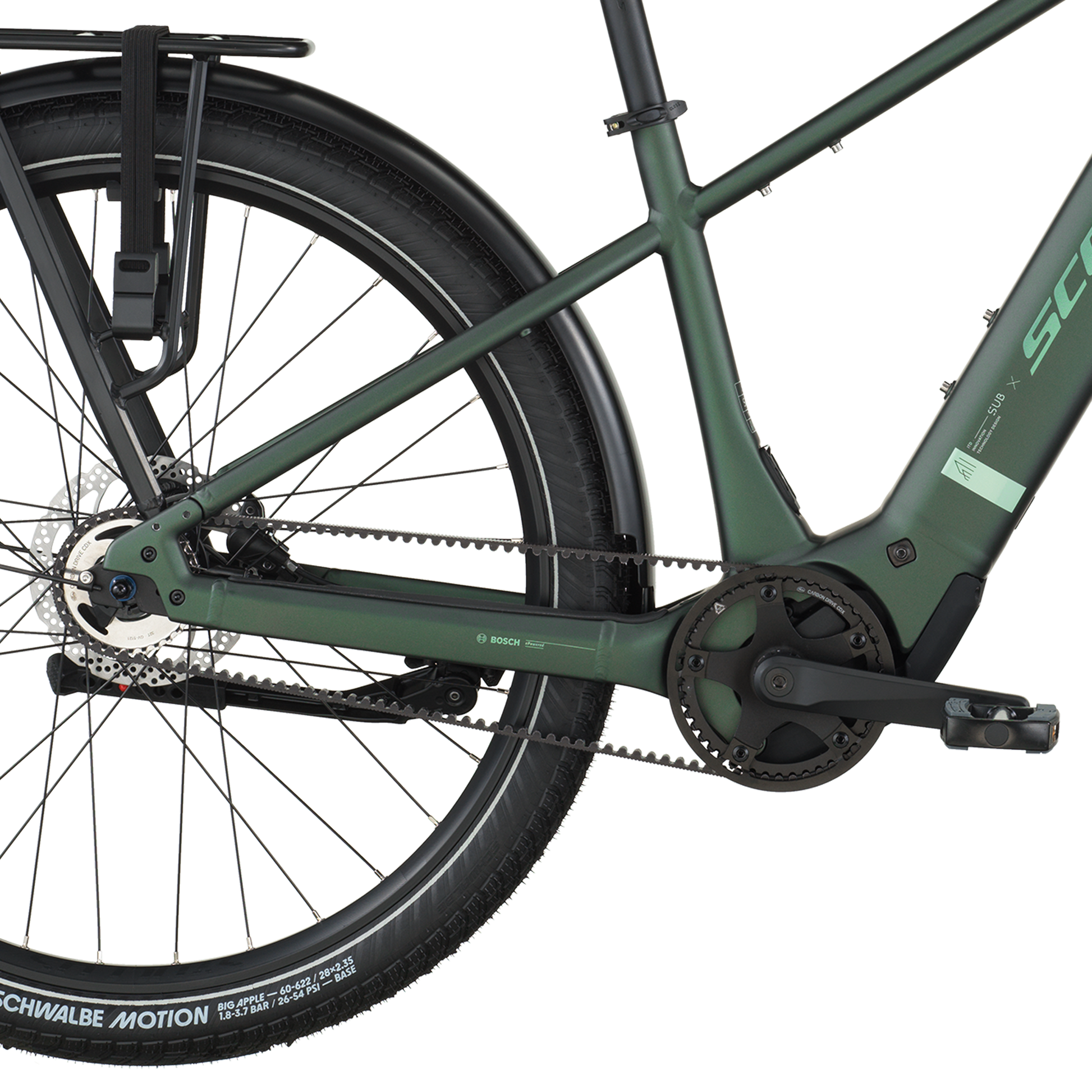

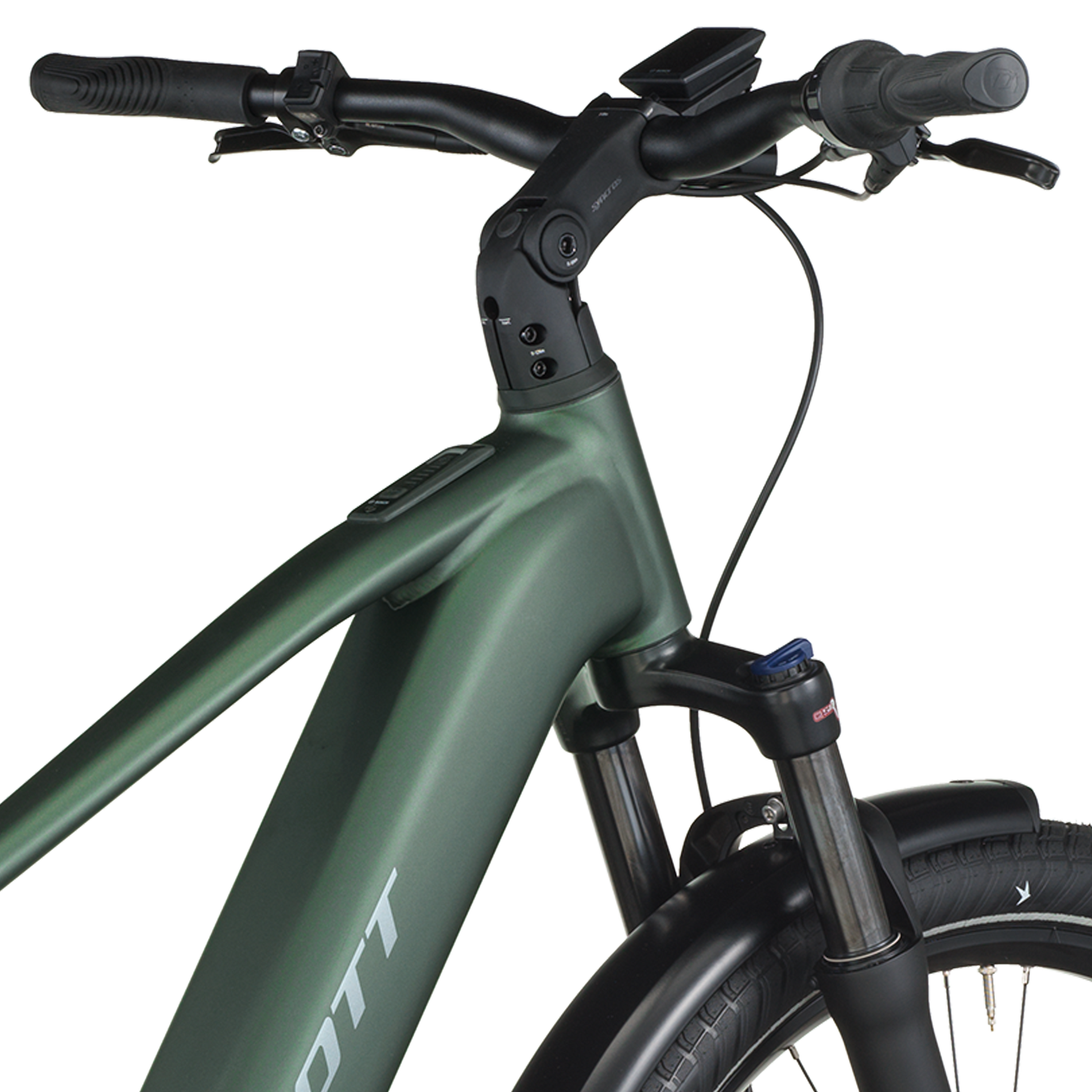

This Sub Tour uses a hidden gear cluster in the rear hub, which extends the lifespan of the drivetrain and means less maintenance for you as well. And out front, a suspension fork makes rough roads on your route a piece of cake.
FrameAlloy S-XL=29", 6061 Alloy custom butted tubingSide extraction batteryUDH Interface, 135mm with 46mm Beltline
Travel100mm

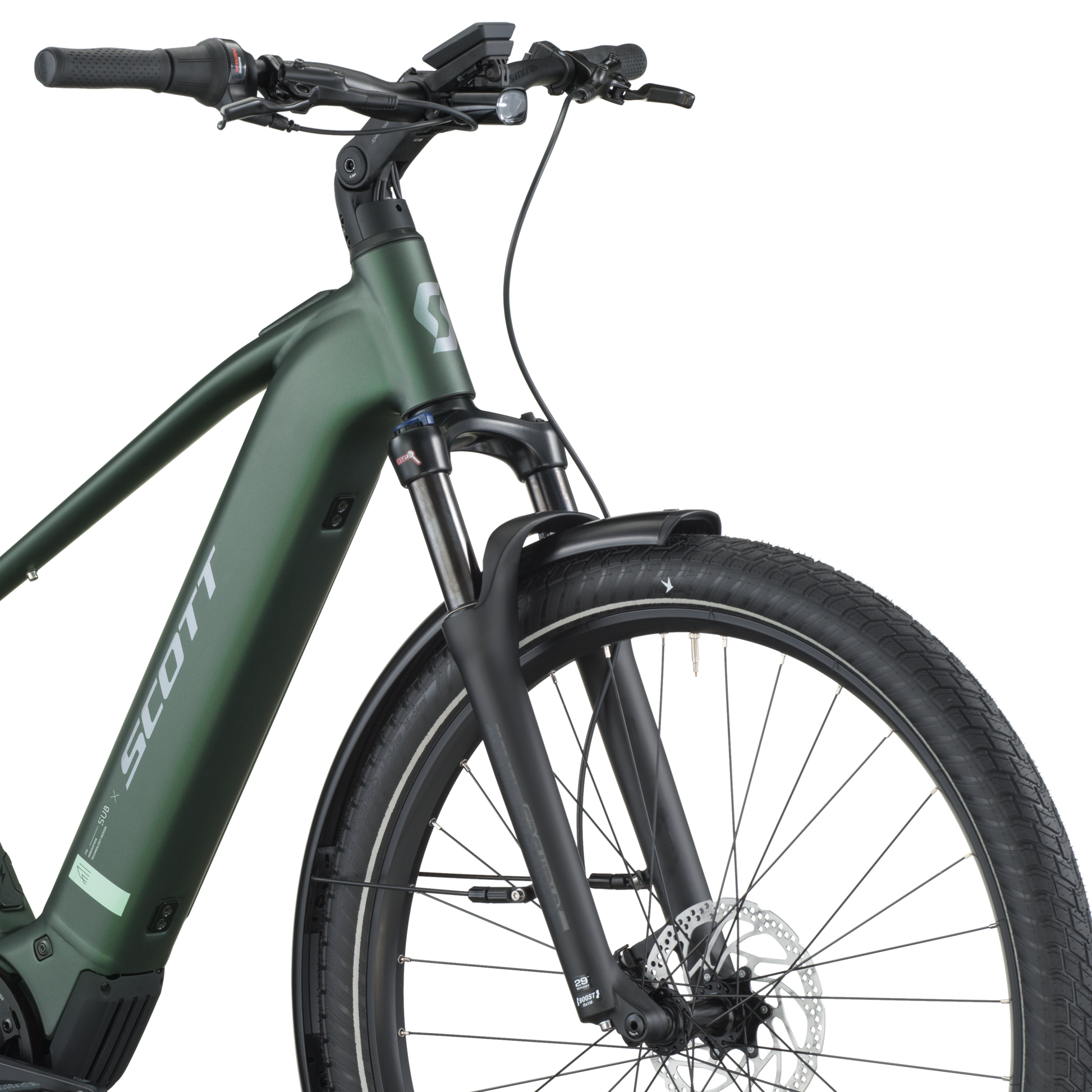

ForkSR Suntour XCM34 LO Coil, Tapered, 15x110 TA, Lock Out, 100mm Travel

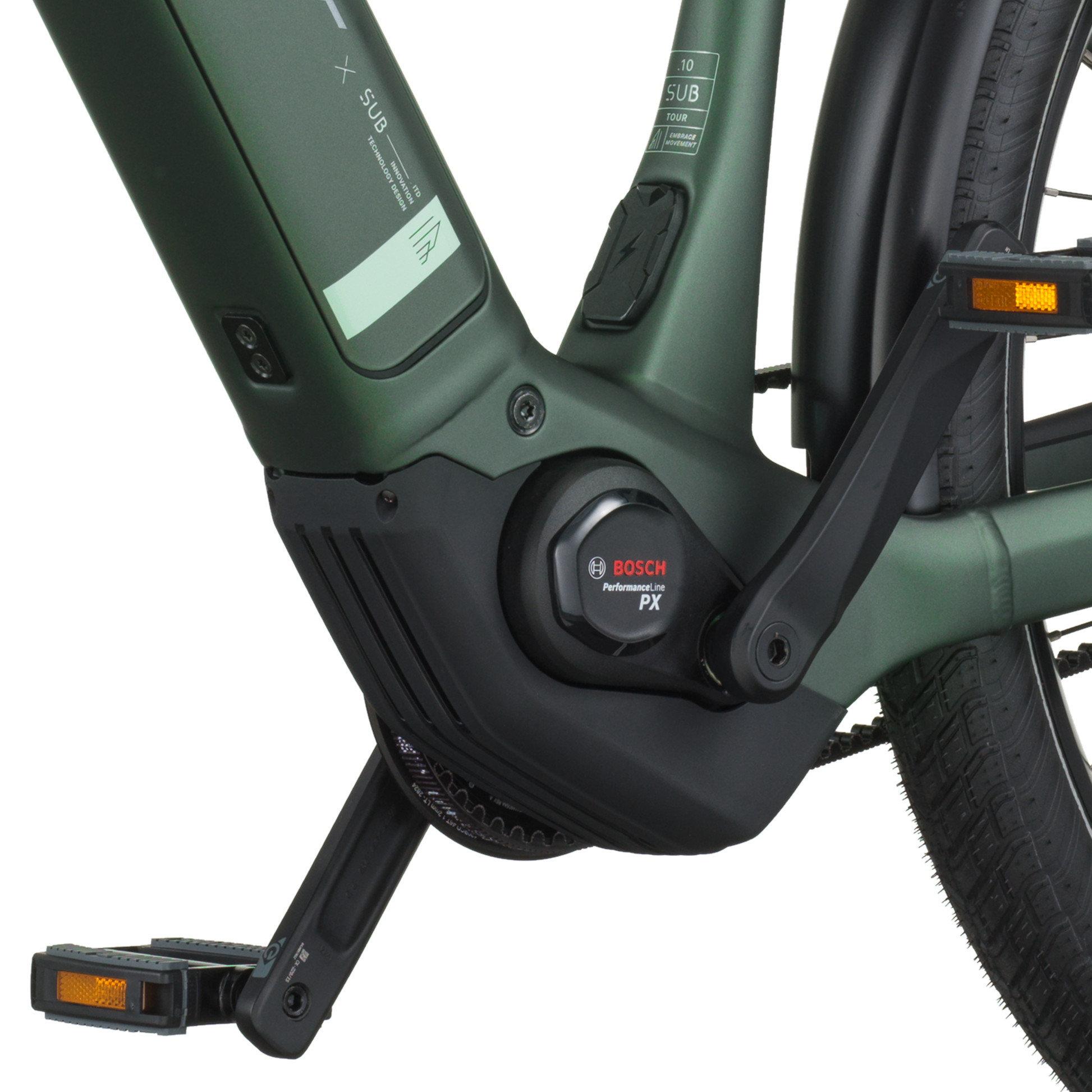

Drive UnitBosch Performance Line PX (BDU347Y)EU: 25kmh
BatteryPowerTube 800Wh
DisplayBosch System ControllerKiox 300, Mini remote
Charger2A Charger
ShiftersShimano Nexus Inter 5e
CranksetFSA CK-220 170mm
ChainringGates CDX 46T w/Guard
ChainGates CDX 130T
CassetteGates CDX 32T
BrakesShimano BR-MT200 Disc
RotorFront: SM-RT30 CL 180mm, Rear: SM-RT30 CL 160mm
HandlebarSyncros UC3.0 680mm, Rise 12mm, Backsweep 15°
H'stemSyncros UC 3.0 adjustable with front Light mount and Intuvia 100 mount
SeatpostSyncros 3.0, 31.6mm, 350mm
SeatSyncros Capilano
HeadsetAcros, 1.5"- 1.5"semi integ. OD 50/61mm, ID 44/55mm
Hub (Front)Shimano HBTC50015BB CL, 15x110mm
Hub (Rear)Shimano Nexus Inter 5e
SpokesBlack Spokes
RimsSyncros X18 Disc
Front TireSchwalbe Big Apple Performance, 60-622
Rear TireSchwalbe Big Apple Performance, 60-622
LightsFront Lezyne Hecto E65Rear Lezyne Light

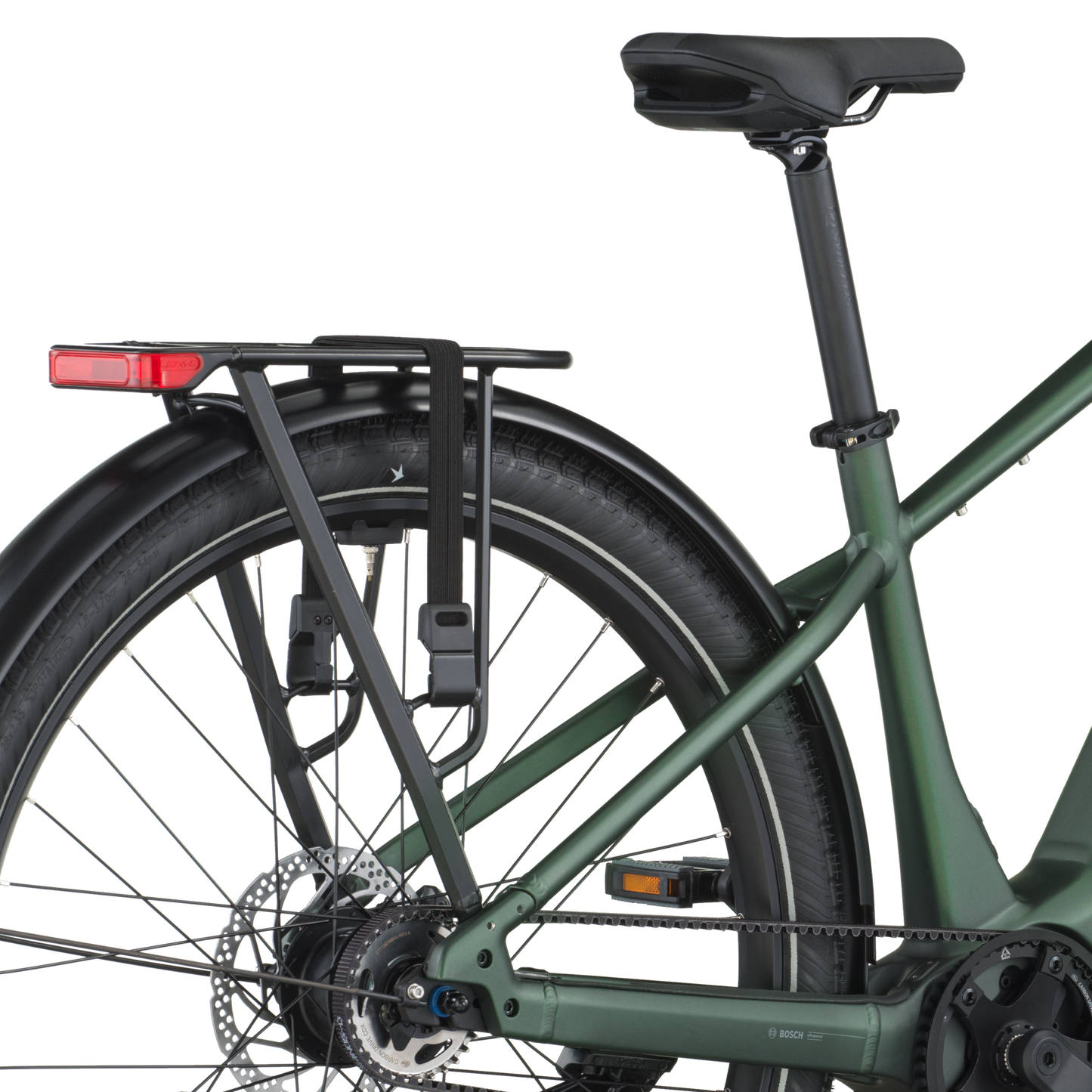

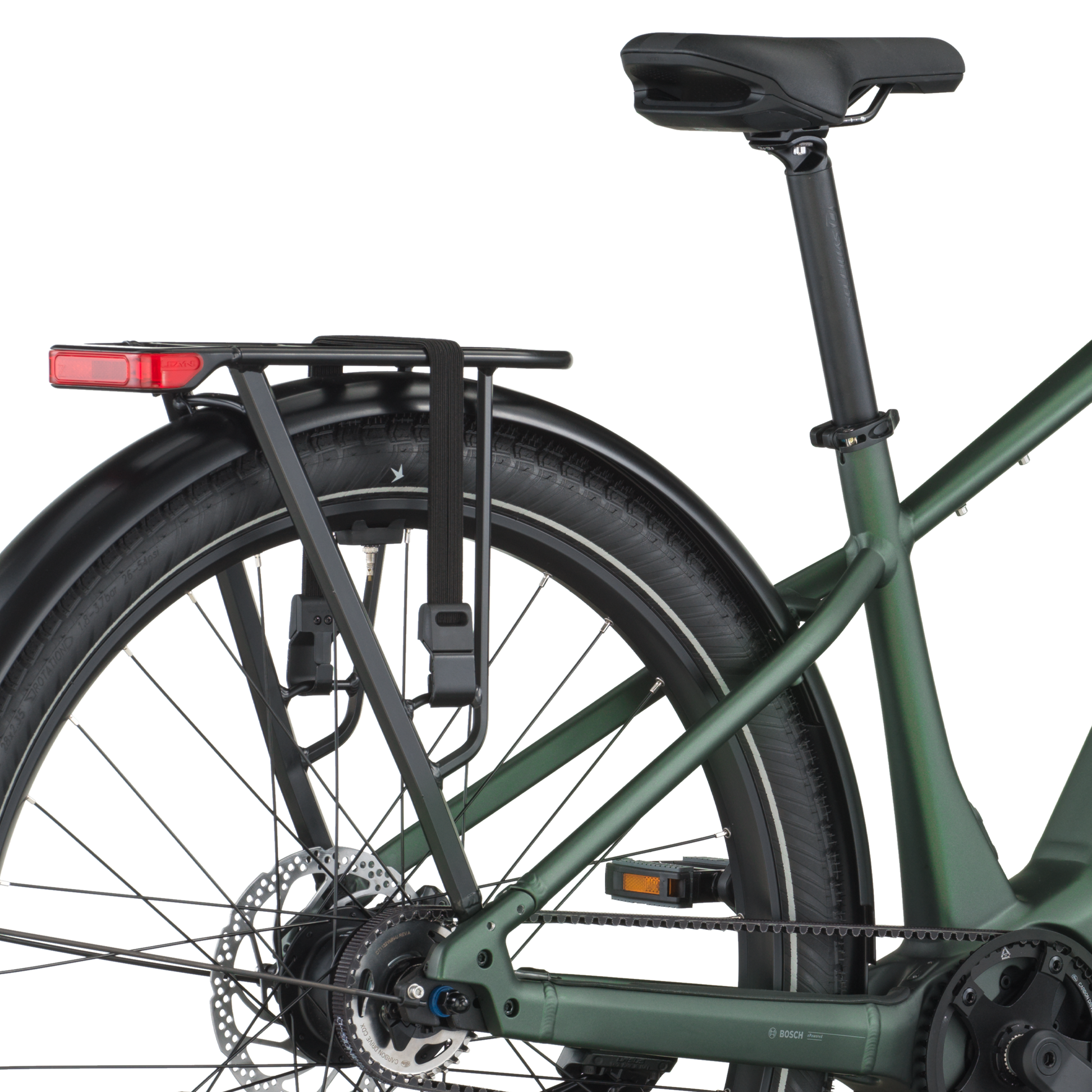

RackRacktime carrier SnapIt 2.0 27KG
PedalsMarwi SP-828
ExtrasCurana alloy profile FenderUrsus Kickstand
Approx weight in KG28.1
Approx weight in LBS61.95
Max. System Weight160kgThe overall weight includes the bike, the rider, the equipment, and possible additional luggage.
