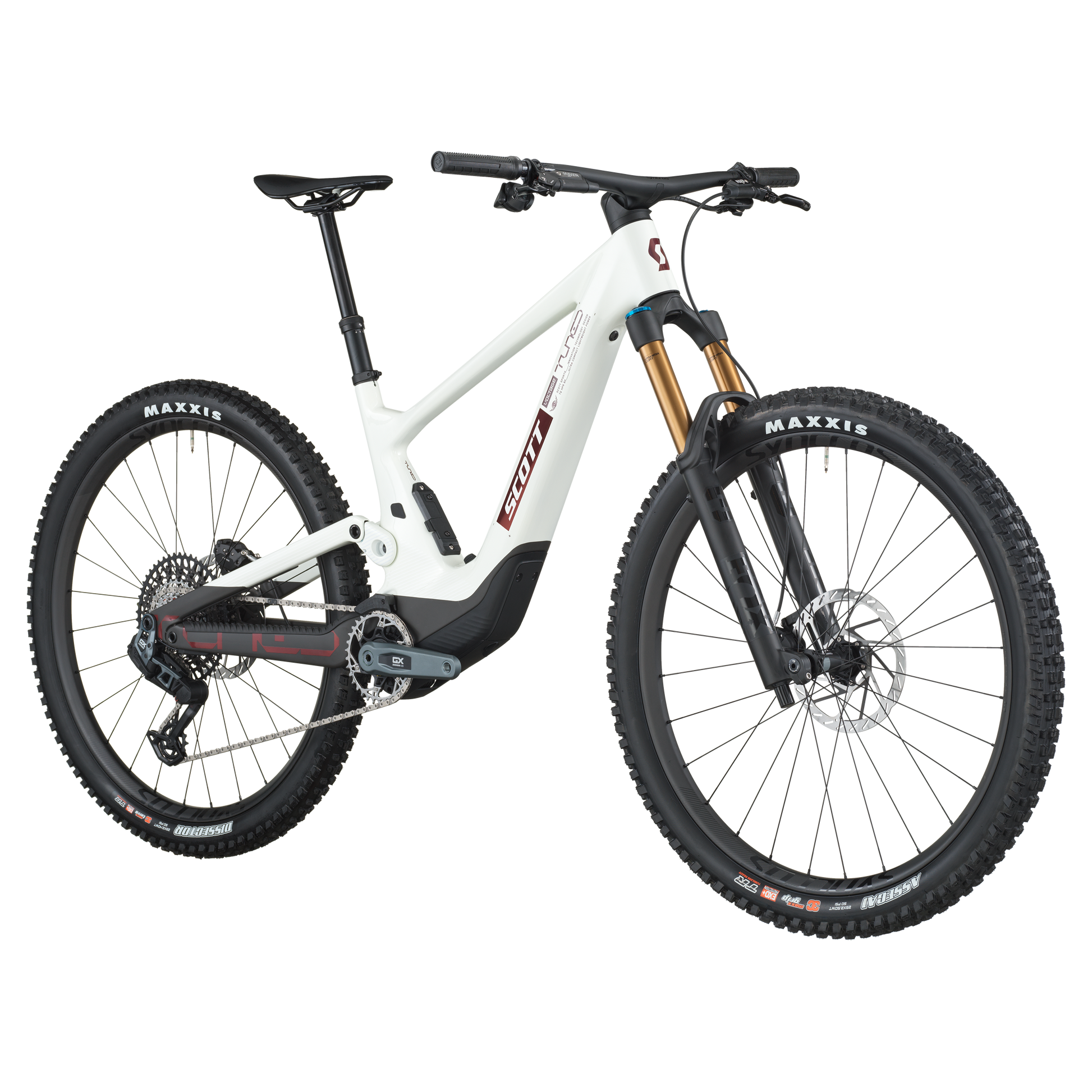

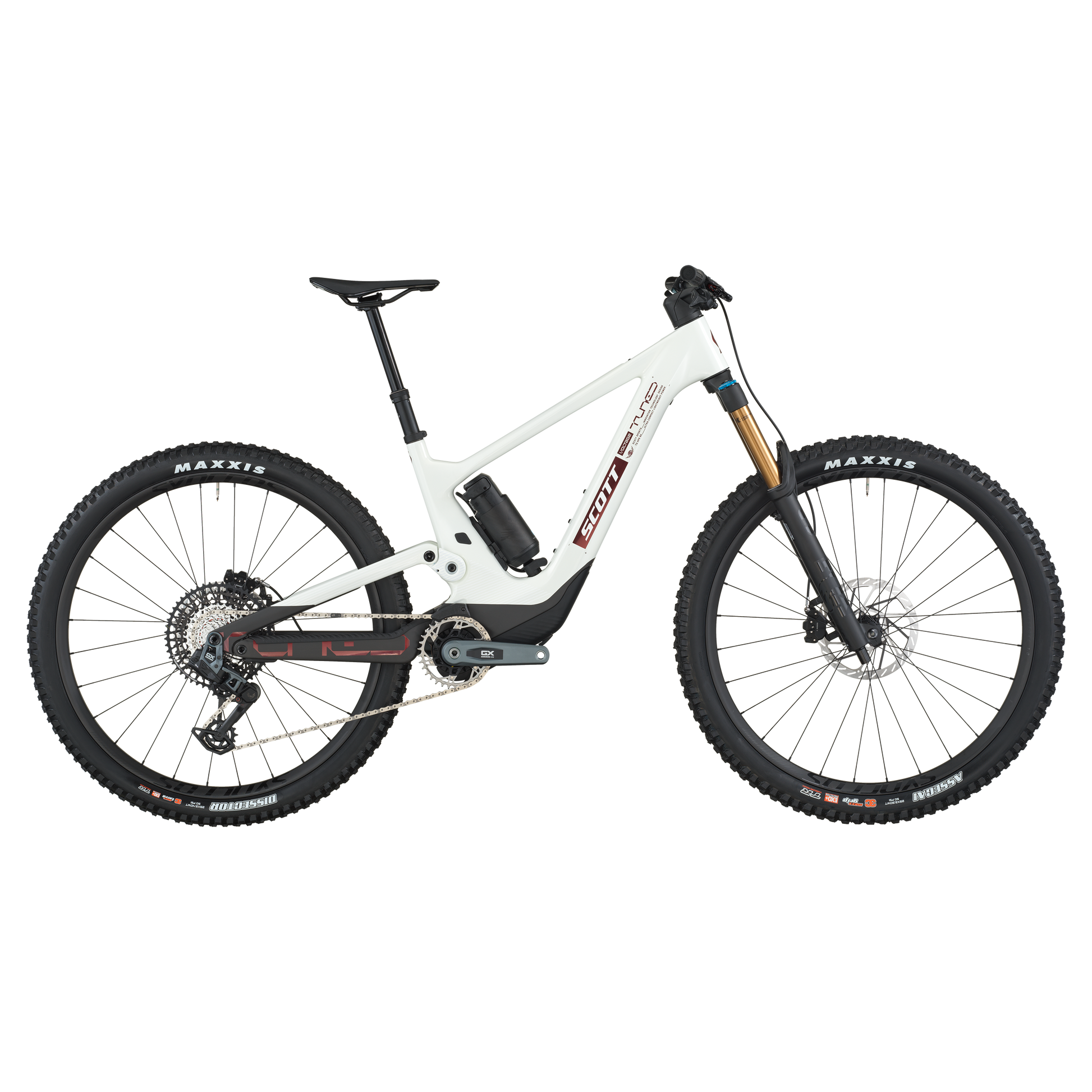

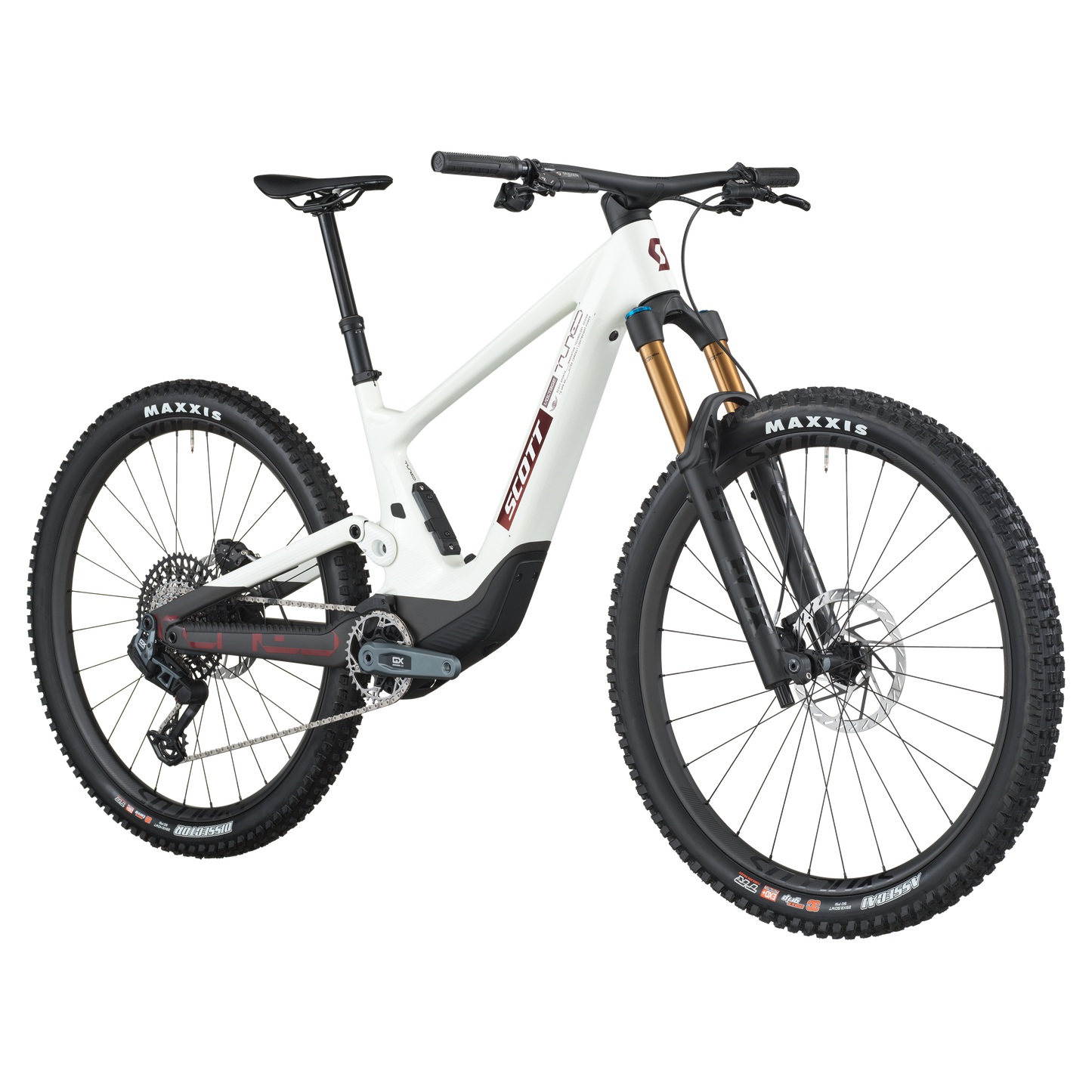

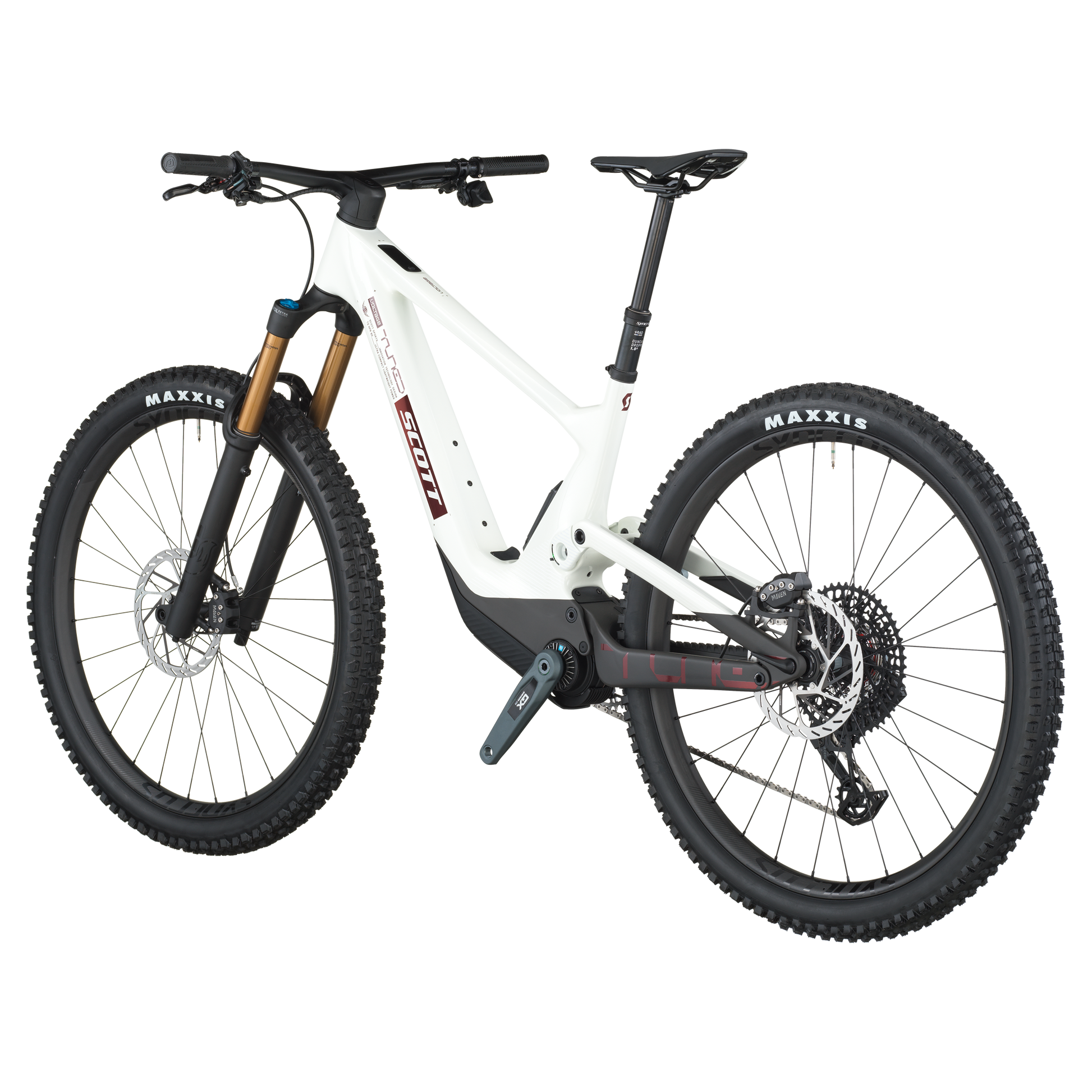

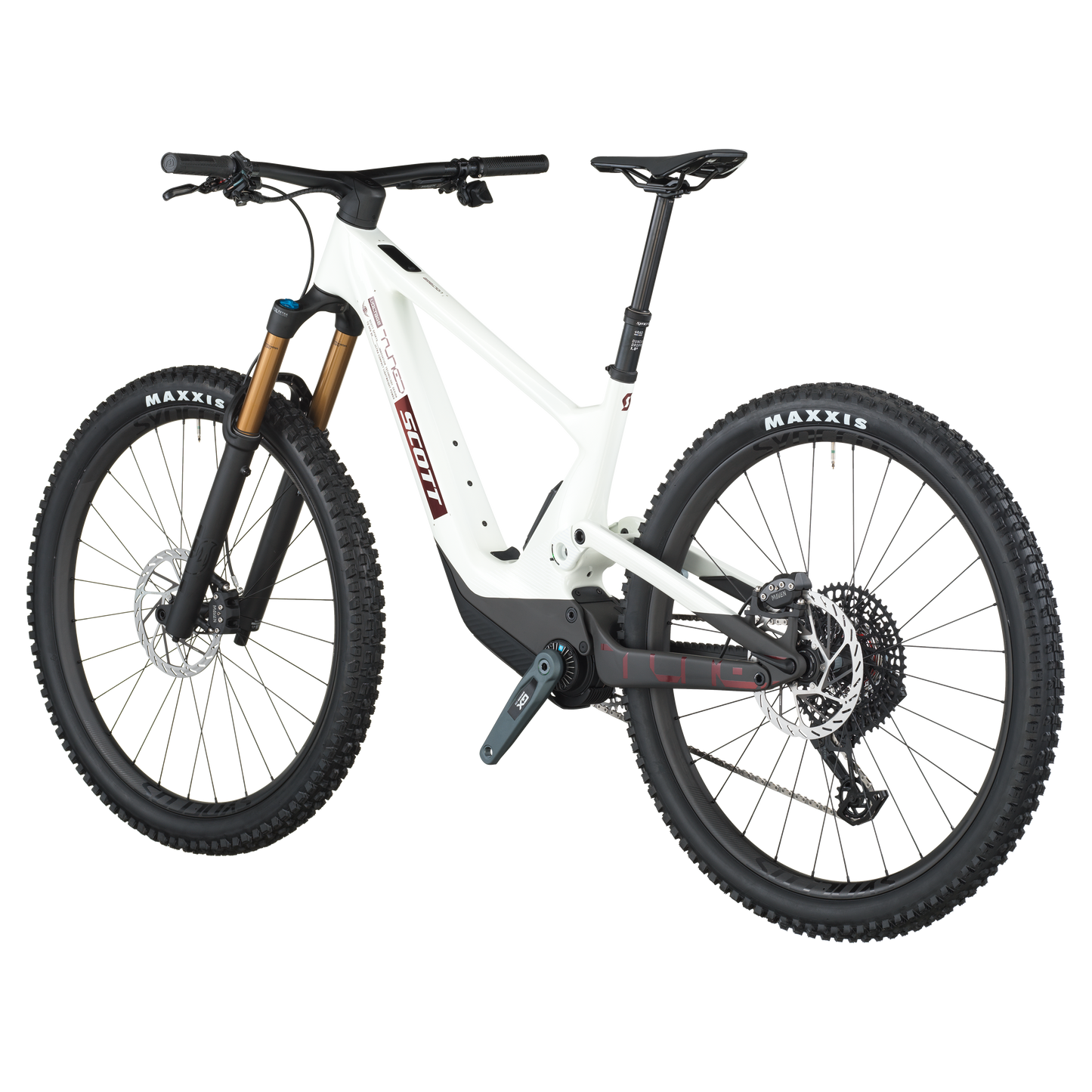

SCOTT VOLTAGE ERIDE 900 TUNED BIKE
Set up for trail riding perfection on the long-travel Voltage 900 Tuned e-MTB. With 160mm front and 155mm tunable rear travel combined with the boosted torque of TQ’s new HPR60 motor unit, you’ll be brappin’ and slappin’ as you push your rides to all-new heights.
Let’s talk about the new HPR60. Updated from the HPR50 found on the previous Voltage, HPR60 dishes out 60Nm of hair-raising torque for you to gobble up inclines like your post-ride burritos. It’s a 20% boost in performance that makes the Voltage 900 ride at the top of its class in the lightweight e-bike category.
Range has improved, too. Each Voltage comes with a Range Extender Battery to complement the 360Wh main battery to keep the lights on longer—so to speak—and make your rides damn near indefatigable. Not sure where your ride will go? Take it along with you for just-in-case moments. It’s the size of a small water bottle and stows away in your day pack.
Our NUDE Suspension technology with the Float-X NUDE shock from FOX paired with a fork that favors more adjustability. When you pedal up to have the most fun on the way down, you want a shock that gives you full factory performance when things point downwards, but also a shock that won’t slow you down when you need to ride back up. This is where the Float-X NUDE shines.
This Voltage also comes with SRAM’s GX Eagle AXS Transmission groupset and powerful Maven four-piston brakes to give you the range and the stopping power to make every ride one to remember.
FrameCarbon HMFIntegrated Suspension TechnologyVirtual 4 Link kinematic, Adjustable head angleSyncros Cable Integration SystemTQ HPR60, UDH Interface, 12x148mm with 55mm Chainline
TravelFront: 160mm, Rear: 155mm

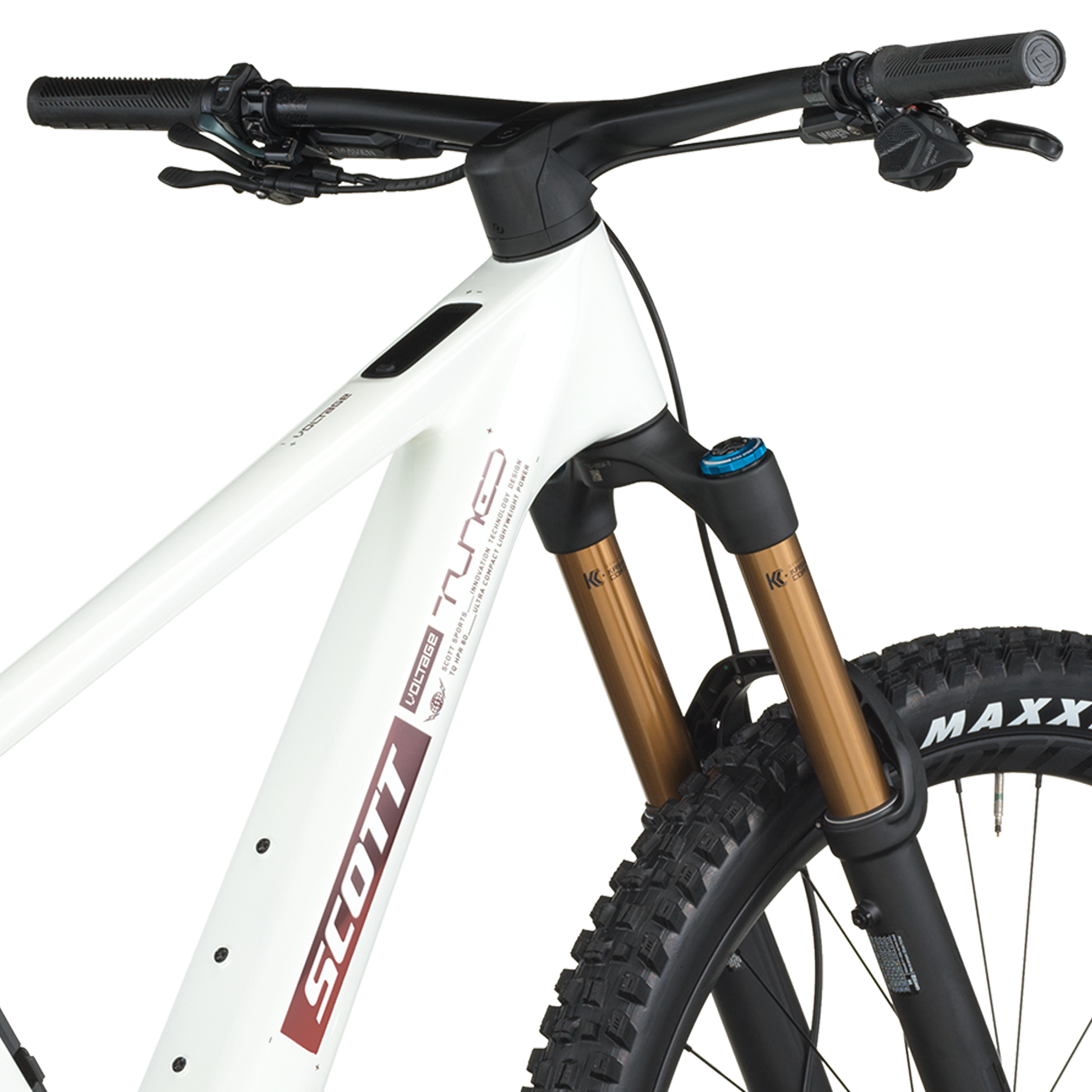

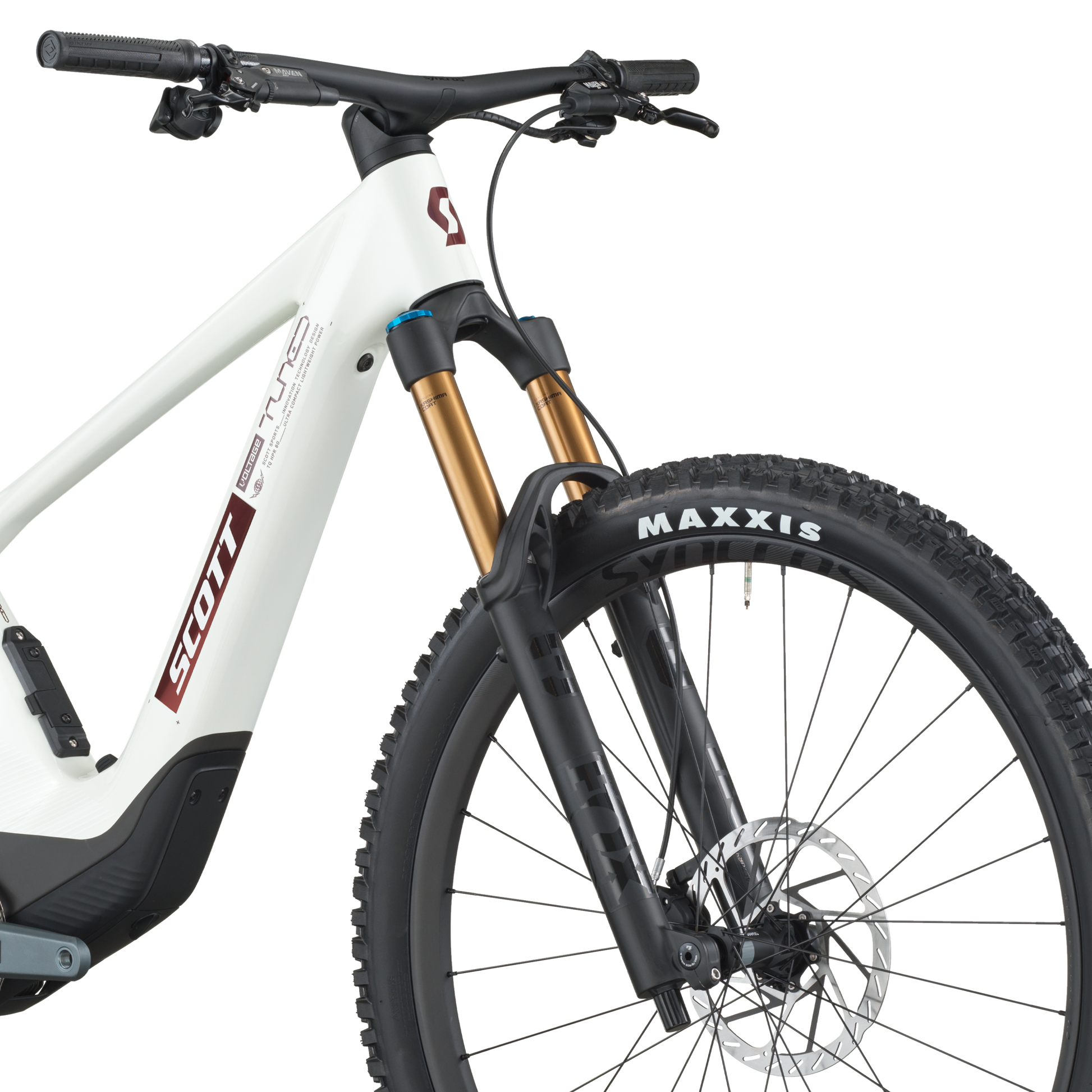

ForkFOX 36 Factory Air GripX2, HSC - LSC - HSR - LSR adjustable, 15x110mm QR axle, tapered steerer44mm offset, 160mm travel

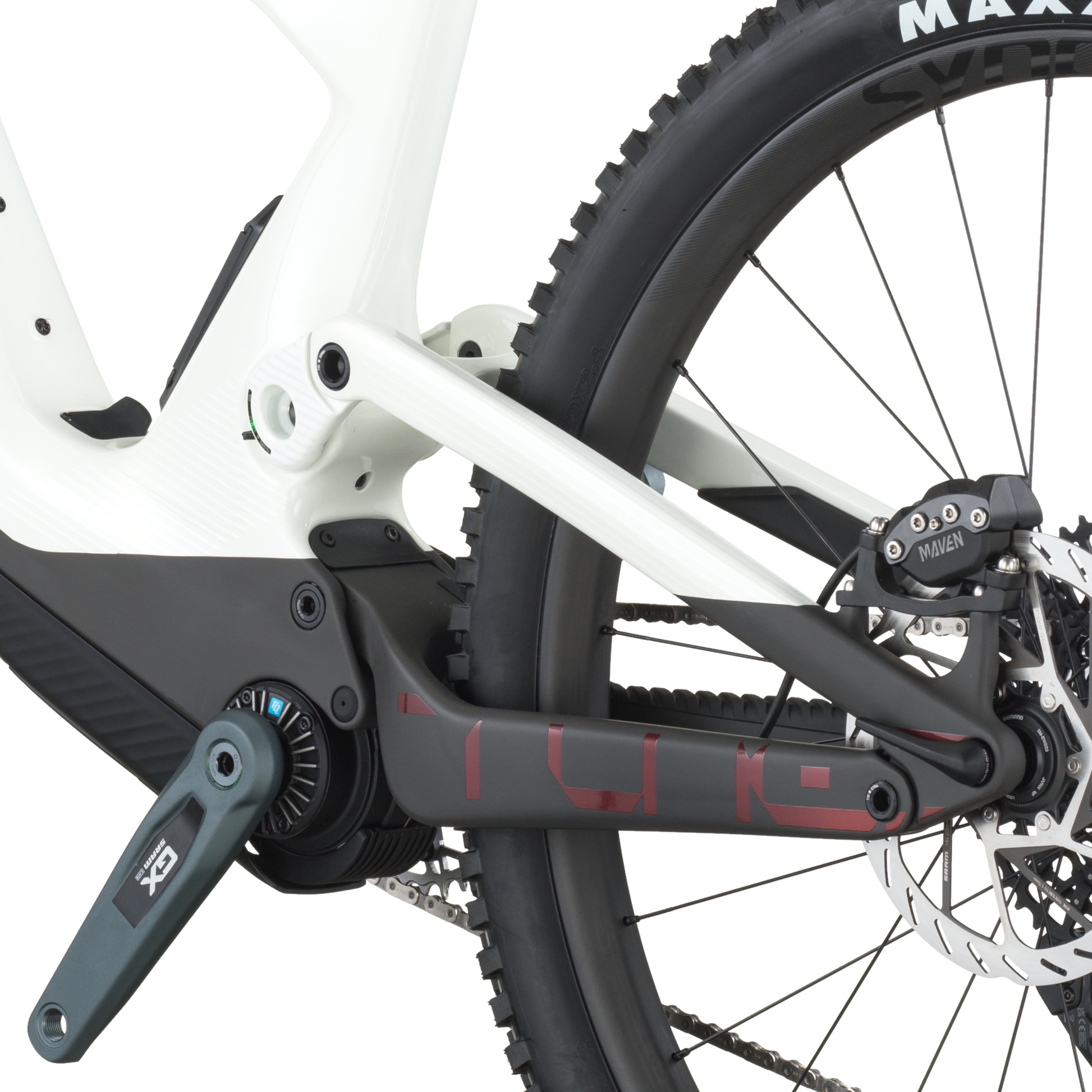

Rear ShockFOX FLOAT X NUDE Factory EVOL Piggy Back Trunnion, SCOTT custom w. travel, geo adj.3 modes: Climb-Ramp Control-DescendCustom large Air volume, Comp & Reb. Adj. Travel 155-100-Climb, T185X55mm
Remote SystemTracLoc TechnologyRear Suspension & Dropper Remote3 Rear Suspension modes

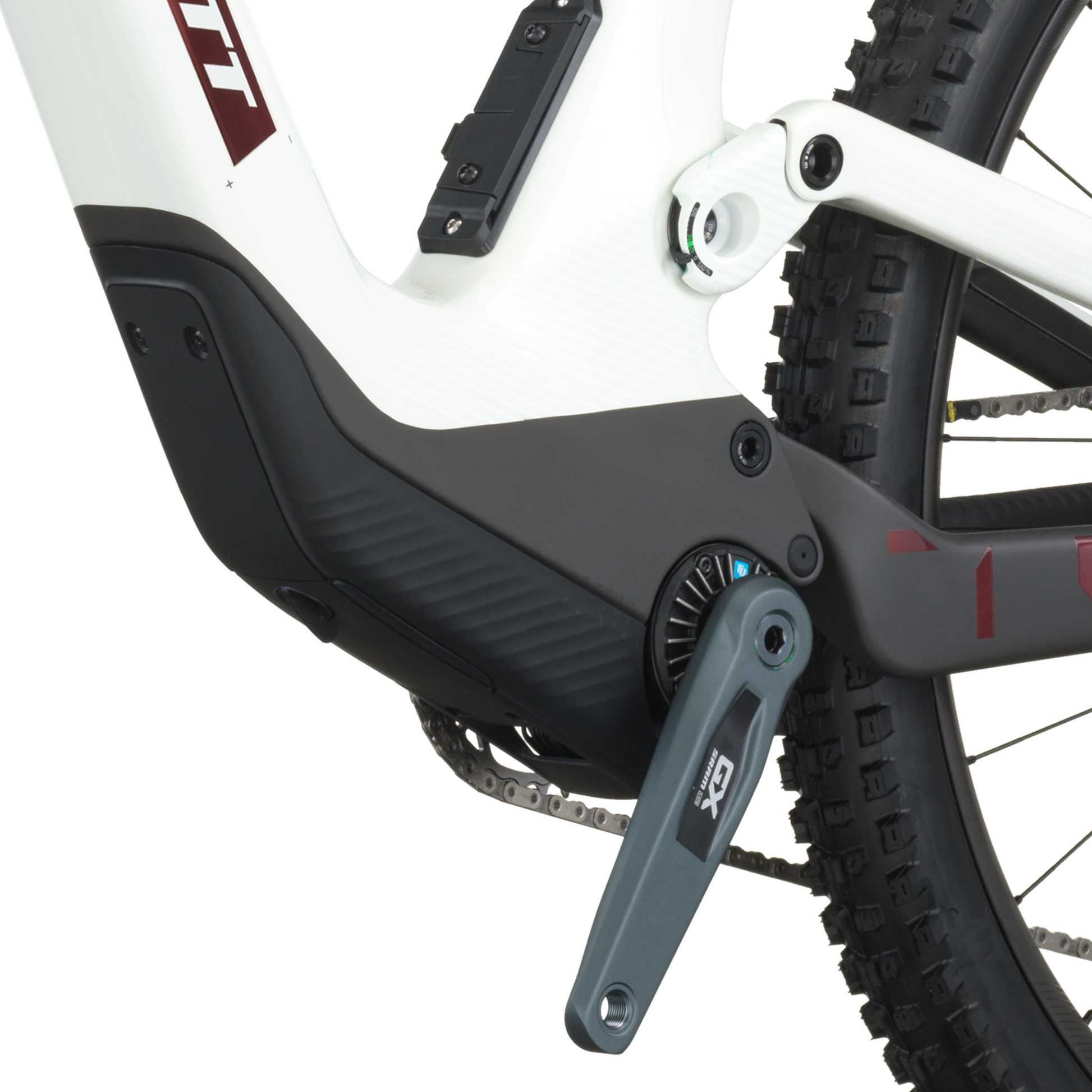

Drive UnitTQ HPR60 Mid Motor drive 60Nm max Torque, EU: 25kmh, US: 20mph
BatteryTQ Internal 360Wh + TQ Range Extender 160Wh
DisplayTQ HPR ColorBluetooth, ANT+, Dedicated Smartphone app
ChargerTQ 100-240V-4A

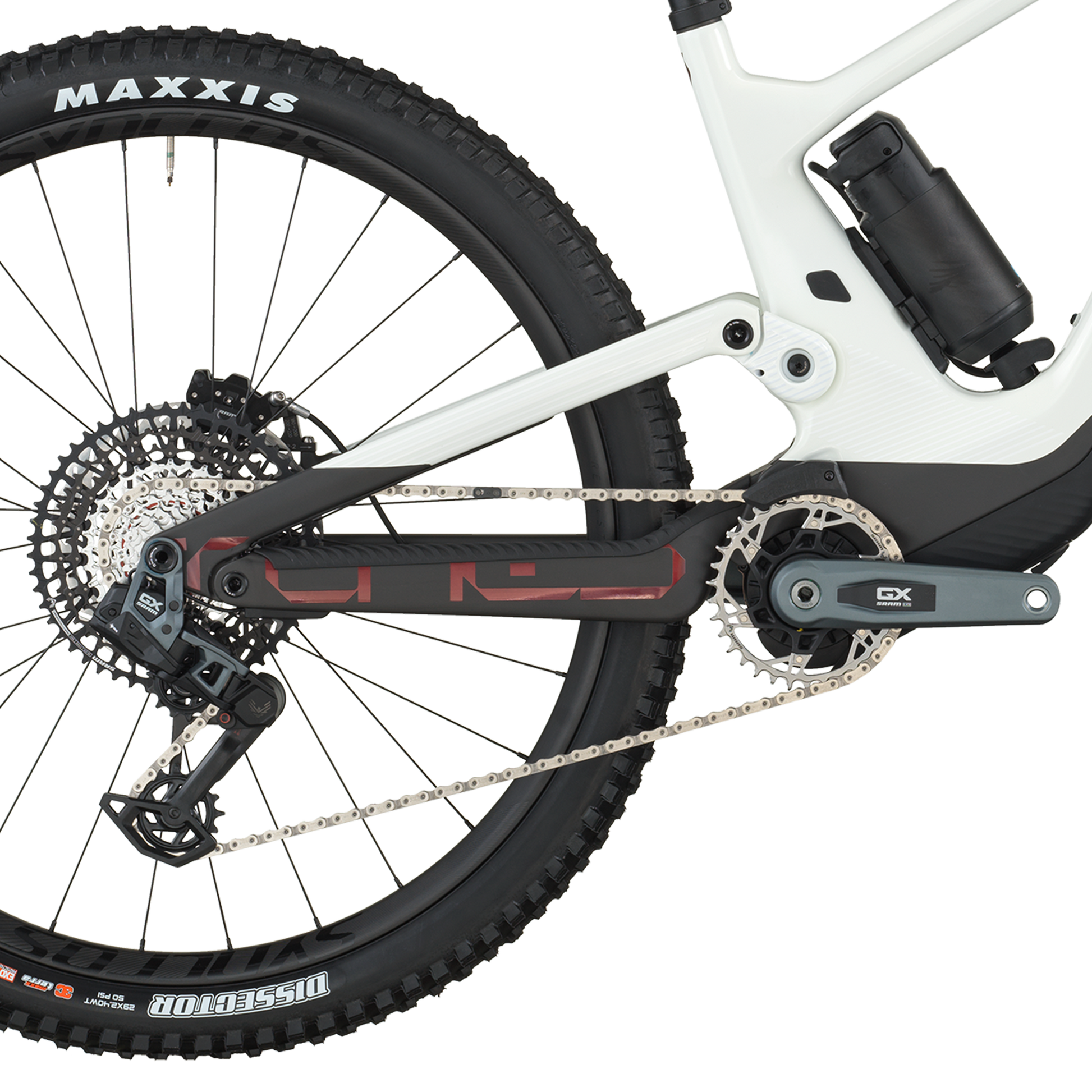

Rear DerailleurSRAM GX Eagle AXS Transmission 12 SpeedWireless Electronic Shift System
ShiftersSRAM AXS Rocker Pod Controller
CranksetSRAM GX Eagle, Alloy
Chainguidee*thirteen, e*spec Slider
ChainringSRAM XX Eagle Transmission 34T chainring
ChainSRAM CN GX Eagle Transmission
CassetteSRAM GX Eagle XS 1275 Transmission 10-52
BrakesSRAM Maven Silver Stealth 4-Piston Disc
RotorSRAM HS2 Rotors F&R 200mm
HandlebarSyncros Hixon iC Carbon, Size S & M 15mm rise, Size L & XL 25mm riseback sweep 8°, 780mmSyncros Endurance lock-on grips
SeatpostSyncros Duncan Dropper Post 1.5s, Travel Adjust, 31.6mmS size 140mm, M size 180mm, L size 180mm, XL size 210mm
SeatSyncros Tofino 1.5 RegularTitanium rails
HeadsetSyncros - Acros Angle adjust & Cable Routing HS SystemStainless, +-0.6° head angle adjustmentZS56/28.6 – ZS56/40 MTB
WheelsetSyncros Revelstoke 1.0-30 CLF: 15x110mm, R: 12x148mm30mm Tubeless ready Carbon rim 28HDT Swiss Ratchet Hubs, XD Driver, Syncros Axle w/Removable Leverwith 6mm Allen, T30 and T25 Tools
Front TireMaxxis Assegai, 2.5", 60TPI FoldableTubeless Ready, EXO+ 3C Maxx Terra
Rear TireMaxxis Dissector, 2.5", 60TPI FoldableTubeless Ready, EXO+ 3C Maxx Terra
ExtrasSRAM AXS Extension Cord
Approx weight in KG19.1 Tubless setup without RE (1.1kg)
Approx weight in LBS42.11 Tubless setup without RE (1.1kg)
Max. System Weight130kgThe overall weight includes the bike, the rider, the equipment, and possible additional luggage.
