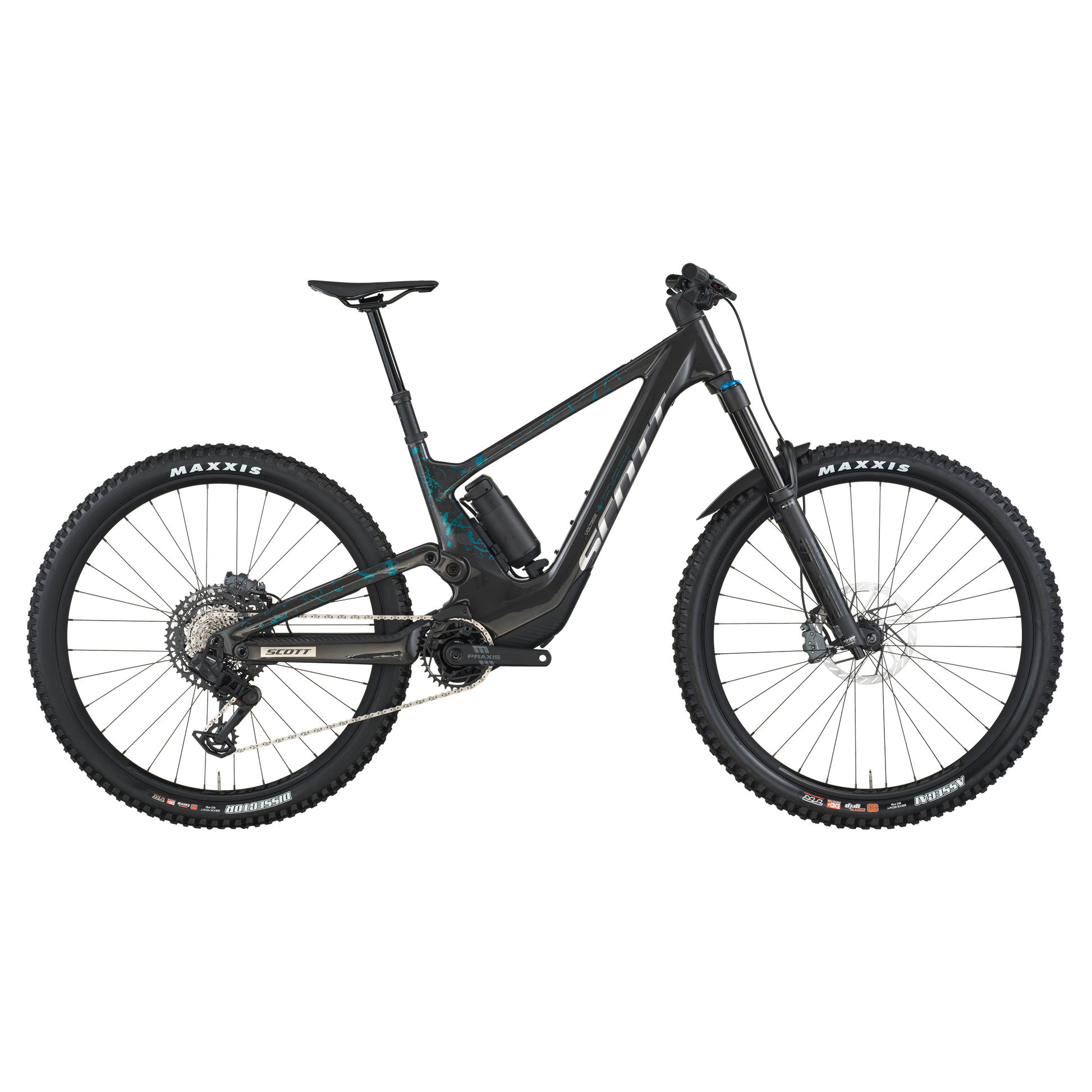

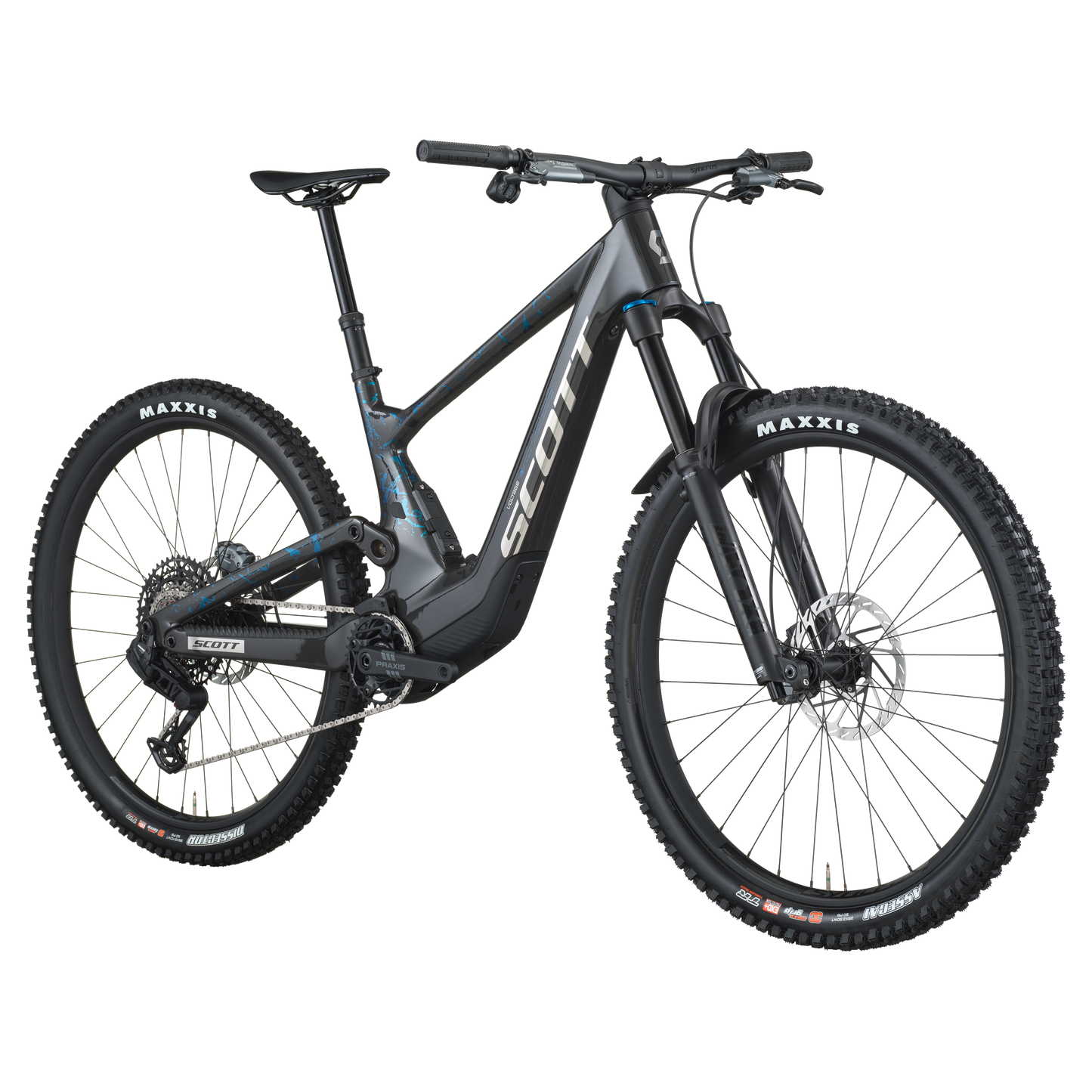

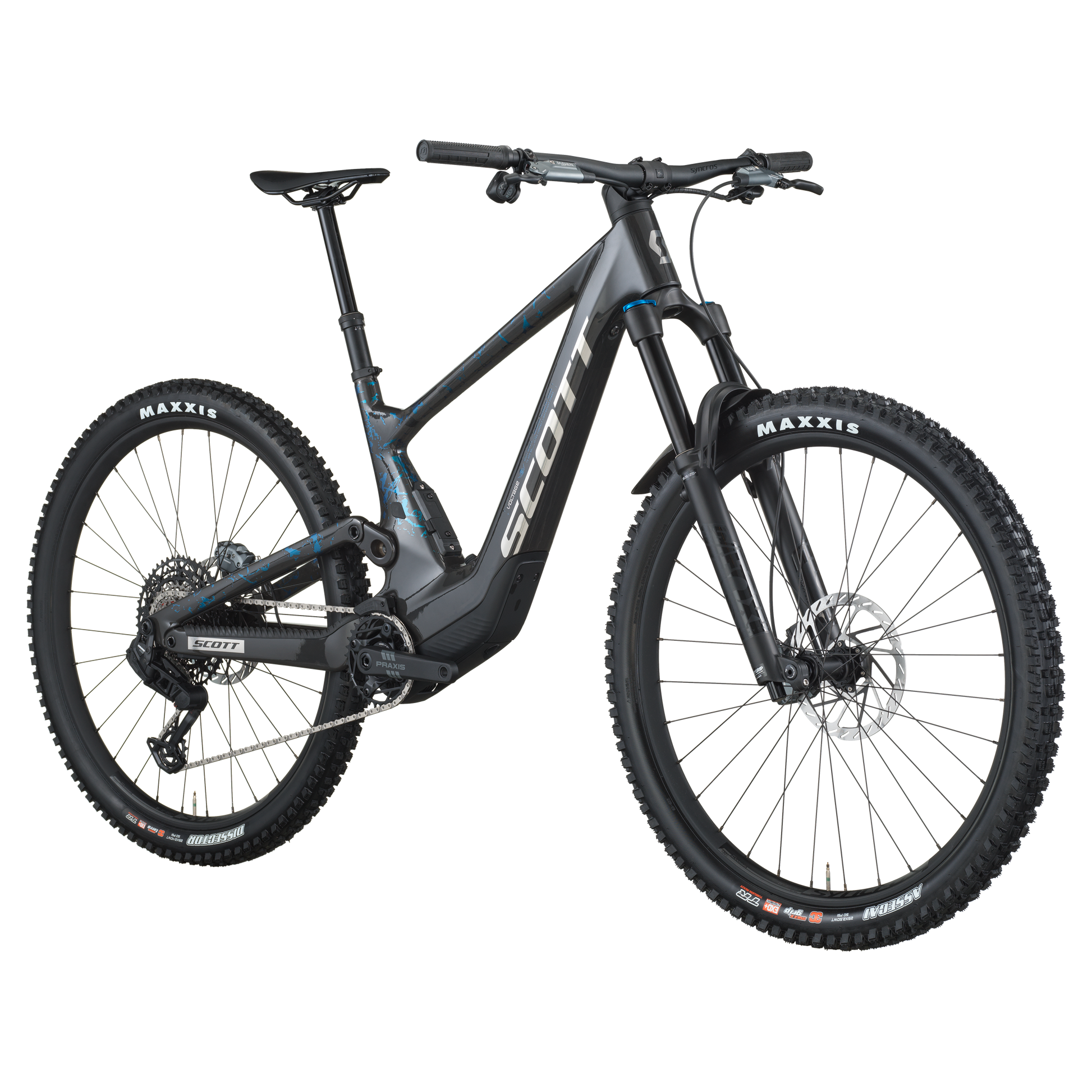

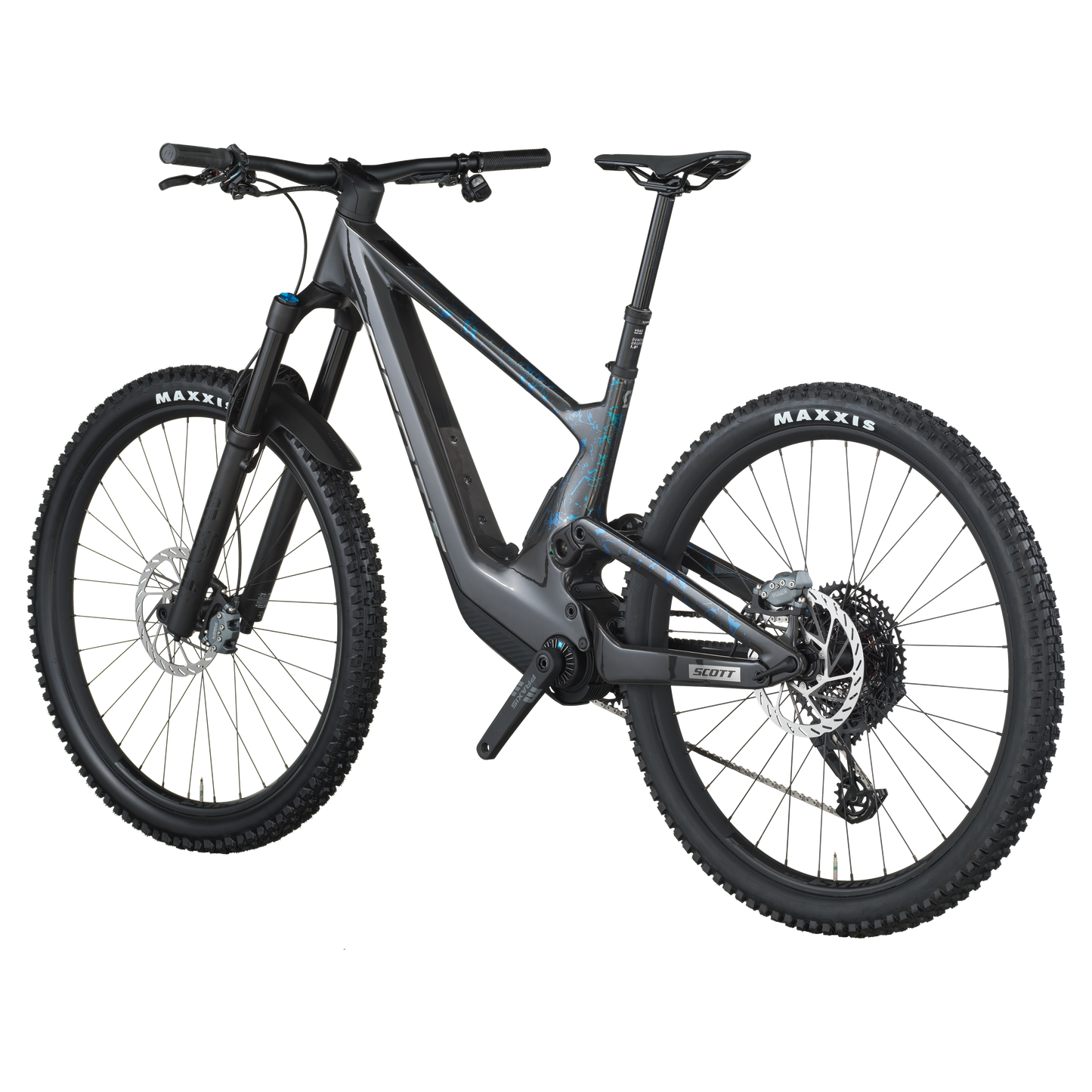

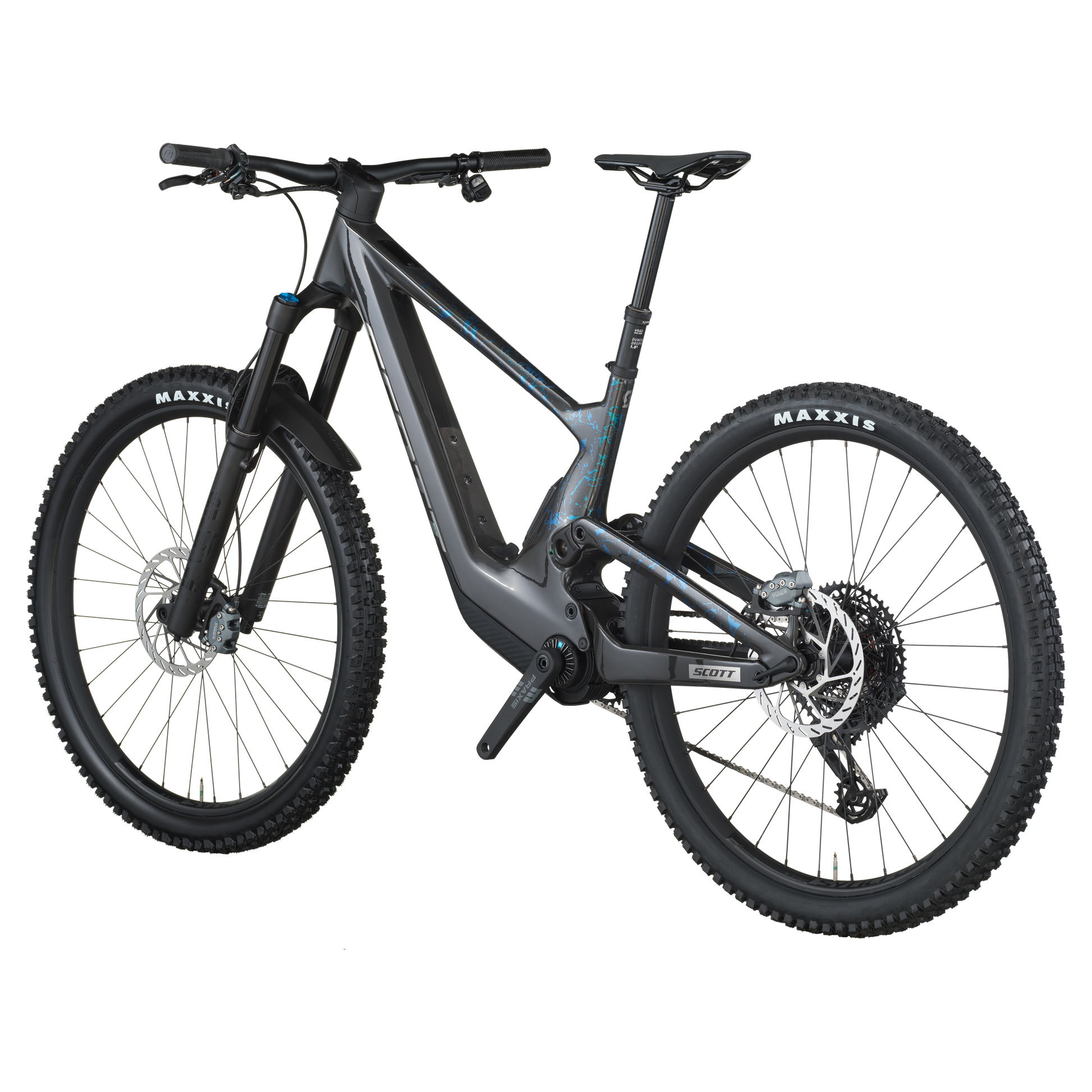

Take your trail rides and shuttle laps to an 11 with the boosted power and range of the long-travel Voltage 910 e-MTB—or better yet, be your own shuttle. Voltage 910’s new secret weapon is TQ’s updated HPR60 motor unit, which pumps out 60Nm of heart-pumped torque for a 20% performance boost over the previous Voltage. No switchback is too tight, and no obstacle is too challenging when you open up this trail monster on the ride.
But it’s not only power that’s improved. Range is also upgraded from the previous Voltage to give you extra “legs” when you want to reach that next peak or send a final lap before sunset. Each Voltage 910 now comes with a Range Extender Battery. It attaches with a quick-release mount and supplies 160 additional watt hours to the 360Wh main battery. It’s the assist you need to enjoy bigger days on the trails, and it’s small enough to pack if you want to have it along on any given ride.
Our NUDE Suspension technology with the Float-X NUDE shock from FOX paired with a fork that favors more adjustability. When you pedal up to have the most fun on the way down, you want a shock that gives you full factory performance when things point downwards, but also a shock that won’t slow you down when you need to ride back up. This is where the Float-X NUDE shines.
This Voltage also comes with SRAM’s Transmission groupset and powerful Maven four-piston brakes to give you the range and the stopping power to make every ride one to remember.
FrameCarbon HMFIntegrated Suspension TechnologyVirtual 4 Link kinematic, Adjustable head angleSyncros Cable Integration SystemTQ HPR60, UDH Interface, 12x148mm with 55mm Chainline
TravelFront: 160mm, Rear: 155mm

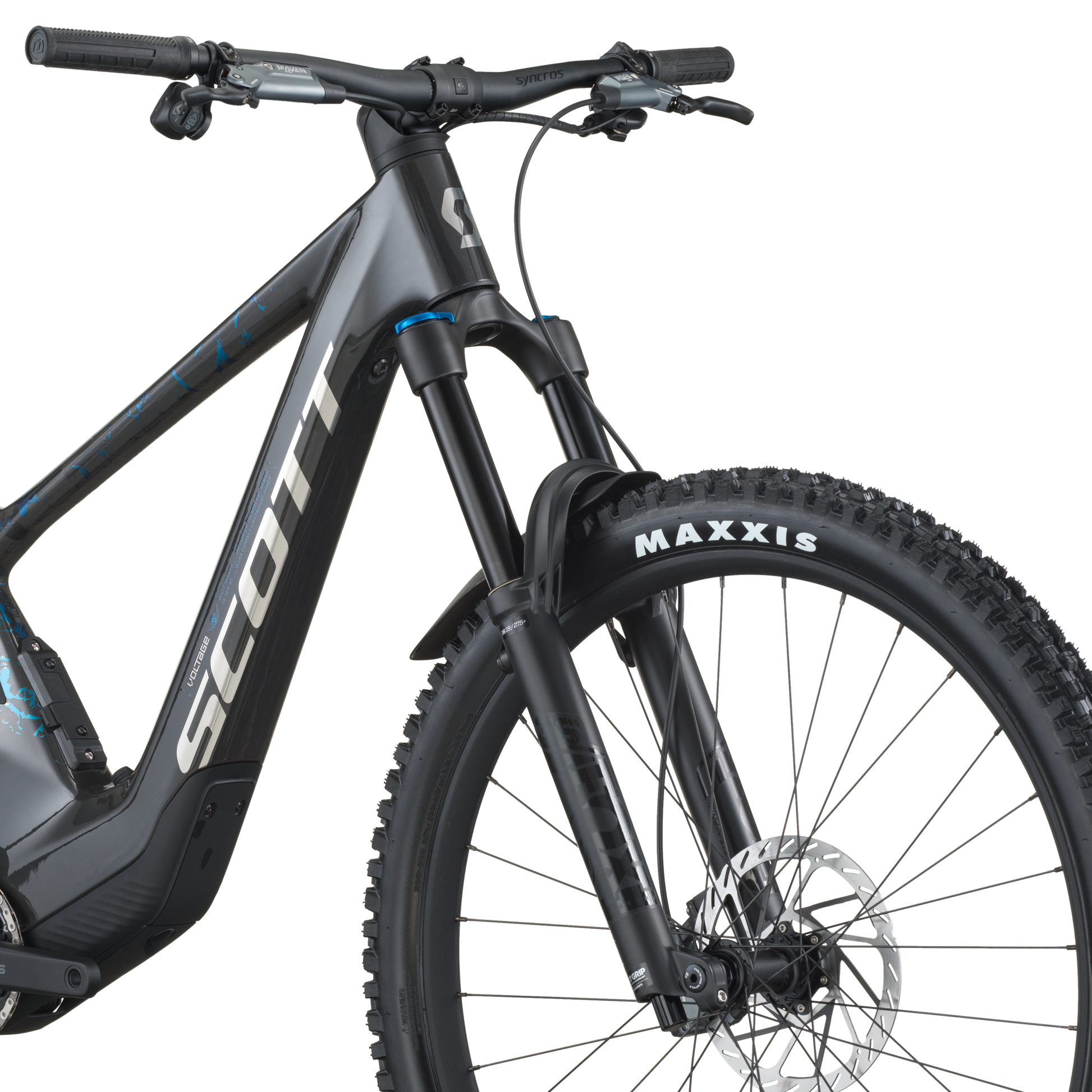

ForkFOX 36 Rhythm Air Grip, Sweep Adj., 15x110mm QR axle, tapered steerer44mm offset, Reb. Adj., Lockout, 160mm travel
Rear ShockFOX FLOAT X NUDE EVOL Piggy Back Trunnion, SCOTT custom w. travel, geo adj.3 modes: Climb-Ramp Control-DescendCustom large Air volume, Comp & Reb. Adj. Travel 155-100-Climb, T185X55mm
Remote SystemTracLoc TechnologyRear Suspension & Dropper Remote3 Rear Suspension modes

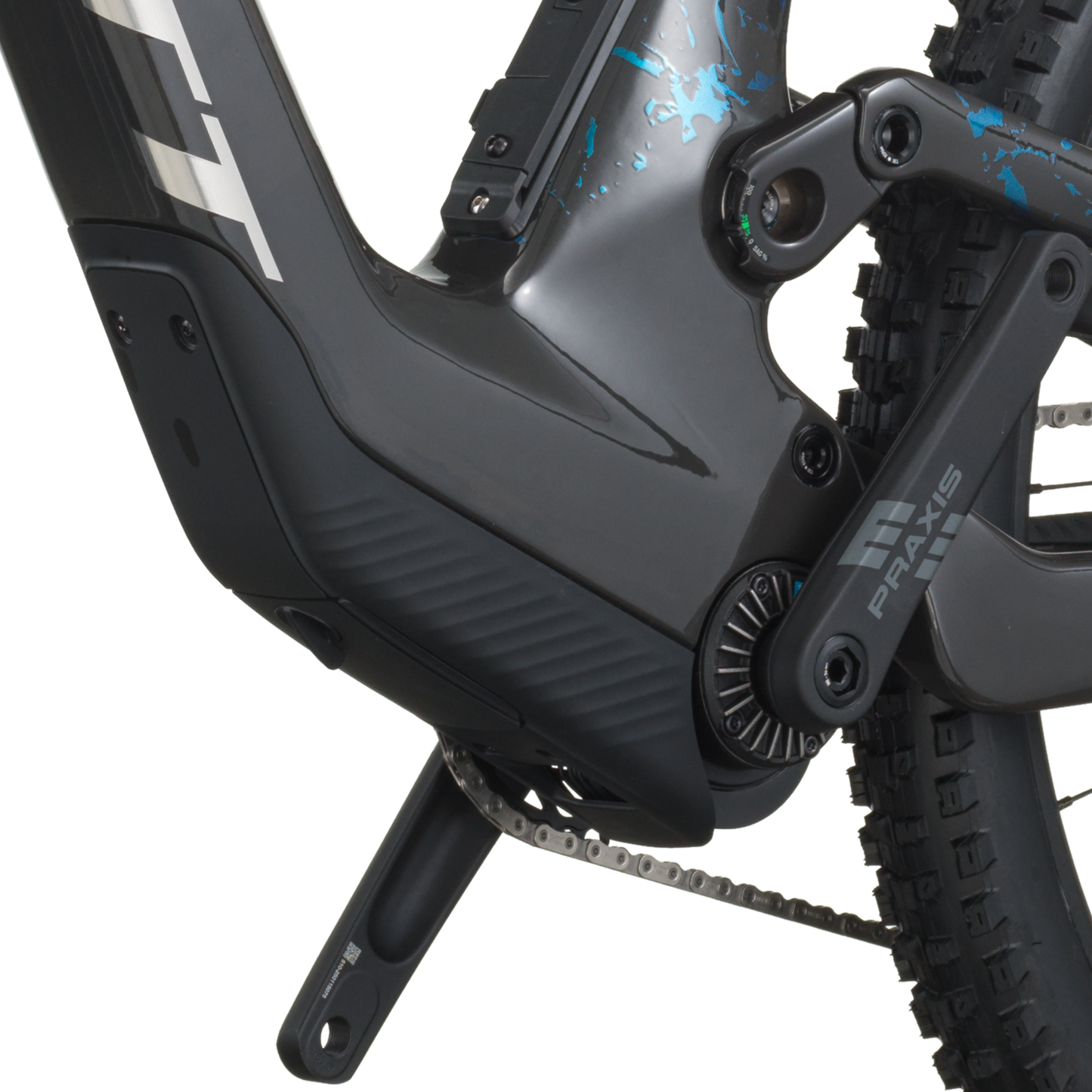

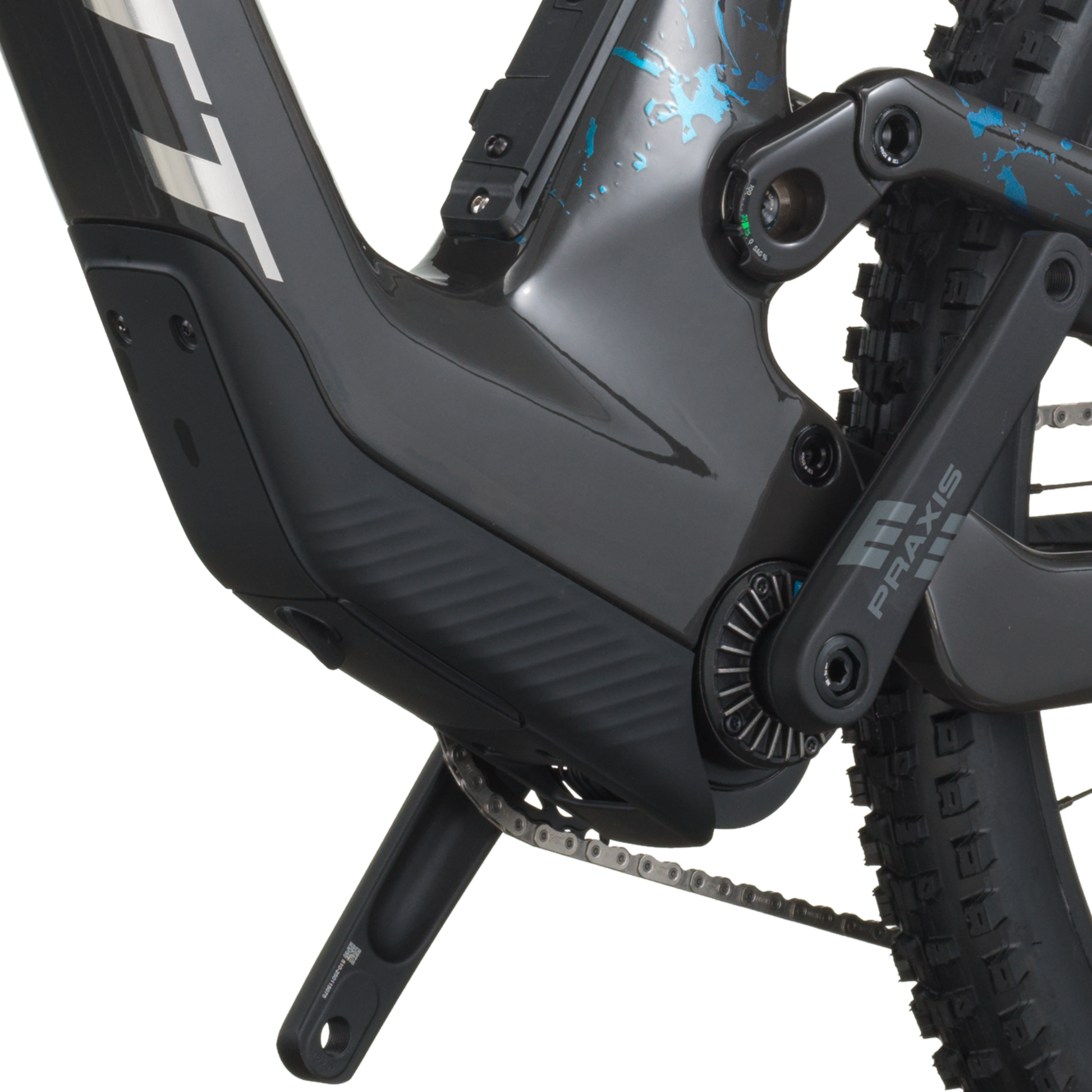

Drive UnitTQ HPR60 Mid Motor drive 60Nm max Torque, EU: 25kmh, US: 20mph
BatteryTQ Internal 360Wh + TQ Range Extender 160Wh
DisplayTQ HPRBluetooth, ANT+, Dedicated Smartphone app
ChargerTQ 100-240V-4A

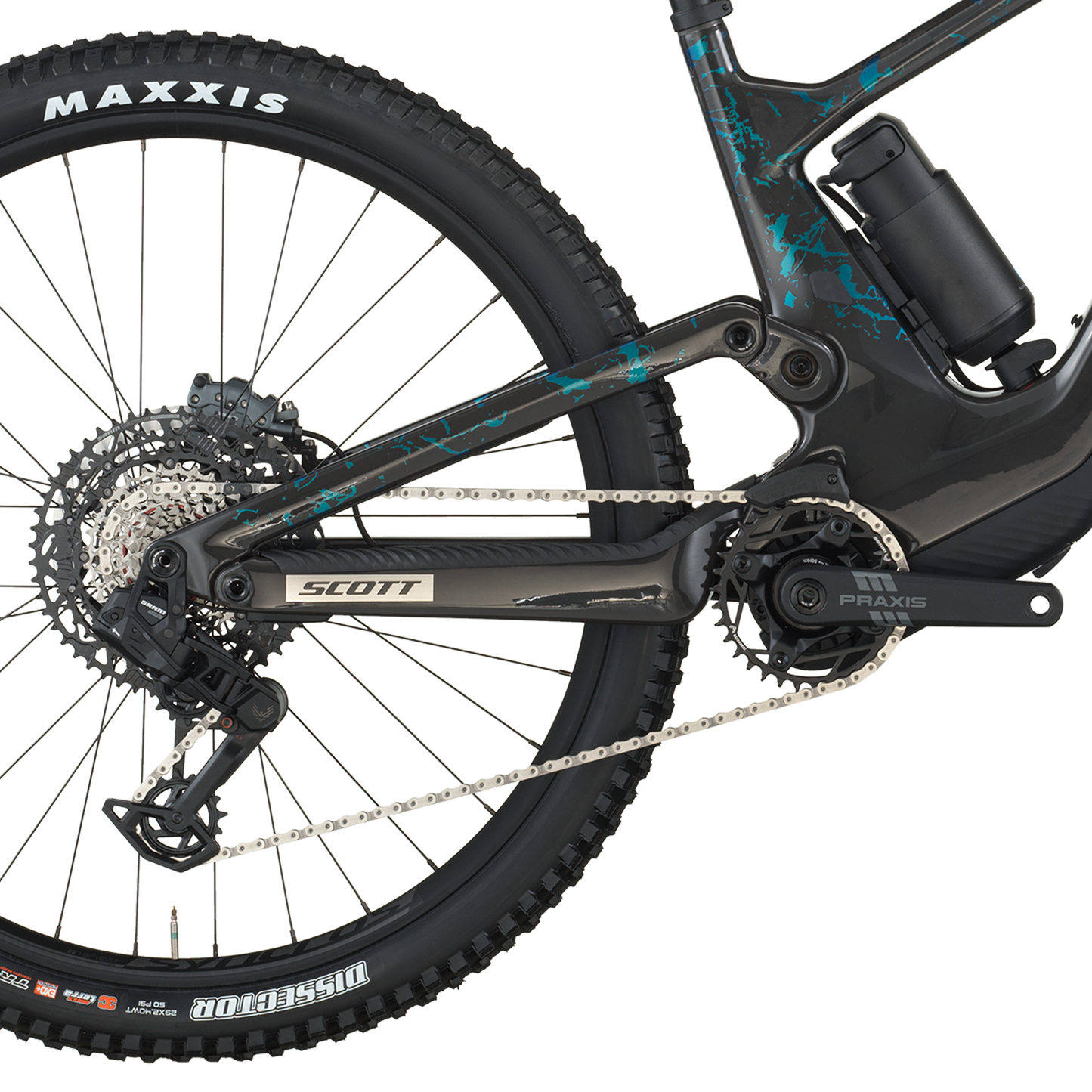

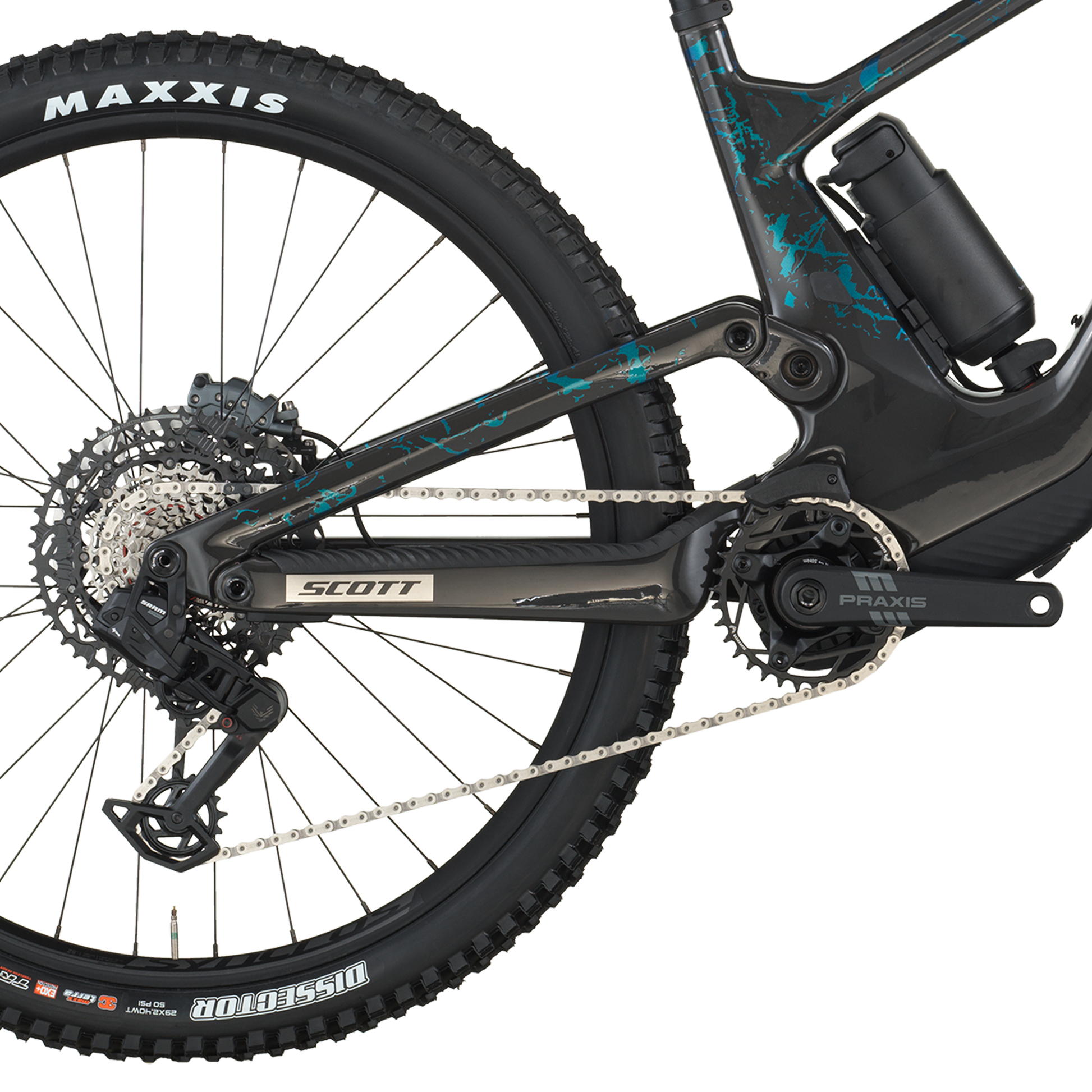

Rear DerailleurSRAM S1000 Eagle AXS Transmission 12 SpeedWireless Electronic Shift System
ShiftersSRAM AXS Rocker Pod Controller
CranksetPraxis Alloy
Chainguidee*thirteen, e*spec Slider
ChainringPraxis alloy spider, SRAM Eagle Transmission 34T chainring
ChainSRAM CN GX Eagle Transmission
CassetteSRAM Eagle XS 1270 Transmission 10-52

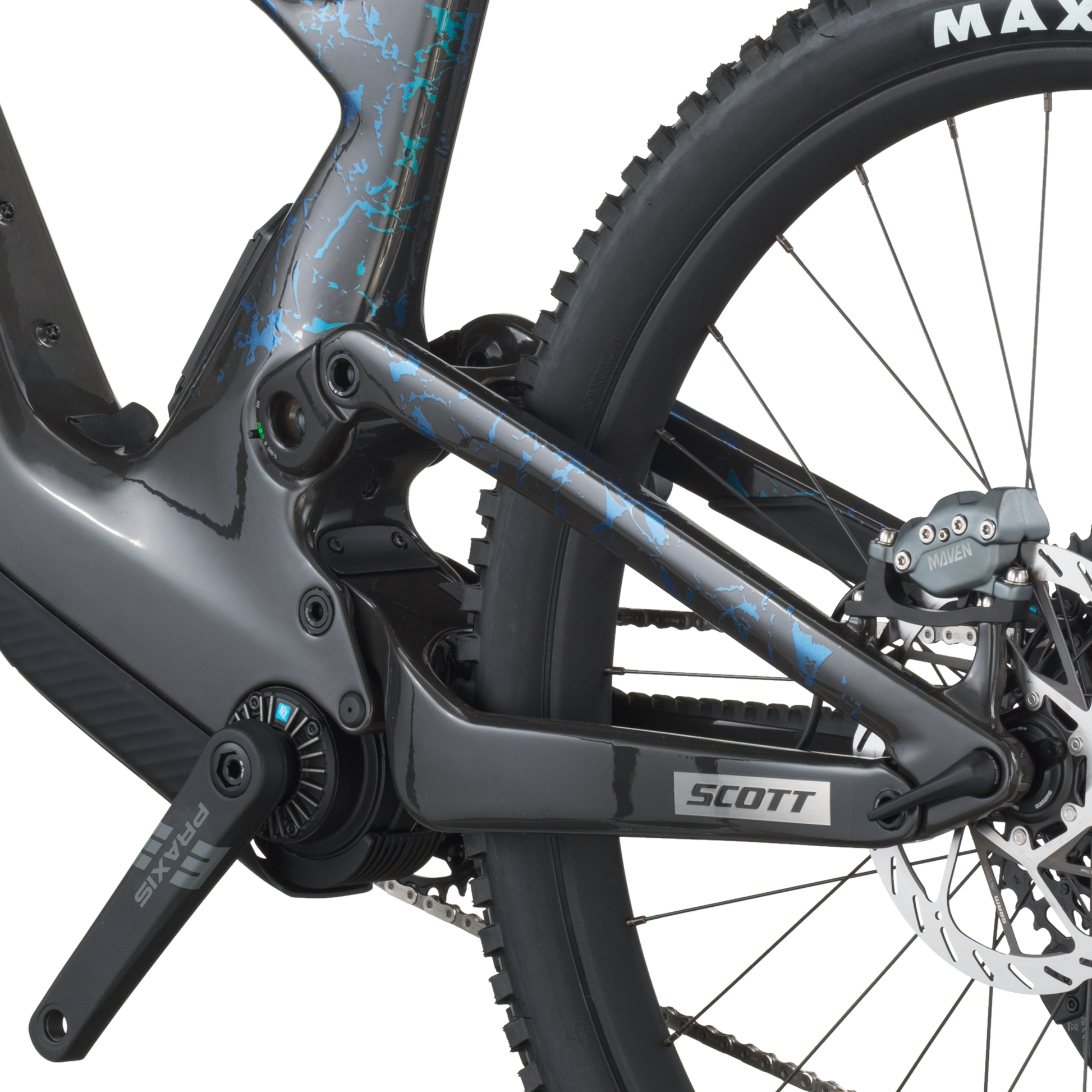

BrakesSRAM Maven Bronze Stealth 4-Piston Disc
RotorSRAM HS2 Rotors F&R 200mm

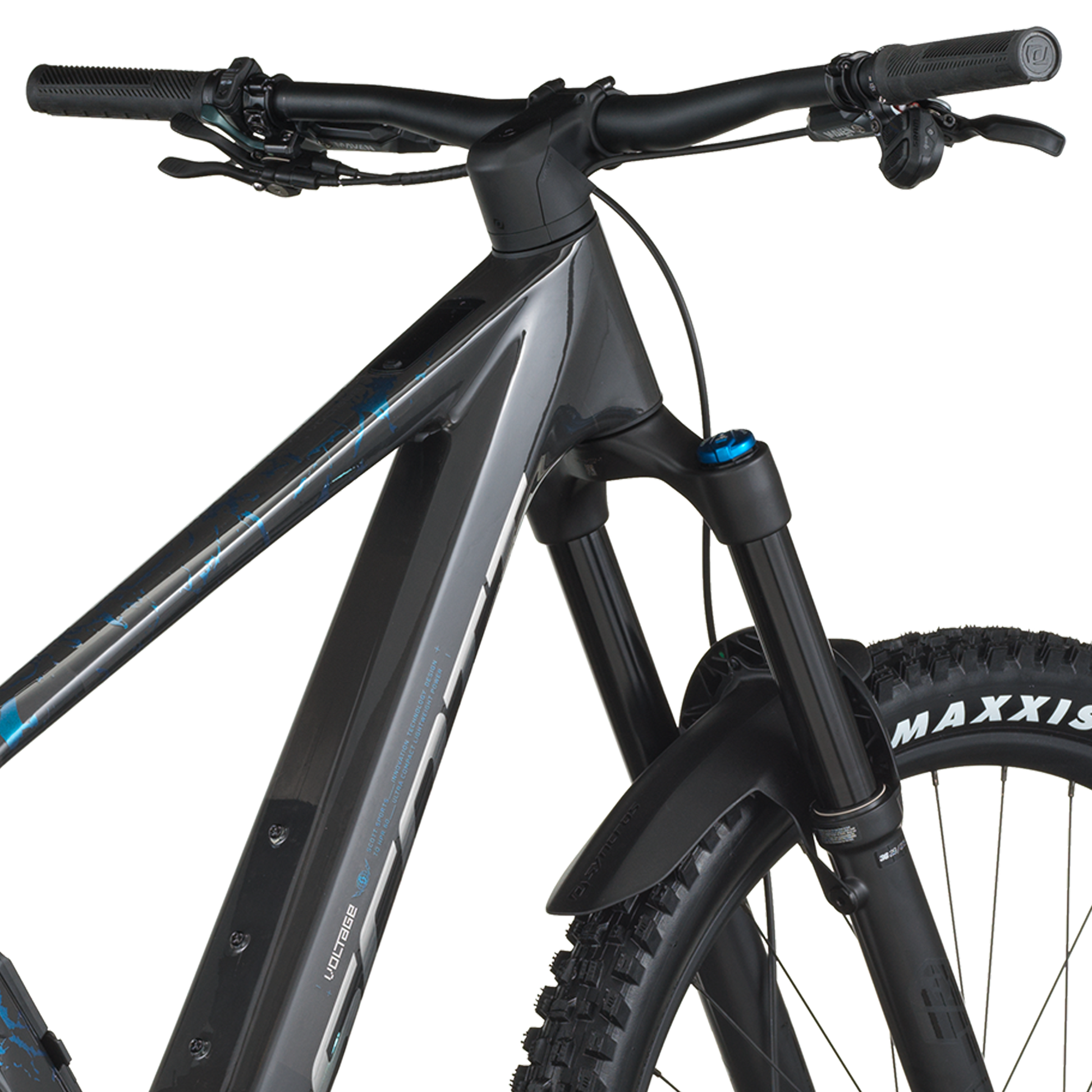

Handlebarback sweep 8°, 780mmSyncros Hixon 1.5 Alloy 7050, Size S & M 15mm rise, Size L & XL 25mm riseSyncros Endurance lock-on grips
H'stemSyncros AM 1.54° rise, 7050 Alloy, 31.8mm, 1 1/8"Syncros Cable Integration System
SeatpostSyncros Duncan Dropper Post 1.5s, Travel Adjust, 31.6mmS size 140mm, M size 180mm, L size 180mm, XL size 210mm
SeatSyncros Tofino 1.5 RegularTitanium rails
HeadsetSyncros - Acros Angle adjust & Cable Routing HS SystemStainless, +-0.6° head angle adjustmentZS56/28.6 – ZS56/40 MTB
Hub (Front)Formula CL-811, 15x110mm
Hub (Rear)Formula CL-148S, 12x148mm
SpokesStainless Black 15G, 1.8mm
RimsSyncros X-30S, 32H, 30mm, Sleeve JointTubeless ready
Front TireMaxxis Assegai, 2.5", 60TPI FoldableTubeless Ready, EXO+ 3C Maxx Terra
Rear TireMaxxis Dissector, 2.5", 60TPI FoldableTubeless Ready, EXO+ 3C Maxx Terra
ExtrasSRAM AXS Extension Cord
Approx weight in KG19.9 Tubless setup without RE (1.1kg)
Approx weight in LBS43.87 Tubless setup without RE (1.1kg)
Max. System Weight130kgThe overall weight includes the bike, the rider, the equipment, and possible additional luggage.
