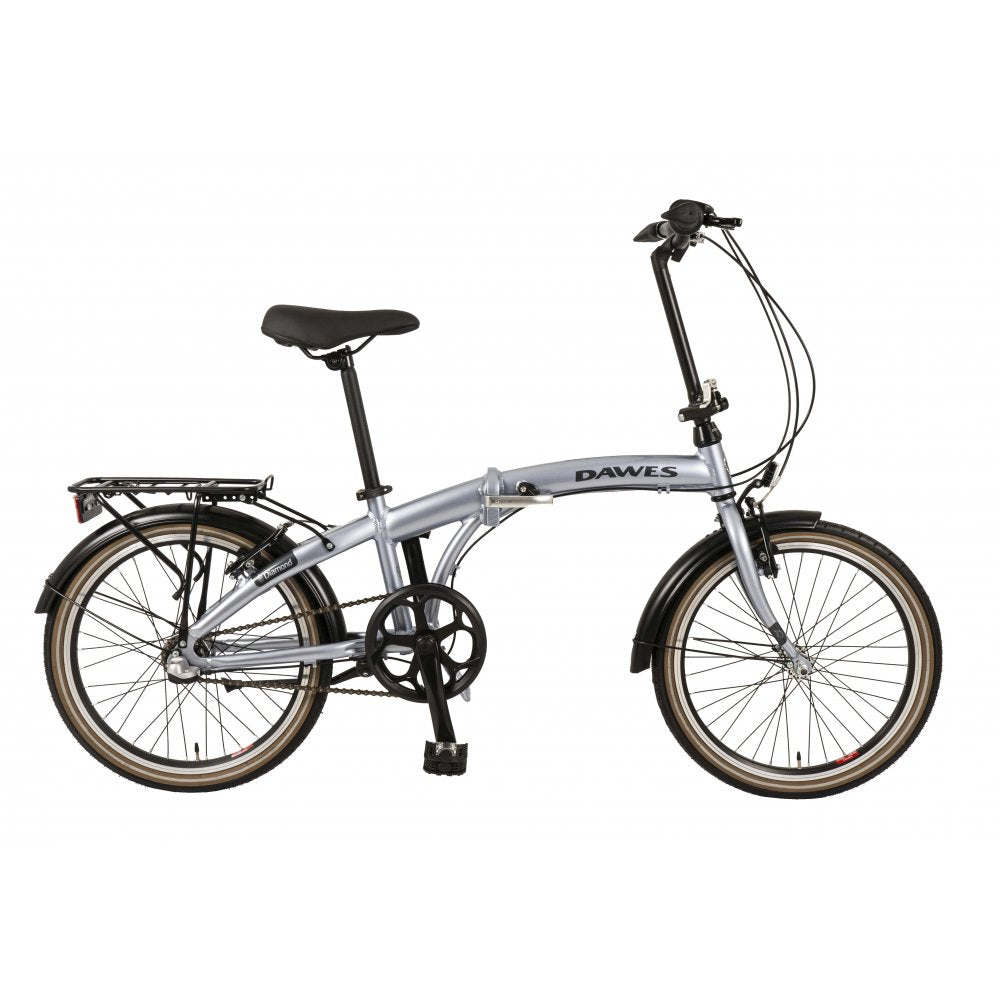

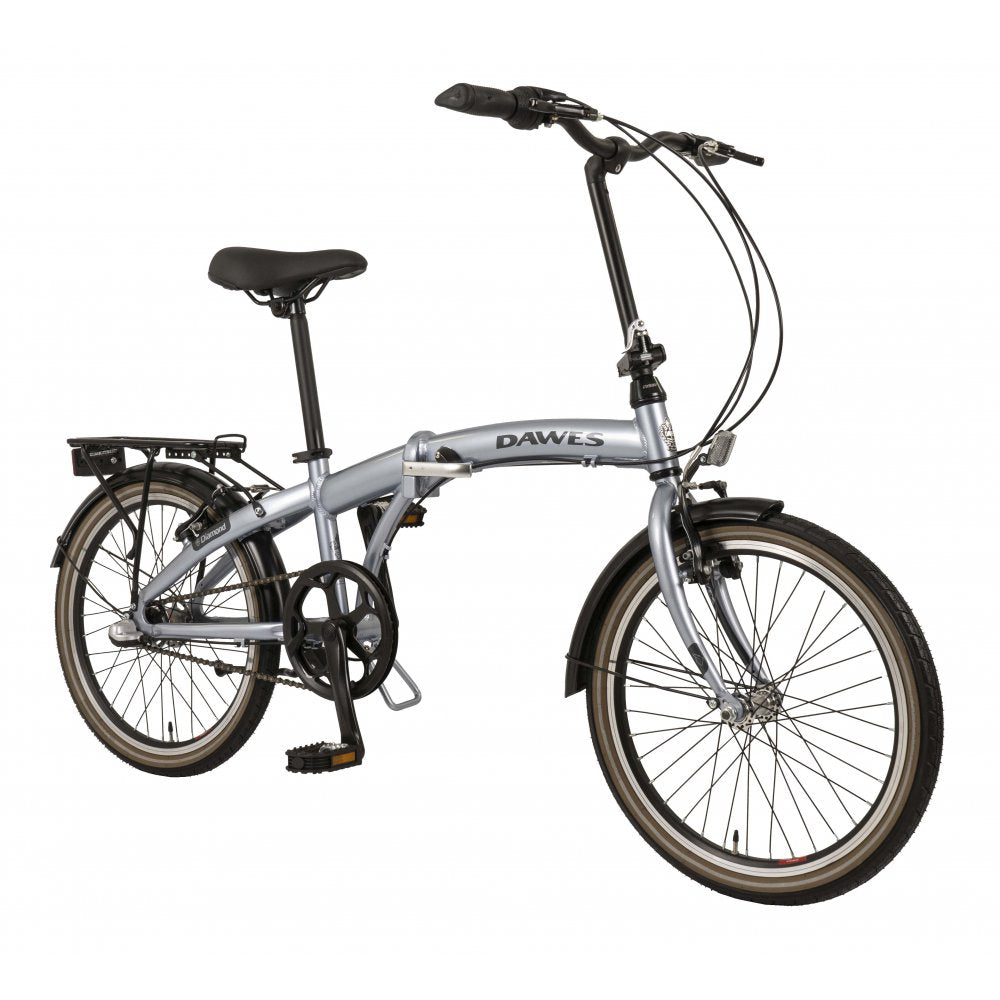

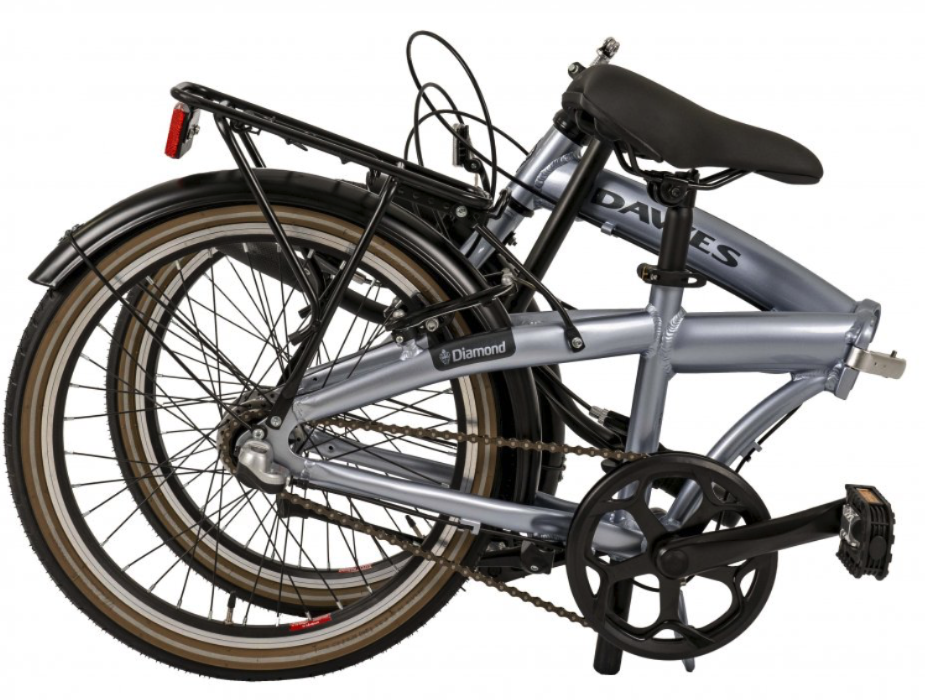

The Diamond is an extremely versatile folding bike. Featuring an alloy folding frame with 3 point locking mechanism, 3 speed Shimano Nexus hub, alloy V-brakes, steel mudguards and a comfort saddle. It is suitable for short commutes and leisure riding making it an excellent bike for the rider on a budget.

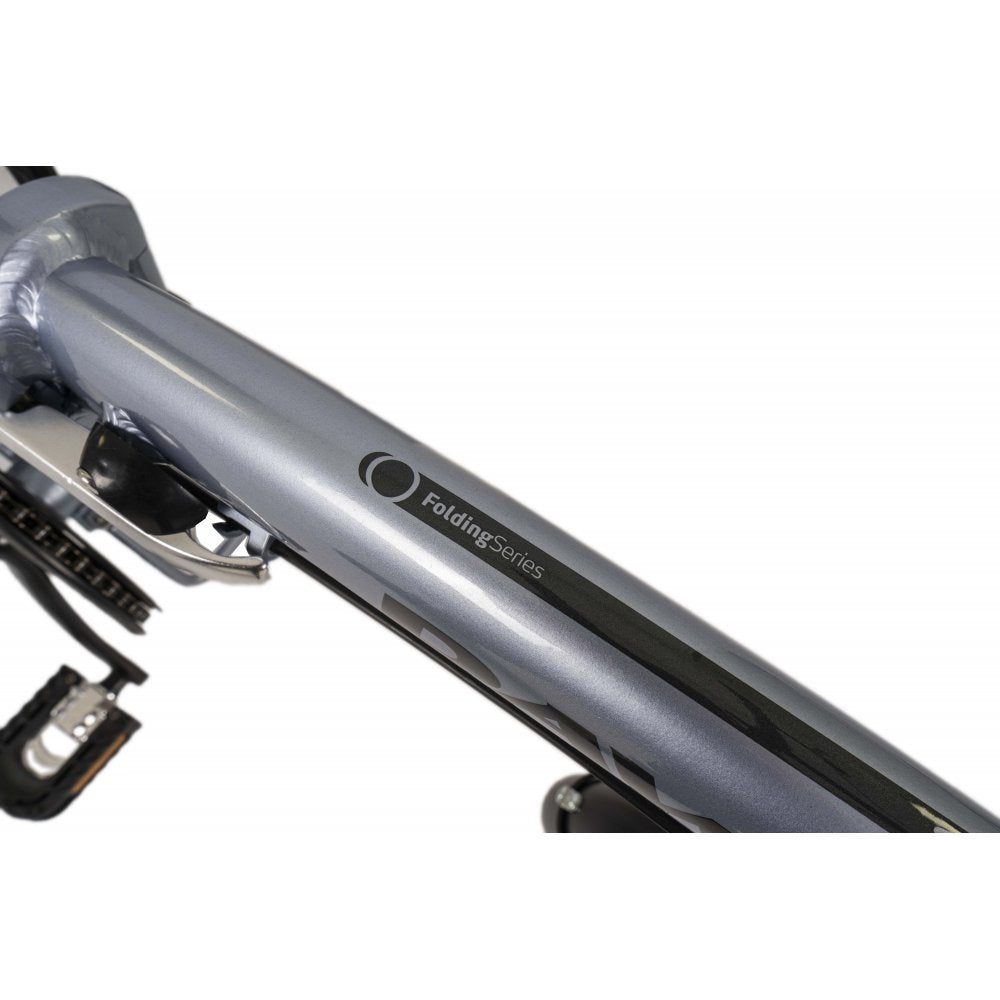

Frame | Dawes 6061 Alloy Folding Frame |
---|---|
Fork | Dawes Hi-Tensile Unicrown Steel |
Headset | 1.1/8" Threaded |
Handlebar | Dawes Riser Bar / 30mm Rise / 6 Degree Backsweep / 600mm Wide |
Stem | Alloy Folding / 390mm Extension / 3 degree rise |
Grips | Comfort Grips, Double Density |
Gear Shifters | Shimano Nexus Revoshift SL-3S35E 3spd |
Freewheel | Shimano 18T sprocket |
Chainwheel | 170mm Alloy Cranks / 46T Chainring |
Bottom Bracket | Cartridge BB 123mm axle |

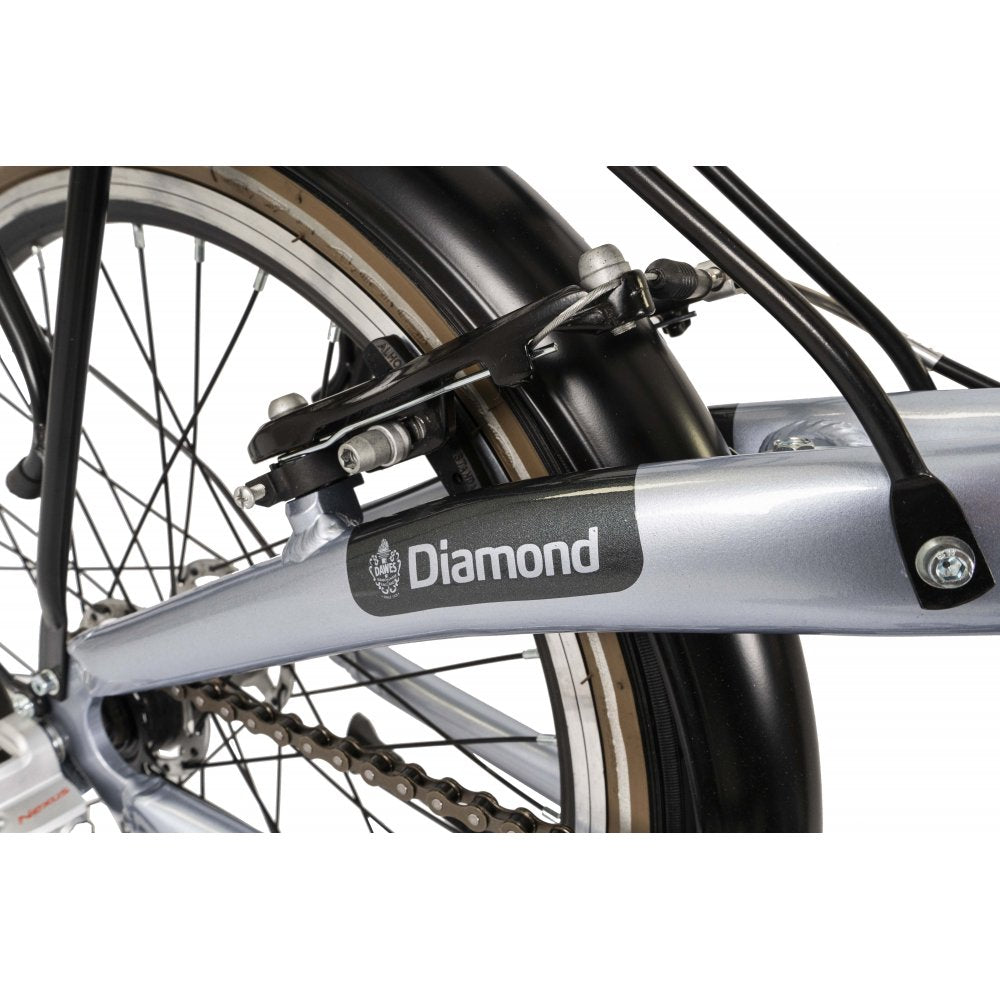

Brakes | V-brakes Linear Pull Alloy |
Brake Levers | Alloy lever |
Pedals | 9/16" Folding |
Front Hub | 36H Nutted |
Rear Hub | 36H Shimano NEXUS 3spd Interl Gear Hub Nutted |
Rims | Double Wall Alloy with CNC braking surface |
Spokes | 14G |
Tyres | 20 x 1.75" , Gumwall with reflective line |
Saddle | Dawes Custom, Comfort Saddle |
Seat Post | 27.2mm x 500mm |
Mudguards | Steel |
Weight | 15kg |
